Description
The Eaton Tripp Lite B002-DP2A4-N4 Secure 4-Port Dual-Head DisplayPort KVM Switch is a high-assurance solution designed for secure data environments such as government, defense, finance, and healthcare. Certified to NIAP PP4.0, this KVM enables users to control up to four isolated computers—each with dual DisplayPort outputs—from a single keyboard, mouse, and dual-monitor console.
Engineered with advanced data protection, each port is electronically isolated, eliminating cross-domain data leakage or crosstalk. The switch supports Ultra HD 4K (3840 x 2160 @ 30 Hz) video for crystal-clear visuals and complies with the Trade Agreements Act (TAA) for federal procurement. Its anti-tamper protection, secure firmware, and USB filtering safeguard against unauthorized access or reprogramming, while automatic keyboard buffer clearing and physical port switching reinforce data integrity.
Ideal for mission-critical networks that demand both operational performance and top-tier security, the B002-DP2A4-N4 ensures peace of mind in sensitive, multi-domain environments.
| Category | Specification |
|---|---|
| Model | B002-DP2A4-N4 |
| Type | Secure 4-Port Dual-Head DisplayPort KVM Switch |
| Video Resolution | Up to 3840 x 2160 @ 30 Hz (4K UHD) |
| Color Depth / Chroma | 36-bit Deep Color / 4:4:4 |
| DisplayPort Version | 1.2 |
| Number of Computers | 4 |

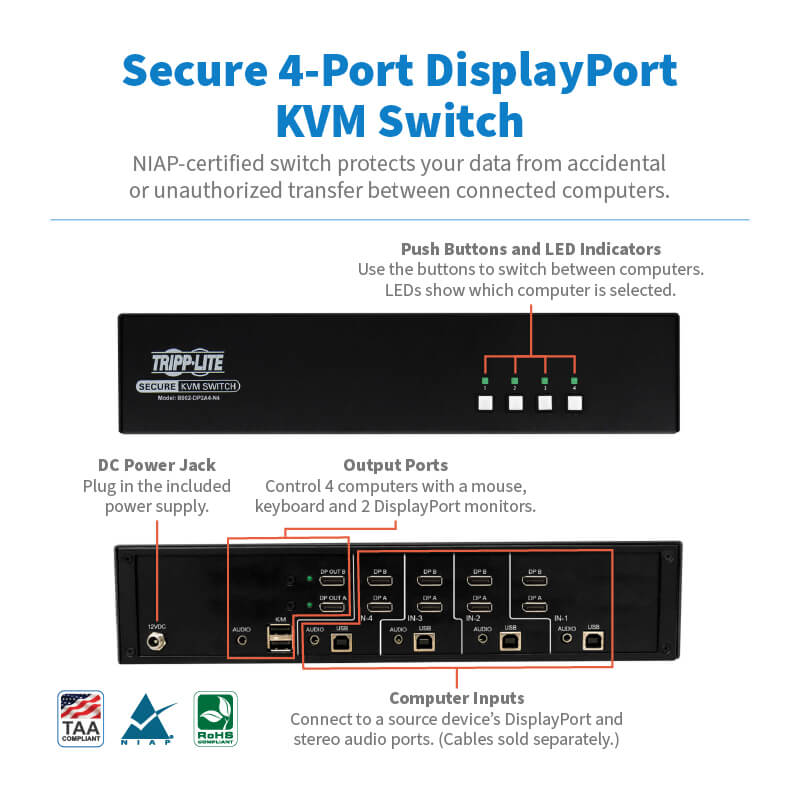

| Console Connections | (2) DisplayPort, (2) USB-A, (1) 3.5 mm Audio |

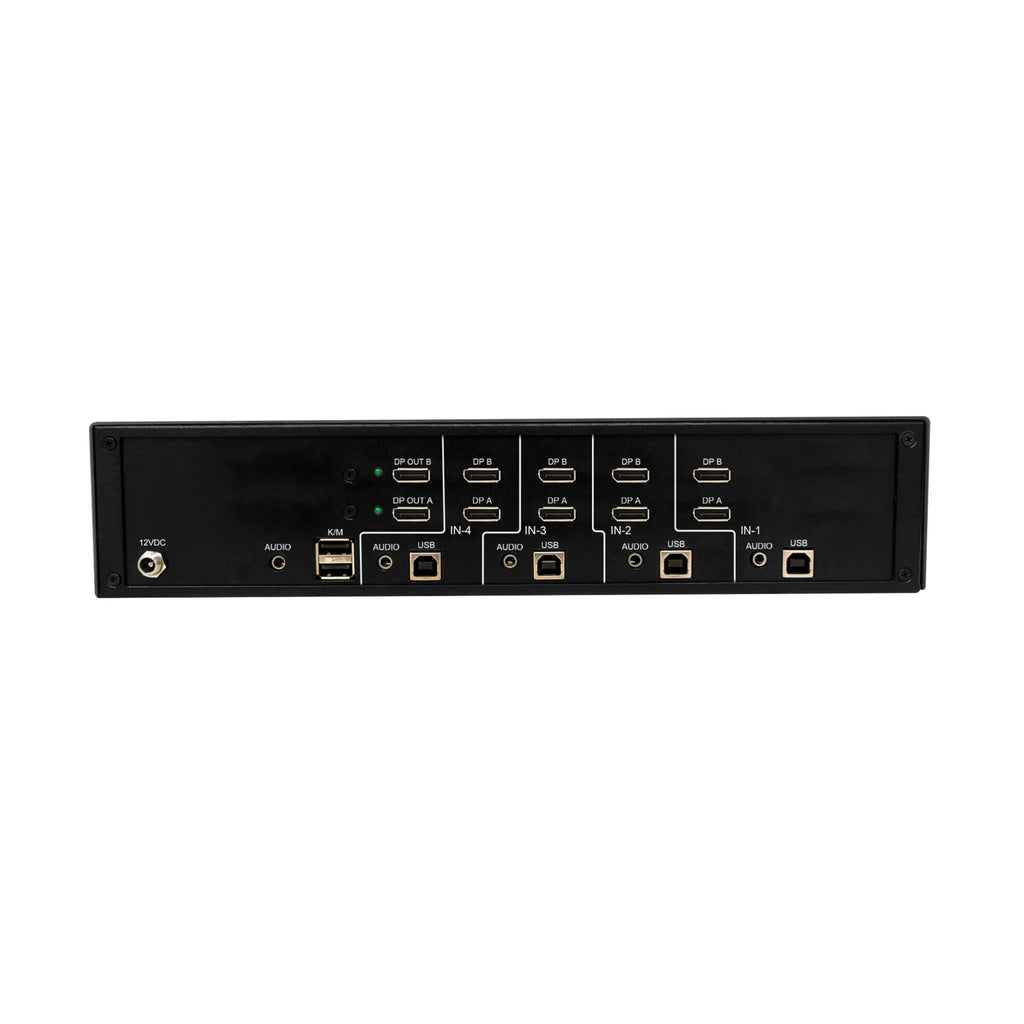

| Computer Connections | (8) DisplayPort, (4) USB-B, (4) 3.5 mm Audio |
| USB Specification | USB 1.1 (up to 12 Mbps) |
| NIAP Certification | NIAP PP4.0 (Common Criteria) |
| Video Support | Dual-monitor DisplayPort |
| Audio Support | Stereo analog audio (3.5 mm) |
| Port Switching | Front-panel pushbuttons only (no OSD or hotkeys) |
| Security Features | Firmware protection, tamper detection, port isolation, keyboard buffer clearing |
| Power Source | External AC adapter (Input: 100–240V 50/60 Hz, Output: 12V 3A) |

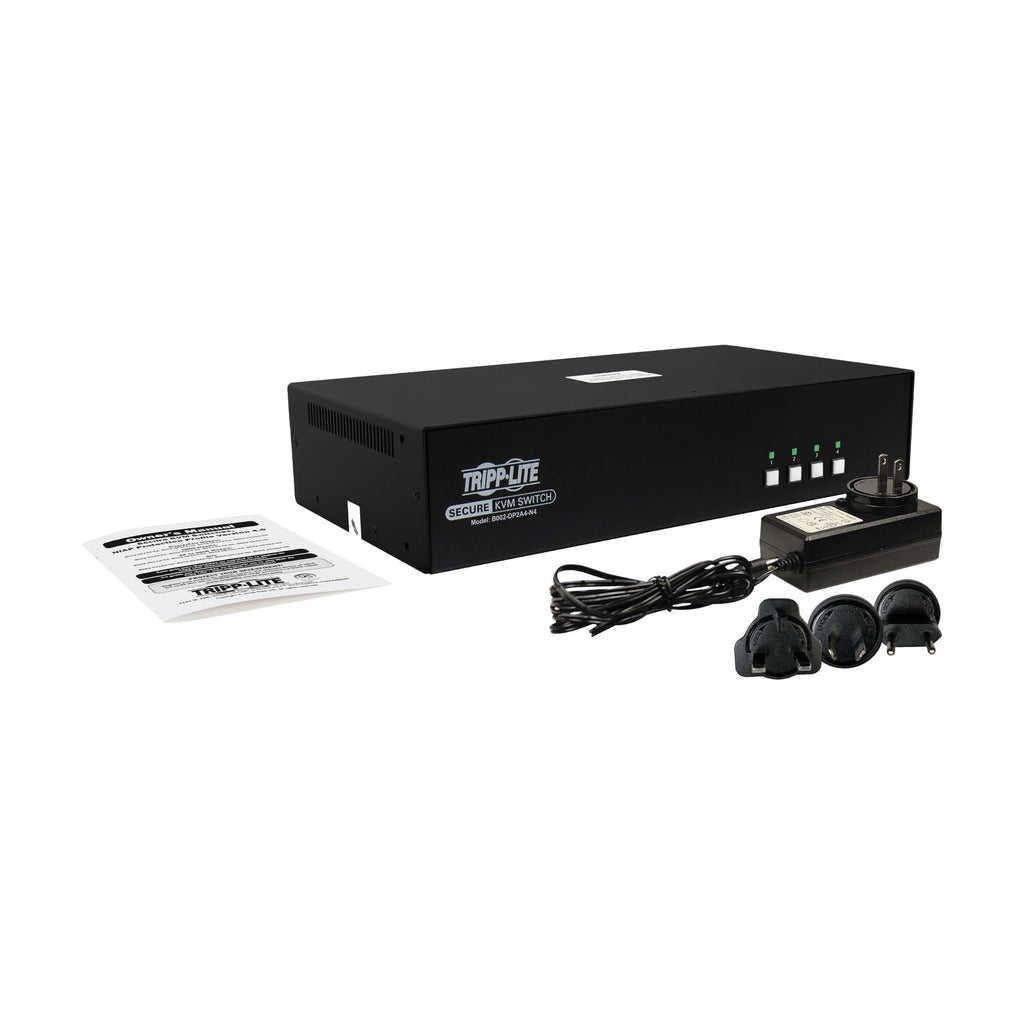

| Included Power Heads | US, UK, EU, Australia |
| Material | Metal |
| Dimensions (H x W x D) | 6.85 x 31.7 x 16.9 cm |
| Weight | 1.91 kg |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Humidity | 0–80% non-condensing |
| Compliance | NIAP PP4.0, TAA, RoHS, CE, FCC, UKCA, NOM |
| Warranty | 3-Year Limited Warranty |
