Description
The Eaton Tripp Lite B002-DP1AC4-N4 is a 4-port NIAP PP4.0-certified DisplayPort KVM switch designed for secure desktop environments where data integrity and isolation are critical. Ideal for government, military, financial, and healthcare applications, this KVM allows you to safely control up to four computers of varying security levels from a single console without the risk of data leakage or unauthorized data transfer.
Featuring Ultra HD 4K (3840 x 2160 @ 30Hz) video output, Common Access Card (CAC) support for biometric and smart card readers, and robust anti-tampering protection, the B002-DP1AC4-N4 ensures top-tier security and operational efficiency. The unit maintains constant keyboard and mouse emulation to eliminate input lag, includes EDID learning for stable video connections, and uses push-button port switching for added security. Fully TAA-compliant, this switch meets stringent federal procurement requirements and offers a 3-year limited warranty for long-term reliability.
| Feature | Description |
|---|---|
| Model | B002-DP1AC4-N4 |
| Type | 4-Port Secure DisplayPort KVM Switch |
| Certification | NIAP PP4.0 Certified; TAA Compliant |
| Video Resolution | Up to 3840 x 2160 (4K @ 30Hz), 36-bit Deep Color, 4:4:4 Chroma |
| DisplayPort Version | 1.2 |
| CAC Support | Yes – Supports Smart Cards, Biometric Readers, Scanners |
| Audio Support | 3.5 mm stereo (input/output) |
| USB Specification | USB 1.1 / 2.0 up to 480 Mbps |

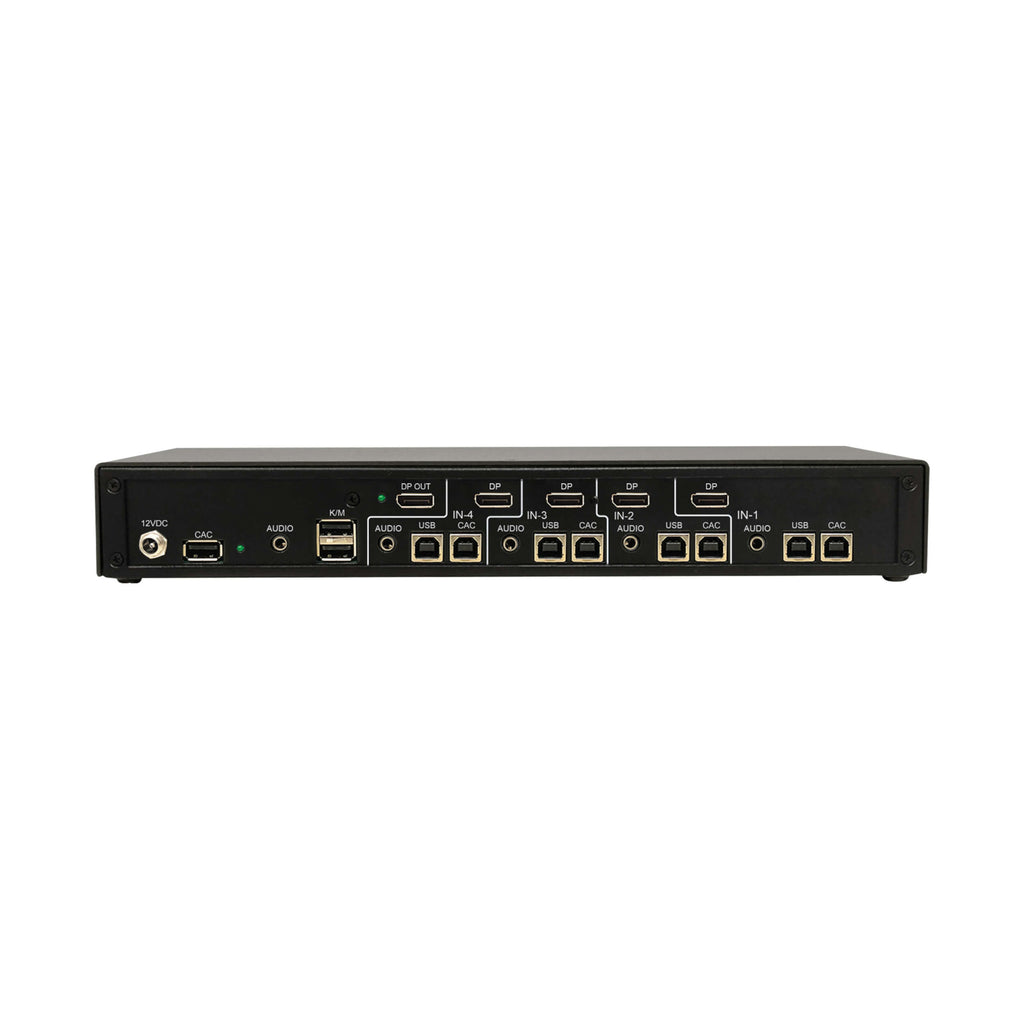

| Computer Connections | (4) DisplayPort; (4) USB-B |
| Console Connections | (2) DisplayPort; (3) USB-A; (2) 3.5 mm audio |

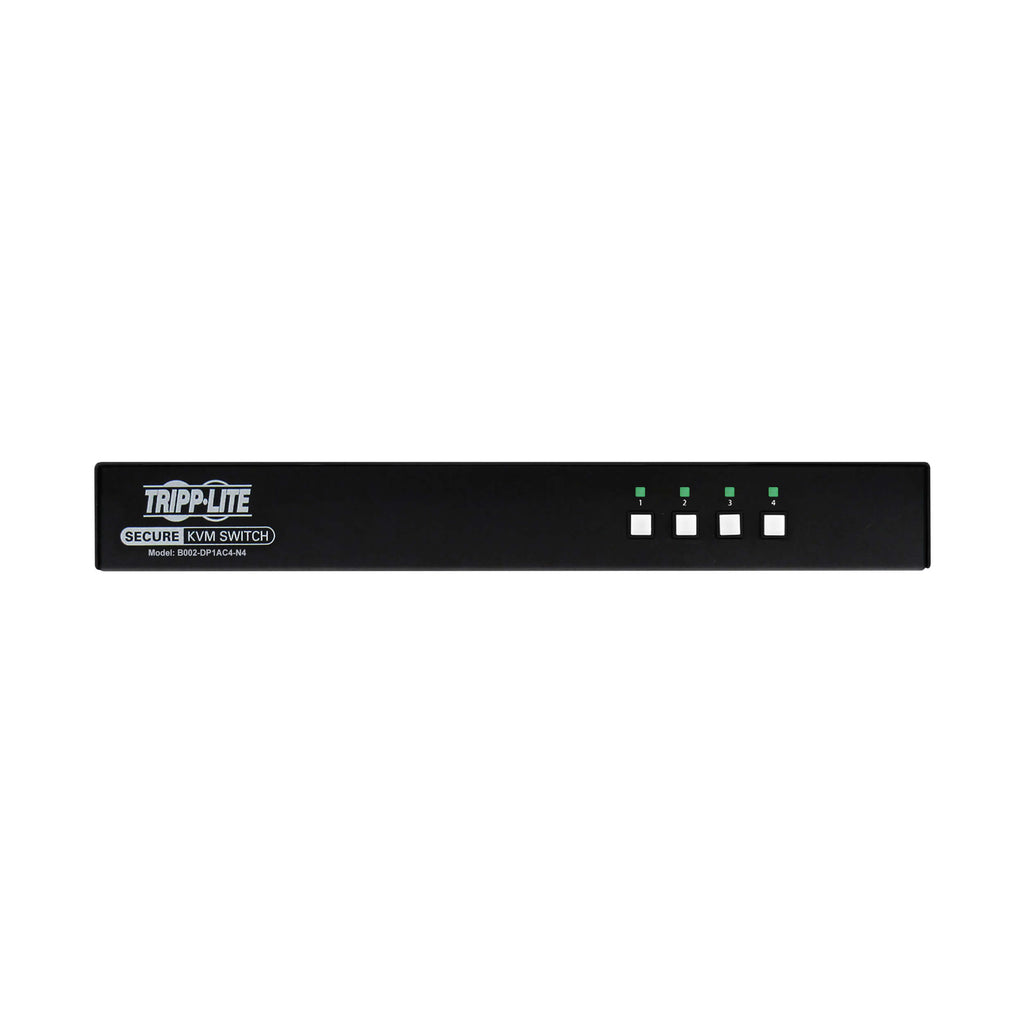

| Port Switching | Push-button (no OSD or hotkey to ensure data security) |
| Security Features | NIAP-certified isolation, CAC authentication, anti-tampering housing, firmware protection |

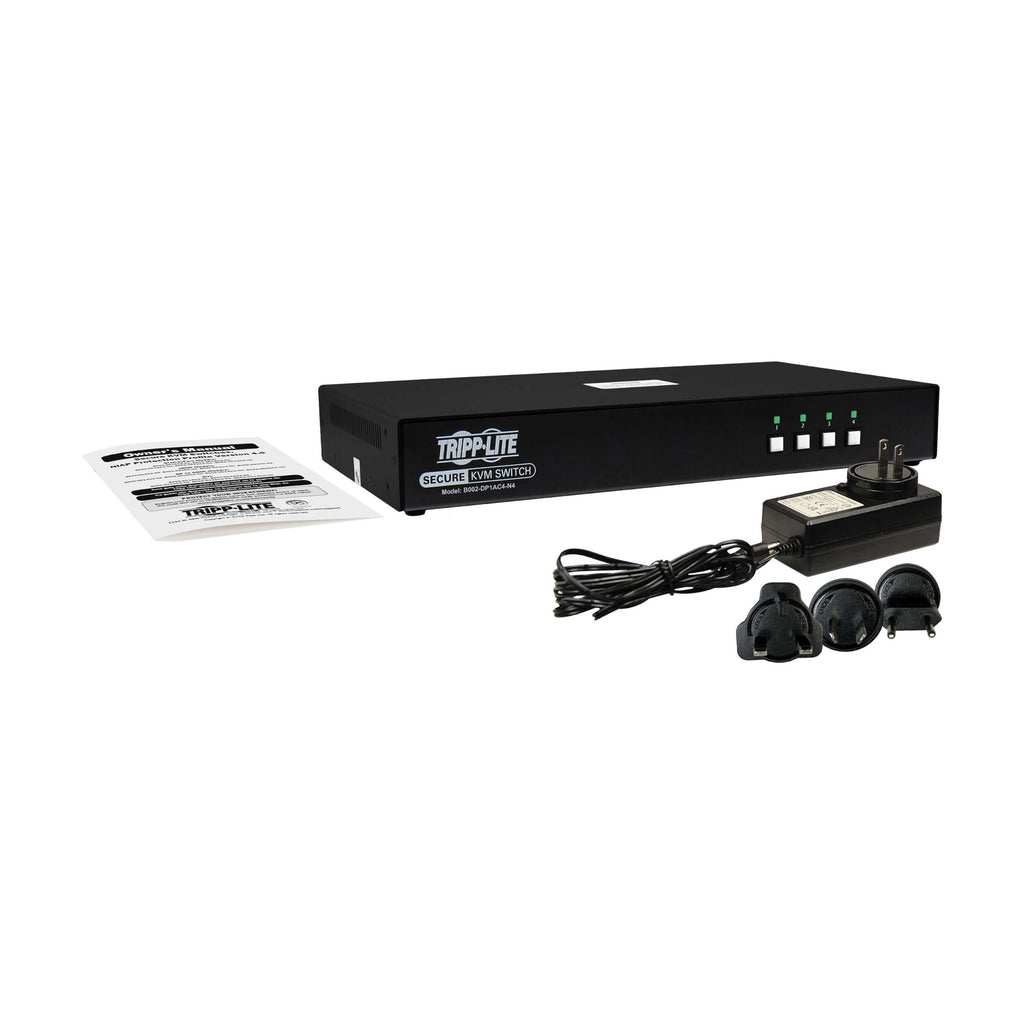

| Power Supply | 12V 3A external adapter (100–240V, 50/60Hz, 1.3A) with interchangeable plugs (US, UK, EU, AU) |
| Dimensions (H x W x D) | 1.76 x 12.57 x 6.69 in (4.47 x 31.92 x 16.99 cm) |
| Weight | 4.2 lb (1.91 kg) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | -4° to 140°F (-20° to 60°C) |
| Relative Humidity | 0–80% non-condensing |
| Material | Metal enclosure with anti-tamper seals |
| Warranty | 3-year limited warranty |
| Compliance | NIAP PP4.0, TAA, RoHS, CE, FCC, UKCA, NOM (Mexico) |
