Description

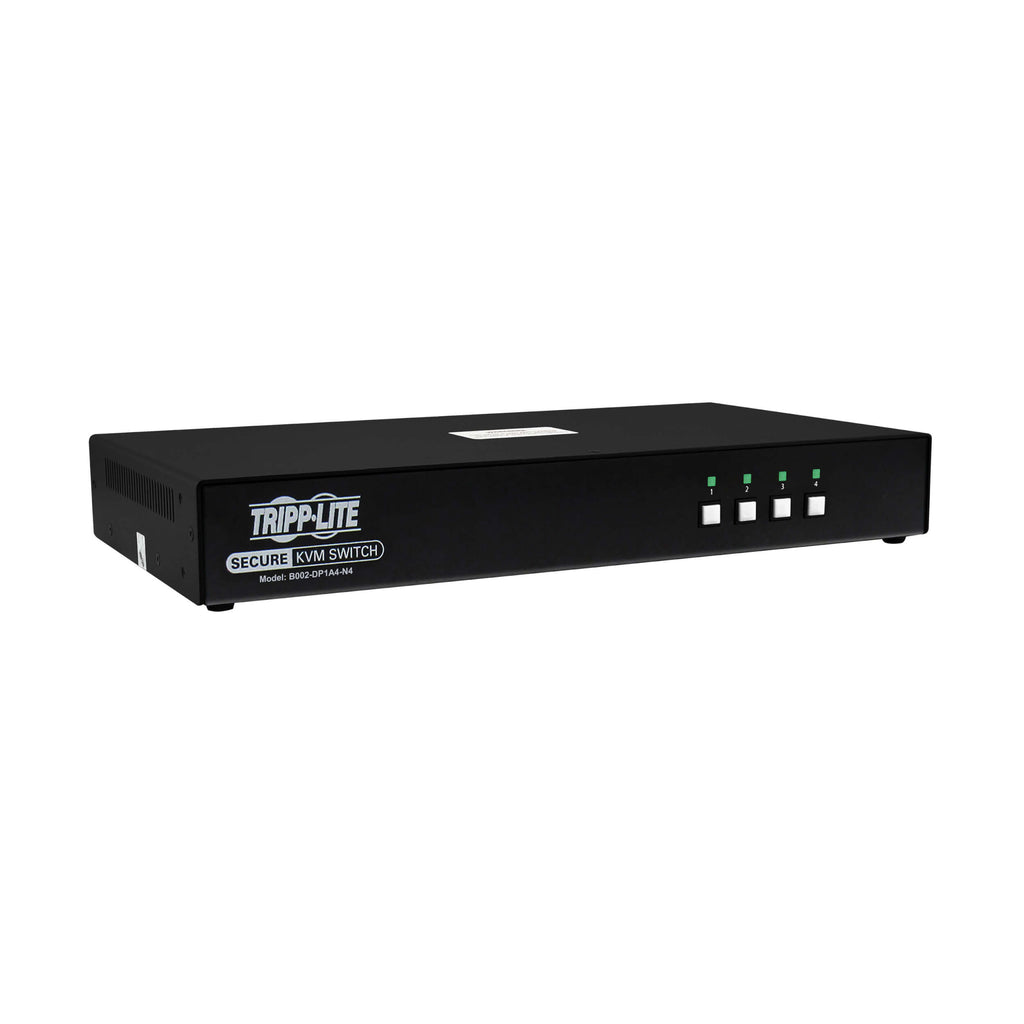

The Eaton Tripp Lite B002-DP1A4-N4 is a 4-port NIAP PP4.0-certified secure KVM switch that enables users to safely control up to four isolated computers from a single console with DisplayPort video, USB keyboard/mouse, and audio support. Designed for high-security environments such as government, defense, finance, education, and healthcare, this KVM ensures complete data separation between connected systems by providing independent processing paths and port isolation to prevent leakage or unauthorized data transfer.
It delivers Ultra HD 4K (3840 × 2160 @ 30 Hz) video with full color fidelity and 36-bit Deep Color support, maintaining image integrity across all displays. Advanced security features include firmware protection, automatic keyboard buffer clearing, and tamper-evident seals that disable the unit upon breach. With hardware-only switching via front-panel buttons, no OSD or hotkey control is available—ensuring total protection against unauthorized access.

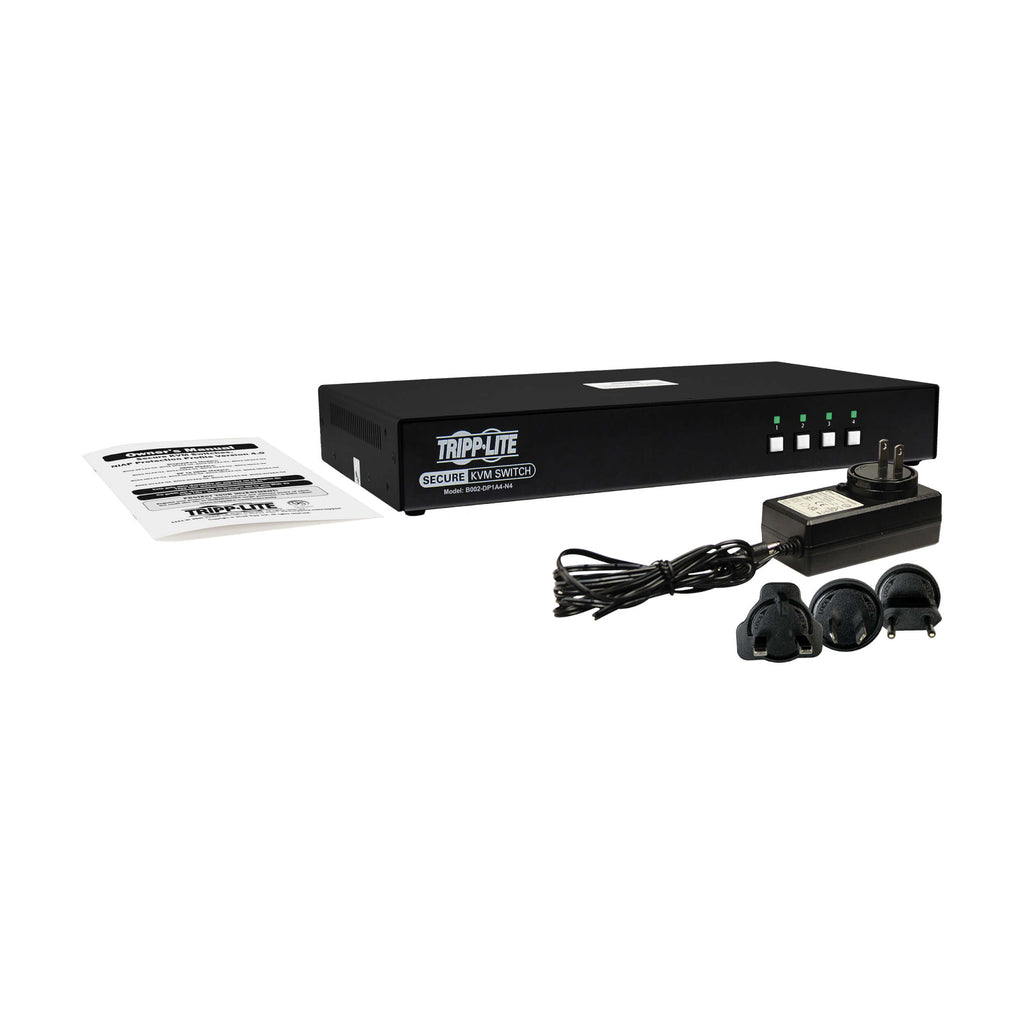

The B002-DP1A4-N4 supports USB 1.1 human interface devices, provides constant keyboard/mouse emulation for no-delay switching, and includes EDID learning for secure video emulation. Fully TAA-compliant, it meets government procurement requirements and ships with an external universal power supply (with U.S., U.K., EU, and AU plug heads).
| Category | Specification |
|---|---|
| Model Number | B002-DP1A4-N4 |
| Product Type | 4-Port Secure DisplayPort KVM Switch |
| Video Resolution | Up to 3840 × 2160 @ 30 Hz (4K UHD) |
| Color Depth | 36-bit Deep Color, 4:4:4 Chroma |
| DisplayPort Standard | 1.2 |
| Number of Ports | 4 (isolated channels) |
| Console Connections | DisplayPort, USB-A (keyboard/mouse), 3.5 mm audio |

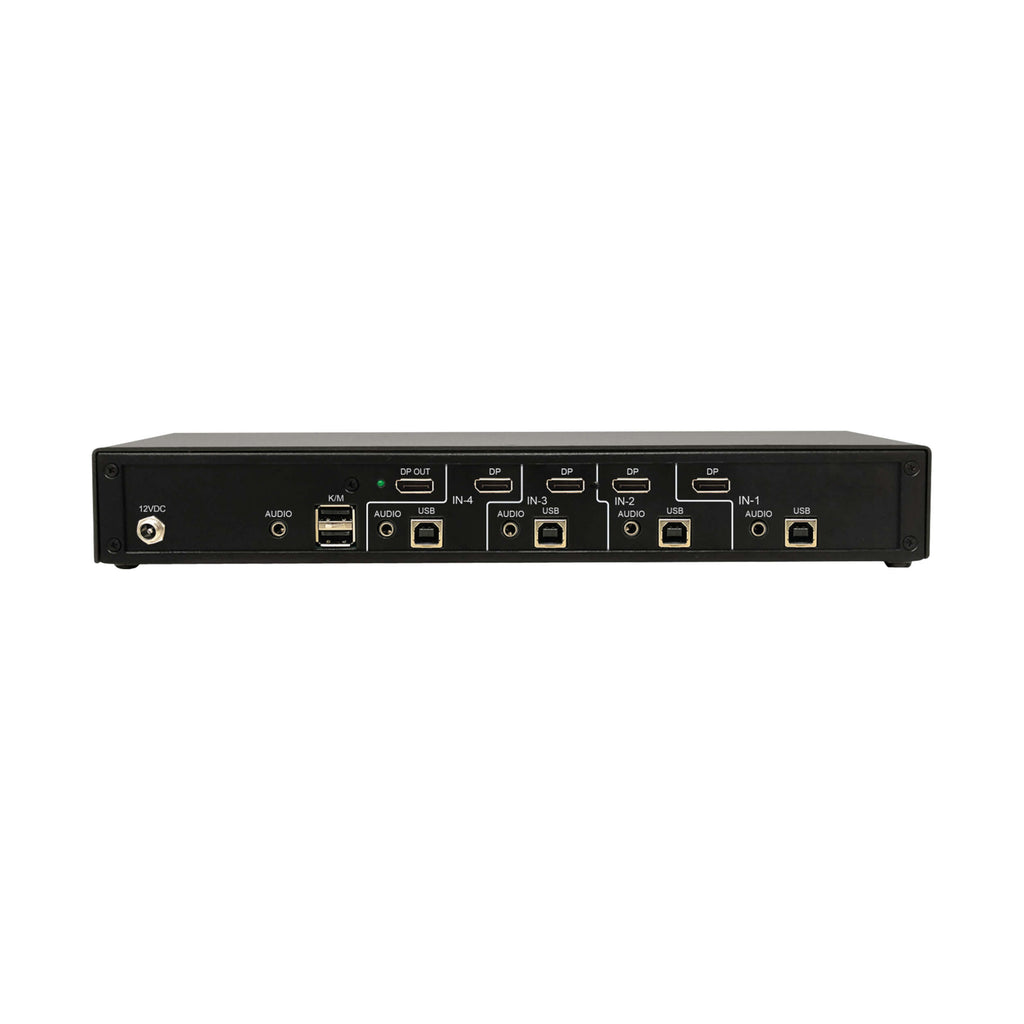

| Computer Connections | DisplayPort, USB-B, 3.5 mm audio |

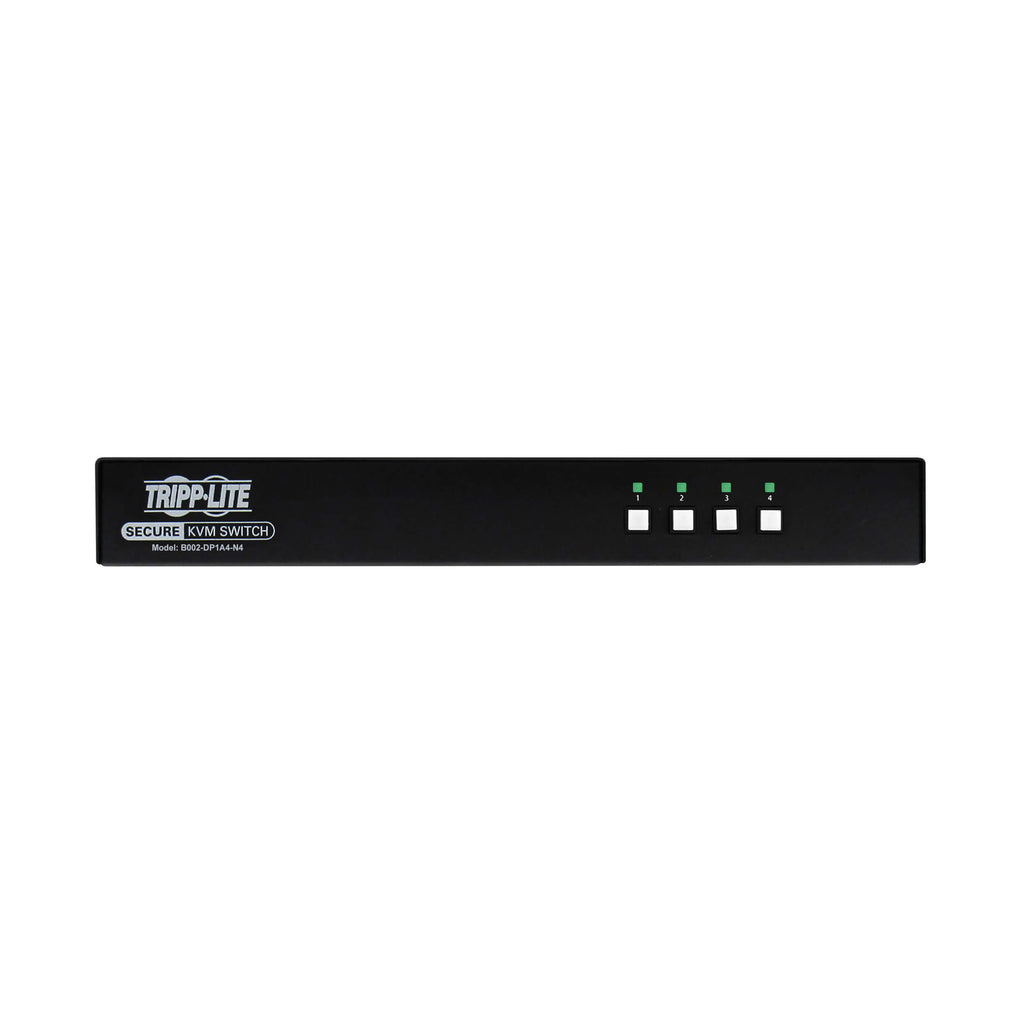

| Switching Method | Front-panel push buttons (no OSD or hotkeys) |
| Security Certification | NIAP PP4.0, Common Criteria Certified |
| Compliance Standards | TAA, CE, FCC, UKCA, RoHS, NOM (Mexico) |
| USB Specification | USB 1.1 (up to 12 Mbps) |
| Audio Support | 3.5 mm stereo (2 in / 2 out) |
| Video Emulation | EDID learning / secure video emulation |
| Anti-Tamper Protection | Enclosure seals, internal disable trigger |
| Power Source | External AC adapter (100–240 V AC, 50/60 Hz, 1.3 A; 12 V DC 3 A output) |
| Power Adapter Plugs Included | NEMA 1-15P (NA), BS 1363 (UK), CEE 7/7 (EU), AS/NZS 3112 (AU) |
| Operating Temperature | 0 °C – 40 °C (32 °F – 104 °F) |
| Storage Temperature | −20 °C – 60 °C (−4 °F – 140 °F) |
| Relative Humidity | 0–80% non-condensing |
| Enclosure Material | Metal, black finish |
| Dimensions (H × W × D) | 4.47 × 31.7 × 16.9 cm |
| Weight | 1.91 kg (4.2 lb) |
| Rackmountable | No |
| Software Utility | Admin & Security Management 1.2 (Windows only) |
| Warranty | 3-year limited warranty |
| TAA-Compliant | Yes (eligible for GSA Schedule) |
