Description

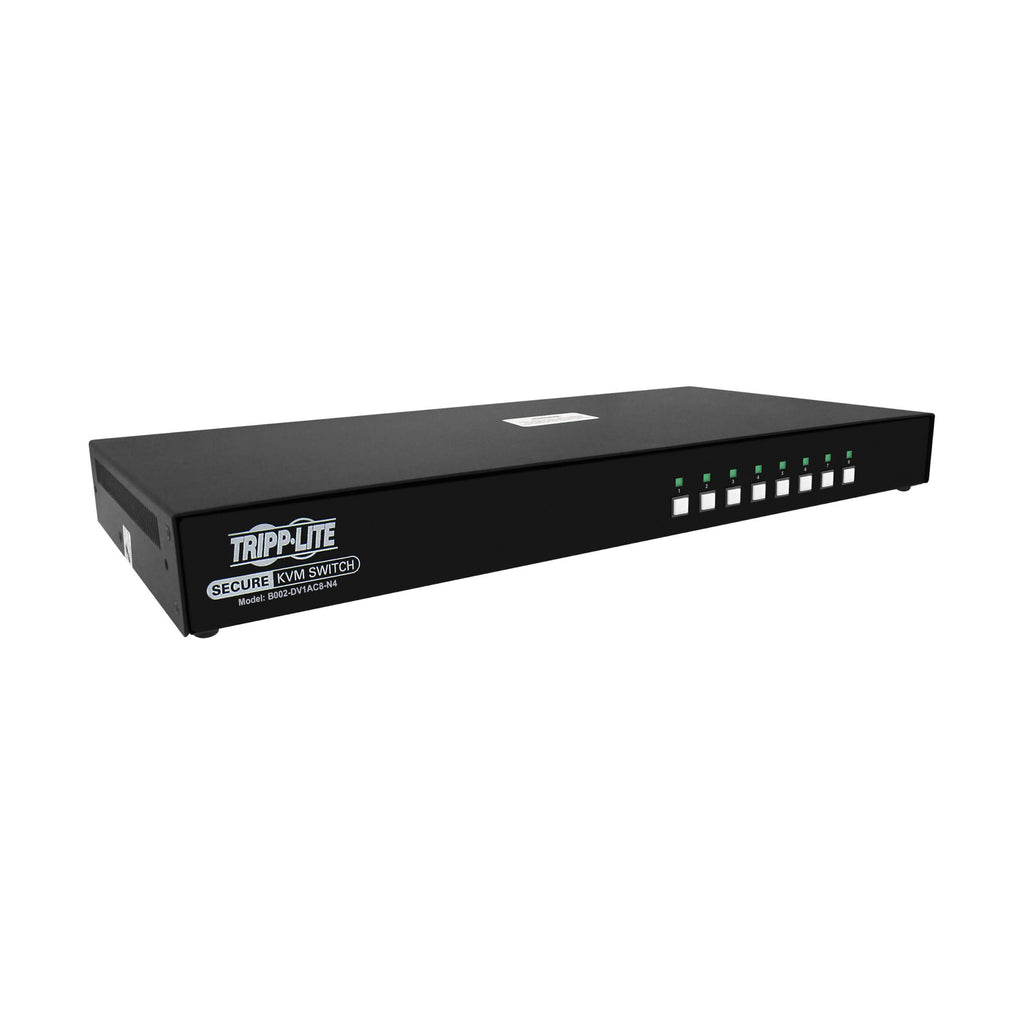

The Eaton Tripp Lite B002-DV1AC8-N4 Secure KVM Switch is an 8-port DVI-I, single-head console solution designed for environments where data protection and network isolation are critical — ideal for government, military, financial, healthcare, and education institutions.
Certified to NIAP Common Criteria Protection Profile v4.0 (PP4.0), each port is electronically isolated, preventing unauthorized data transfer or crosstalk between connected computers of different security levels. It supports resolutions up to 2560 x 1600 @ 60Hz, ensuring high-definition clarity across secure channels.
The integrated Common Access Card (CAC) port supports biometric and smart card readers for enhanced authentication, while anti-tampering protection disables the unit if the enclosure is breached. With full USB device filtering, keyboard/mouse emulation, and EDID learning, the B002-DV1AC8-N4 ensures smooth, secure switching with no delay or data exposure.

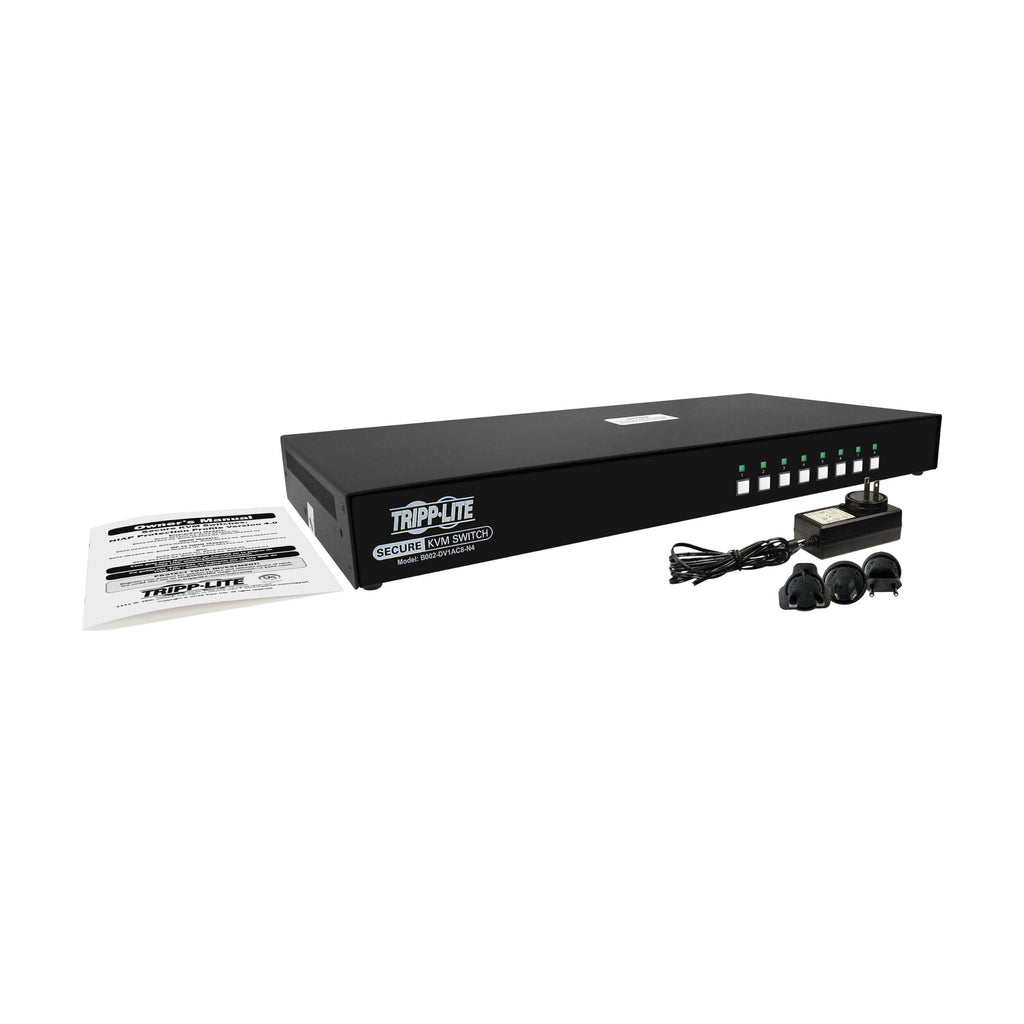

Compliant with the Trade Agreements Act (TAA), this switch meets federal procurement standards and includes global power adapters for flexible deployment worldwide.
| Specification | Details |
|---|---|
| Model | B002-DV1AC8-N4 |
| Brand | Eaton Tripp Lite |
| Product Type | Secure 8-Port KVM Switch |
| Video Interface | DVI-I Dual-Link |
| Max Supported Resolution | 2560 × 1600 @ 60Hz |
| Number of Ports | 8 |
| Console Interfaces | 1 × DVI-I Dual-Link (Female), 3 × USB-A (Female), 1 × 3.5mm Audio (Female) |

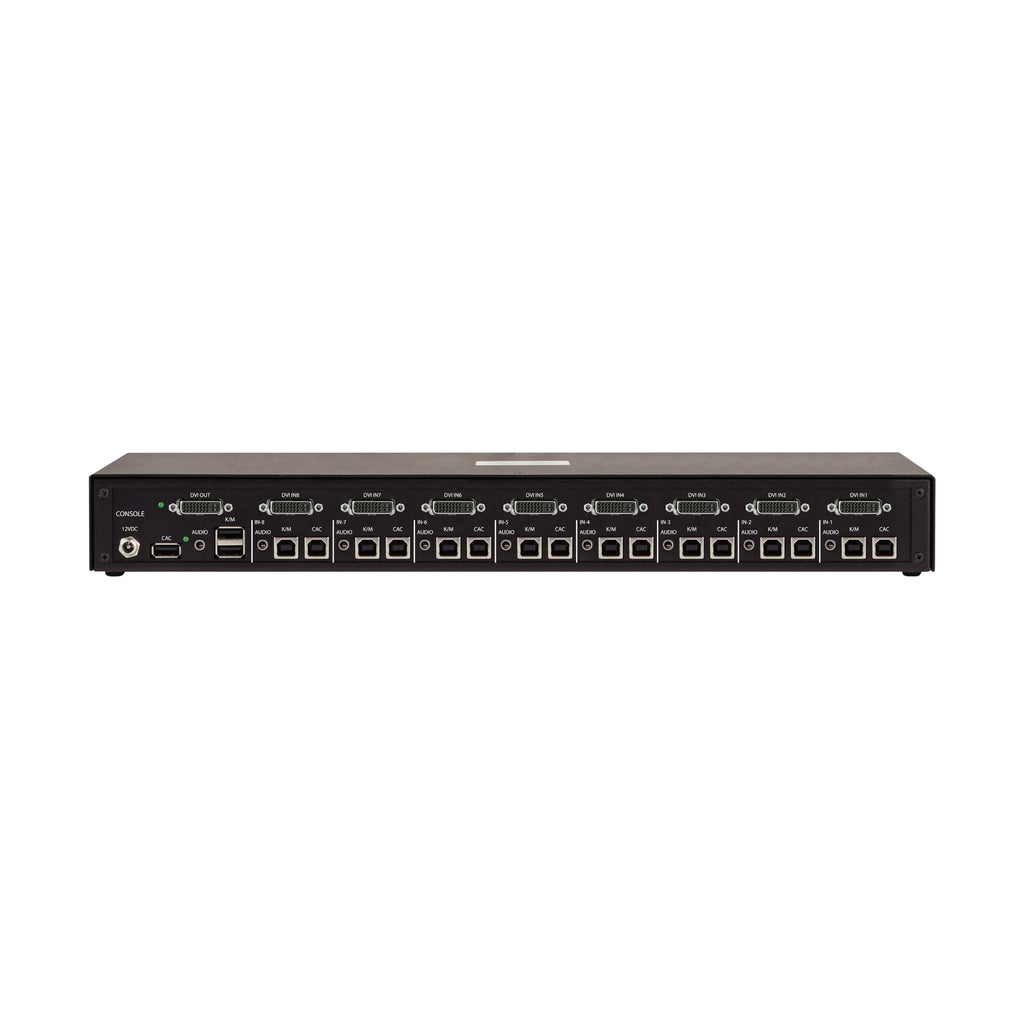

| Computer Interfaces | 8 × DVI-I Dual-Link (Female), 16 × USB-B (Female), 1 × 3.5mm Audio (Female) |
| Video Technology | DVI 1.0 |
| USB Specification | USB 1.1 (up to 12 Mbps) |
| Supported Peripherals | Keyboard, Mouse, CAC, Audio |
| Common Access Card (CAC) | Supported – Smart Card / Biometric Reader Compatible |

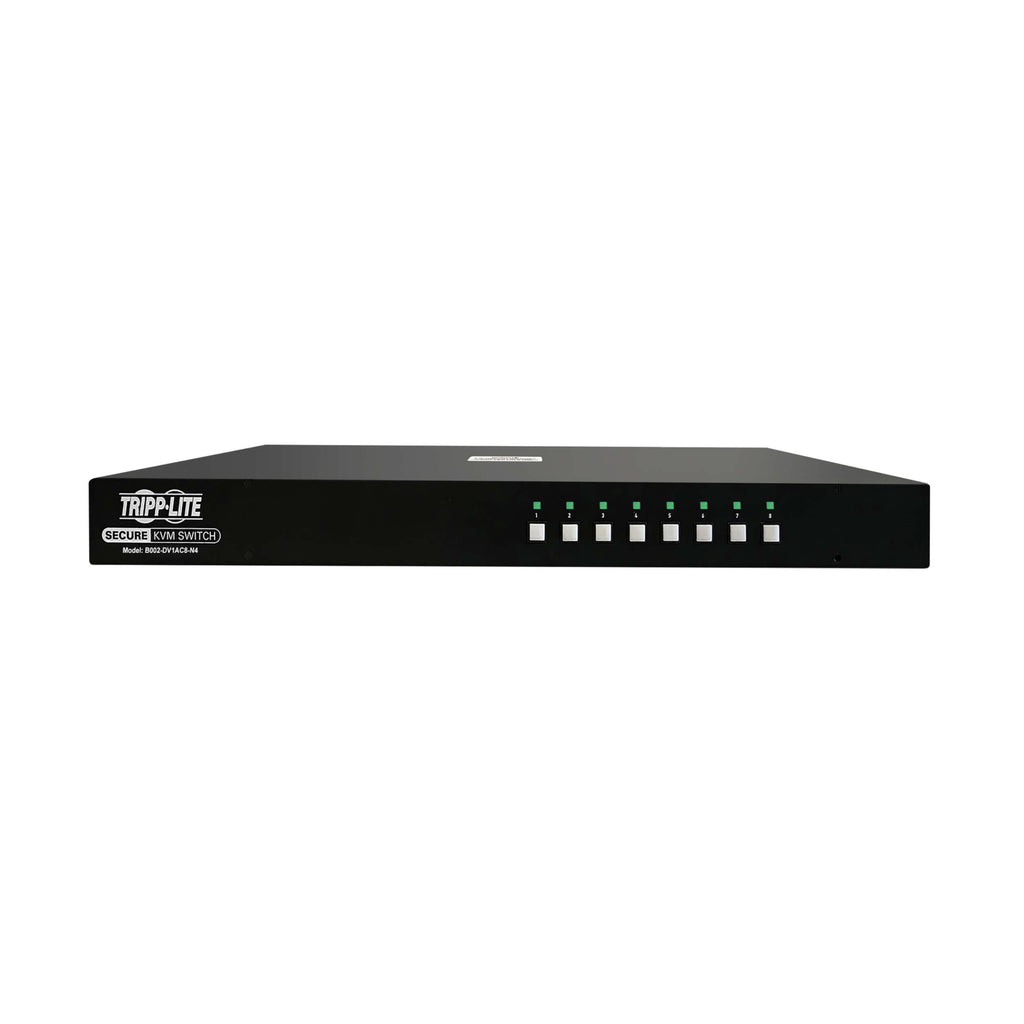

| Port Switching Method | Front-Panel Pushbuttons (No OSD / Hotkeys) |
| Management Utility | Admin & Security Management 1.2 (Windows Only) |
| Security Certification | NIAP PP4.0, Common Criteria Certified |
| Compliance | TAA, RoHS, CE, FCC, UKCA, NOM (Mexico) |
| Anti-Tampering Protection | Enclosure Seals with Auto-Disable Function |
| Power Supply | External Adapter (100–240V AC, 50/60Hz, Output: 12V 3A) |
| Power Adapter Plugs | US (NEMA 1-15P), UK (BS 1363), EU (CEE 7/7), AU (AS/NZS 3112) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity Range | 0–80% (non-condensing) |
| Housing Material | Metal |
| Color | Black |
| Dimensions (H × W × D) | 4.47 × 43 × 22 cm |
| Unit Weight | 2.86 kg (6.3 lbs) |
| Rackmountable | No |
| Warranty | 3-Year Limited Warranty |
