Description
The SmartOnline SU1000RTXLCD2U is a high-performance 1000VA / 900W double-conversion online UPS designed to deliver continuous, clean power for mission-critical IT and network environments. By constantly converting incoming AC power to DC and back to pure sine wave AC, this UPS fully isolates connected equipment from power disturbances, surges, and electrical noise.

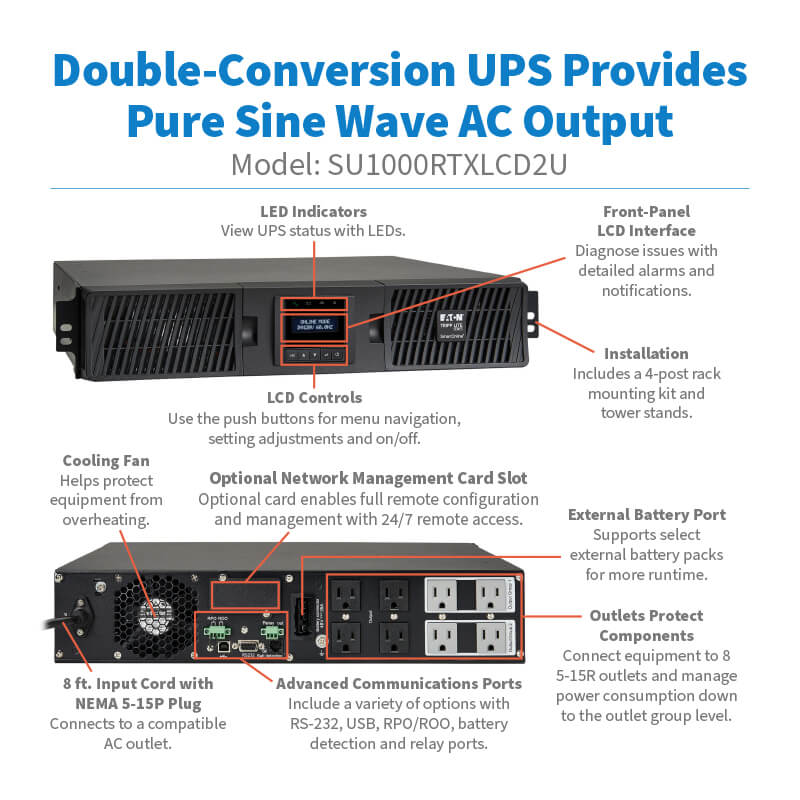

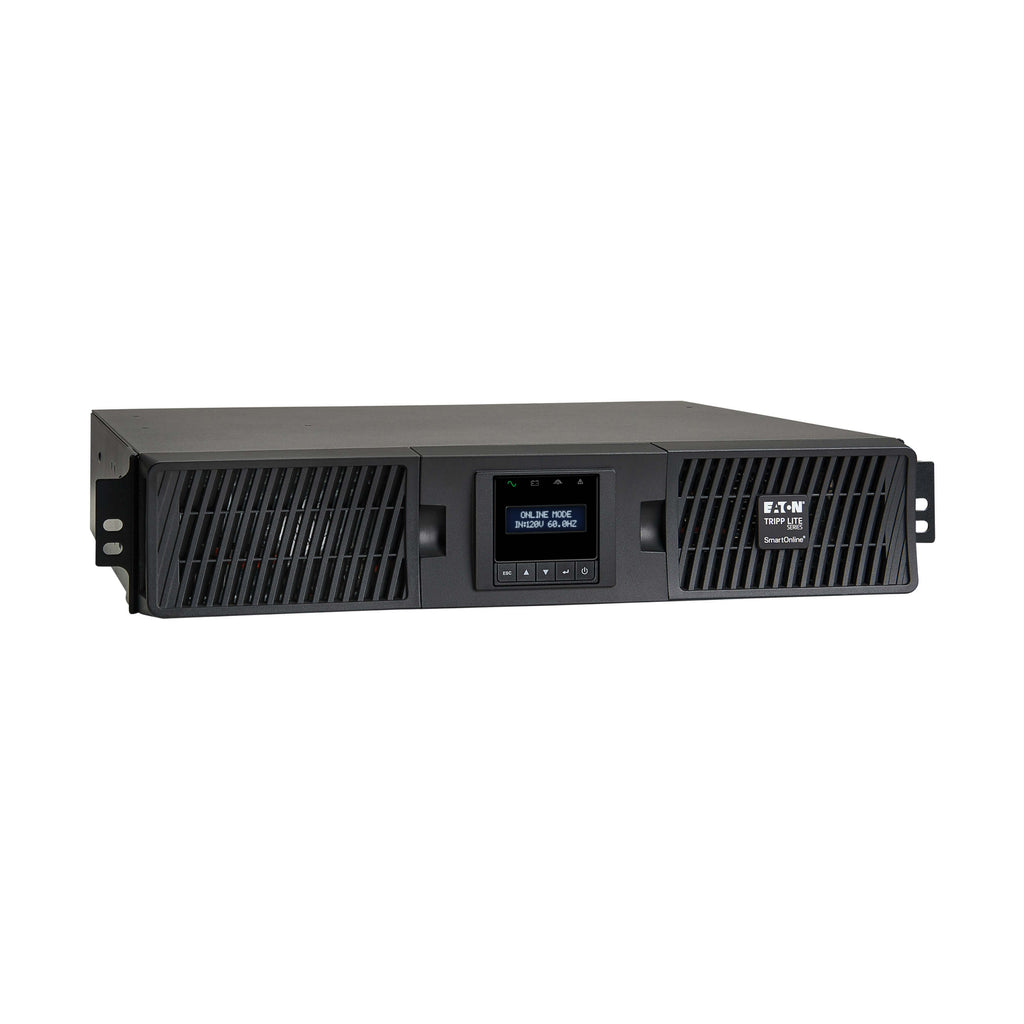

Built for flexibility, the SU1000RTXLCD2U supports both rackmount and tower installations in a compact 2U form factor. An intuitive front-panel LCD provides real-time system status, load levels, and configuration options. Hot-swappable batteries ensure uninterrupted operation during maintenance, while expandable battery support allows extended runtime for longer outages.

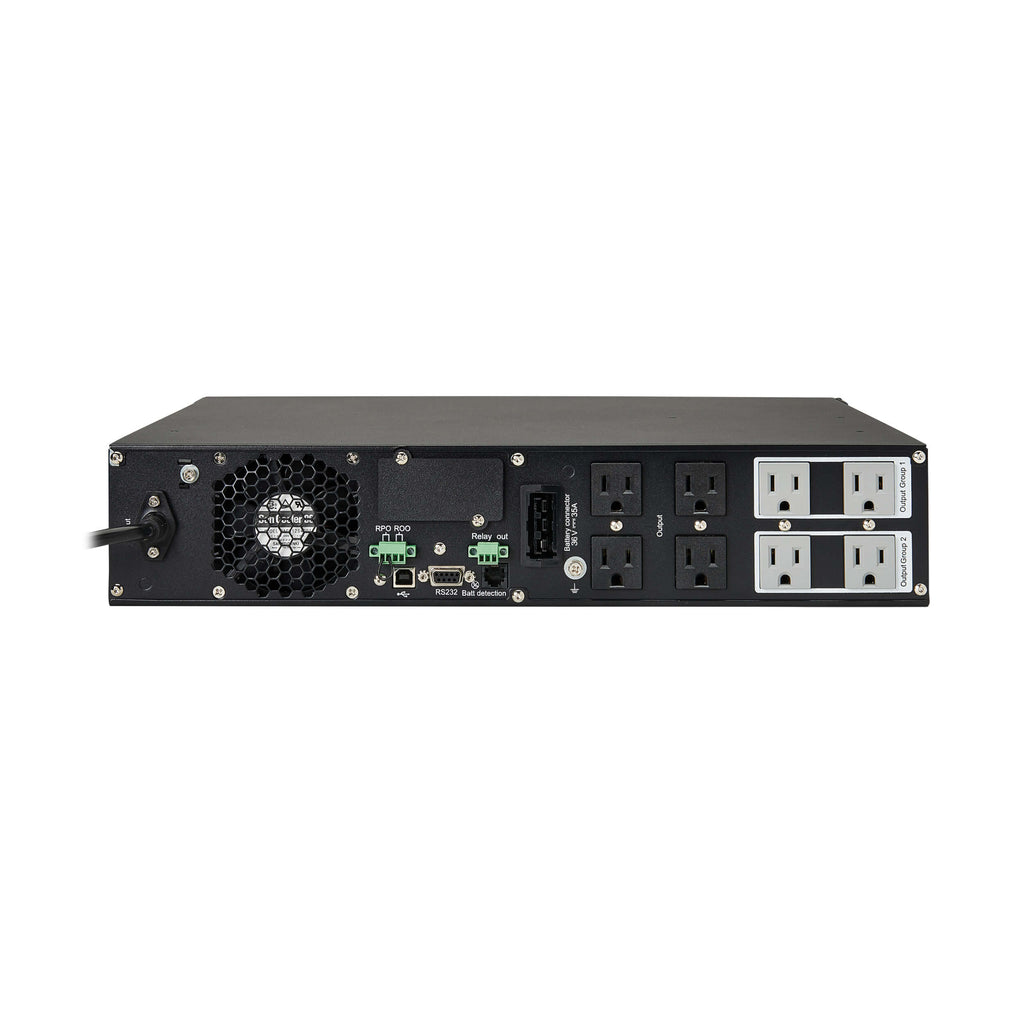

With eight managed NEMA 5-15R outlets, programmable load banks, and optional network management, this UPS is ideal for servers, network switches, edge computing, healthcare systems, and government or enterprise deployments where uptime is critical.
| Specification | Details |
|---|---|
| UPS Type | Online Double-Conversion |
| Capacity | 1000VA / 900W |
| Form Factor | Rackmount / Tower |
| Rack Height | 2U |
| Input Voltage | 120V AC (100–127V supported) |
| Input Plug | NEMA 5-15P |
| Output Voltage | 120V AC (configurable) |
| Output Waveform | Pure Sine Wave |
| Outlets | 8 × NEMA 5-15R |
| Load Banks | 2 programmable load banks |
| Transfer Time | 0 ms |
| Battery Type | VRLA, hot-swappable |
| Runtime (Full Load) | Approx. 6 minutes |
| Runtime (Half Load) | Approx. 18 minutes |
| Expandable Runtime | Yes (external battery modules supported) |
| Display | Front-panel LCD with multiple status screens |
| Communications | USB, RS-232, dry contact, network card slot |
| Cooling | Active fan cooling |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Noise Level | ~40 dB at 1 meter |
| Dimensions (H × W × D) | Approx. 3.4 × 17.3 × 17.7 in |
| Weight | Approx. 36.4 lbs |
