Description

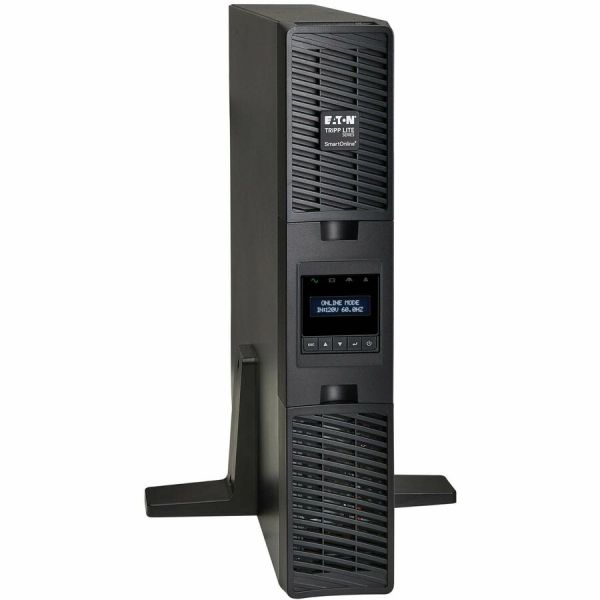

Protect mission-critical equipment with the Eaton Tripp Lite SmartOnline SU1000RTXLCD2UN, a 1000VA/900W double-conversion online UPS engineered for enterprise IT, healthcare, education, government, and industrial environments. By continuously converting incoming AC power to DC and back to clean sine wave AC, it isolates connected equipment from blackouts, brownouts, surges, voltage fluctuations, and electrical noise.
Designed for maximum uptime, this UPS delivers zero transfer time during power failures, ensuring uninterrupted operation for servers, networking hardware, storage systems, VoIP equipment, and other sensitive electronics. The included WEBCARDLXE network management card enables secure remote monitoring, configuration, automated shutdowns, and power management from virtually anywhere.
Its front-panel LCD provides real-time system diagnostics, while hot-swappable batteries simplify maintenance without interrupting connected equipment. The unit supports both rackmount and tower installation and can be expanded with optional external battery packs for extended runtime.
Key Features
- 1000VA / 900W double-conversion online UPS
- Pure sine wave output for sensitive electronic equipment
- Zero transfer time during power interruptions
- Eight NEMA 5-15R protected outlets
- Included WEBCARDLXE network management card
- Front-panel rotating LCD display with detailed diagnostics
- Hot-swappable, user-replaceable VRLA batteries
- Expandable runtime with compatible external battery modules

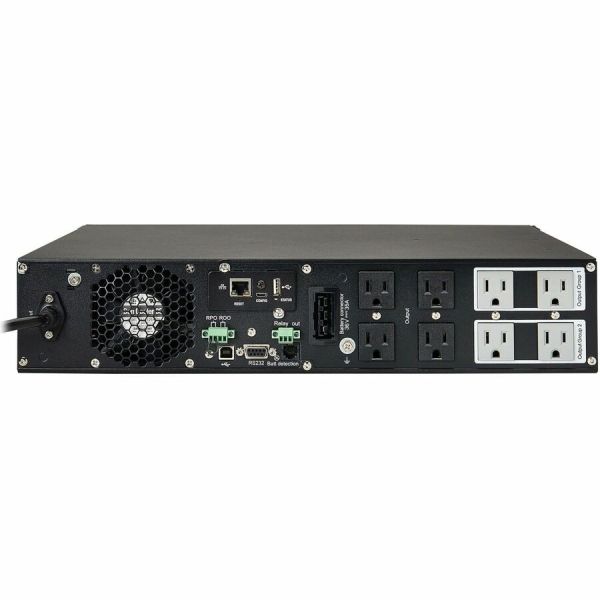

- USB, RS-232, contact closure, and emergency power off interfaces

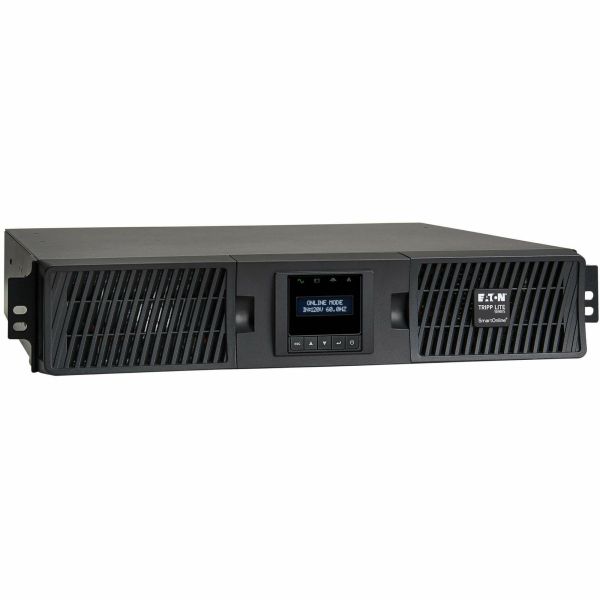

- Rackmount (2U) or tower installation
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite Series |
| Model | SU1000RTXLCD2UN |
| UPS Topology | Double-Conversion Online |
| Capacity | 1000VA / 900W |
| Input Voltage | 100/110/120V AC |
| Output Voltage | 100/110/115/120/127V AC |
| Output Waveform | Pure Sine Wave |
| Transfer Time | 0 ms |
| Power Factor | 0.9 |
| Input Connection | NEMA 5-15P |
| Output Receptacles | 8 × NEMA 5-15R |
| Load Banks | Two individually controllable load banks |
| Battery Type | Valve-Regulated Lead Acid (VRLA) |
| Runtime at Full Load | 6.3 minutes |
| Runtime at Half Load | 18.2 minutes |
| Recharge Time | Approximately 3 hours to 90% |
| Expandable Battery Support | Yes (up to 4 external battery modules) |
| Display | Rotating LCD status display |
| Communications | USB, RS-232, Contact Closure, Network Management Card |
| Network Management | Included WEBCARDLXE |
| Emergency Power Off | Yes |
| Rack Height | 2U |
| Installation | Rackmount or Tower |
| Cooling | Fan Cooled |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Efficiency (Economy Mode) | Up to 95.8% |
| Certifications | UL 1778, CAN/CSA, NOM, RoHS |
| Warranty | 2-Year Limited Warranty |
