Description

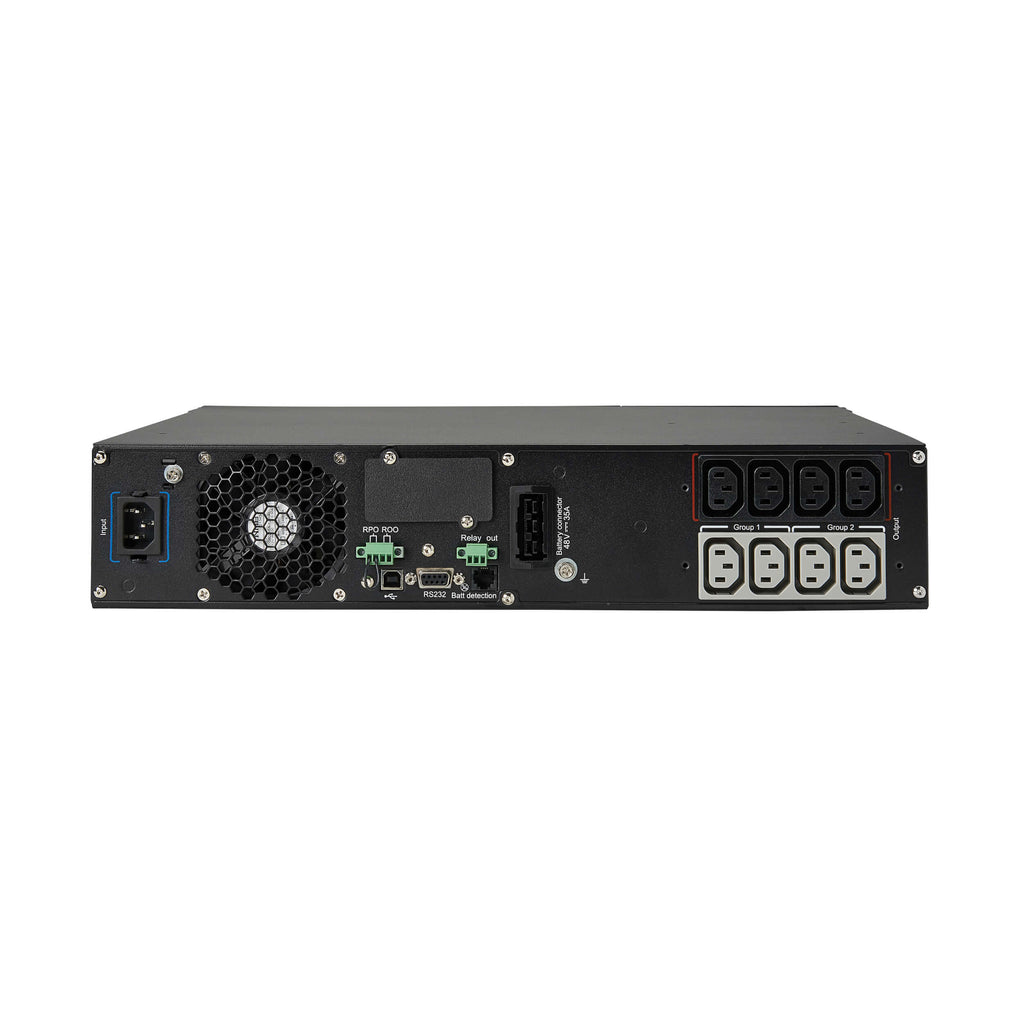

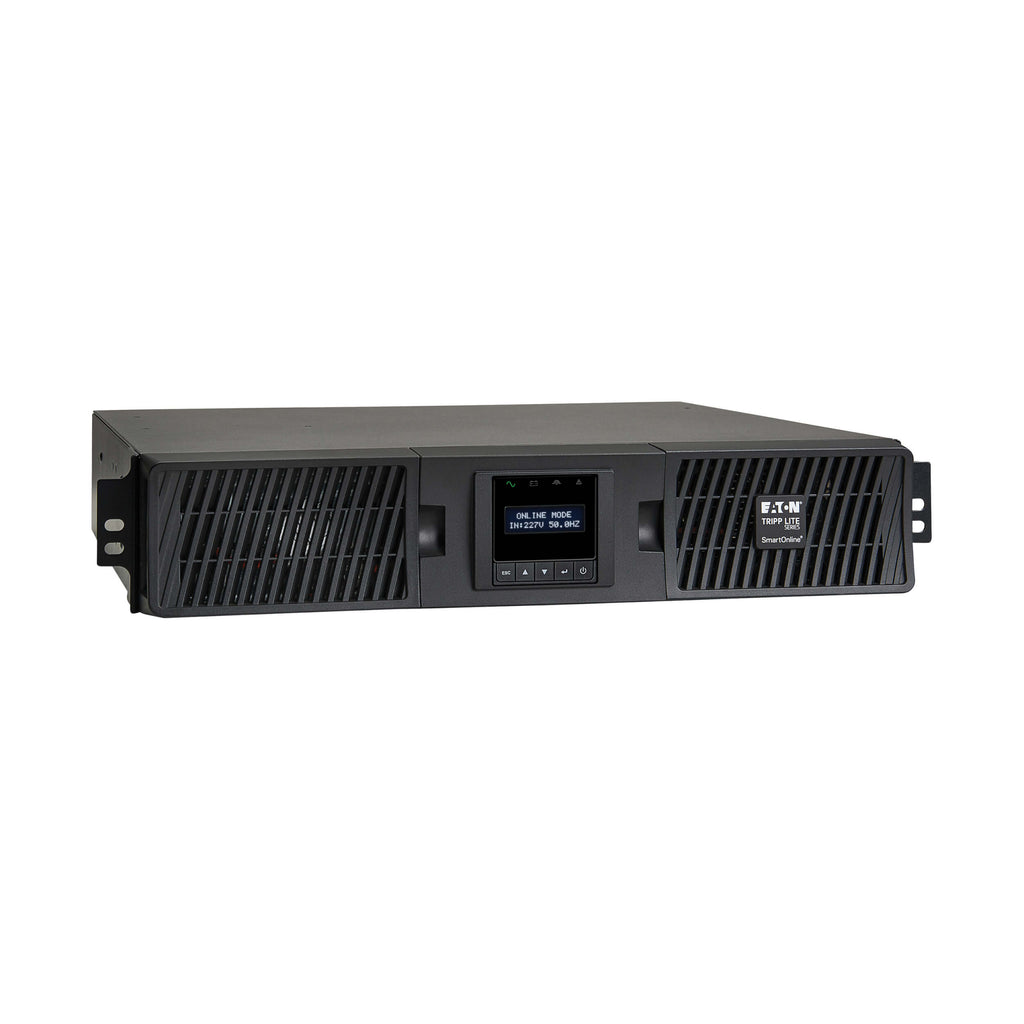

The Eaton Tripp Lite SmartOnline SUINT1000LCD2U is a high-performance, on-line double-conversion UPS designed to deliver continuous, clean power for mission-critical IT, networking, and industrial applications. With true double-conversion technology, it completely isolates connected equipment from blackouts, brownouts, surges, and line noise while providing zero transfer time for uninterrupted operation.
This 1000VA / 900W UPS produces pure sine wave output and supports 208/230V environments, making it ideal for education, healthcare, government, and enterprise deployments where reliability is essential. Eight IEC C13 outlets are divided into two controllable load banks, allowing selective load shedding to extend runtime for critical systems during outages.

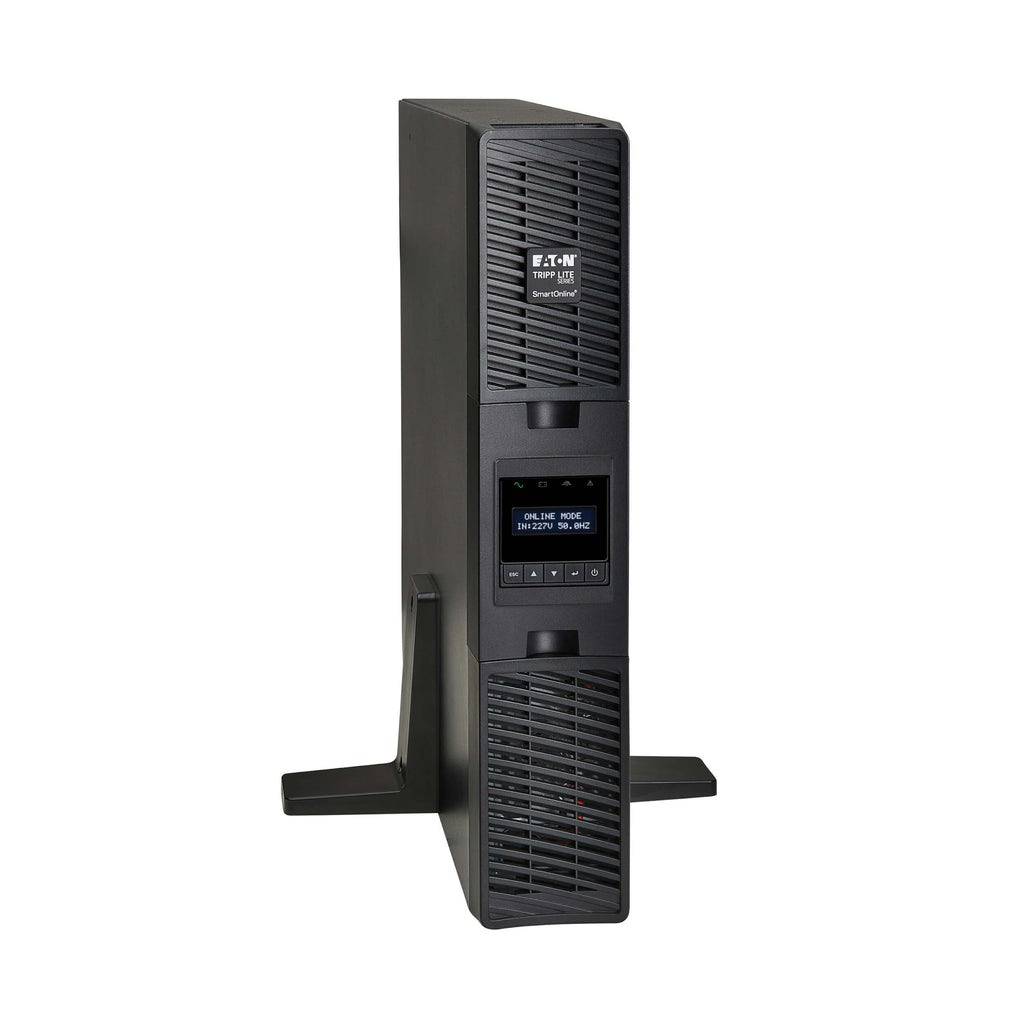

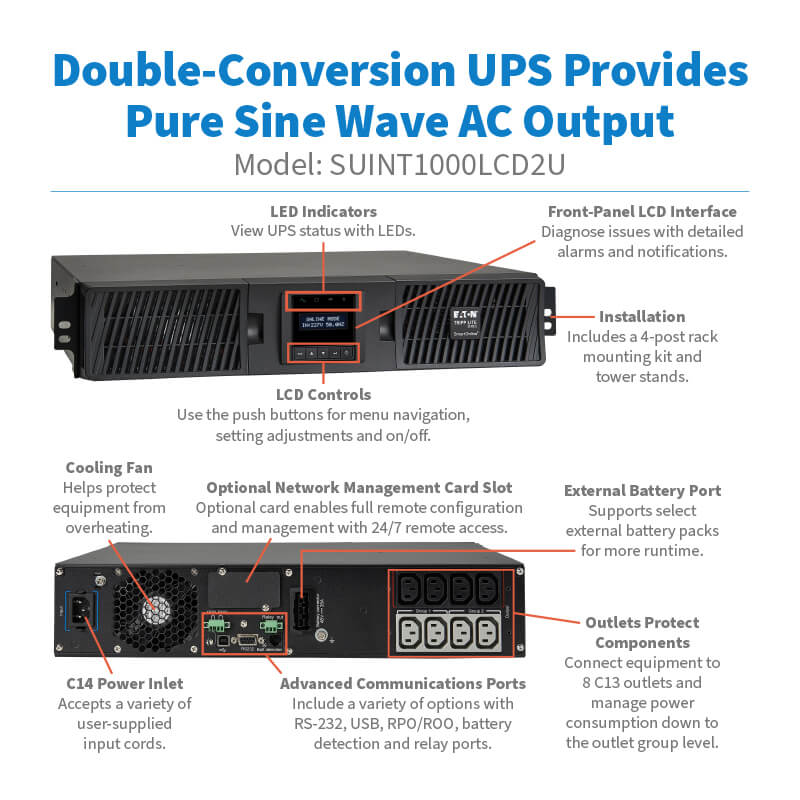

A front-panel LCD provides real-time status, alarms, battery condition, and power analytics, while USB, RS-232, and optional network management card support enable advanced monitoring and remote management. The 2U rack-mount or tower-convertible design saves space, and hot-swappable, expandable batteries allow scalable runtime as power demands grow.
| Specification | Details |
|---|---|
| UPS Type | On-Line Double-Conversion |
| Capacity | 1000VA / 900W |
| Input Voltage | 200 / 208 / 220 / 230 / 240V AC |
| Input Connection | IEC C14 |
| Input Frequency | 40–70 Hz |
| Output Voltage | 200 / 208 / 220 / 230 / 240V AC |
| Output Waveform | Pure Sine Wave |
| Output Receptacles | 8 × IEC C13 |
| Load Management | 2 switchable load banks |
| Transfer Time | 0 ms |
| Battery Type | VRLA, hot-swappable |
| Runtime (Full Load) | Approx. 7.3 minutes |
| Runtime (Half Load) | Approx. 17.9 minutes |
| Expandable Runtime | Yes (external battery support) |
| Communications | USB, RS-232, contact closure, network card slot |
| Display | Rotating LCD status and control panel |
| Form Factor | Rackmount or Tower |
| Rack Height | 2U |
| Cooling | Active fan |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Certifications | UL, CE, ENERGY STAR, RoHS |
