Description

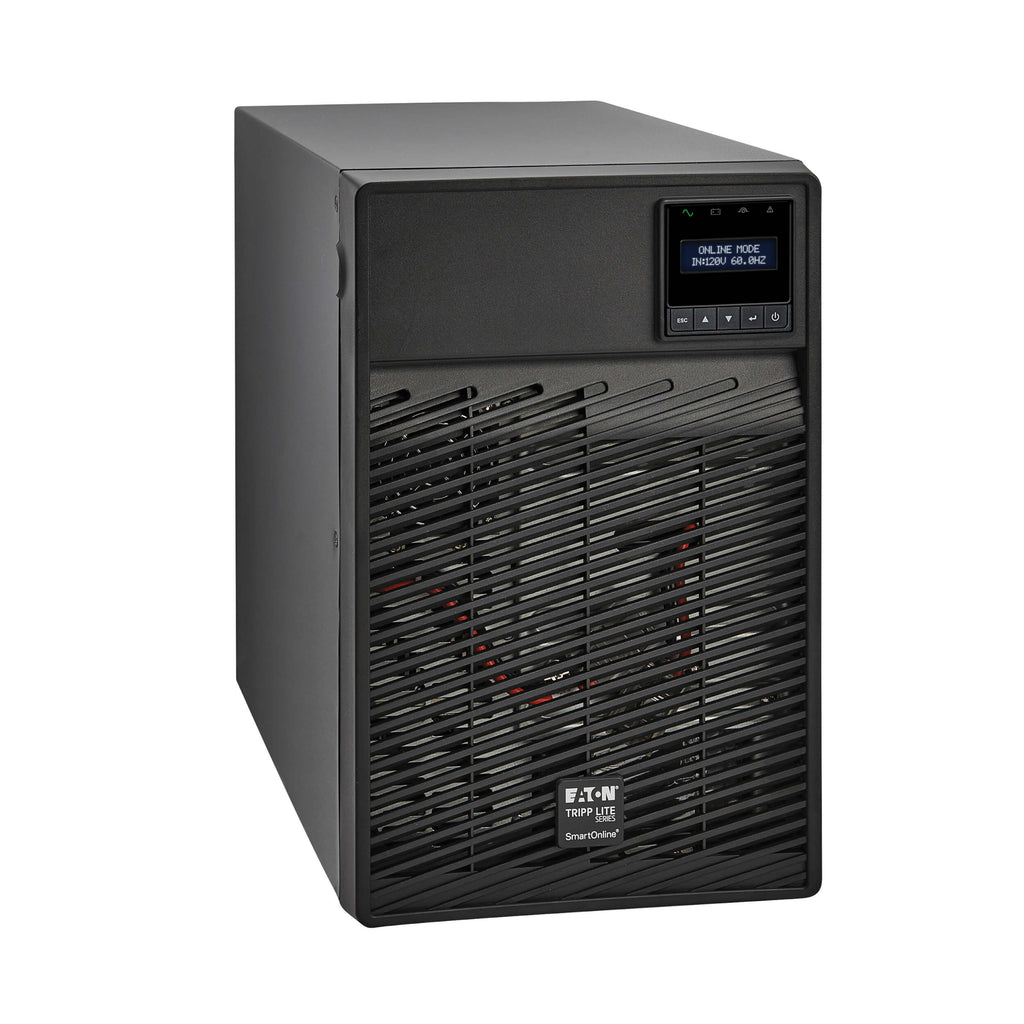

The Eaton Tripp Lite SmartOnline SU700XLCD is a 700VA / 630W on-line double-conversion UPS designed for mission-critical IT, networking, healthcare, education, and government environments. By continuously converting incoming AC power to DC and back to pure sine wave AC, it completely isolates connected equipment from power disturbances such as outages, brownouts, surges, and line noise.

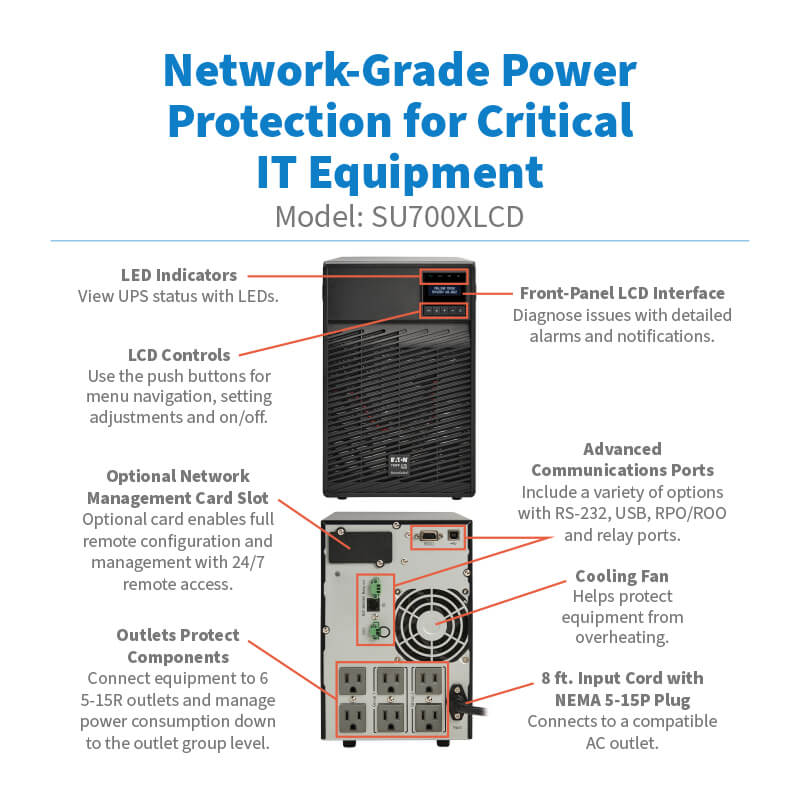

Zero transfer time ensures uninterrupted operation during power failures, while the front-panel LCD provides real-time system status, alarms, battery condition, and configuration options. Six NEMA 5-15R outlets deliver reliable, filtered power, with selectable load banks that allow non-critical devices to be shed to extend runtime for essential equipment.
The SU700XLCD supports USB, RS-232, and optional network management for automated shutdowns and remote monitoring, making it a compact yet enterprise-grade power protection solution for small to mid-size deployments where uptime is essential.
| Specification | Details |
|---|---|
| UPS Type | On-Line / Double-Conversion |
| Capacity | 700VA / 630W |
| Output Waveform | Pure Sine Wave |
| Input Voltage | 100V / 110V / 120V / 127V AC |
| Output Voltage | 100V / 110V / 120V AC |
| Input Plug | NEMA 5-15P |
| Output Receptacles | 6 × NEMA 5-15R |
| Load Management | Two switchable load banks |
| Transfer Time | 0 ms |
| Battery Type | Internal VRLA (Valve-Regulated Lead Acid) |
| Runtime @ Full Load | 5.9 minutes |
| Runtime @ Half Load | 16.9 minutes |
| User Interface | Front-panel LCD with alarms |

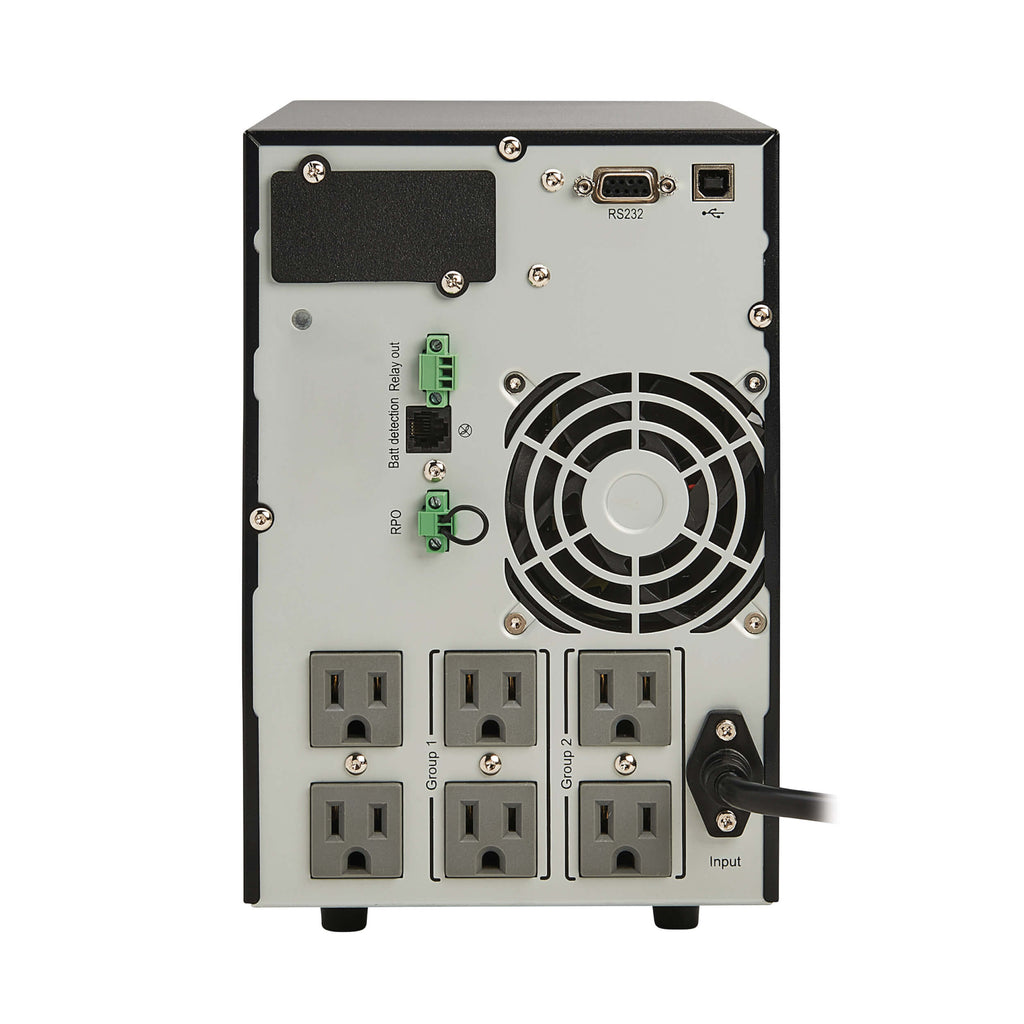

| Communications | USB, RS-232, dry-contact relay, SNMP slot |
| Network Management | Optional network card support |
| Form Factor | Tower |
| Cooling | Fan-cooled |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Certifications | UL 1778, ENERGY STAR Qualified |
| Typical Applications | Servers, network equipment, POS, AV, mission-critical IT |
