Description

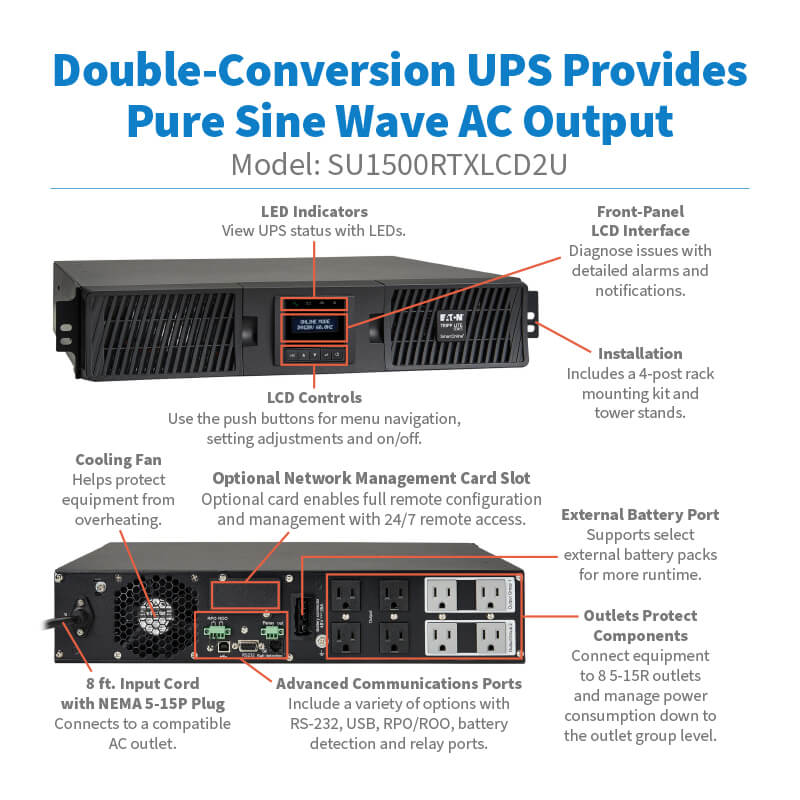

The Eaton Tripp Lite SmartOnline SU1500RTXLCD2U is a 1500VA/1350W double-conversion UPS that delivers reliable, pure sine wave power protection for mission-critical systems in rack or tower form factors. Designed for edge networks, server rooms, and IT applications, it features zero transfer time for uninterrupted operation, 8 NEMA 5-15R outlets (with two programmable load banks), and a 2-line LCD for real-time monitoring. Extend runtime with optional BP48RT battery packs, and manage remotely with the optional WEBCARDLXE network card. The unit includes USB, DB9, and contact closure ports, and supports emergency power off (EPO) and auto-restart after power failure.
| Specification | Details |
|---|---|
| Model Number | SU1500RTXLCD2U |
| UPS Type | On-Line, Double-Conversion |
| Form Factor | 2U Rack/Tower |
| Input Voltage | 100V, 110V, 120V (default: 120V) |
| Input Plug Type | NEMA 5-15P |
| Input Current | 12.5A |
| Input Cord Length | 8 ft. (2.4 m) |
| Output Capacity | 1500VA / 1350W |
| Output Voltage | 100V–127V |
| Output Frequency | 50/60 Hz (auto-sensing) |
| Output Waveform | Pure Sine Wave |
| Outlets | 8 x NEMA 5-15R (2 load banks) |
| Load Bank Control | 2 Individually Controllable Banks |
| Runtime (Full Load / Half Load) | 5.8 min / 16.5 min |
| Expandable Runtime | Yes (up to 4 BP48RT battery packs) |
| Battery Type | VRLA, Hot-Swappable |
| Recharge Time | 3 hours to 90% |
| Communications | USB, RS-232, Dry Contact, Slot for SNMP (WEBCARDLXE) |
| LCD Display | 2-line with 10 selectable screens |
| Surge Protection | 190 Joules, EMI/RFI filtering |

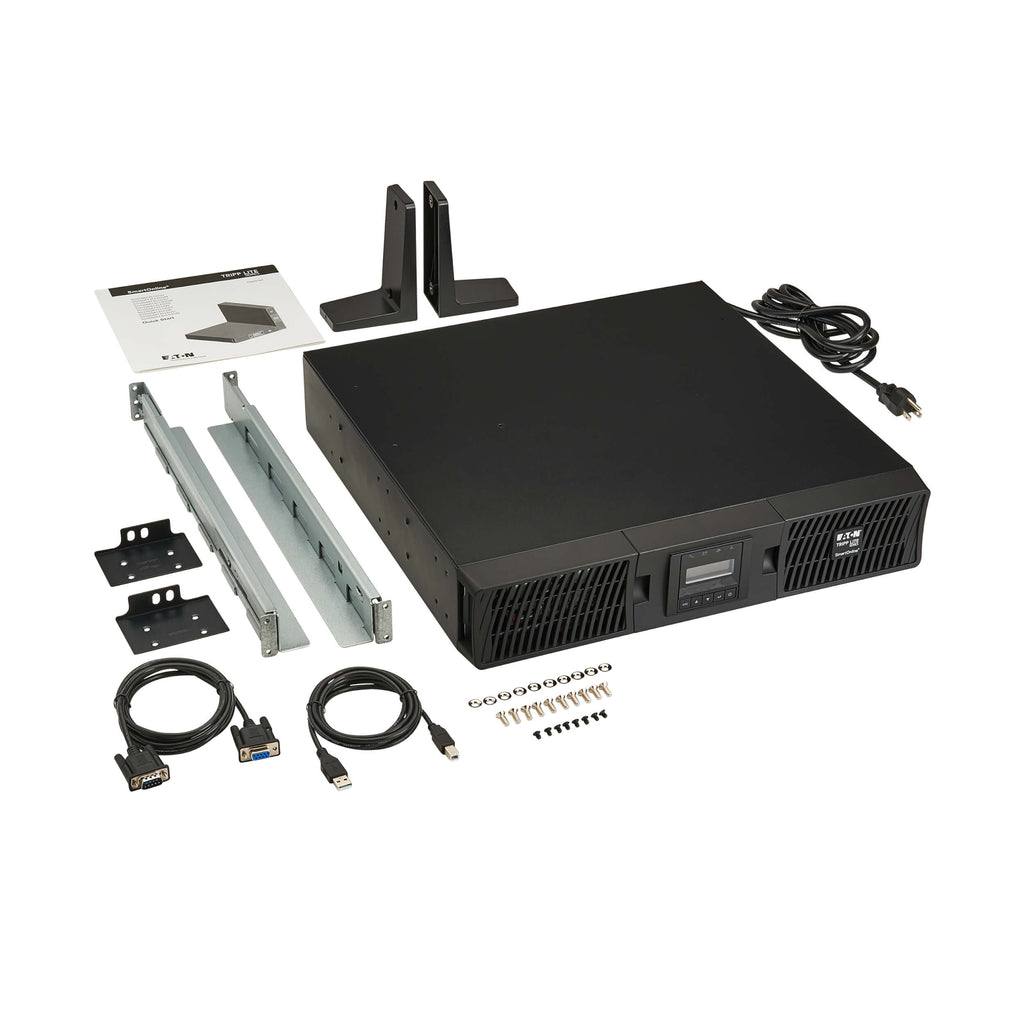

| Mounting | 4-post rack hardware and tower stands included |
| Dimensions (H x W x D) | 3.41 x 17.33 x 17.72 in (86.6 x 440 x 450 mm) |
| Weight | 42.55 lbs (19.3 kg) |
| Certifications | UL 1778, CE, RoHS, FCC, cTUVus |
| Warranty | 2-Year Limited Warranty |
| Connected Equipment Insurance | $250,000 (U.S., Canada & Puerto Rico) |
| Optional Accessories | WEBCARDLXE, BP48RT, RK2PC (2-post rail kit) |
