Description

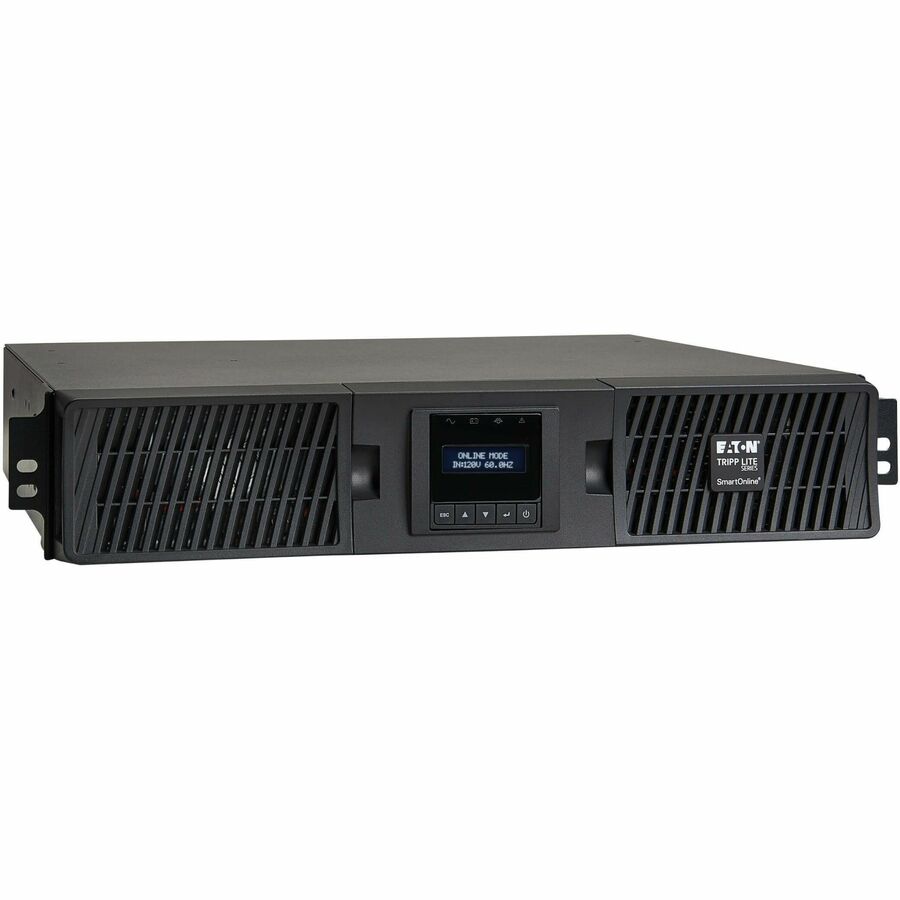

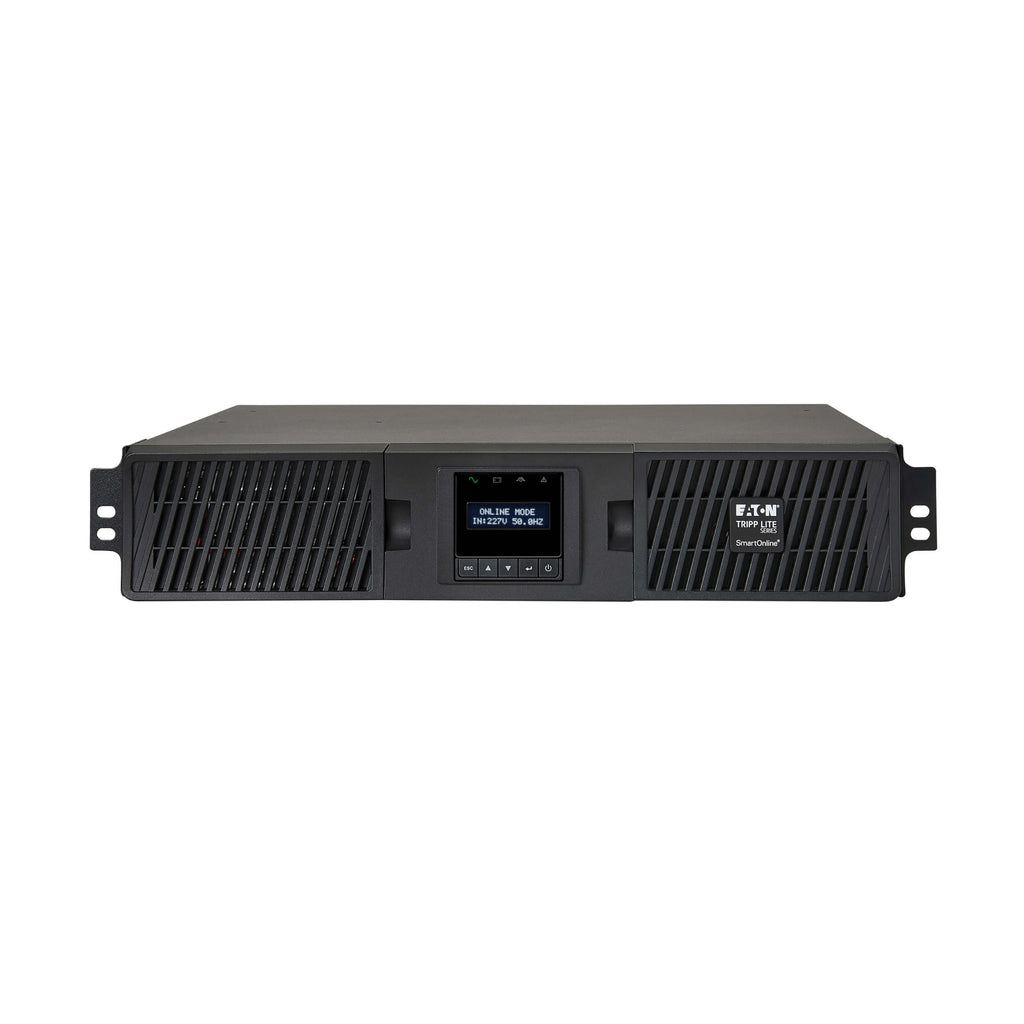

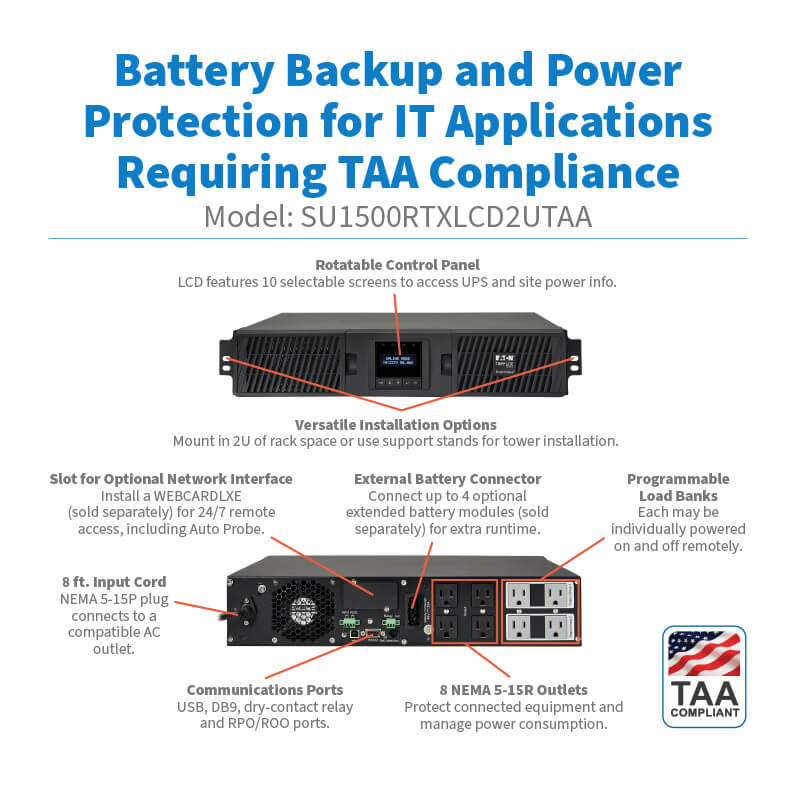

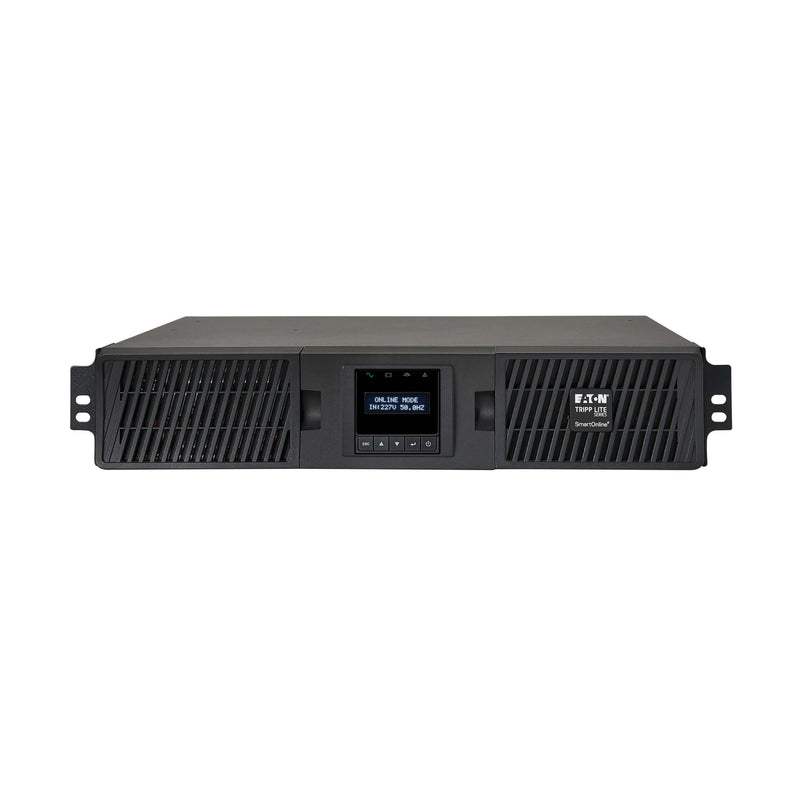

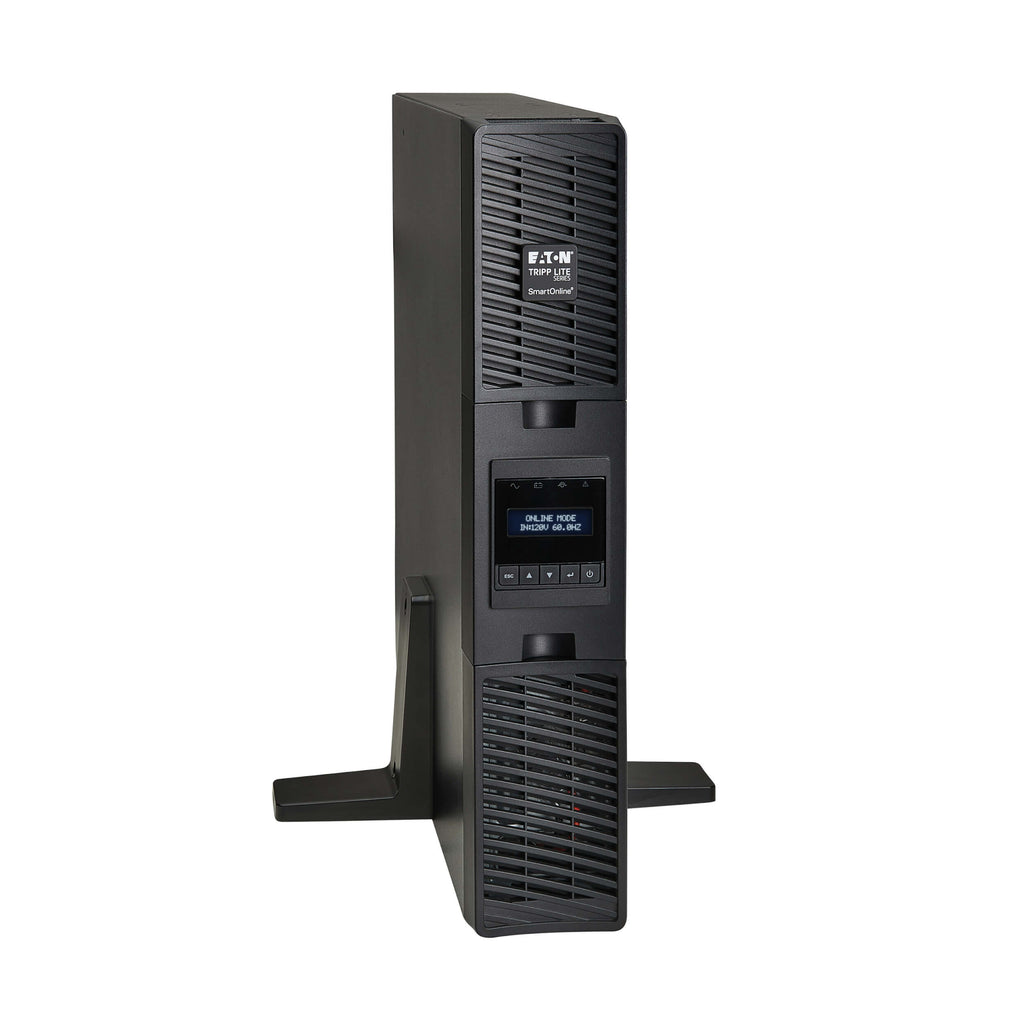

The Eaton Tripp Lite SmartOnline SU1500RTXLCD2UTAA UPS delivers premium online double-conversion power protection for mission-critical IT environments, including military, healthcare, education, and government installations. With 1500VA/1350W of reliable capacity, this TAA-compliant 2U rack/tower UPS provides pure sine wave output, zero transfer time, and expandable runtime via optional external battery packs. It includes eight 5-15R outlets, two programmable load banks, and supports remote monitoring via an optional WEBCARDLXE. Designed for high availability, this unit features hot-swappable batteries, advanced EMI/RFI filtering, and an intuitive LCD display for real-time monitoring.
| Specification | Details |
|---|---|
| Model Number | SU1500RTXLCD2UTAA |

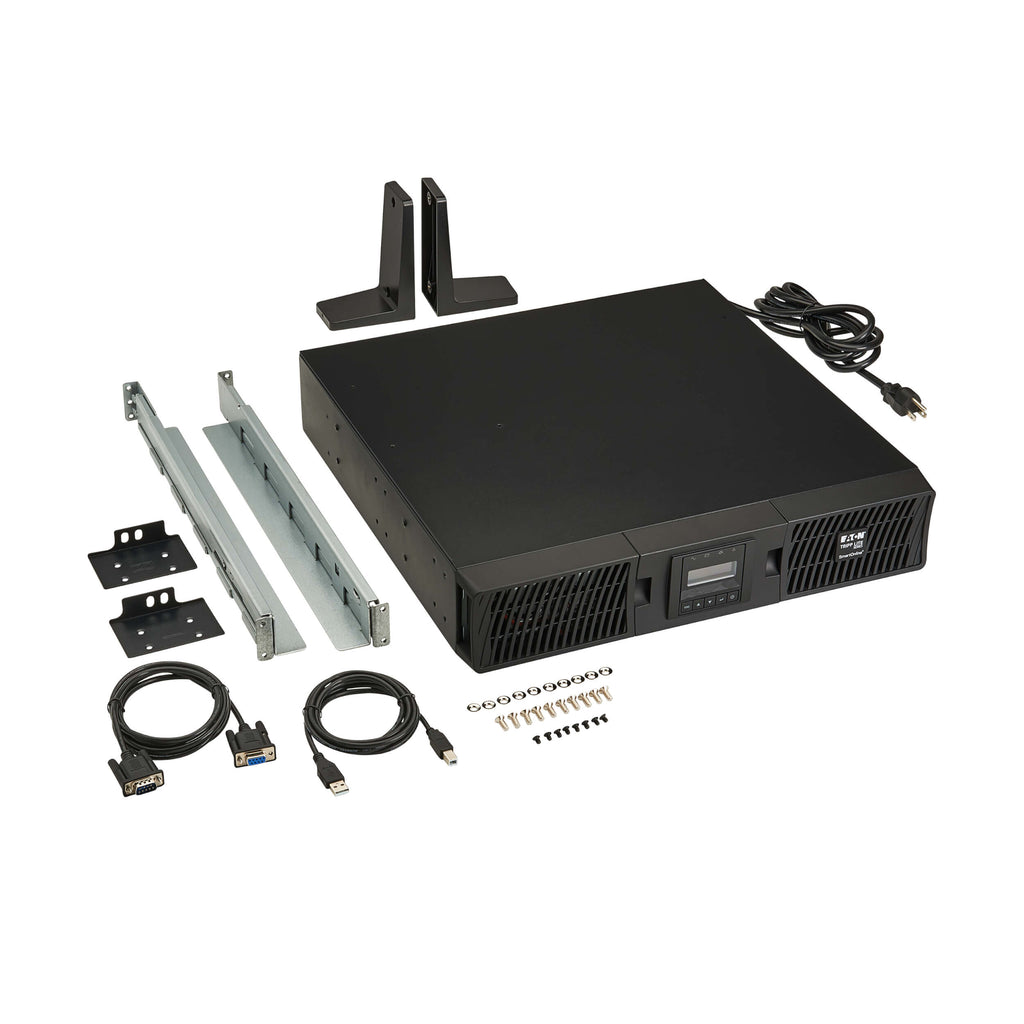

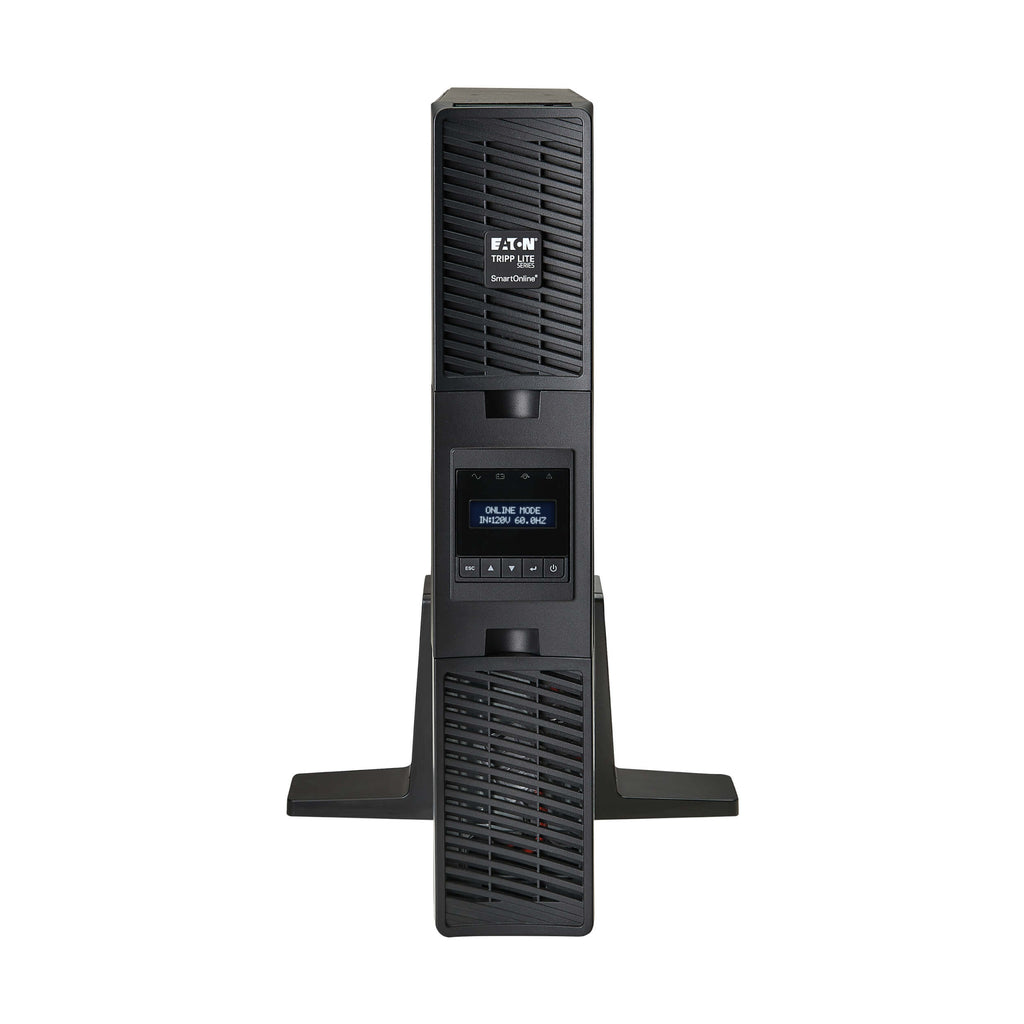

| Form Factor | 2U Rack/Tower |
| VA / Watt Capacity | 1500 VA / 1350 W |
| Input Voltage / Plug | 120V / NEMA 5-15P |
| Output Voltage | 100V, 110V, 115V, 120V, 127V |

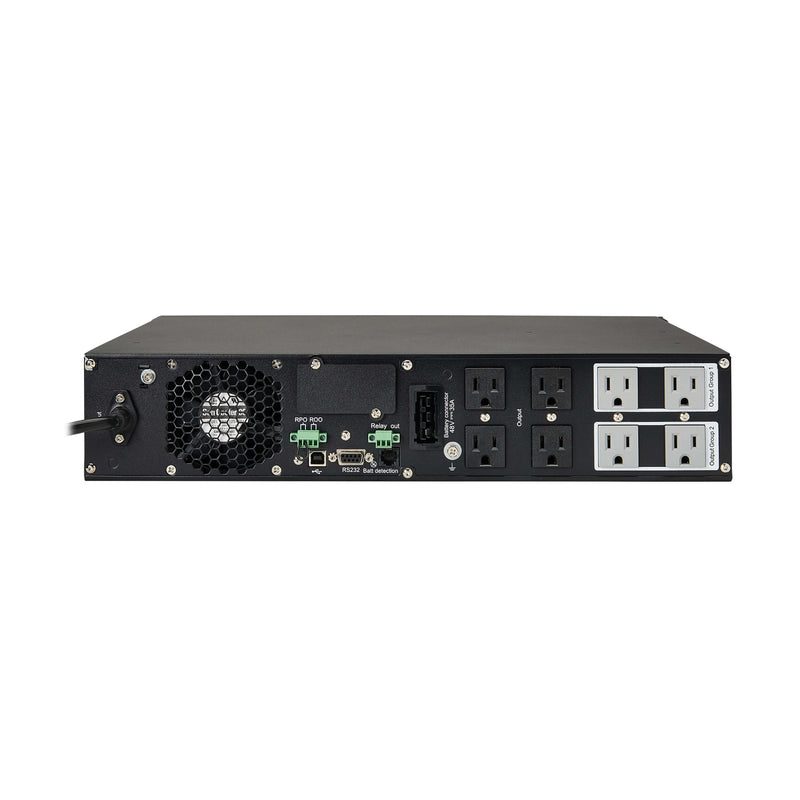

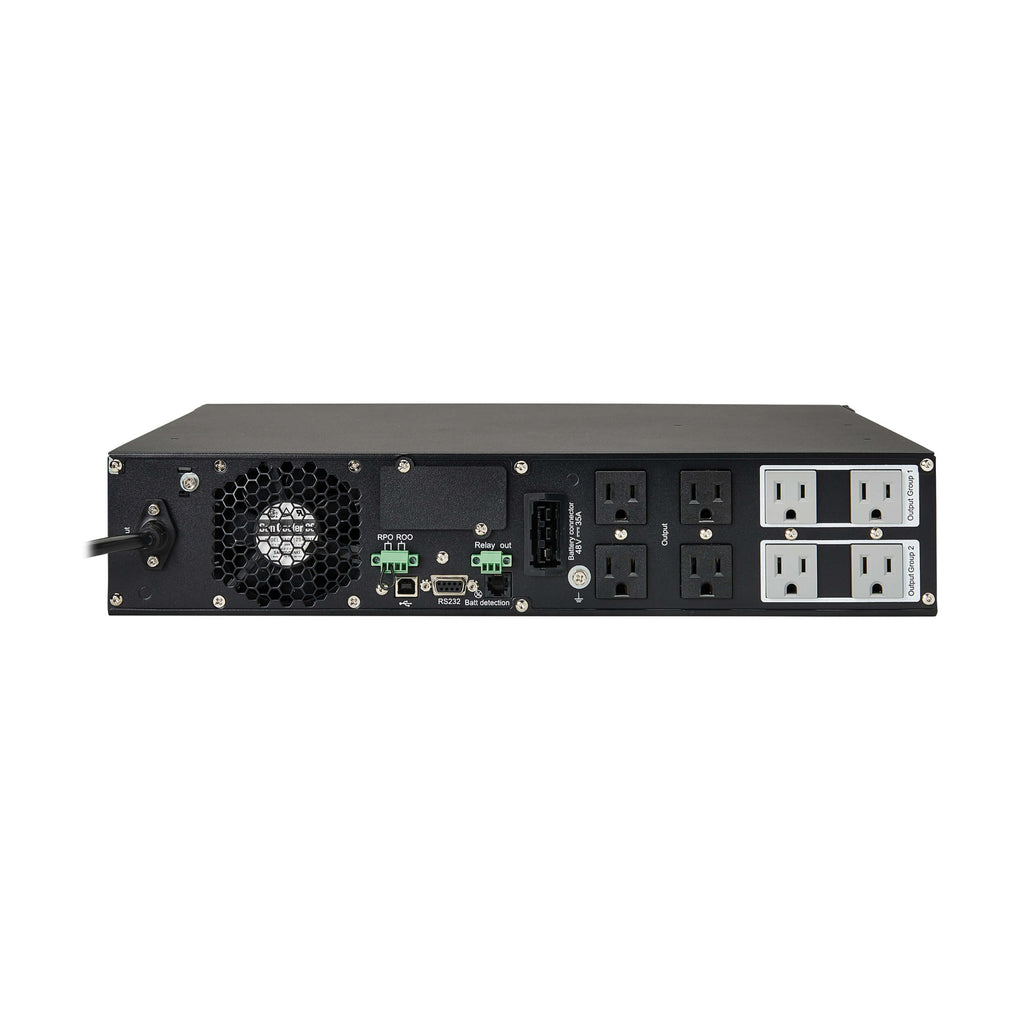

| Output Receptacles | (8) NEMA 5-15R |
| Load Management | Two switchable 2-outlet load banks |
| Battery Type | Valve-Regulated Lead-Acid (VRLA), hot-swappable |
| Runtime (Full Load / Half Load) | 5.8 min @ 1350W / 16.5 min @ 675W |
| Expandable Runtime | Yes – supports up to 4 external modules (BP48RT2UTAA) |
| Display | LCD with 10 screen options |
| Communications Ports | USB, RS-232, Contact Closure, Slot for WEBCARDLXE (not compatible with LX) |
| Surge Protection | 190 Joules, EMI/RFI filtering |
| Efficiency (Line / Economy Mode) | 90% / 95.8% |
| Noise Level | 40 dB @ 1m |
| Operating Temp / Humidity | 0° to 40°C / 0–96% RH (non-condensing) |
| Certifications | UL 1778, CE, RoHS, REACH, TAA, FCC |
| Warranty | 2-Year Limited Warranty + $250,000 Connected Equipment Insurance (US/CA/PR) |
| Unit Dimensions (H x W x D) | 3.41 x 17.33 x 17.72 in |
| Unit Weight | 42.55 lb (19.3 kg) |
