Description
The Tripp Lite SmartOnline SU1500XLCD is a high-performance 1500VA / 1350W double-conversion online UPS engineered to deliver continuous, pure sine wave power for mission-critical IT and network equipment. Designed for environments where downtime is not an option, it provides zero transfer time between utility and battery power, ensuring uninterrupted operation during outages, voltage fluctuations, and line noise.

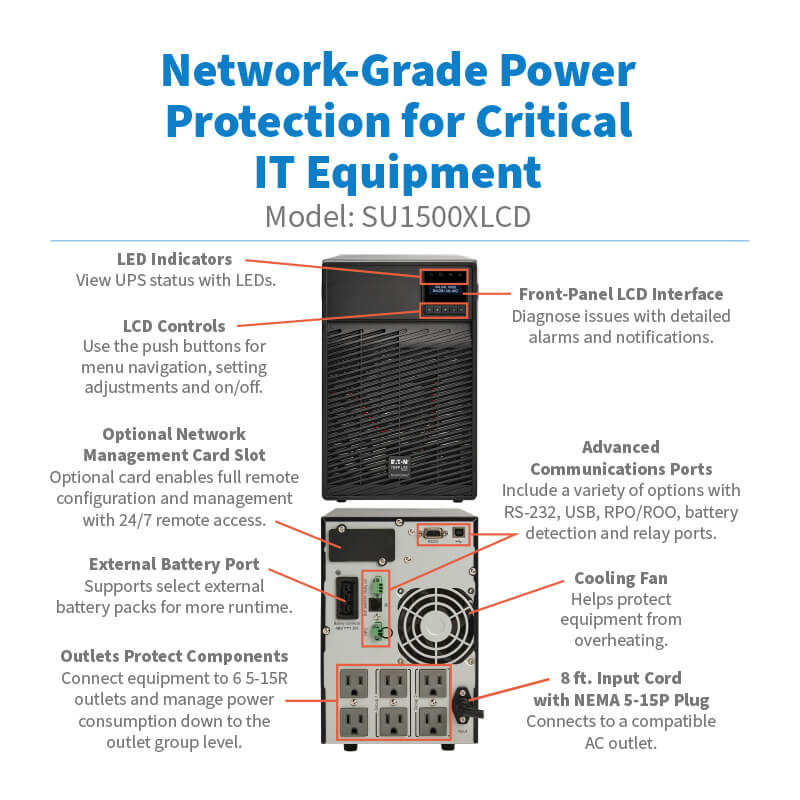

This tower-style UPS features an intuitive front-panel LCD for real-time monitoring, hot-swappable internal batteries, and expandable runtime support through external battery modules. With six NEMA 5-15R outlets and advanced load-bank management, the SU1500XLCD is ideal for servers, network closets, healthcare systems, education facilities, and government or industrial applications requiring premium power protection.
| Category | Specification |
|---|---|
| UPS Type | Online / Double-Conversion |
| Capacity | 1500VA / 1350W |
| Input Voltage | 100V / 110V / 120V / 127V |
| Output Voltage | 120V (default) |
| Output Waveform | Pure Sine Wave |
| Transfer Time | 0 ms |
| Input Plug | NEMA 5-15P |
| Output Receptacles | 6 × NEMA 5-15R |
| Load Management | 2 switchable load banks |
| Battery Type | Valve-Regulated Lead Acid (VRLA) |
| Runtime (Full Load) | ~5.9 minutes |
| Runtime (Half Load) | ~16.5 minutes |
| Expandable Runtime | Yes (external battery support) |
| Battery Replacement | User-replaceable, hot-swappable |

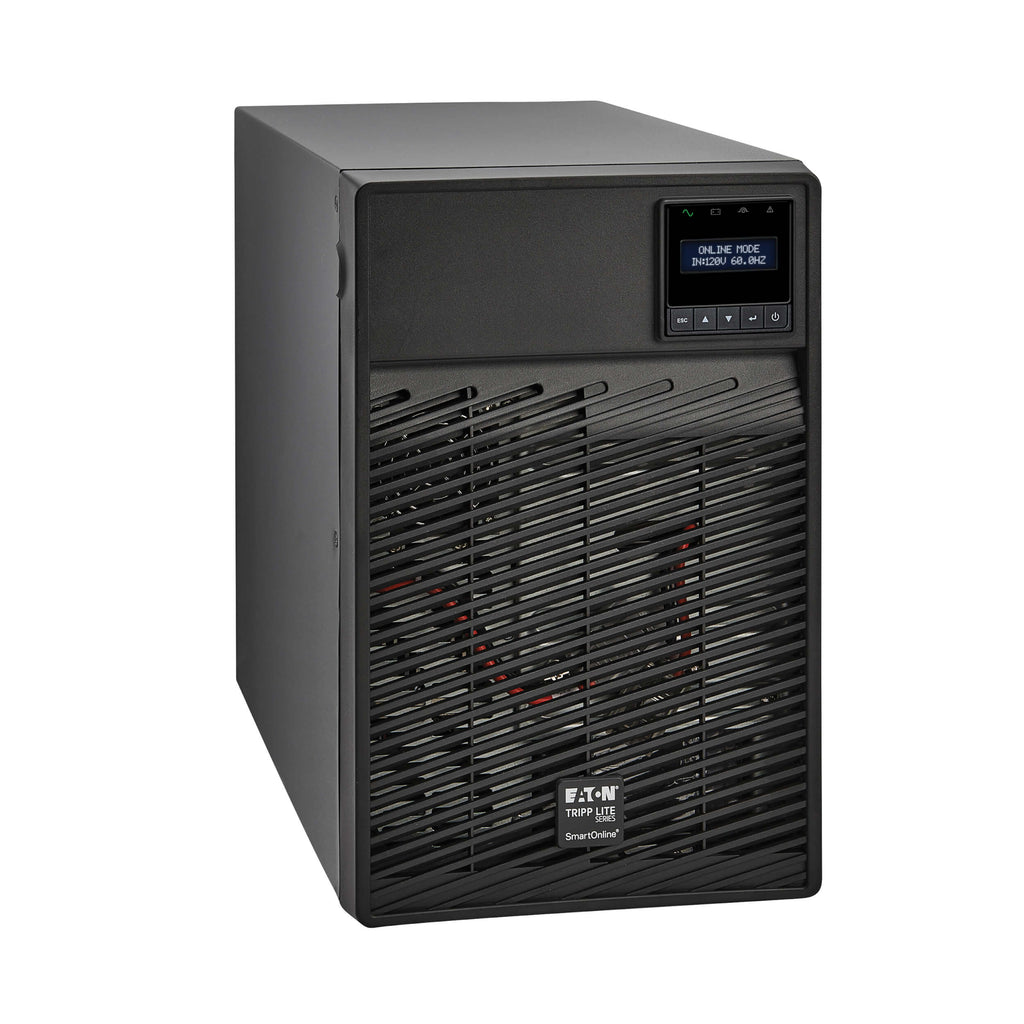

| Form Factor | Tower |

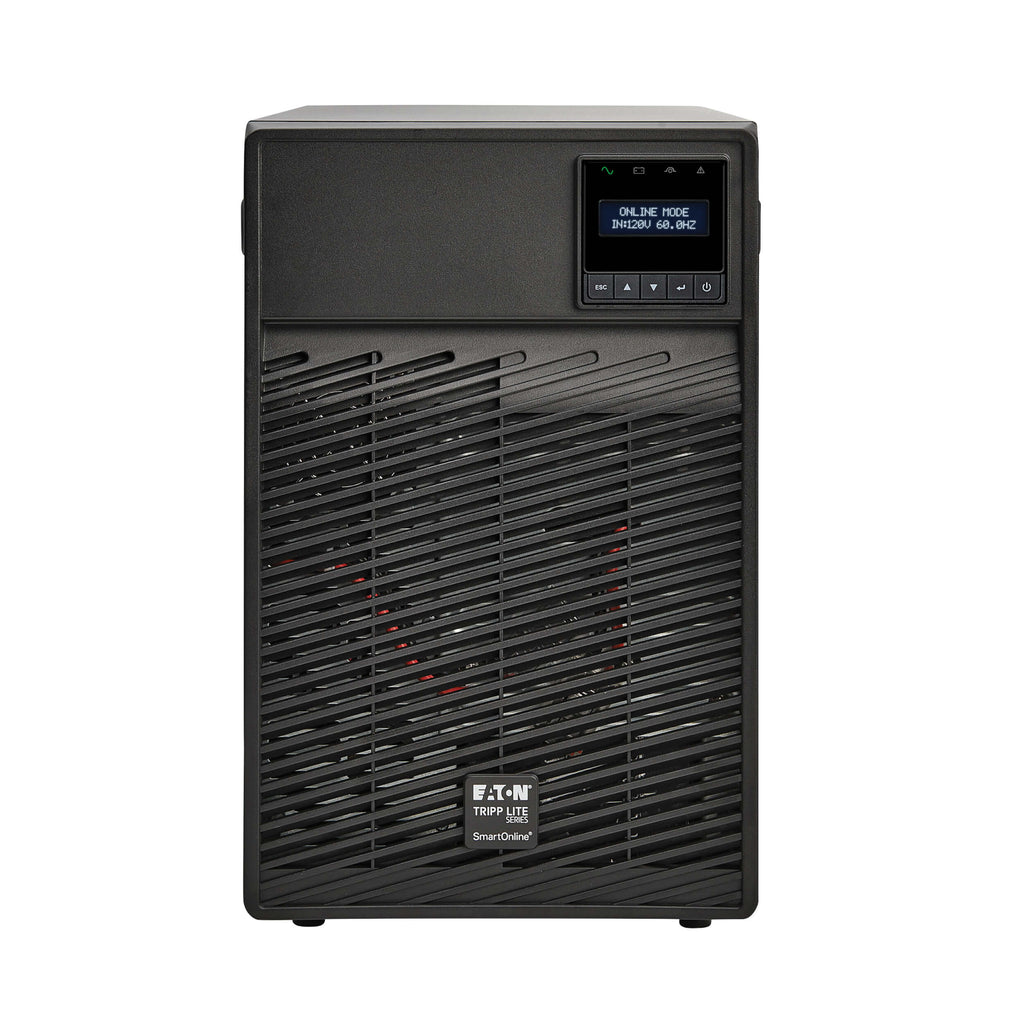

| Display | Front-panel LCD |

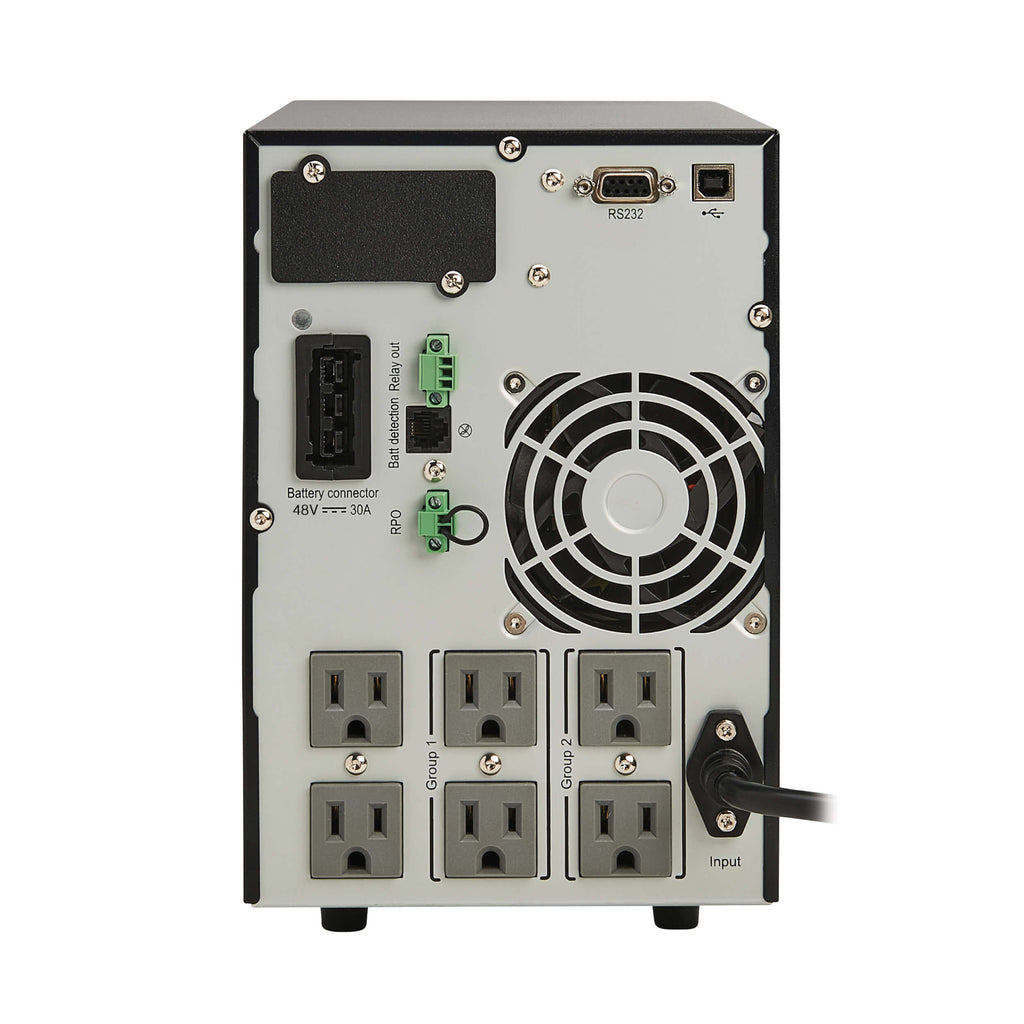

| Communications | USB, RS-232, contact closure, network card slot |
| Remote Management | Optional network management card |
| EMI/RFI Filtering | Yes |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Certifications | UL, CE, FCC, RoHS |
| Warranty | 2-Year Limited Warranty |
