Description

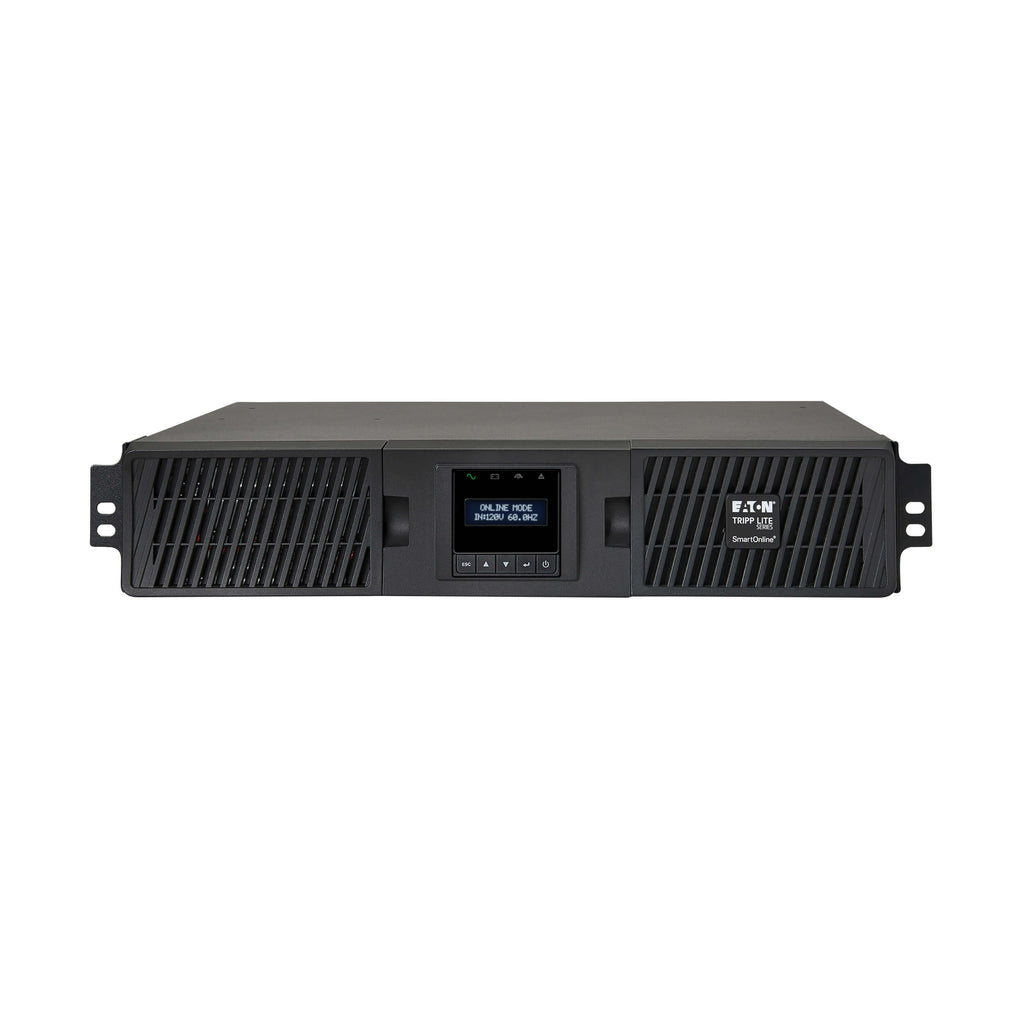

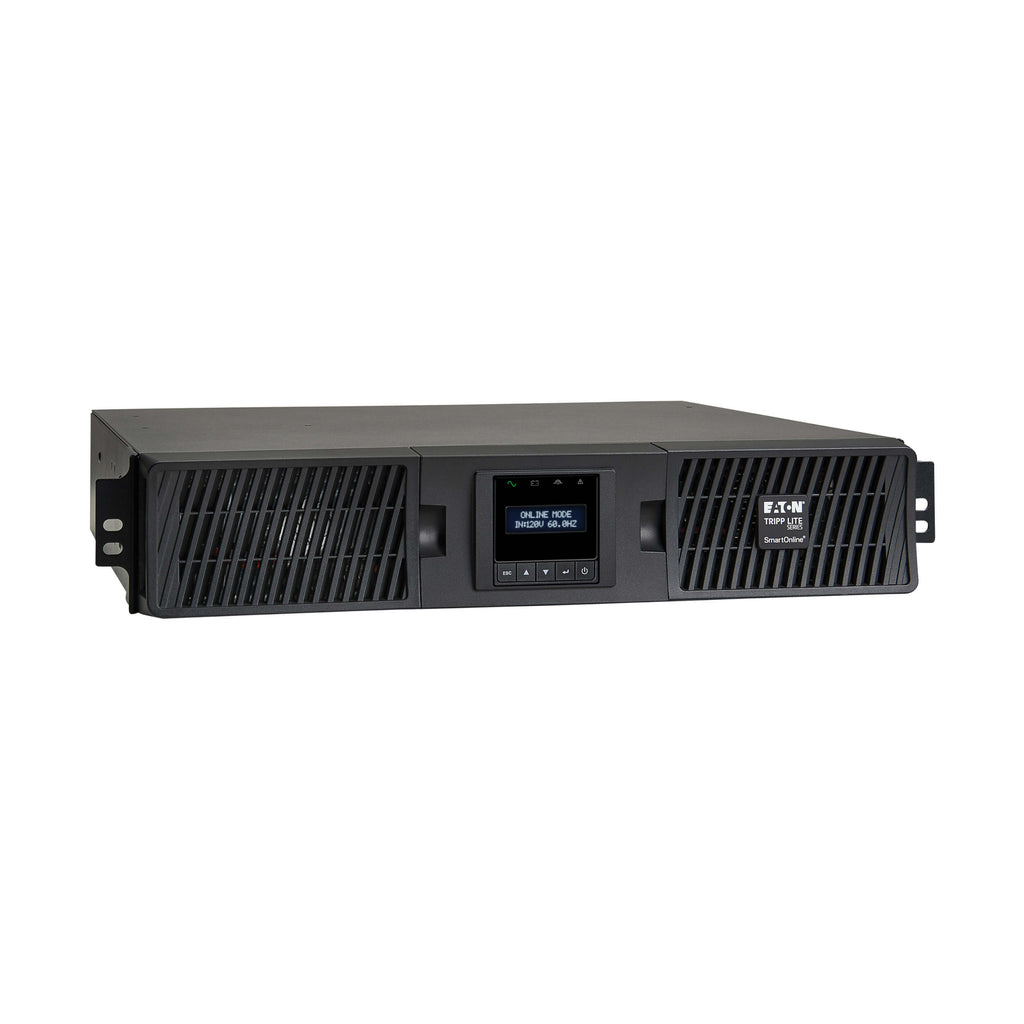

The Eaton Tripp Lite SmartOnline SU1500RTXLCDN delivers premium power protection and continuous uptime for mission-critical environments. This 1500VA / 1350W on-line double-conversion UPS ensures pure sine wave output, isolating sensitive equipment from blackouts, brownouts, surges, and line noise.
Designed for education, healthcare, military, and IT applications, it offers zero transfer time between AC and battery modes, guaranteeing uninterrupted operation. The pre-installed WEBCARDLXE network management card provides 24/7 remote monitoring and control, including safe shutdowns and load management.
An intuitive LCD interface offers real-time system insights, while hot-swappable VRLA batteries provide reliable runtime and scalability with optional external battery packs (BP48RT). Compact and versatile, the 2U form factor fits easily into rack or tower configurations.
| Category | Specification |
|---|---|
| Model | SU1500RTXLCDN |
| Brand | Eaton Tripp Lite |
| UPS Type | On-line Double-Conversion |
| Capacity | 1500VA / 1350W |
| Output Voltage | 100V, 110V, 115V, 120V, 127V (Pure Sine Wave) |

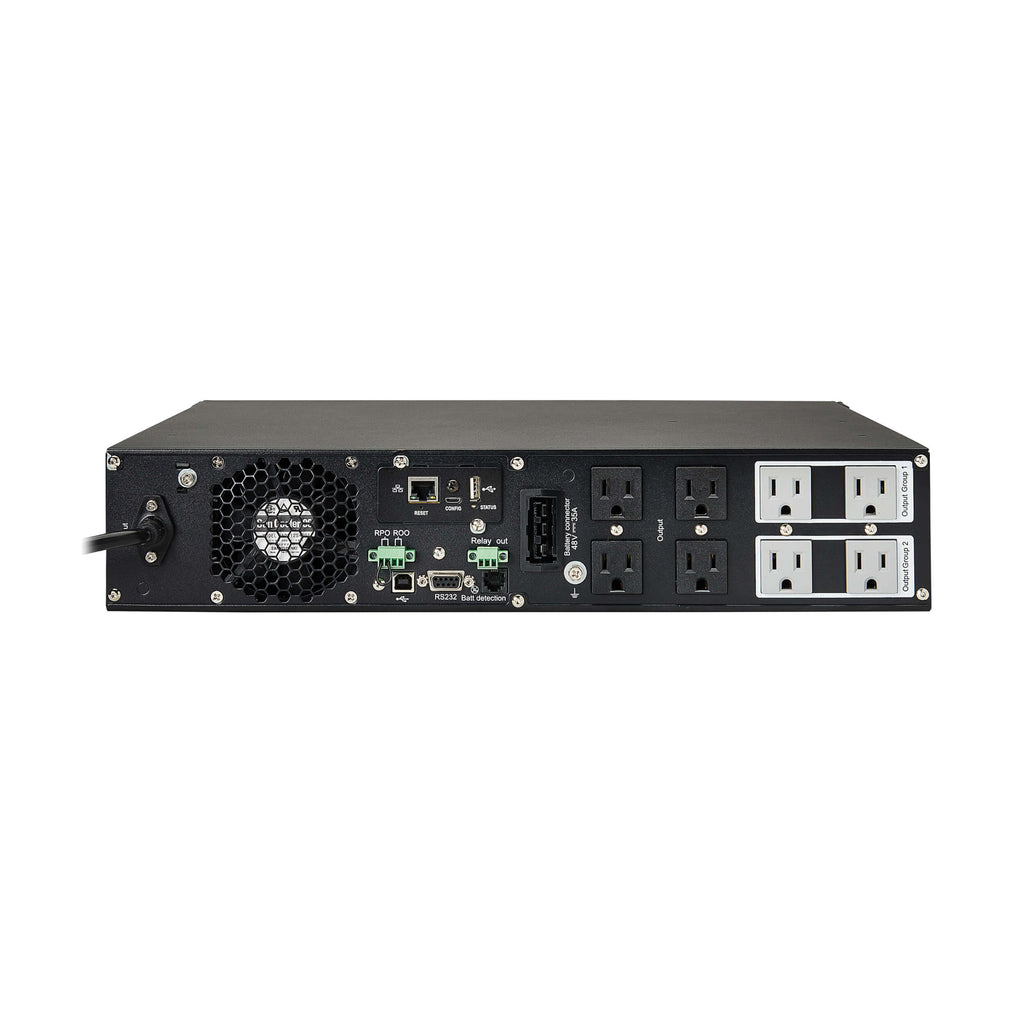

| Output Receptacles | 8 × NEMA 5-15R (Two switchable load banks) |
| Input Plug Type | NEMA 5-15P |
| Input Voltage | 120V nominal (100–120V supported) |
| Input Cord Length | 8 ft (2.4 m) |
| Power Factor | 0.9 |
| Runtime (Full Load) | 5.8 minutes (1350W) |
| Runtime (Half Load) | 16.5 minutes (675W) |
| Battery Type | Valve-Regulated Lead Acid (VRLA), Hot-Swappable |
| Expandable Runtime | Yes, supports up to 4 × BP48RT external battery packs |
| Recharge Time | 3 hours to 90% |
| Network Management | Pre-installed WEBCARDLXE for remote monitoring |

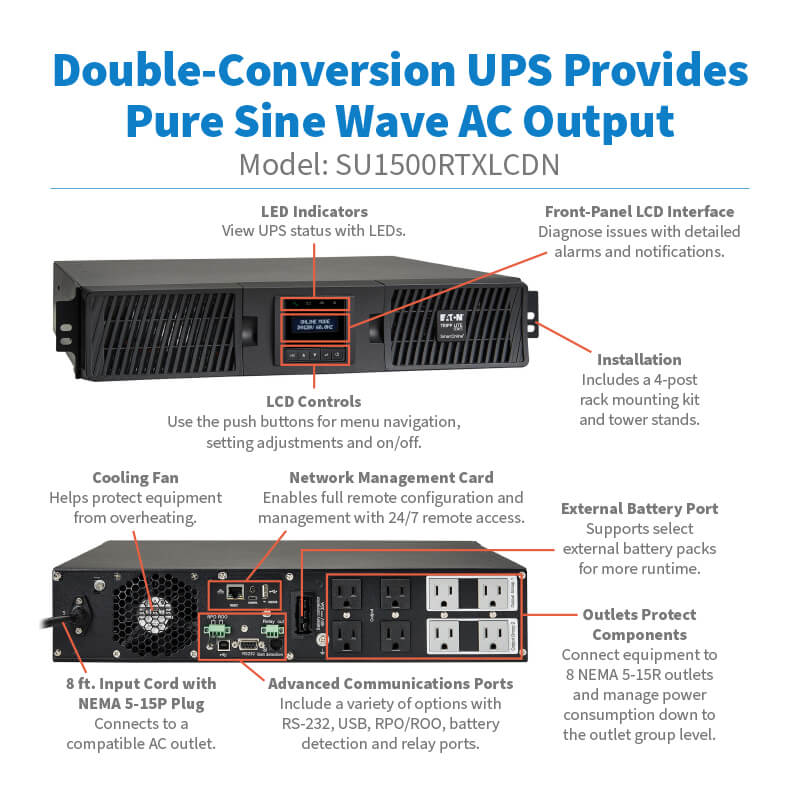

| Communication Ports | USB, RS-232, Dry Contact, Network (RJ-45), RPO/ROO |
| LCD Display | Menu-driven LCD with status, logs, and settings |
| Surge Protection | 190 Joules (EMI/RFI noise suppression) |
| Efficiency | 90% (Online), 95.8% (Economy Mode) |

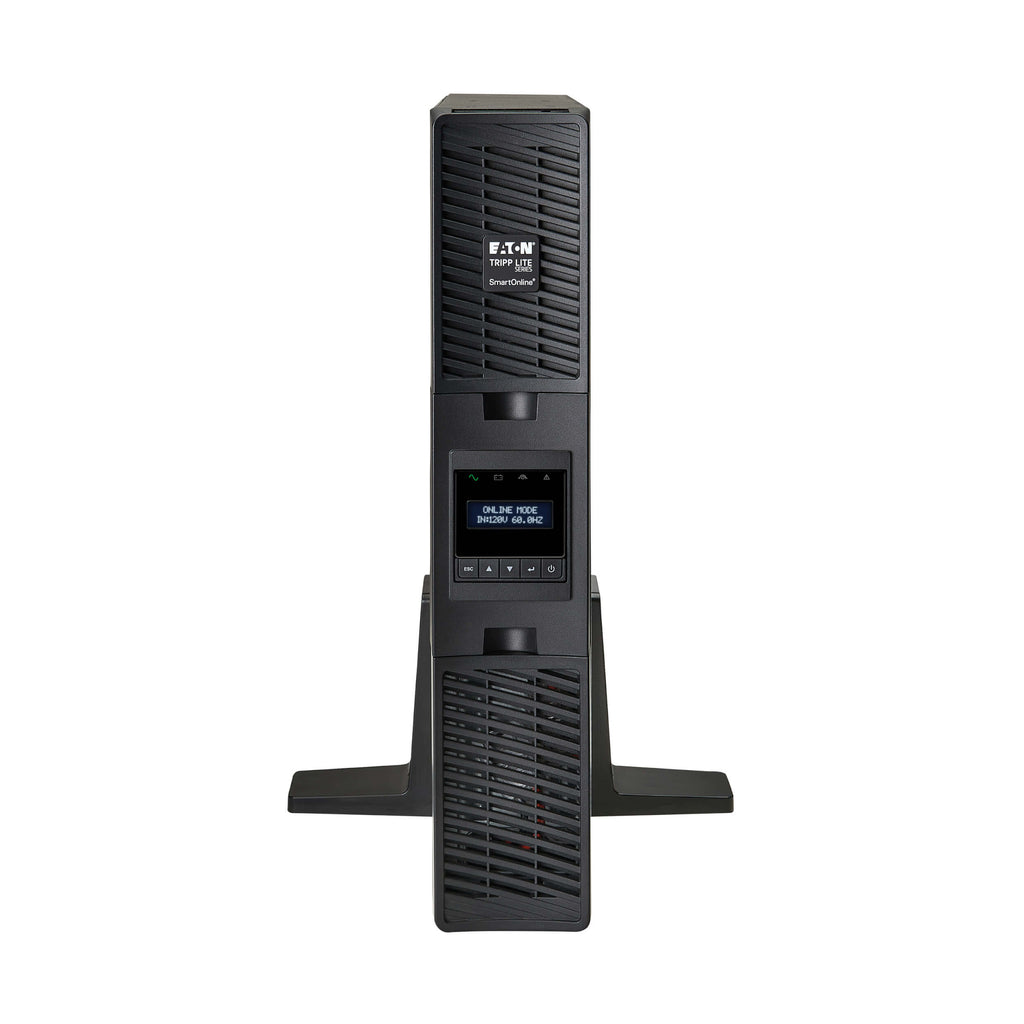

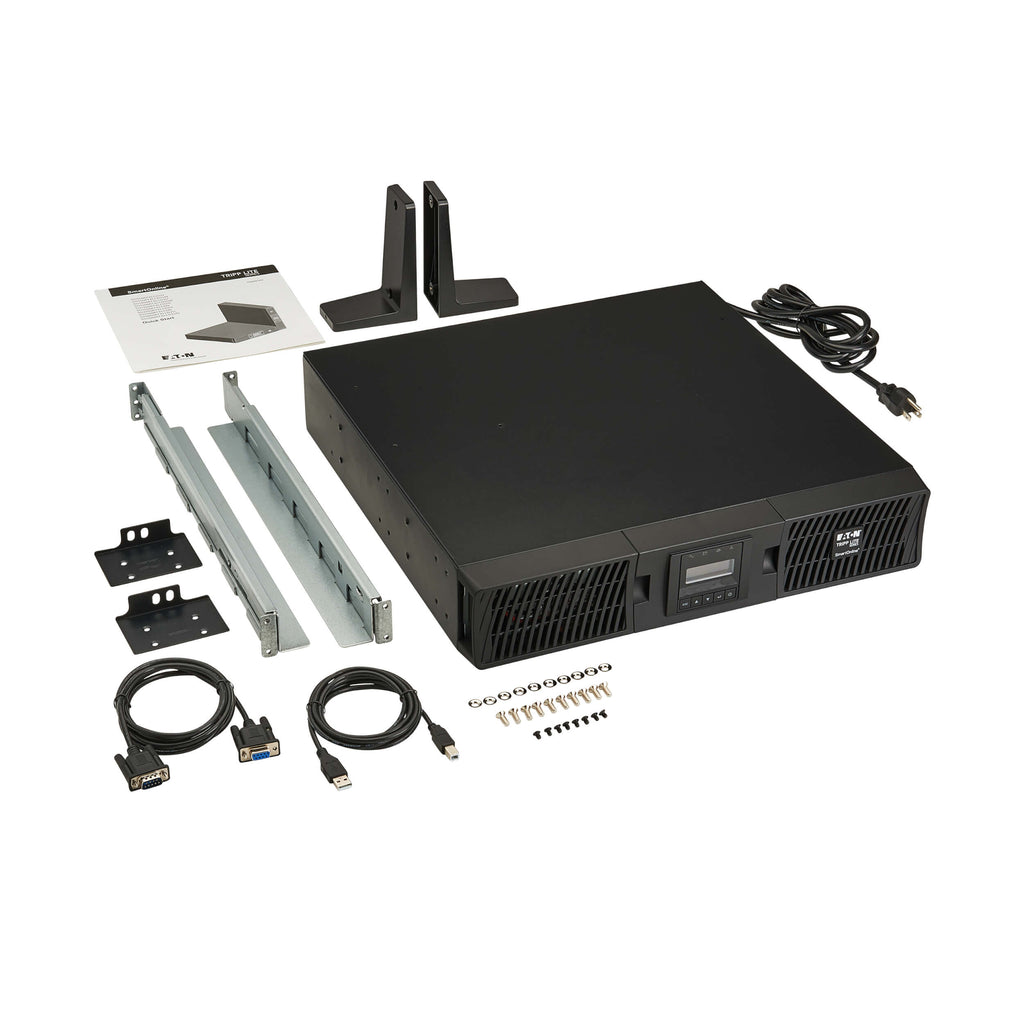

| Form Factor | 2U Rack/Tower convertible |
| Dimensions (HxWxD) | 3.41 × 17.33 × 17.72 in (8.66 × 44 × 45 cm) |
| Weight | 42.55 lb (19.3 kg) |
| Operating Temperature | 0°C to 40°C |
| Noise Level | 40 dB at 1 m |
| Certifications | UL 1778, CAN/CSA-C22.2 No.107.3, NOM, CE, FCC, RoHS, REACH |
| Warranty | 2-year limited warranty |
| Connected Equipment Insurance | $250,000 Ultimate Lifetime Insurance (U.S./Canada/Puerto Rico) |
