Description

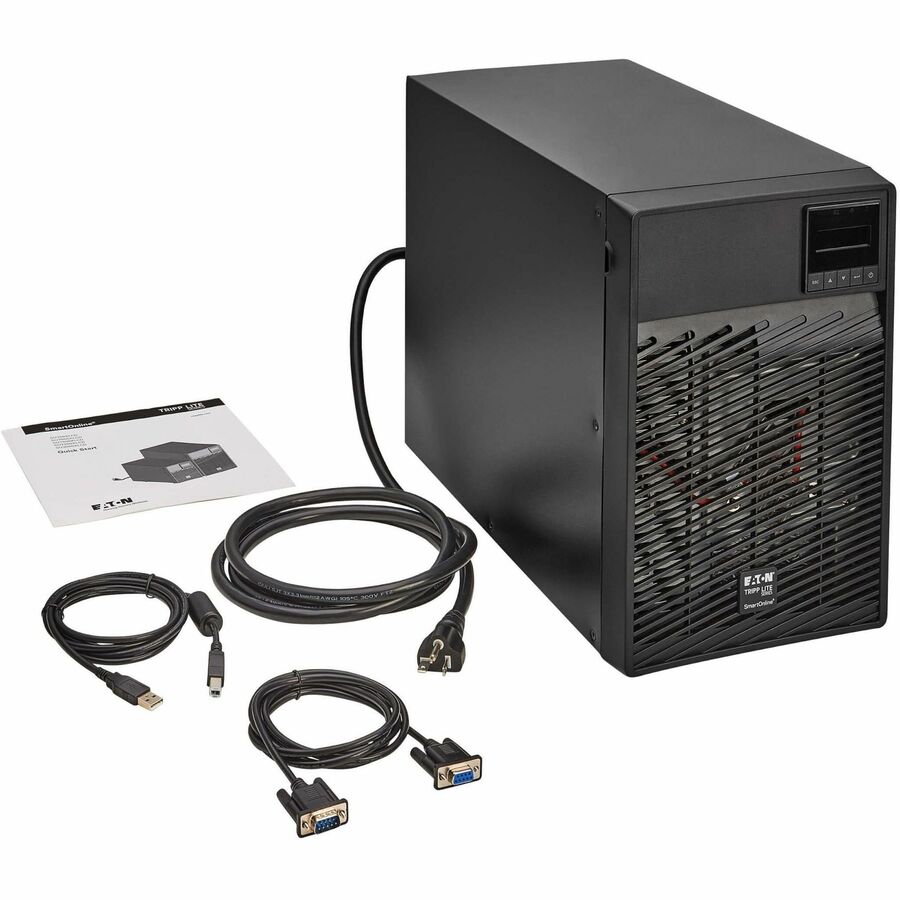

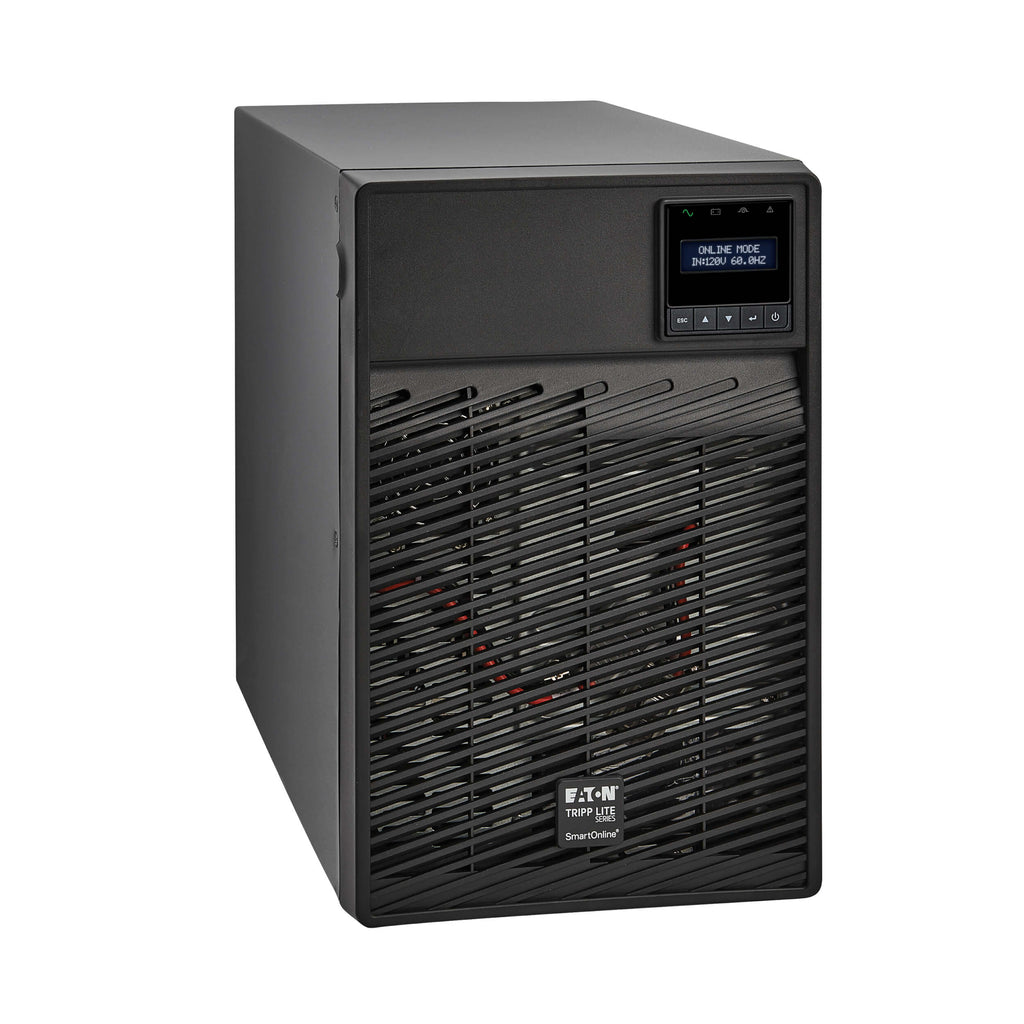

The Eaton Tripp Lite SmartOnline SU2200XLCD is a 1960VA/1770W on-line double-conversion UPS system offering premium power protection for mission-critical applications. Designed for education, healthcare, government, and IT environments, this high-performance UPS features pure sine wave output, zero transfer time, and advanced LCD monitoring.

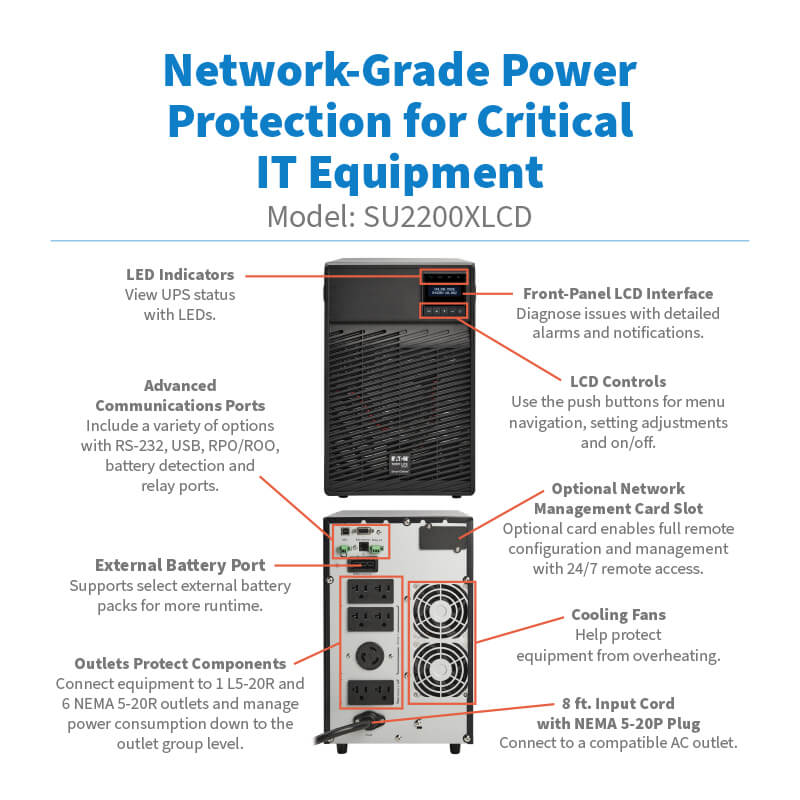

Equipped with 7 outlets (6x 5-20R, 1x L5-20R), it supports load management and outlet-level control. The SU2200XLCD also features an LCD interface, USB/DB9 ports, dry-contact relay, and optional WEBCARDLXE for 24/7 remote monitoring. Runtime can be expanded with up to 4 BP96V external battery packs. The tower form factor makes it ideal for desktop, floor, or shelf installations.
| Category | Details |
|---|---|
| Model Number | SU2200XLCD |
| Form Factor | Tower |
| Topology | Online, Double-Conversion |
| Output Capacity | 1960VA / 1770W |
| Nominal Voltage | 120V (supports 100V, 110V, 127V) |
| Input Plug Type | NEMA 5-20P |
| Input Cord Length | 8 ft (2.4 m) |

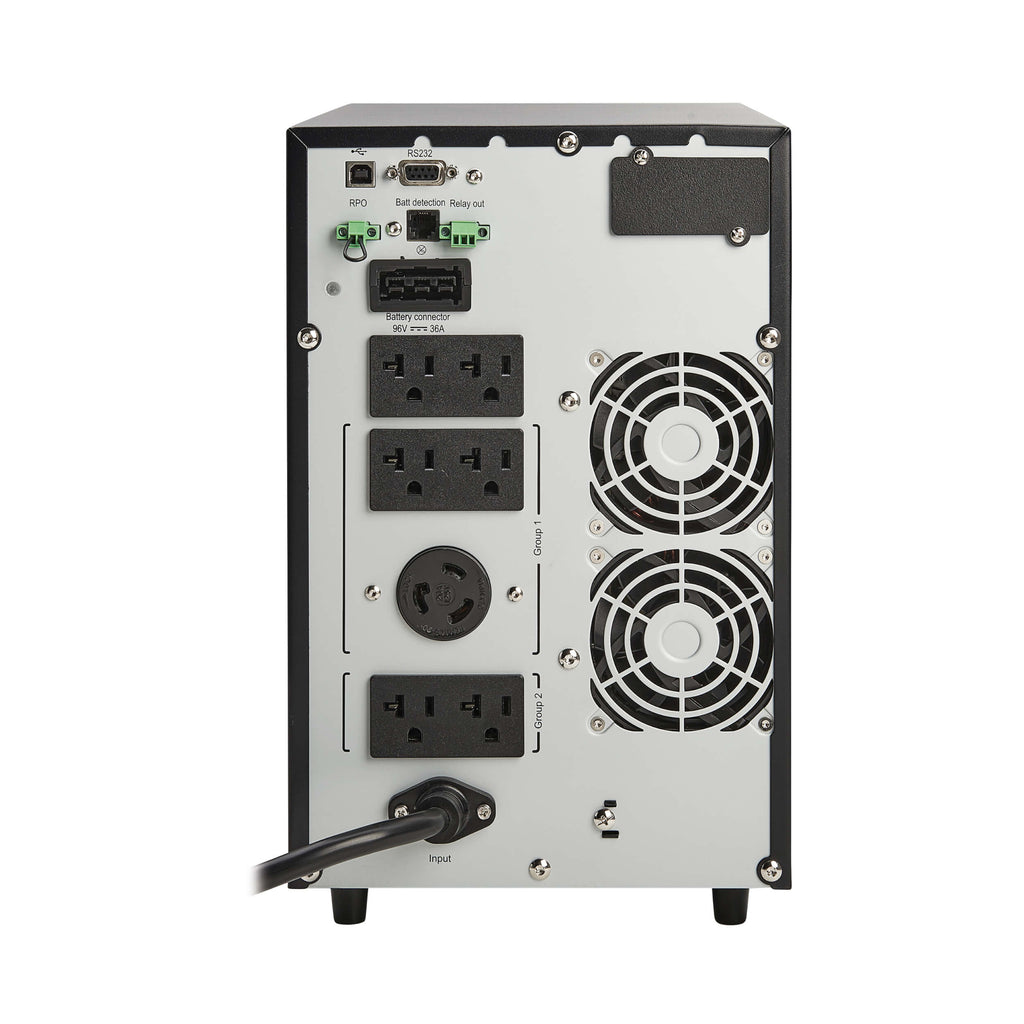

| Outlets | 6 × 5-20R, 1 × L5-20R (Two load banks) |
| Waveform | Pure Sine Wave (AC & Battery Mode) |
| Battery Type | Valve Regulated Lead Acid (VRLA), hot-swappable |
| Runtime (Full/Half Load) | 10.4 min @ 1770W / 26.2 min @ 885W |
| Expandable Runtime | Yes, supports up to 4 × BP96V external battery modules |

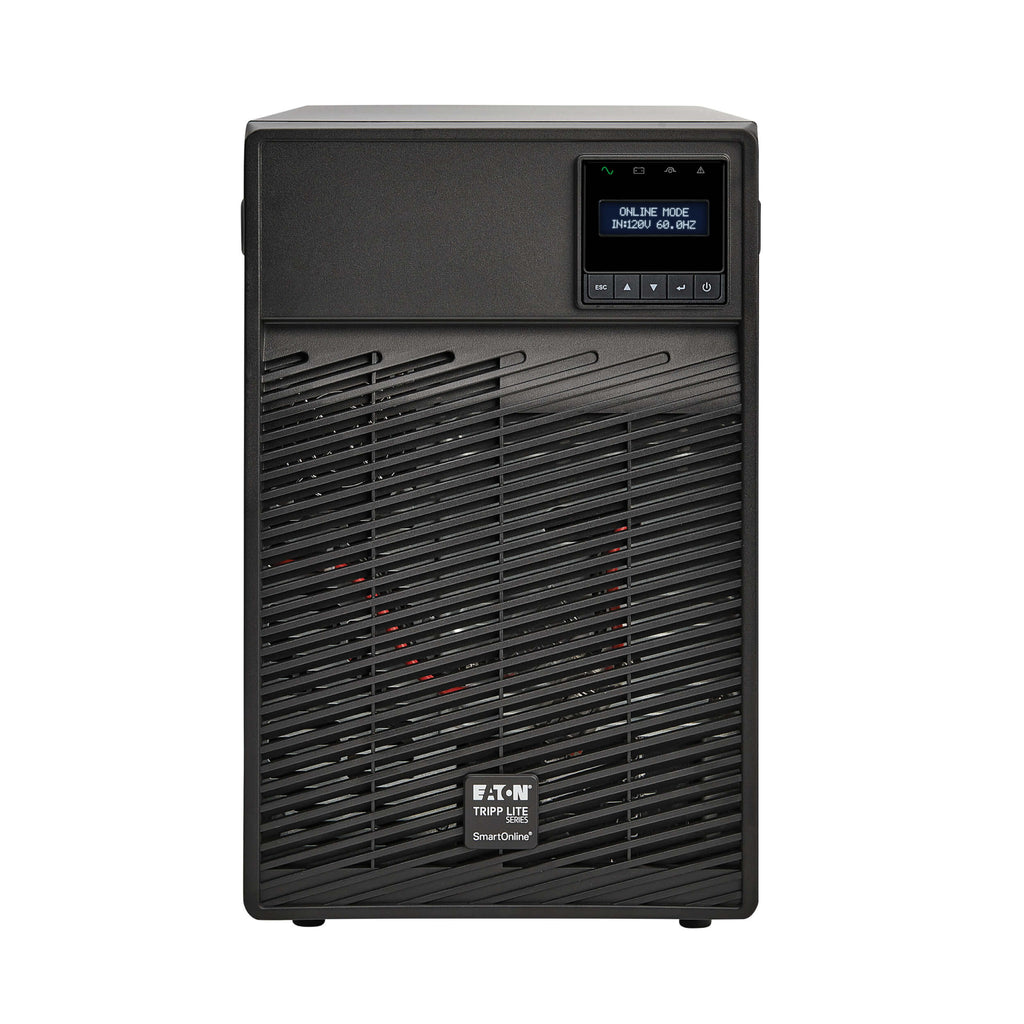

| LCD Interface | Status display with event logs, config menu, firmware info, and alarms |
| Communication Ports | USB, DB9 RS-232, Contact Closure, Slot for SNMP (WEBCARDLXE optional) |
| Remote Management | Optional via WEBCARDLXE (not compatible with WEBCARDLX) |
| Surge Protection | 190 Joules, EMI/RFI filtering |
| Certifications | UL 1778, CSA C22.2, CE, FCC, RoHS, NOM, REACH |
| Dimensions (HxWxD) | 13.63 × 8.43 × 16.23 in (34.6 × 21.4 × 41.2 cm) |
| Weight | 73.42 lb (33.30 kg) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Warranty | 2-Year Limited Warranty, $250,000 Connected Equipment Insurance |
