Description

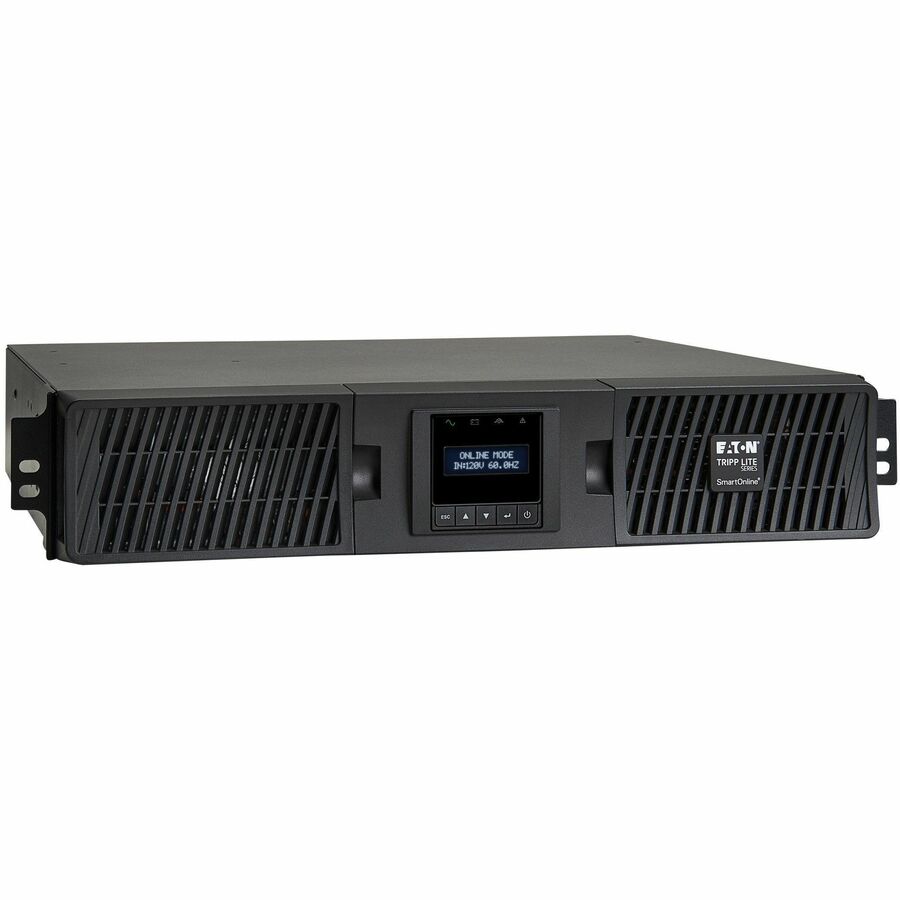

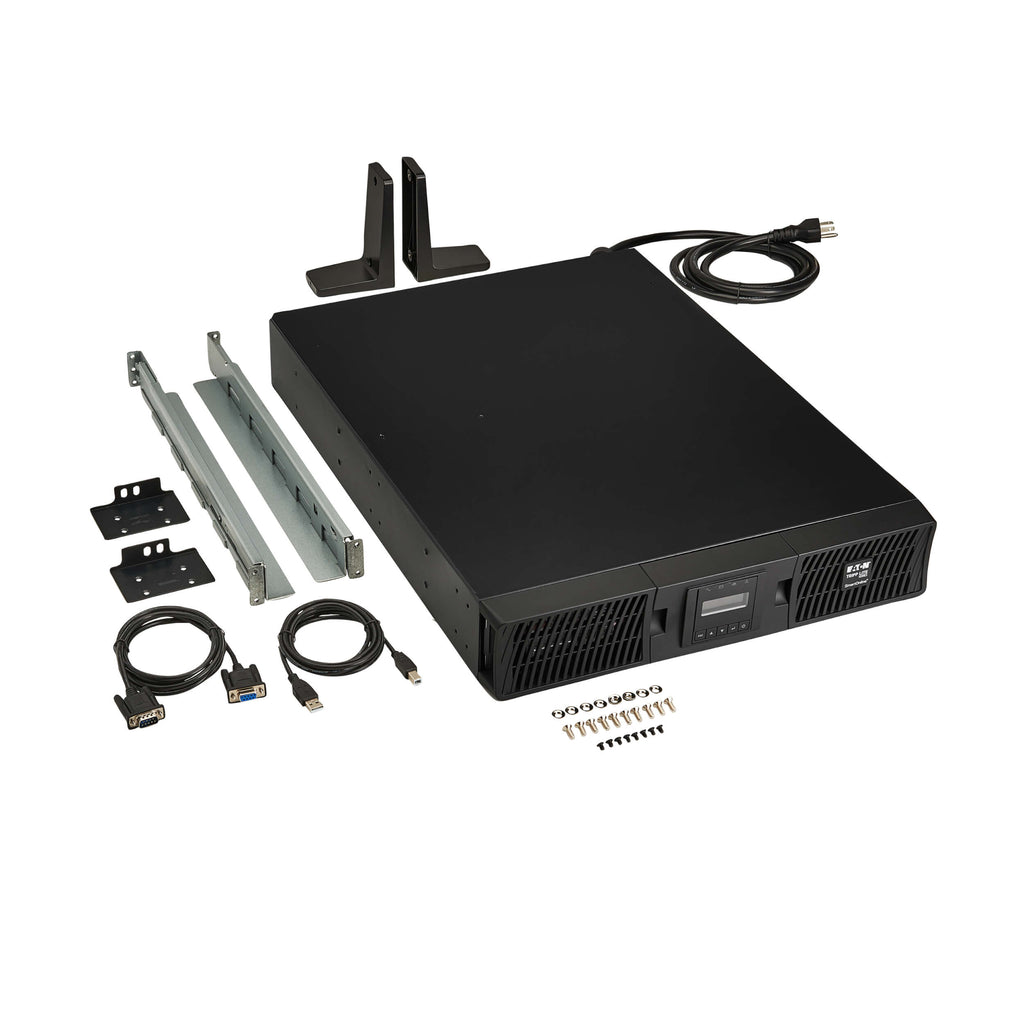

The Eaton Tripp Lite SU2200RTXLCD2UTAA is a TAA-compliant SmartOnline® UPS system that provides reliable 2000VA/1800W pure sine wave backup power for mission-critical IT environments. Featuring true double-conversion online operation, it isolates connected equipment from all power disturbances to ensure zero transfer time during outages. Its compact 2U rack/tower convertible design supports flexible deployment in server rooms, healthcare facilities, government applications, and edge network sites.

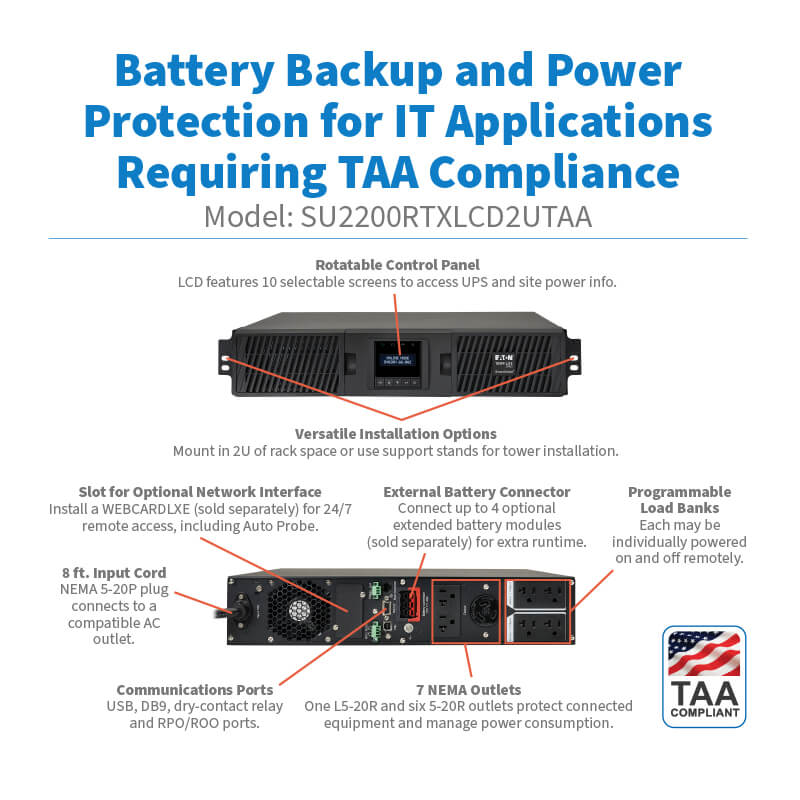

This UPS supports hot-swappable VRLA batteries with expandable runtime via external battery modules (BP72RT2UTAA). Equipped with six 5-20R and one L5-20R outlets—two of which are grouped into independently controllable load banks—it enables power optimization during outages. An intuitive LCD display, USB/DB9 communication ports, and compatibility with optional WEBCARDLXE provide comprehensive monitoring and management options.
| Specification | Details |
|---|---|
| Model Number | SU2200RTXLCD2UTAA |

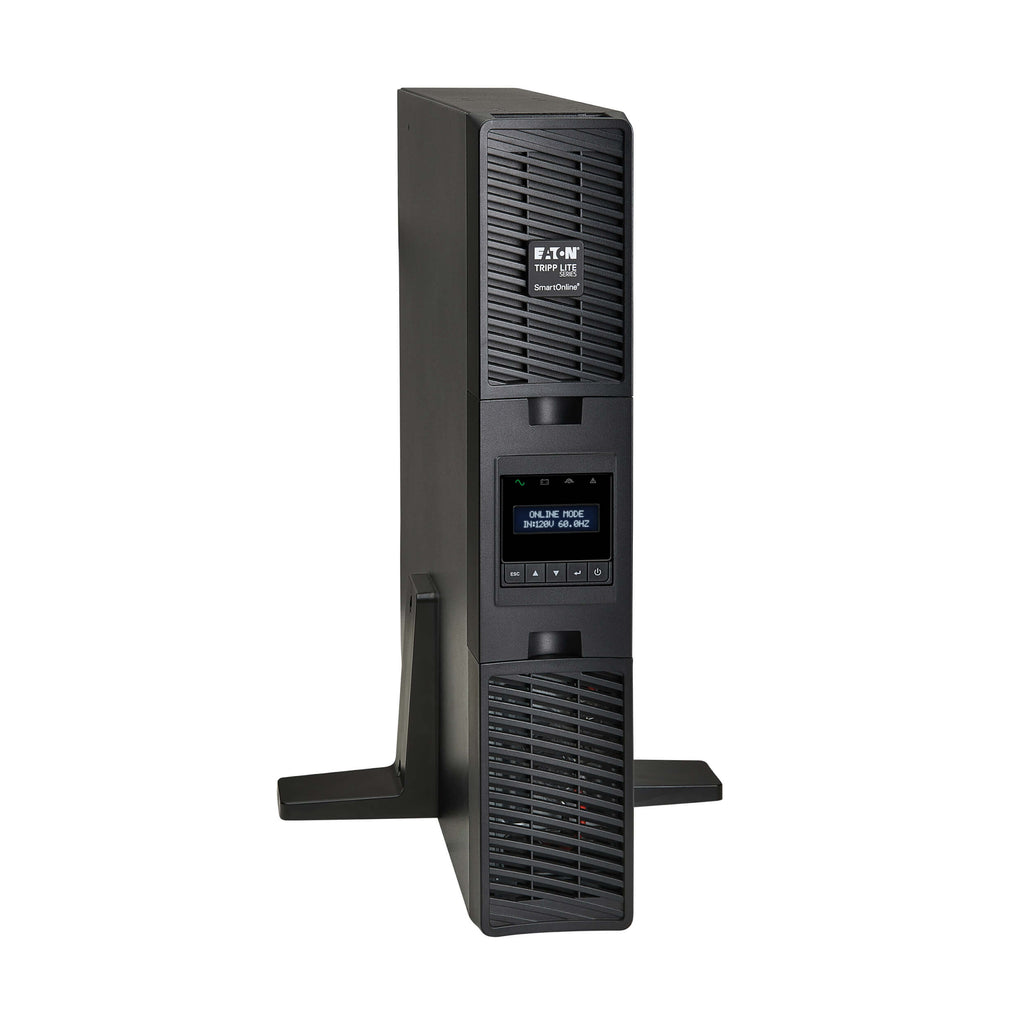

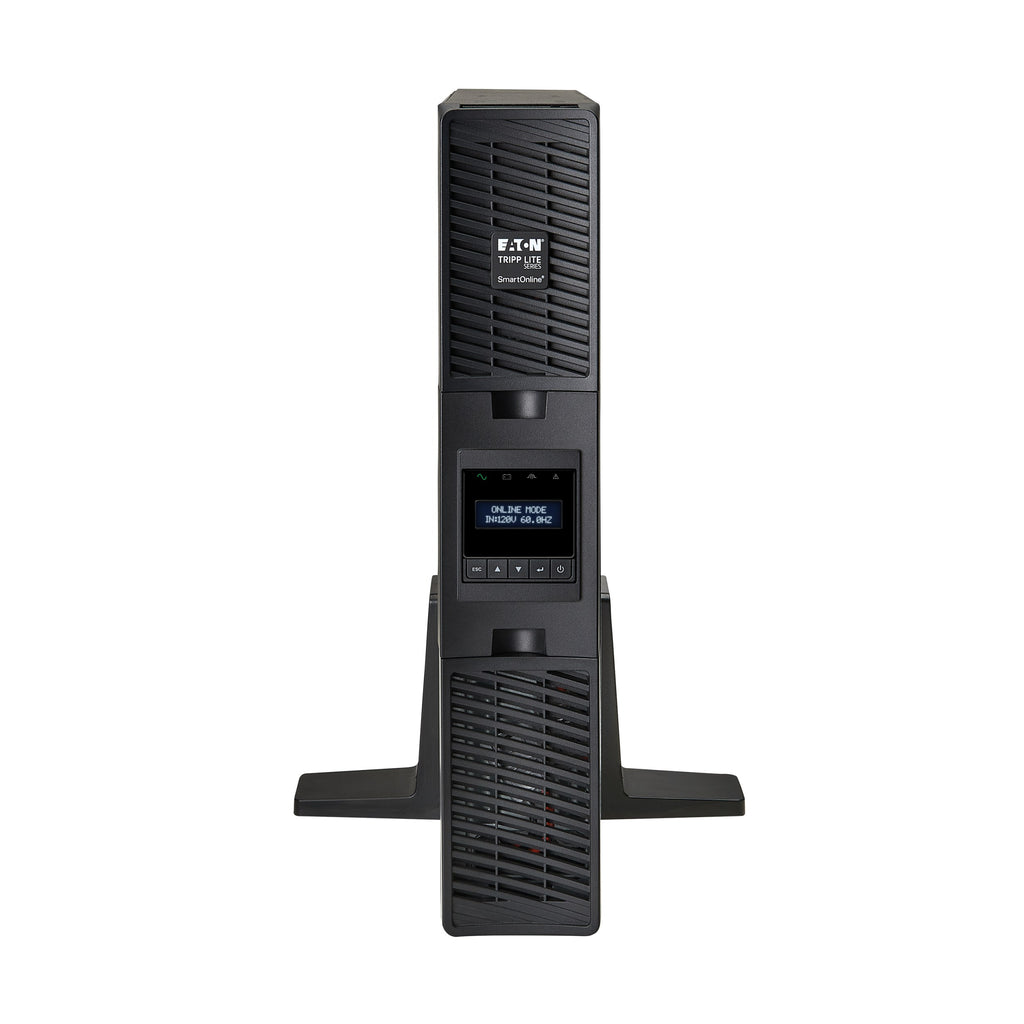

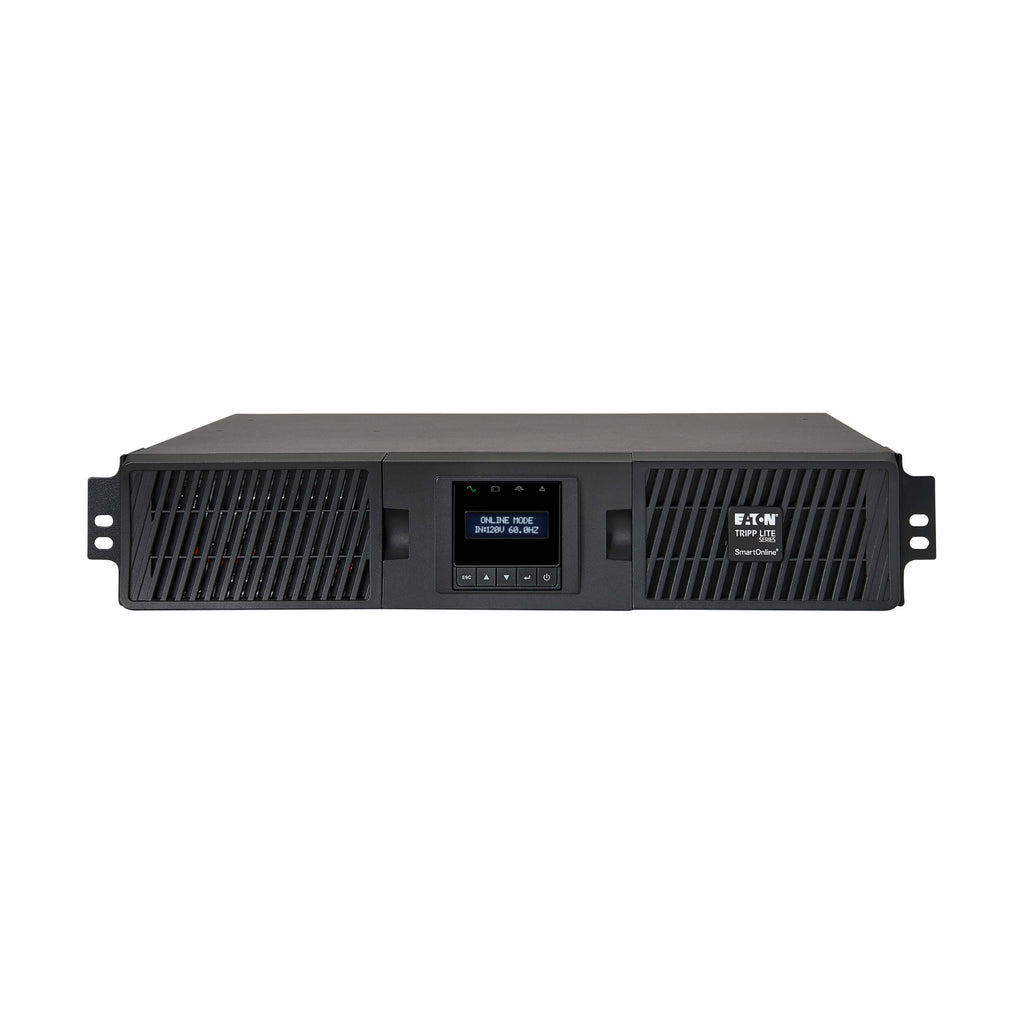

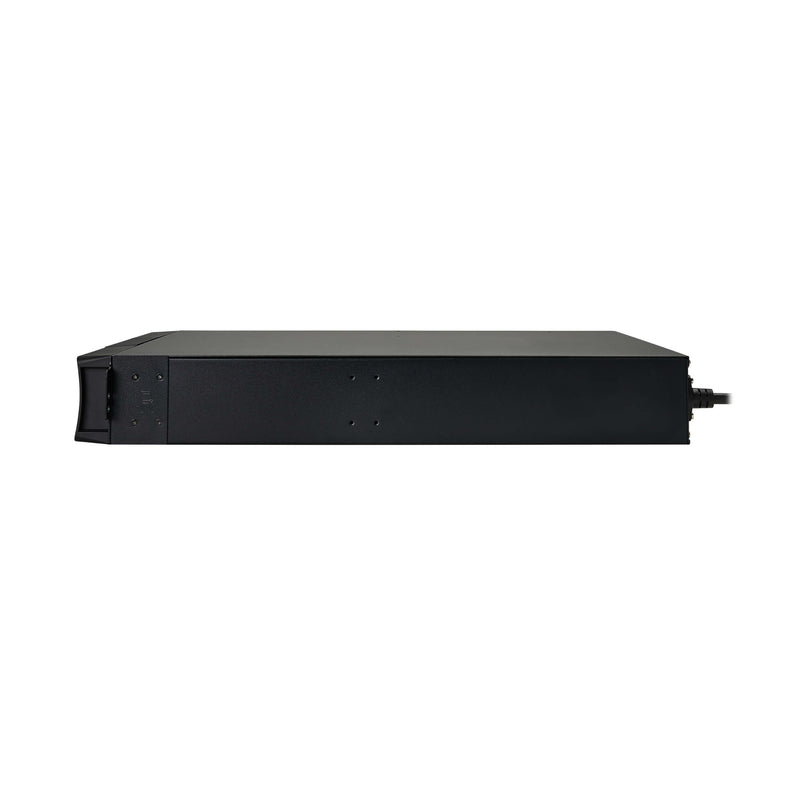

| Form Factor | 2U Rack/Tower Convertible |
| Capacity | 2000VA / 1800W |
| Input Voltage | 100V, 110V, 115V, 120V, 127V (Nominal 120V) |
| Input Plug Type | NEMA 5-20P, 8 ft. Cord |

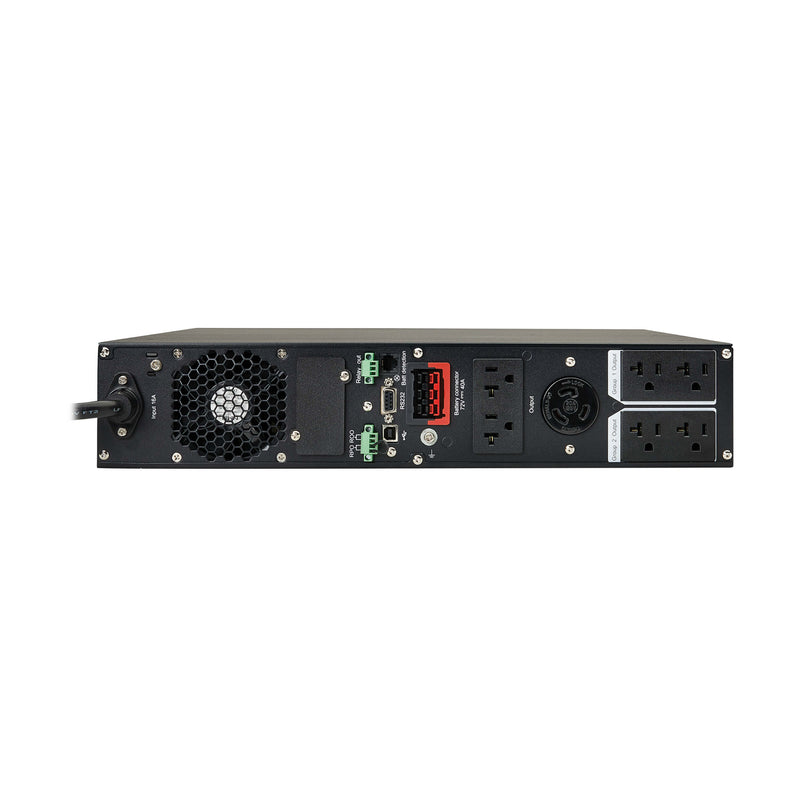

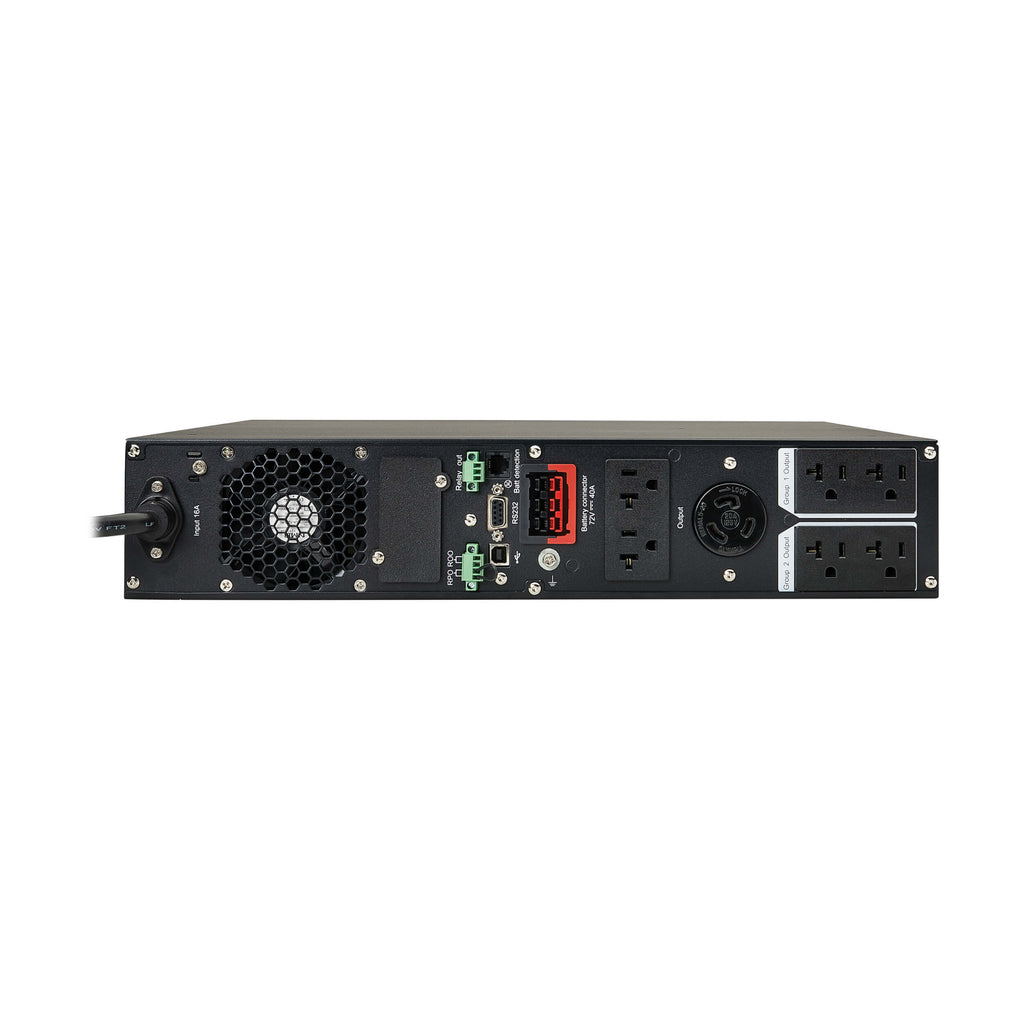

| Output Receptacles | (6) 5-20R, (1) L5-20R |
| Output Waveform | Pure Sine Wave (AC & Battery Mode) |
| Load Banks | Two switchable 2-outlet banks |
| Battery Type | Hot-swappable VRLA |
| Runtime (Full/Half Load) | 7.7 / 20.2 minutes |
| Expandable Runtime | Yes, with up to 4× BP72RT2UTAA modules |
| Recharge Time | 3 hours to 90% |
| Display | Rotatable 2-line LCD, 10 menu screens |
| Communications | USB, RS-232, Contact Closure, RPO/ROO |
| Network Card Support | WEBCARDLXE (optional, not compatible with WEBCARDLX) |
| EMI/RFI Suppression | Yes, 190 Joules |
| Efficiency | 91.4% (Online), 96.8% (Economy Mode) |
| Cooling | Internal Fan |
| Audible Noise | 47 dB at 1m |
| Operating Temperature | 0° to 40°C |
| Dimensions (H x W x D) | 3.41 x 17.33 x 23.82 in (8.66 x 44.0 x 60.5 cm) |
| Weight | 61.51 lbs (27.9 kg) |
| Compliance | UL 1778, TAA, FCC, RoHS, CE |
| Warranty | 2-Year Limited Warranty, $250,000 Insurance (US/CAN/PR) |
