Description

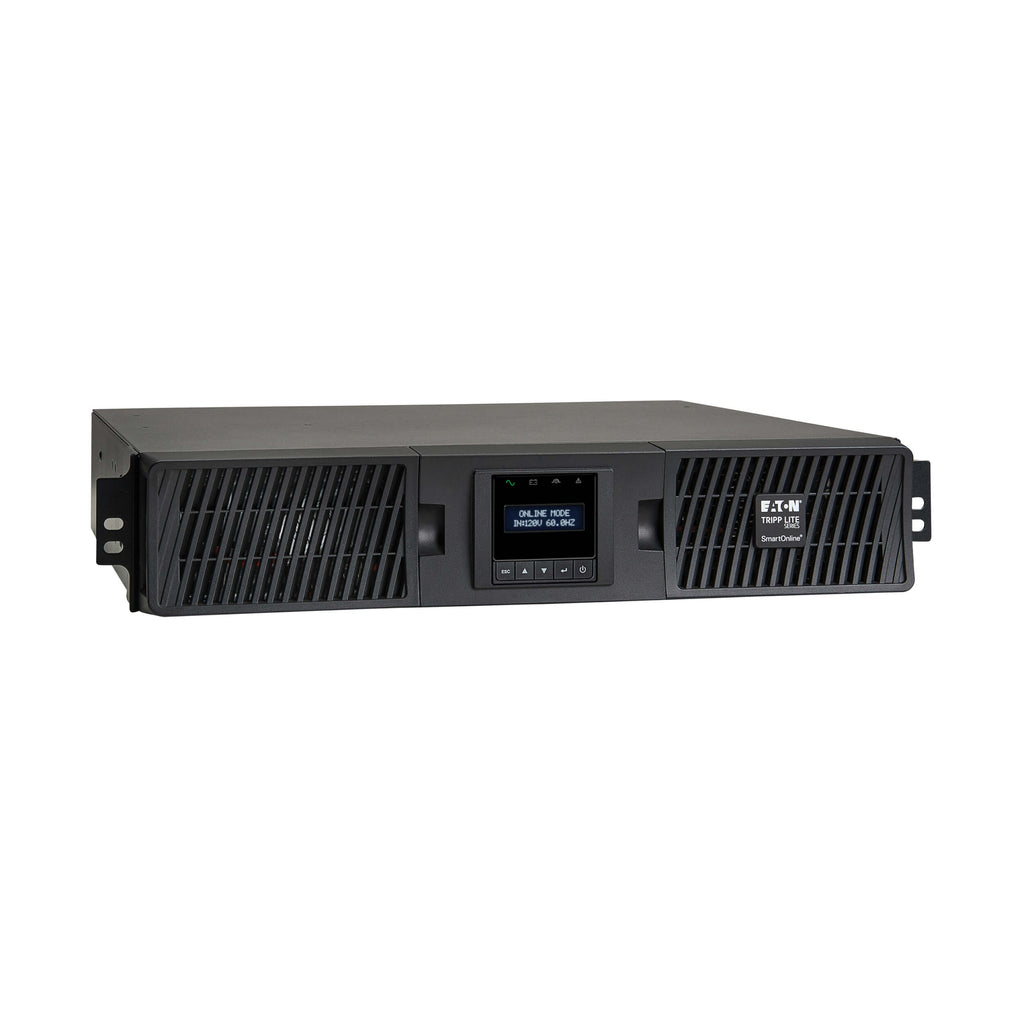

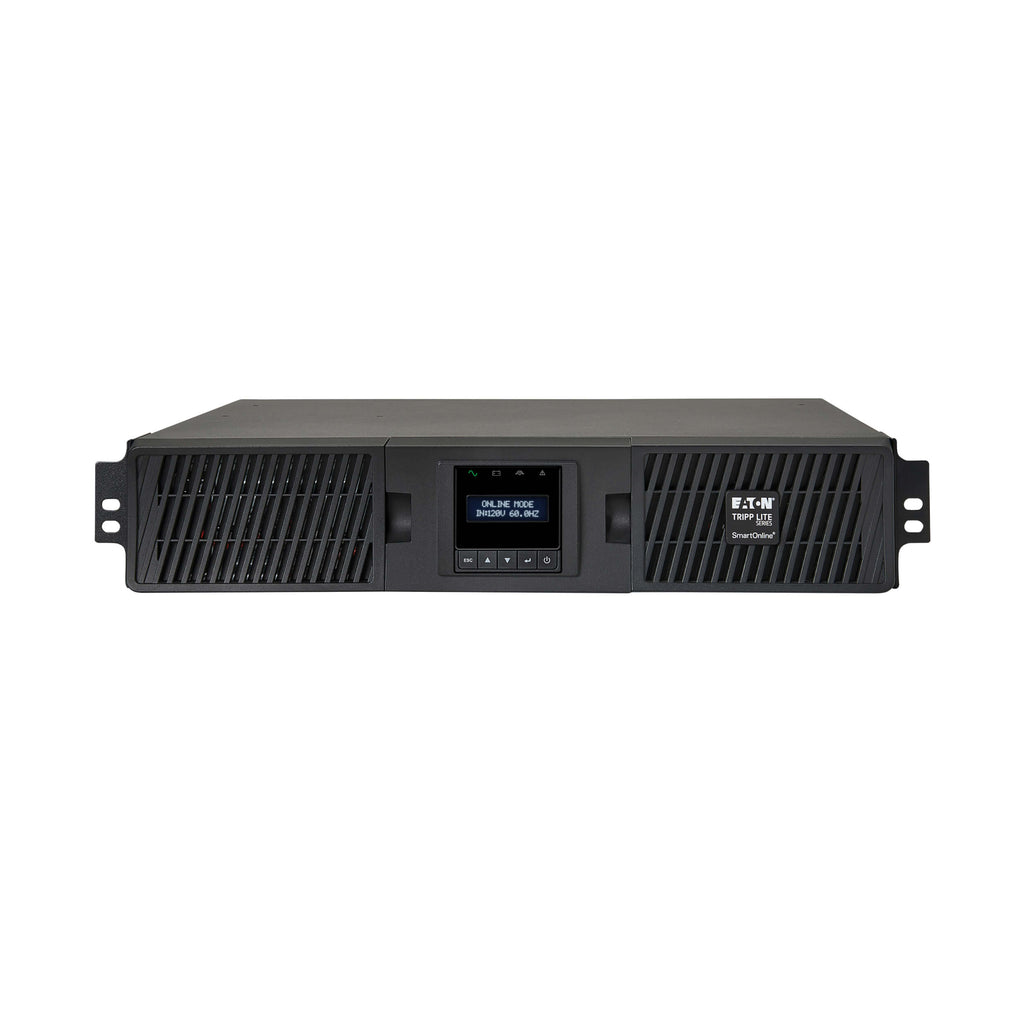

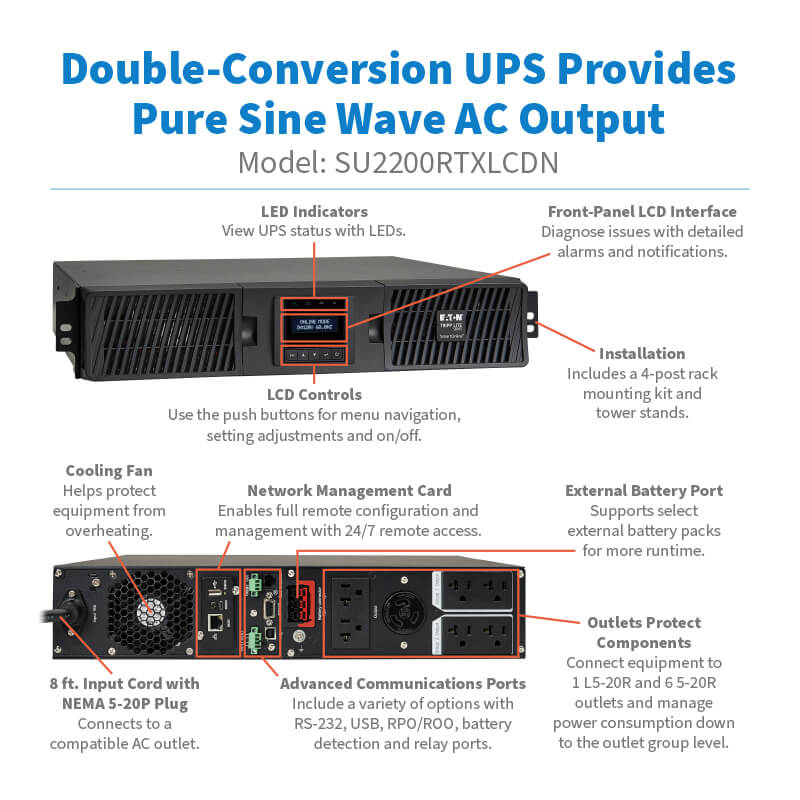

The Eaton Tripp Lite SmartOnline SU2200RTXLCDN delivers reliable power protection and continuous operation for mission-critical IT applications in education, healthcare, government, and enterprise networks. This 2U rack/tower convertible UPS offers 2000VA/1800W double-conversion output with pure sine wave for sensitive electronics. It includes an integrated WEBCARDLXE for 24/7 remote monitoring, a color LCD for local status updates, and hot-swappable VRLA batteries for zero-downtime maintenance. Extended runtime options are available with external battery packs (BP72RT). Ideal for server rooms and data centers requiring high availability and clean, conditioned power.
| Feature | Details |
|---|---|
| Model Number | SU2200RTXLCDN |
| UPS Type | Online Double-Conversion |
| Power Capacity | 2000VA / 1800W |
| Input Voltage | 120V (100V–127V supported) |
| Input Plug Type | NEMA 5-20P |

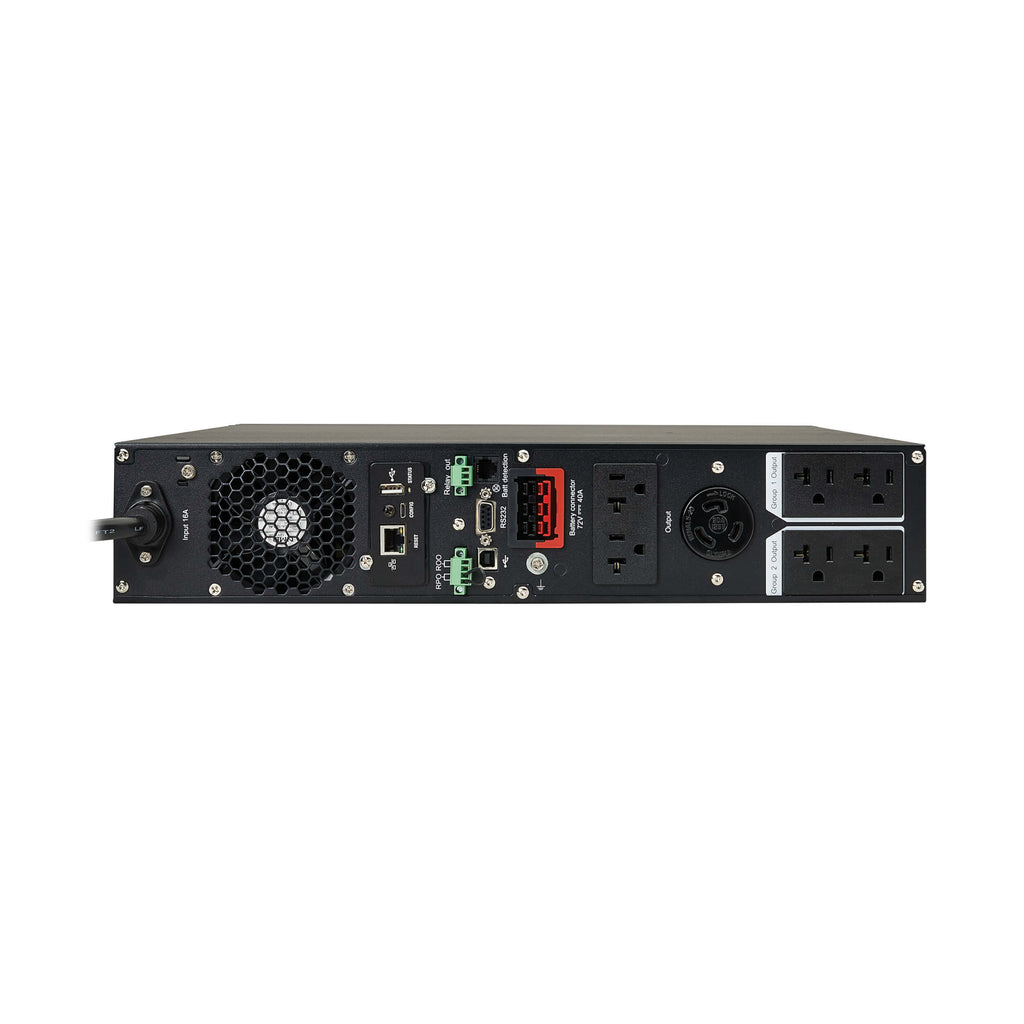

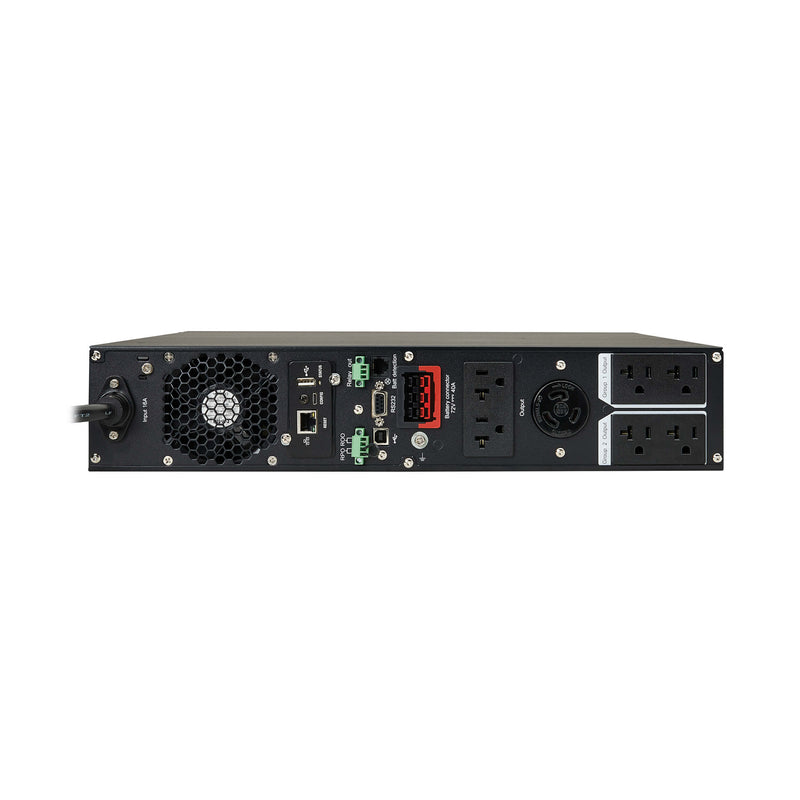

| Output Receptacles | (6) 5-20R, (1) L5-20R |
| Waveform Output | Pure Sine Wave |
| Transfer Time | Zero (Online) |
| Battery Type | Hot-swappable VRLA |
| Runtime (Full Load) | 7.7 minutes (1800W) |
| Runtime (Half Load) | 20.2 minutes (900W) |
| Expandable Runtime | Yes (Supports up to 4 BP72RT) |
| LCD Display | Yes, color, rotatable |
| Remote Management | WEBCARDLXE pre-installed |
| Communications | USB, DB9 RS-232, Contact Closure |
| Rack Height | 2U |

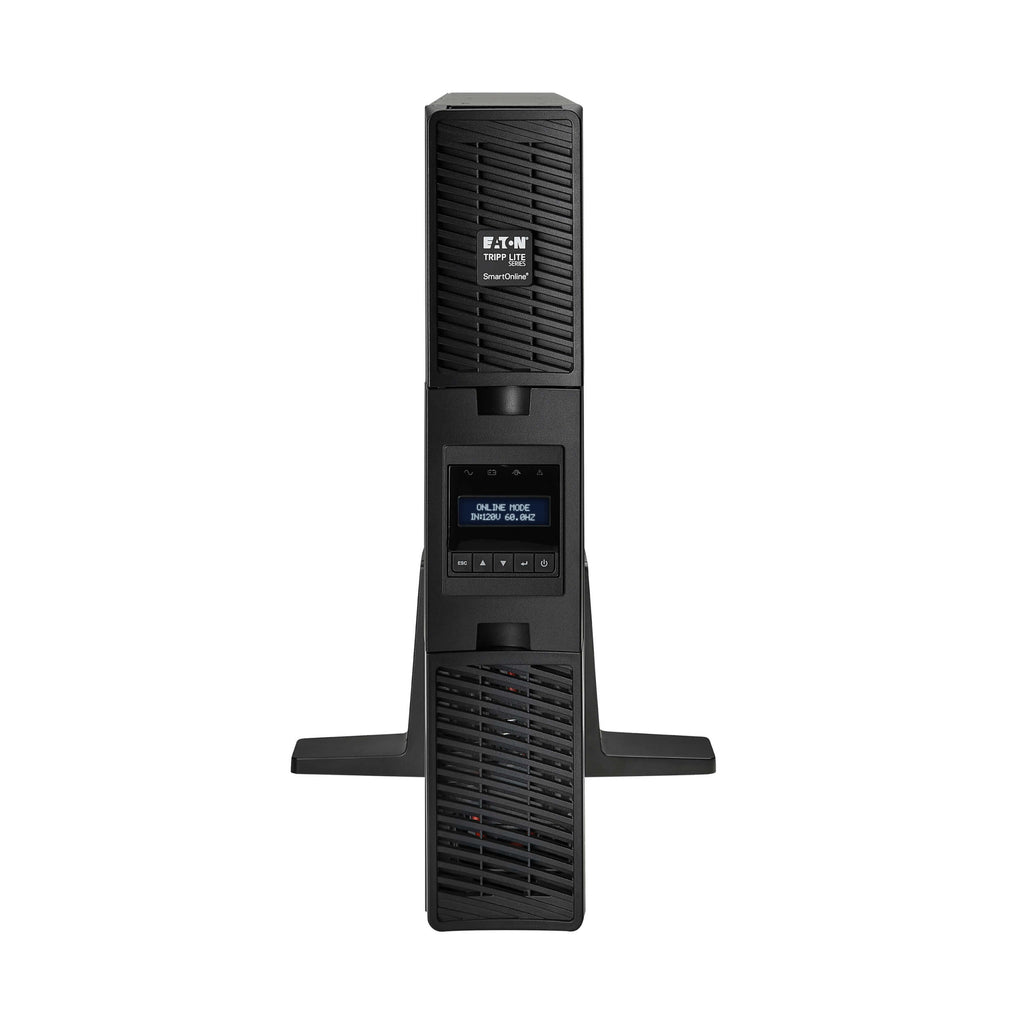

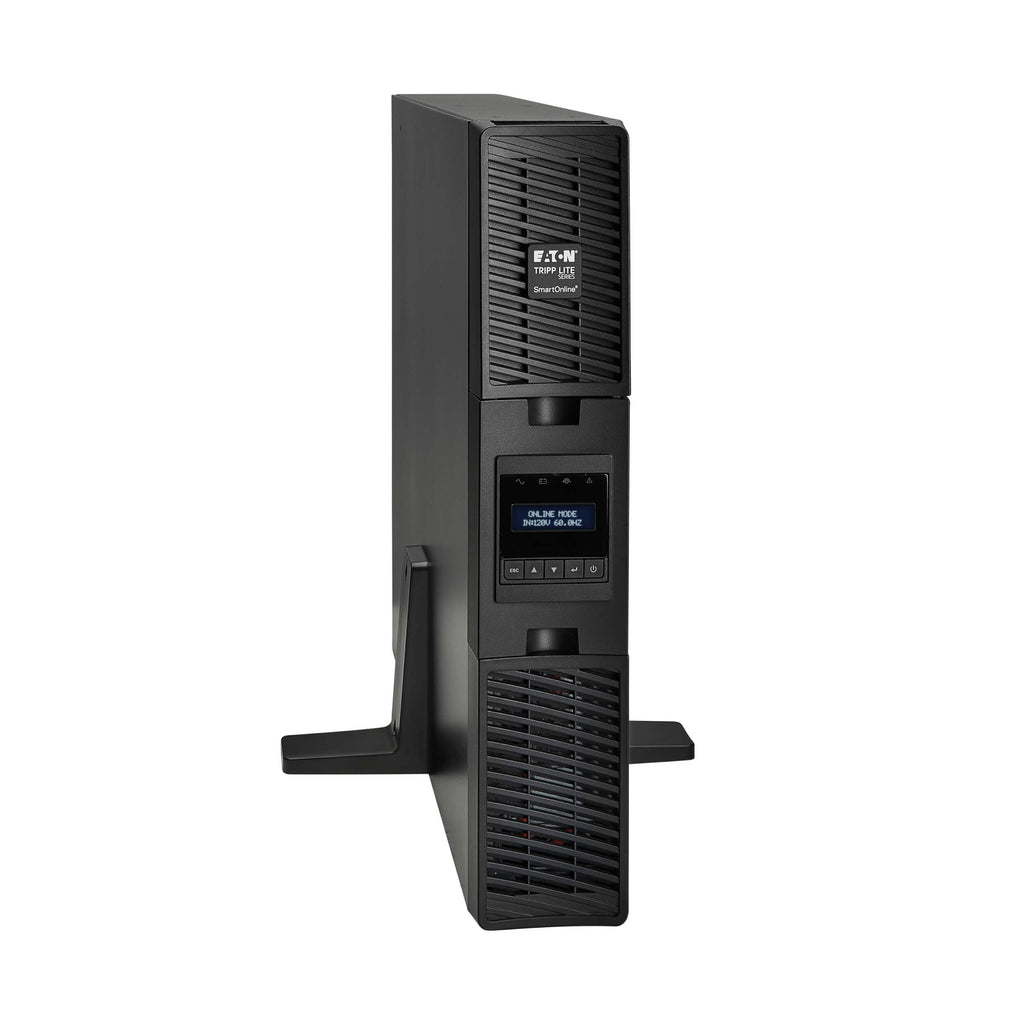

| Form Factor | Rack/Tower convertible |
| Dimensions (HxWxD) | 3.41 x 17.33 x 23.82 in |
| Weight | 61.5 lbs (27.9 kg) |
| Efficiency (AC mode) | 91.4% |
| Certifications | UL 1778, cTUVus, FCC, CE, RoHS |
| Warranty | 2-year limited warranty |
| Connected Equipment Insurance | $250,000 (U.S., Canada & Puerto Rico) |
