Description
The Eaton Tripp Lite SU3000LCD2UHVTF SmartOnline UPS delivers enterprise-grade, on-line double-conversion power protection for mission-critical IT and network equipment. Designed for data centers, network closets, and computer rooms, this 3000VA / 2700W UPS provides continuous pure sine wave output with zero transfer time, ensuring uninterrupted operation during power disturbances.
This model includes an integrated 208V-to-120V step-down isolation transformer, allowing a single UPS system to support both high-voltage and low-voltage equipment simultaneously. With ±2% voltage regulation, high 0.9 power factor, and selectable operating modes, it delivers precise power quality while maintaining excellent efficiency.
Hot-swappable internal batteries provide dependable runtime during outages, while support for external battery packs allows runtime expansion for extended applications. An intuitive LCD interface, remote-manageable load banks, automatic bypass, and optional network management make the SU3000LCD2UHVTF a robust, scalable solution for protecting critical infrastructure.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite |
| Model | SU3000LCD2UHVTF |
| UPS Type | On-Line Double-Conversion |
| Form Factor | Rackmount |
| Rack Height | 4U (UPS + transformer) |
| Power Capacity | 3000VA / 2700W |
| Power Factor | 0.9 |
| Input Voltage | 208V AC |

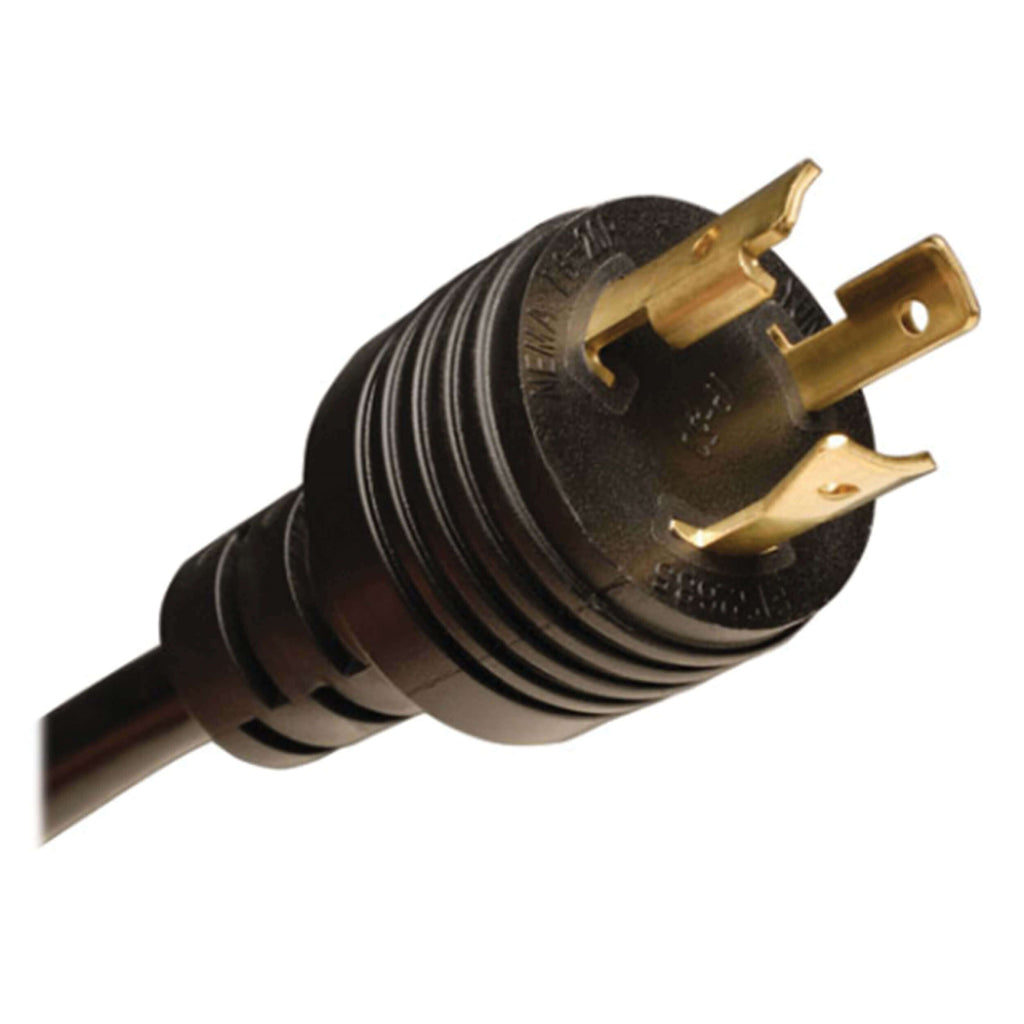

| Input Connection | NEMA L6-20P |
| Output Voltages | 208V and 120V |
| Output Waveform | Pure Sine Wave |
| Voltage Regulation | ±2% (line and battery mode) |
| Transfer Time | 0 ms |

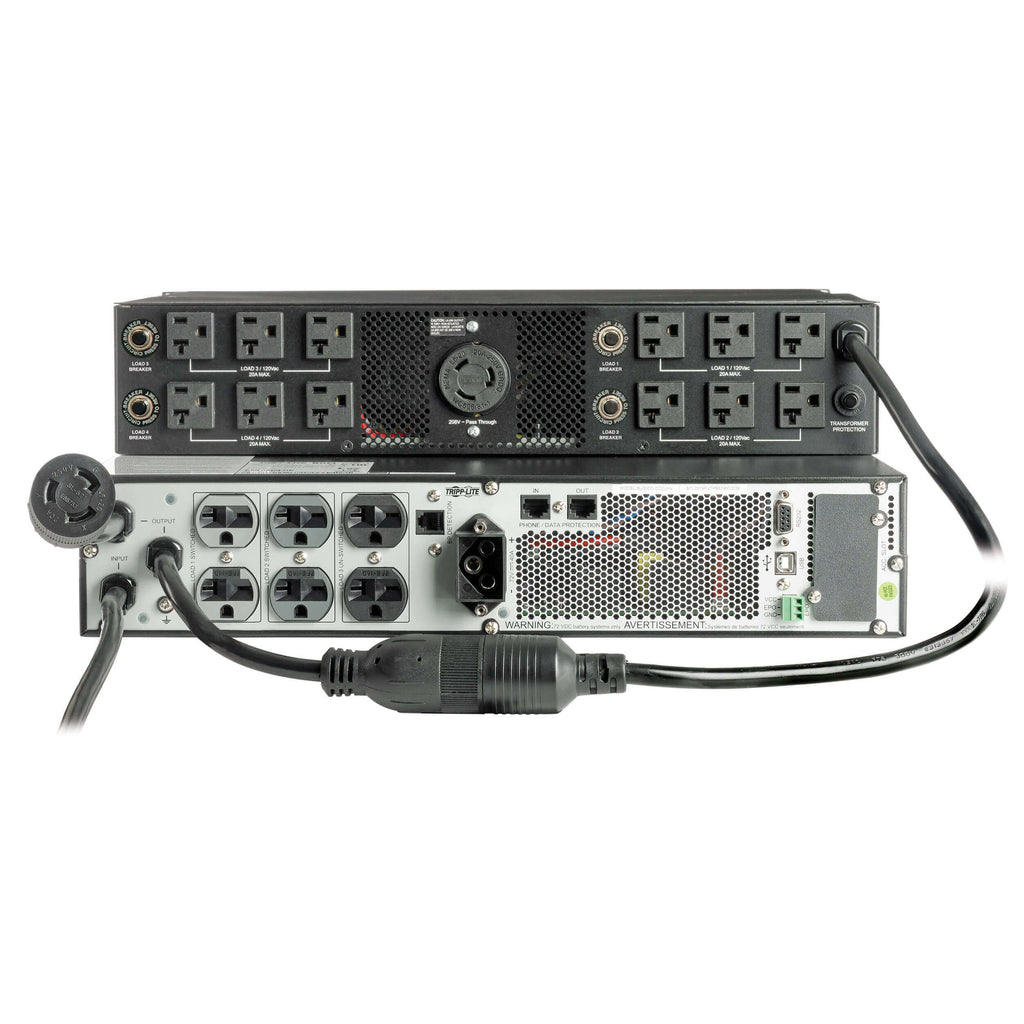

| Output Receptacles | 12 × NEMA 5-15/20R, 6 × NEMA 6-15/20R, 2 × NEMA L6-20R |
| Load Bank Control | Yes, individually controllable |
| Surge Suppression | 570 joules |
| Battery Type | Valve-Regulated Lead Acid (VRLA) |
| Runtime @ Half Load | 13.5 minutes |
| Runtime @ Full Load | 5 minutes |
| Expandable Runtime | Yes, supports external battery packs |
| Battery Features | Hot-swappable, intelligent battery management |
| Display | Front-panel LCD with status and configuration |
| Communications | USB, RS-232, EPO, optional network card |
| Cooling | Fan-cooled |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Certifications | UL 1778, CSA |
| Compliance | RoHS, FCC Class A |
| Warranty | 2-Year Limited Warranty |
