Description
The Eaton Tripp Lite SmartOnline SUINT2200LCD2U delivers premium power protection for mission-critical IT environments. This 2200VA / 2000W double-conversion online UPS ensures pure sine wave output for uninterrupted performance in education, healthcare, government, and enterprise networks. It isolates sensitive devices from power fluctuations, surges, and line noise while maintaining zero transfer time between AC and battery operation.

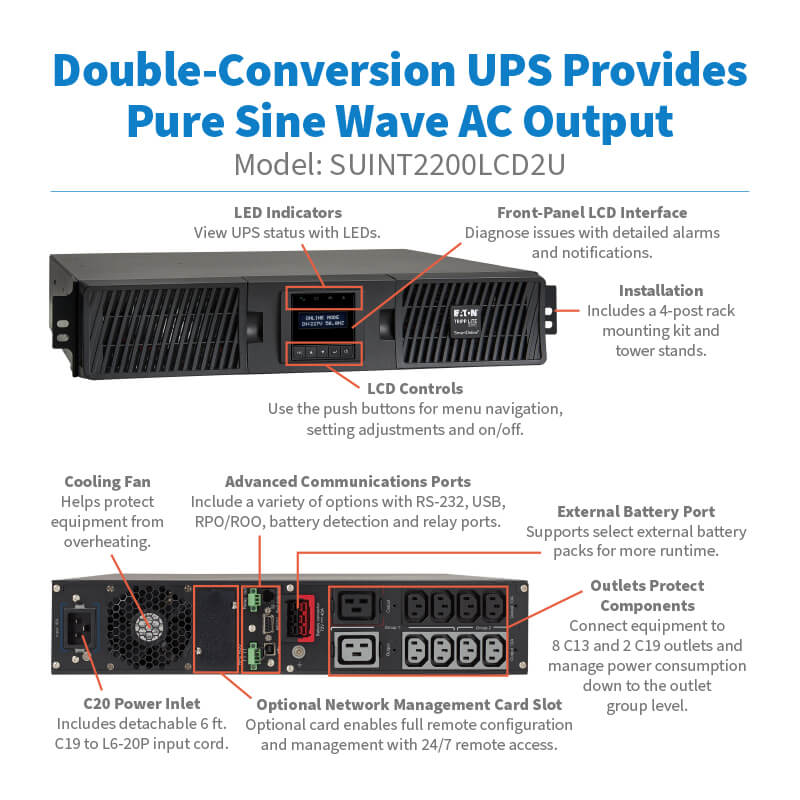

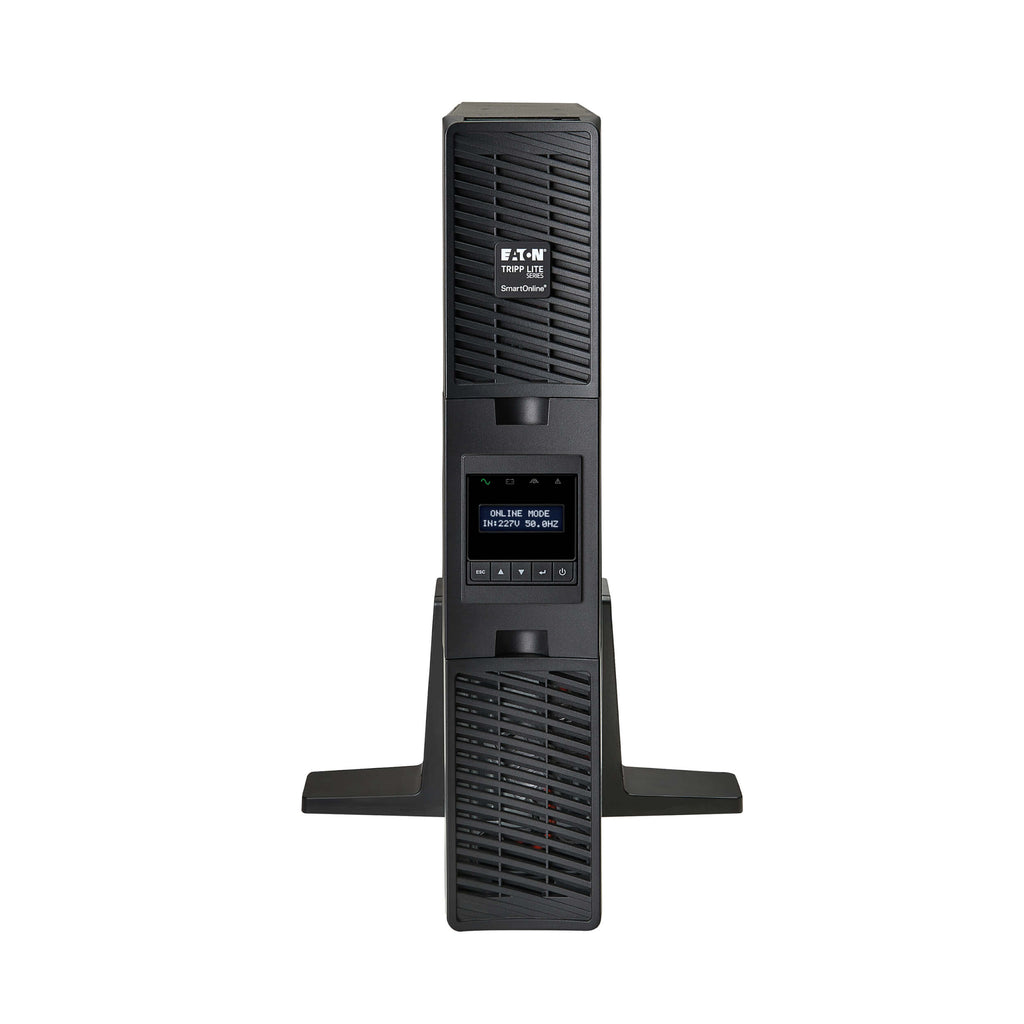

Designed for reliability and flexibility, this UPS includes hot-swappable VRLA batteries for continuous uptime, expandable runtime via BP72RT battery modules, and optional WEBCARDLXE support for 24/7 remote management. The front-panel LCD provides detailed system analytics, alarms, and event logs, while 10 total outlets (eight C13 and two C19) support grouped load management. Its versatile 2U design allows for both rack and tower installation. Ideal for IT rooms, data centers, and professional AV systems that demand consistent, clean power and network-wide visibility.
| Category | Specification |
|---|---|
| Model Number | SUINT2200LCD2U |
| Brand | Eaton Tripp Lite |
| UPS Type | On-Line Double-Conversion |
| Capacity | 2200VA / 2000W |
| Power Factor | 0.9 |
| Input Voltage | 200V / 208V / 220V / 230V / 240V AC |
| Input Connection Type | C20 inlet |

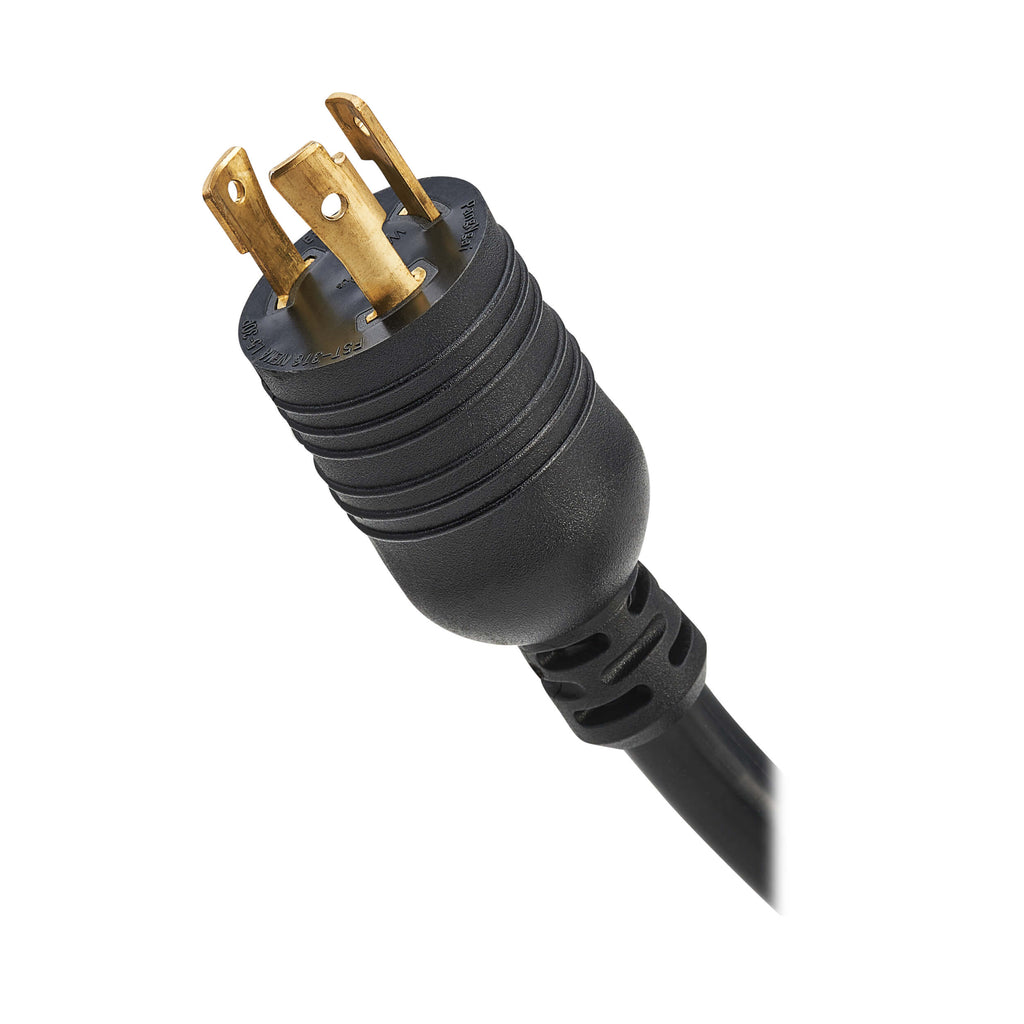

| Input Plug Type | NEMA L6-20P |
| Input Current (Max Load) | 10.57A |
| Output Voltage | 208V (default), selectable 200–240V |

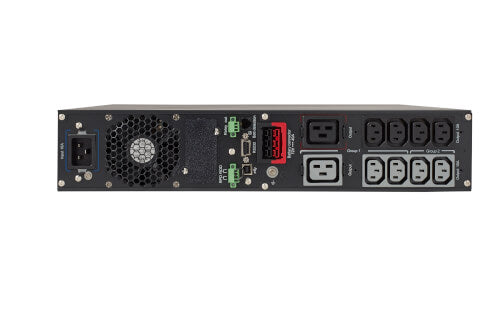

| Output Receptacles | (8) IEC C13, (2) IEC C19 |
| Waveform | Pure Sine Wave (Online & Battery Mode) |
| Load Banks | 2 switchable banks (5 outlets total) |
| Battery Type | Valve Regulated Lead Acid (VRLA), Hot-Swappable |
| Runtime | 6 min (Full Load), 16.6 min (Half Load) |
| Expandable Runtime | Up to 4 BP72RT modules (optional) |
| Recharge Time | 3 hours to 90% |
| Display | Front-panel LCD (status, logs, analytics) |
| Network Management | Optional WEBCARDLXE SNMP card |
| Communications Ports | USB, RS-232, Contact Closure, RPO/ROO |
| Noise Suppression | 296 Joules (EMI/RFI protection) |
| Rack Height | 2U (EIA-standard 19-inch rack) |
| Dimensions (H x W x D) | 3.41 x 17.33 x 23.82 in (86.6 x 440 x 605 mm) |
| Weight | 59.75 lbs (27.1 kg) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Efficiency (AC Mode) | 93% (Online), 98% (Economy Mode) |
| Certifications | UL 1778, CSA, CE, FCC, RoHS, REACH |
| Warranty | 2-Year Limited Warranty |
| Connected Equipment Insurance | Up to $250,000 (U.S./Canada/Puerto Rico) |
