Description

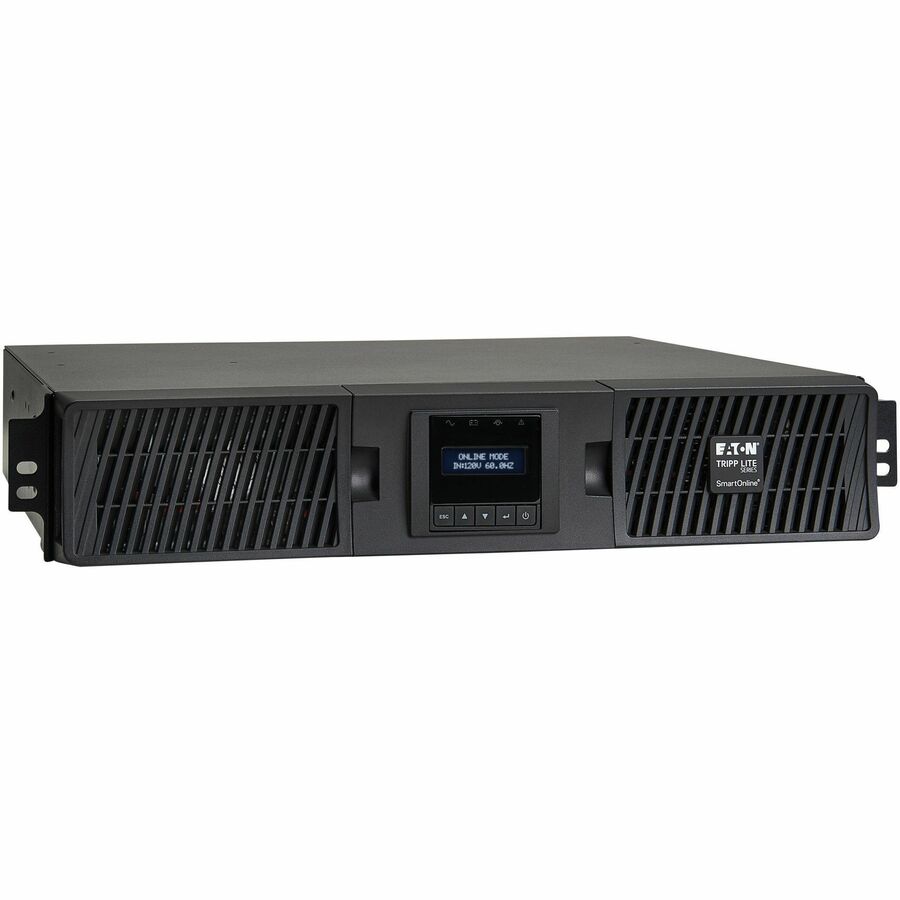

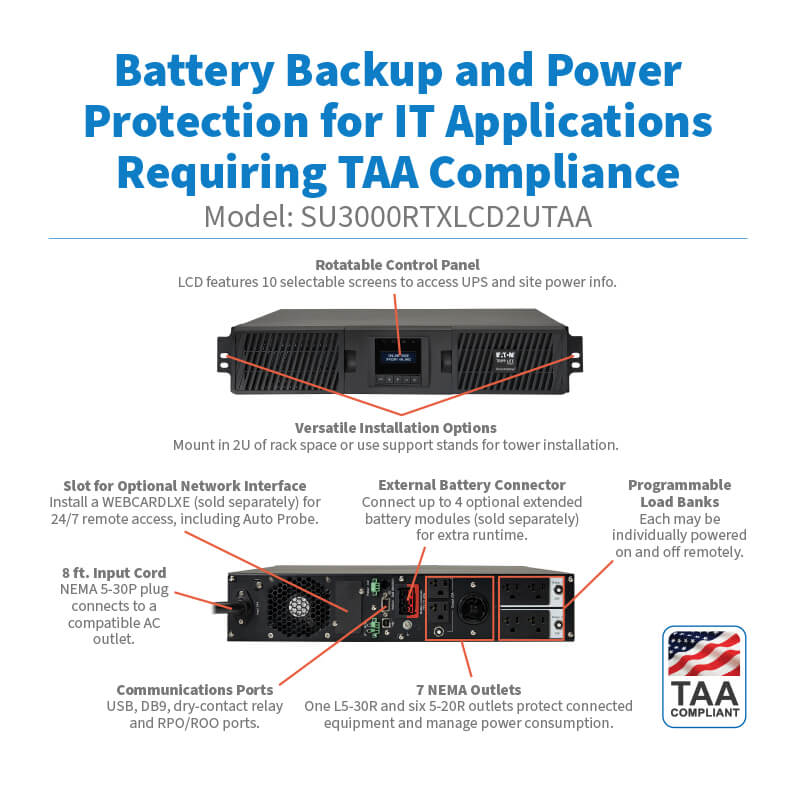

The Eaton Tripp Lite SmartOnline SU3000RTXLCD2UTAA is a TAA-compliant, true online double-conversion UPS system delivering reliable 3000VA/2700W pure sine wave output to protect mission-critical equipment from power failures, surges, and EMI/RFI line noise. Ideal for government, military, education, and healthcare applications, this versatile 2U rack/tower UPS features 7 managed outlets, hot-swappable VRLA batteries, and zero transfer time for uninterrupted performance. The front-panel LCD offers advanced status monitoring, while optional remote management is available with the WEBCARDLXE network interface. Expand runtime by adding up to four BP72RT2UTAA battery modules.
| Specification | Details |
|---|---|
| Model | SU3000RTXLCD2UTAA |
| Topology | On-Line Double-Conversion |
| Output Capacity | 3000VA / 2700W |
| Output Voltage | 100V, 110V, 115V, 120V, 127V (Factory default: 120V) |
| Output Frequency | 50/60Hz Auto-sensing |
| Waveform | Pure Sine Wave |

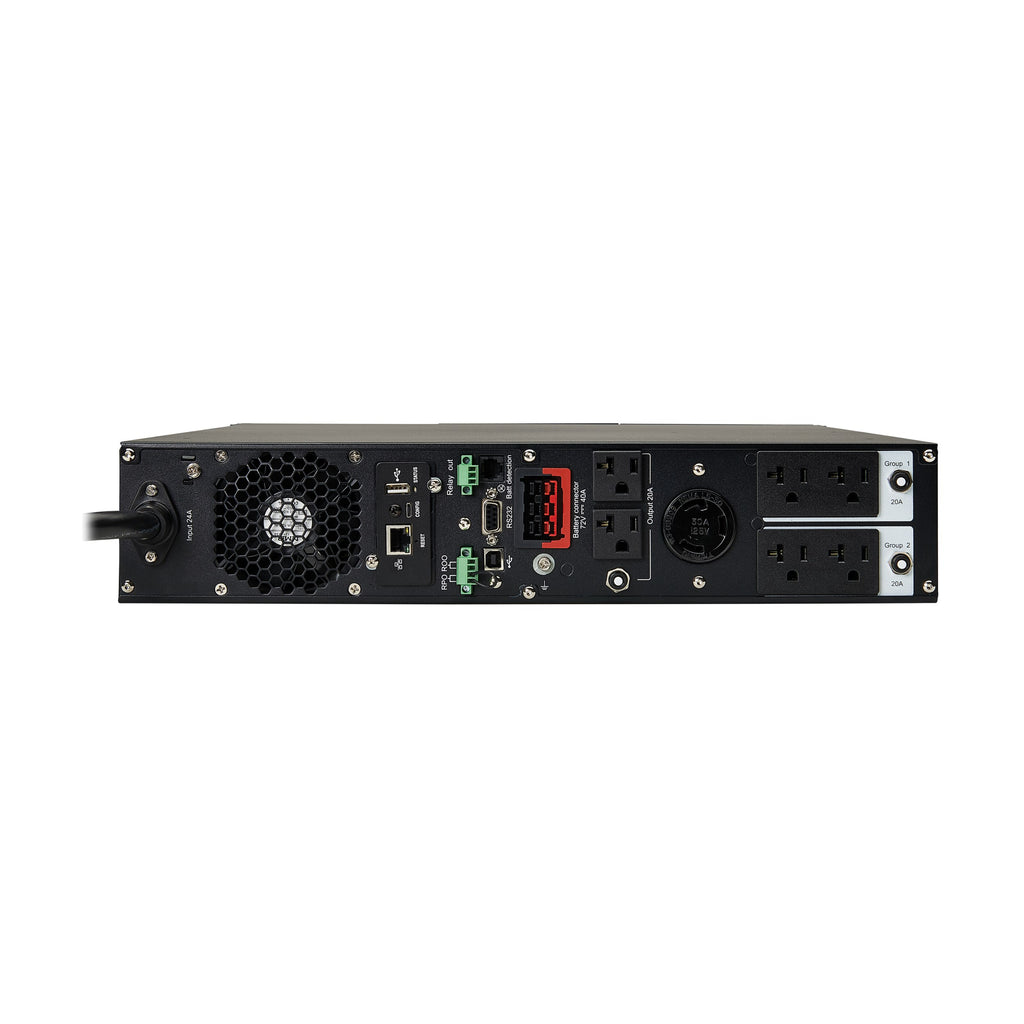

| Outlets | 6 x 5-20R, 1 x L5-30R (2 load banks switchable) |
| Input Plug Type | NEMA L5-30P |
| Input Voltage | 100V–120V |
| Input Cord Length | 8 ft (2.44 m) |
| Battery Type | Valve-Regulated Lead Acid (VRLA), hot-swappable |
| Runtime (Full Load/Half Load) | 4.8 min / 13.9 min |
| External Battery Support | Yes, up to 4× BP72RT2UTAA |
| Recharge Time | 3 hours to 90% |
| Rack Height | 2U |

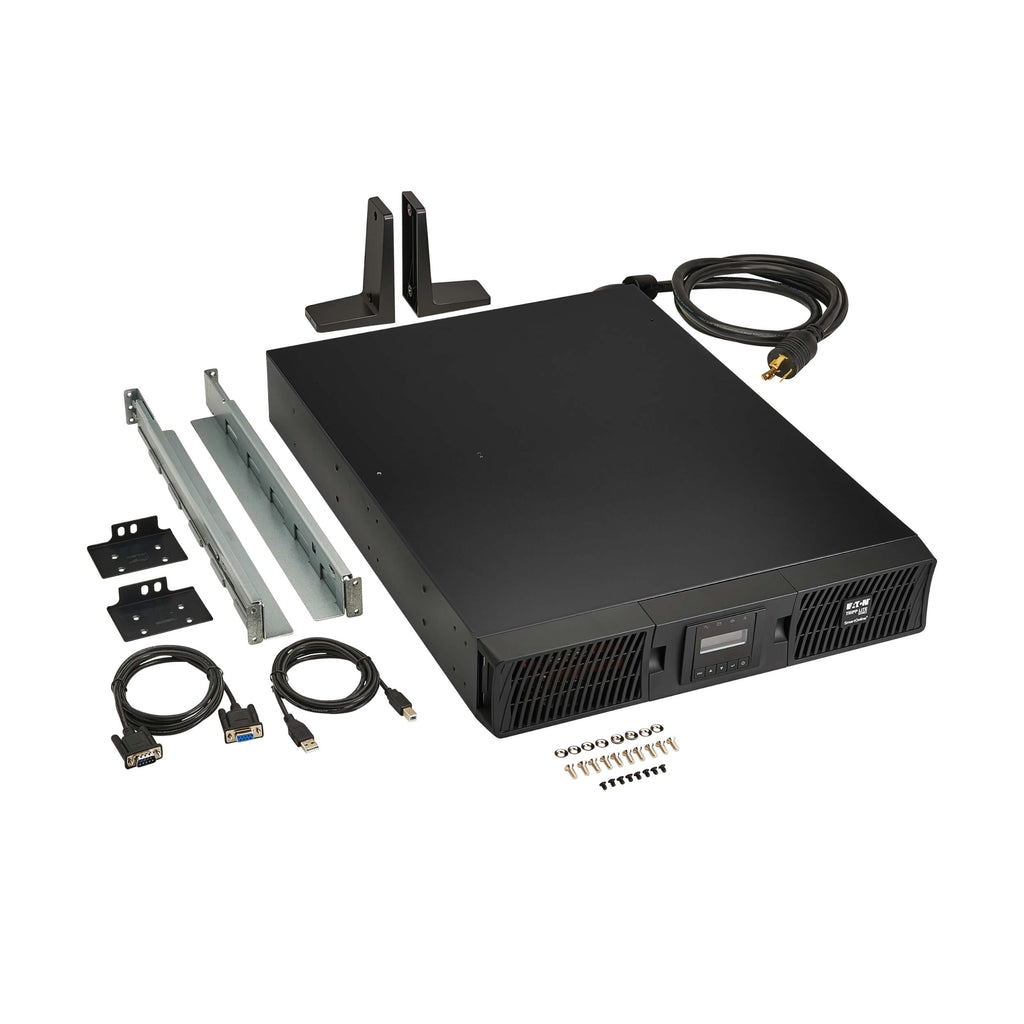

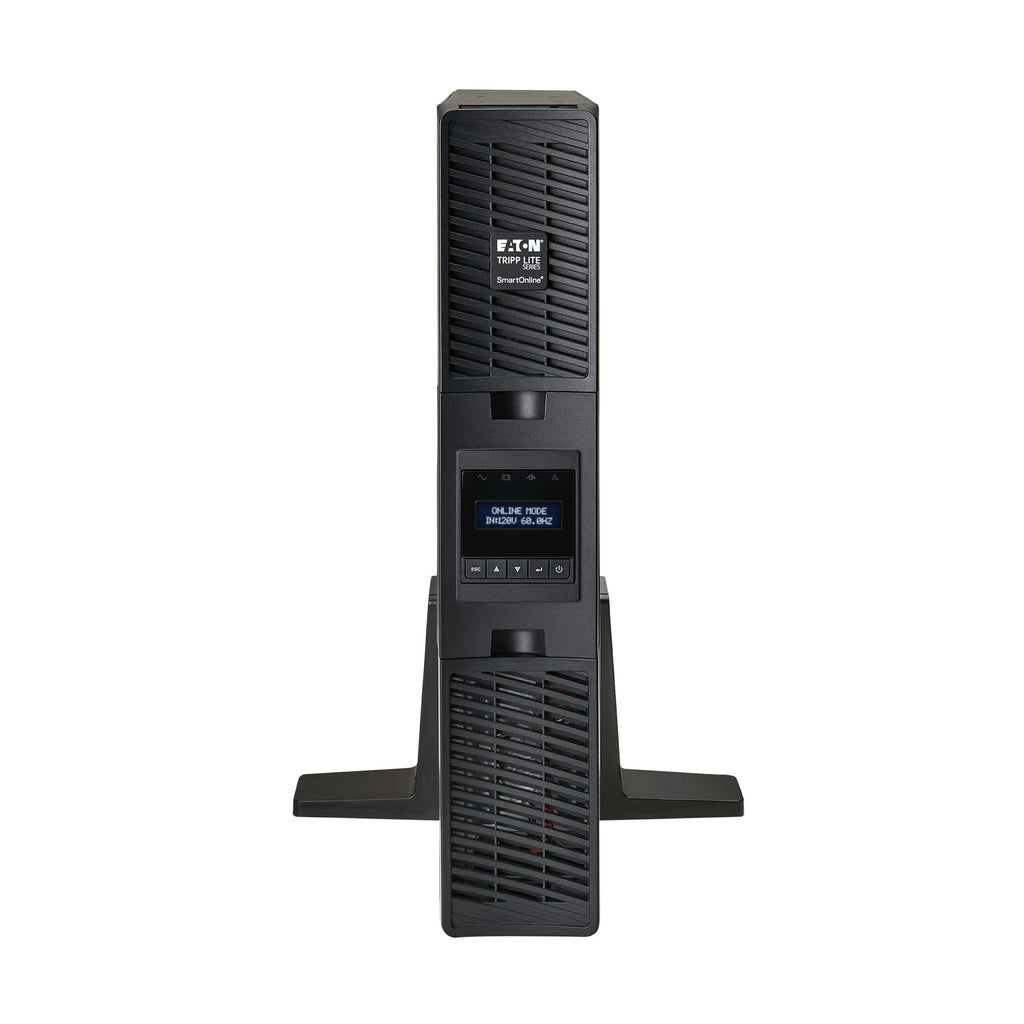

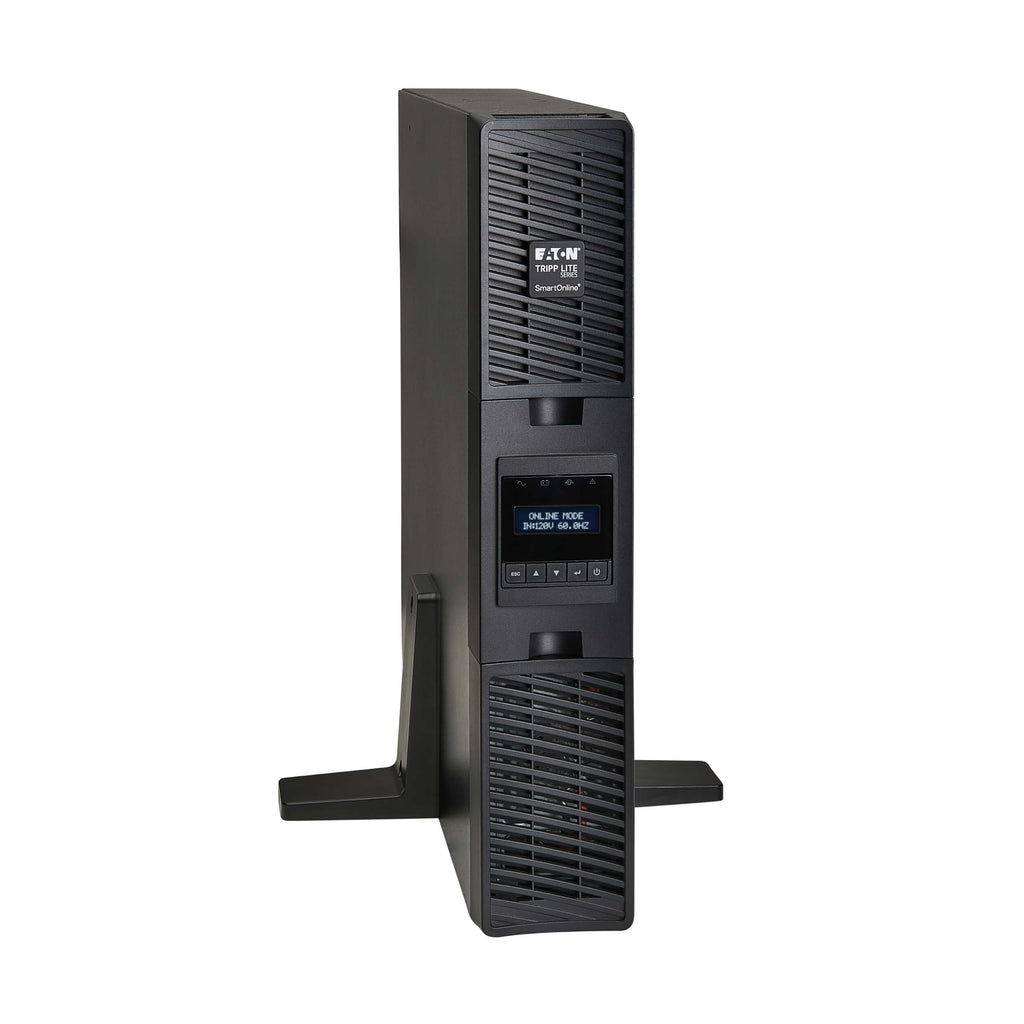

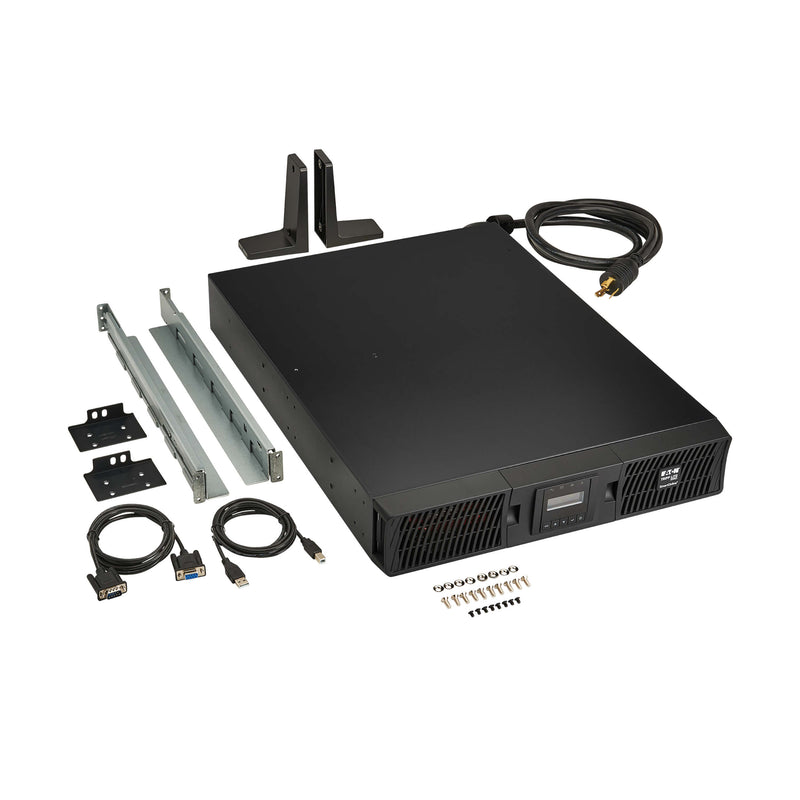

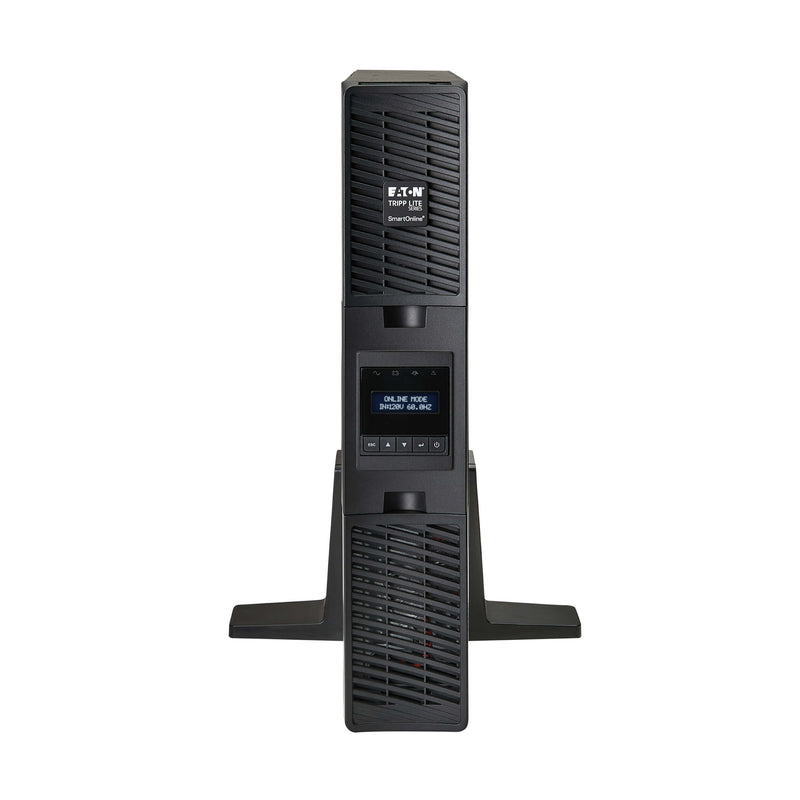

| Form Factor | Rack/Tower (includes support stands & 4-post rail kit) |
| Dimensions (H x W x D) | 3.41 x 17.33 x 23.82 in (86.6 x 440.2 x 605 mm) |
| Weight | 63.06 lbs (28.6 kg) |
| Communications | USB, RS-232, Contact Closure, RPO/ROO, SNMP slot |

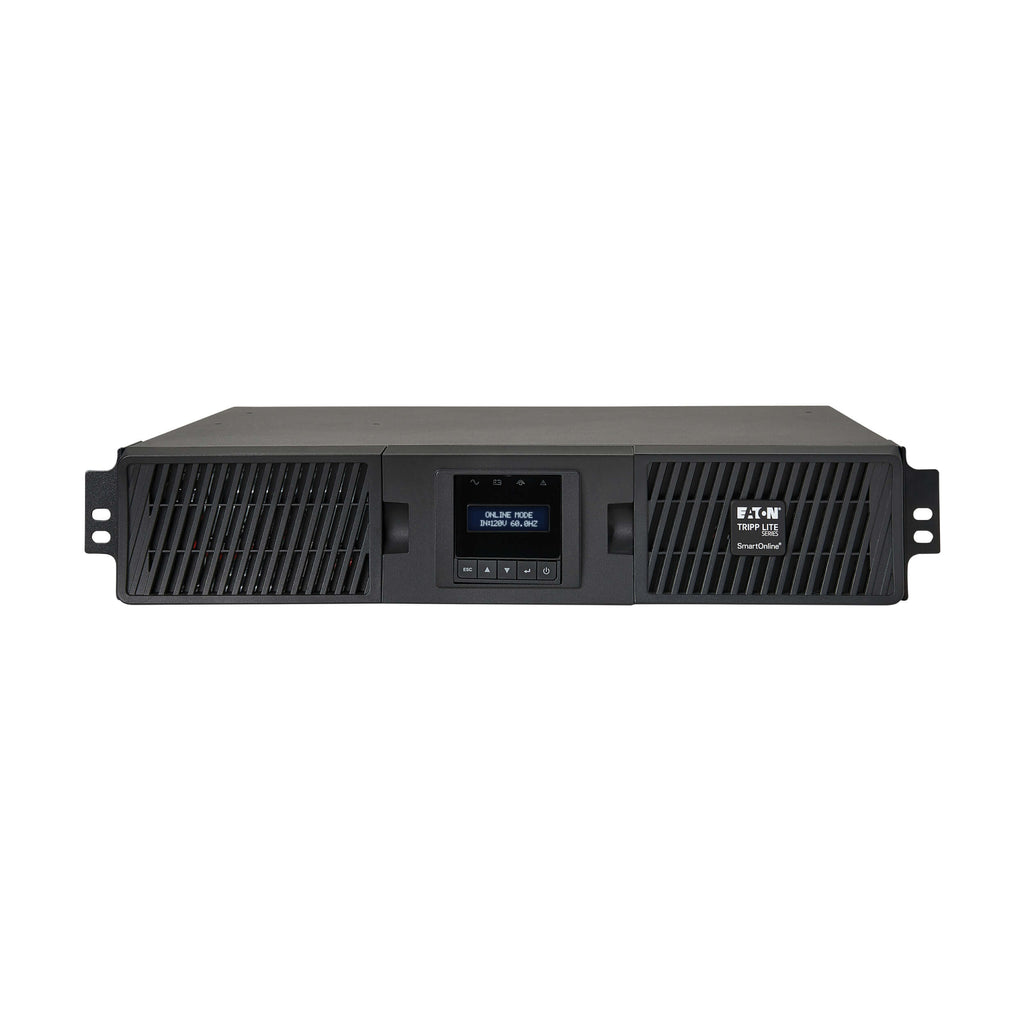

| LCD Display | Yes – 2-line, 10-screen LCD with LED status indicators |
| Efficiency (Online/Economy) | 91.6% / 97.2% |
| Certifications | UL 1778, cTUVus, FCC, CE, RoHS, REACH, TAA compliant |
| Warranty | 2-year limited warranty + $250,000 connected equipment |
| Remote Management Option | WEBCARDLXE (sold separately) |
