Description
The Eaton Tripp Lite SmartOnline SU3000XLCD is a high-performance 3000VA/2700W double-conversion UPS system designed for mission-critical environments such as education, healthcare, government, and military. This tower-form UPS provides true online power protection with zero transfer time, pure sine wave output, and advanced power conditioning to protect connected equipment from blackouts, surges, and line noise.
The unit features an updated LCD interface, hot-swappable batteries, extended runtime capability via optional BP96V battery packs, and multiple communication options including USB, DB9, and optional WEBCARDLXE network card for remote management. Ideal for environments where uptime and power quality are non-negotiable.
| Category | Details |
|---|---|
| Model Number | SU3000XLCD |
| Form Factor | Tower |
| Capacity | 3000VA / 2700W |
| Input Voltage | 100V / 110V / 120V / 127V (Default: 120V) |
| Input Plug | NEMA L5-30P, 8 ft cord |
| Output Voltage | 100V / 110V / 120V |
| Output Receptacles | 1 x L5-30R, 4 x 5-20R (2 load banks) |
| Waveform Output | Pure Sine Wave (AC & Battery Mode) |
| Transfer Time | 0 ms (Double-Conversion) |
| Runtime (Full Load) | 5.7 minutes @ 2700W |
| Runtime (Half Load) | 16.7 minutes @ 1350W |
| Expandable Runtime | Yes, supports up to 4 x BP96V battery packs |
| Battery Type | Valve Regulated Lead Acid (VRLA), user-replaceable |
| Recharge Time | 3 hours to 90% |
| LCD Display | Front-panel LCD with system status, logs, and diagnostics |

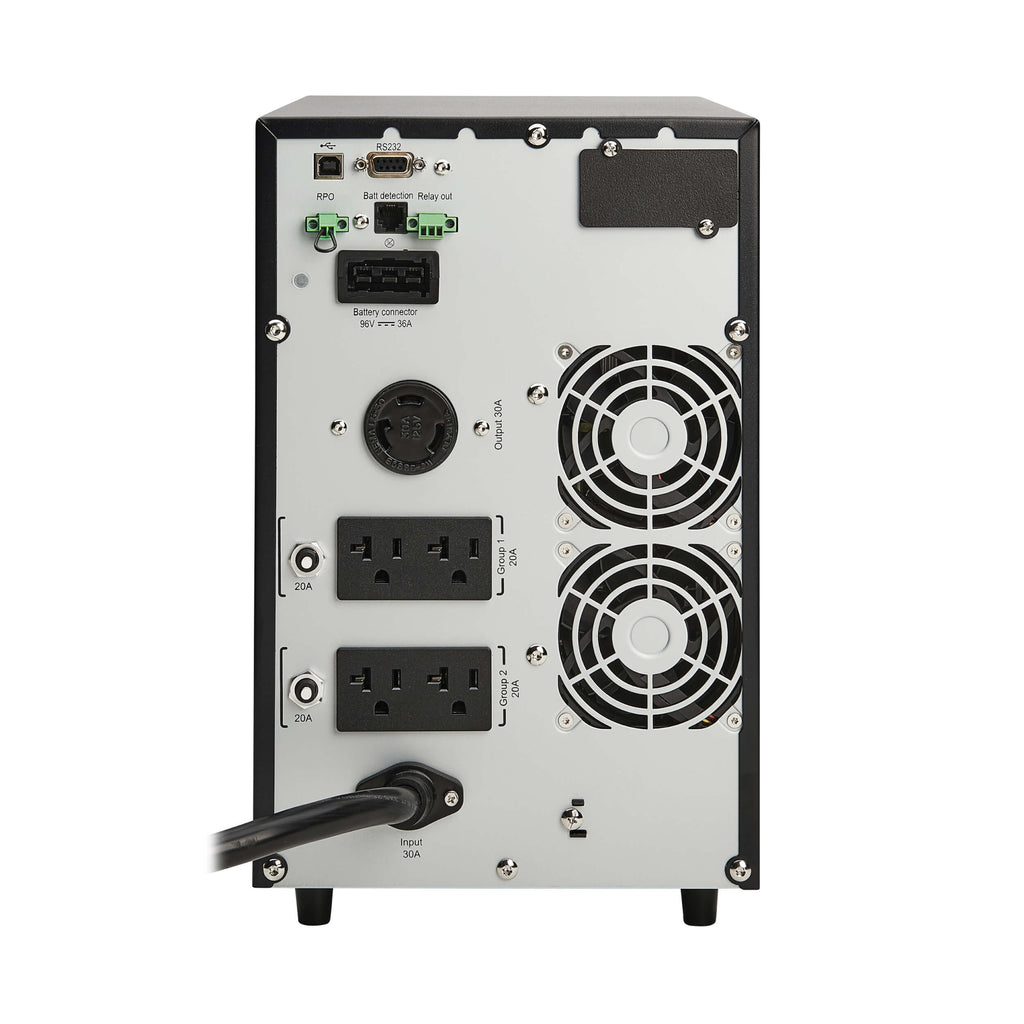

| Communications Ports | USB, RS-232, Dry Contact, Slot for SNMP/Web card |
| Network Card Compatibility | WEBCARDLXE (not compatible with WEBCARDLX) |
| Surge Protection | 190 Joules, EMI/RFI filtering |
| Cooling | Fan cooled |
| Operating Temp | 0°C to 40°C (32°F to 104°F) |
| Dimensions (H x W x D) | 13.63 x 8.43 x 16.23 in (34.6 x 21.4 x 41.2 cm) |
| Weight | 73.64 lbs (33.4 kg) |
| Certifications | UL 1778, CAN/CSA-C22.2, NOM, FCC, CE, RoHS, REACH |
