Description
The Eaton SmartOnline SU3000RTXLCD2UN delivers continuous, pure sine wave power protection for mission-critical systems in education, healthcare, government, and IT environments. This 3000VA / 2700W on-line double-conversion UPS ensures uninterrupted operation by isolating connected equipment from blackouts, surges, and line noise. It features zero transfer time, hot-swappable VRLA batteries, and expandable runtime via optional external battery modules (BP72RT).

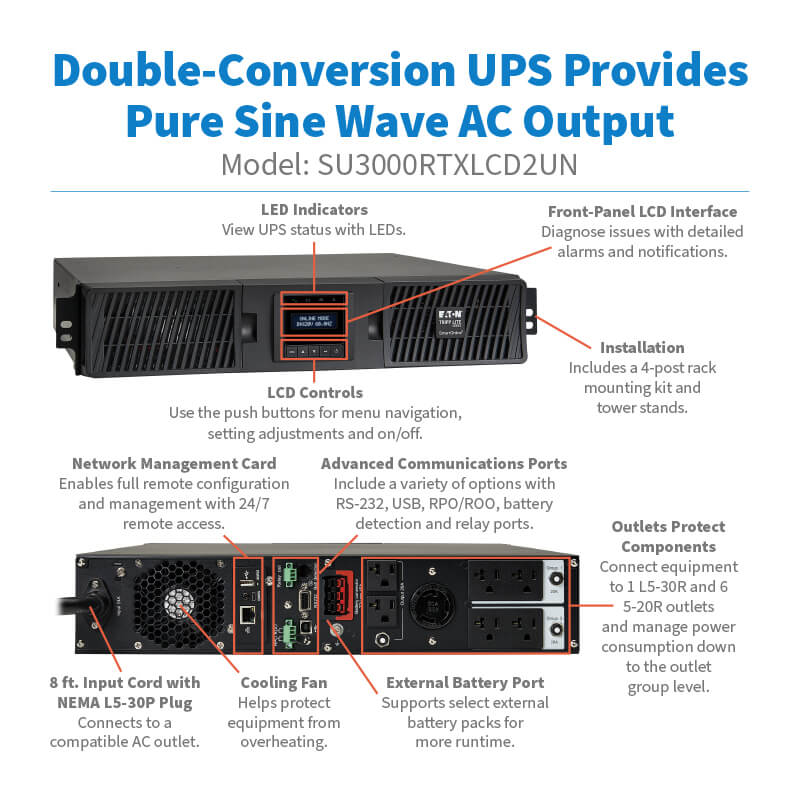

Equipped with a WEBCARDLXE network management card, it supports full remote monitoring and control, enabling automated load shedding, reboots, and environmental sensing. The front-panel LCD provides real-time system status, event logs, and analytics. With a compact 2U rack/tower design, L5-30P input, and seven NEMA outlets (six 5-20R and one L5-30R), it delivers flexible installation and reliable performance for professional deployments.
Key Features:
-
3000VA / 2700W capacity with pure sine wave output
-
On-line double-conversion architecture for continuous conditioning
-
Hot-swappable VRLA batteries with zero transfer time
-
Network card for 24/7 remote management and environmental monitoring
-
Expandable runtime with up to 4 external battery packs
-

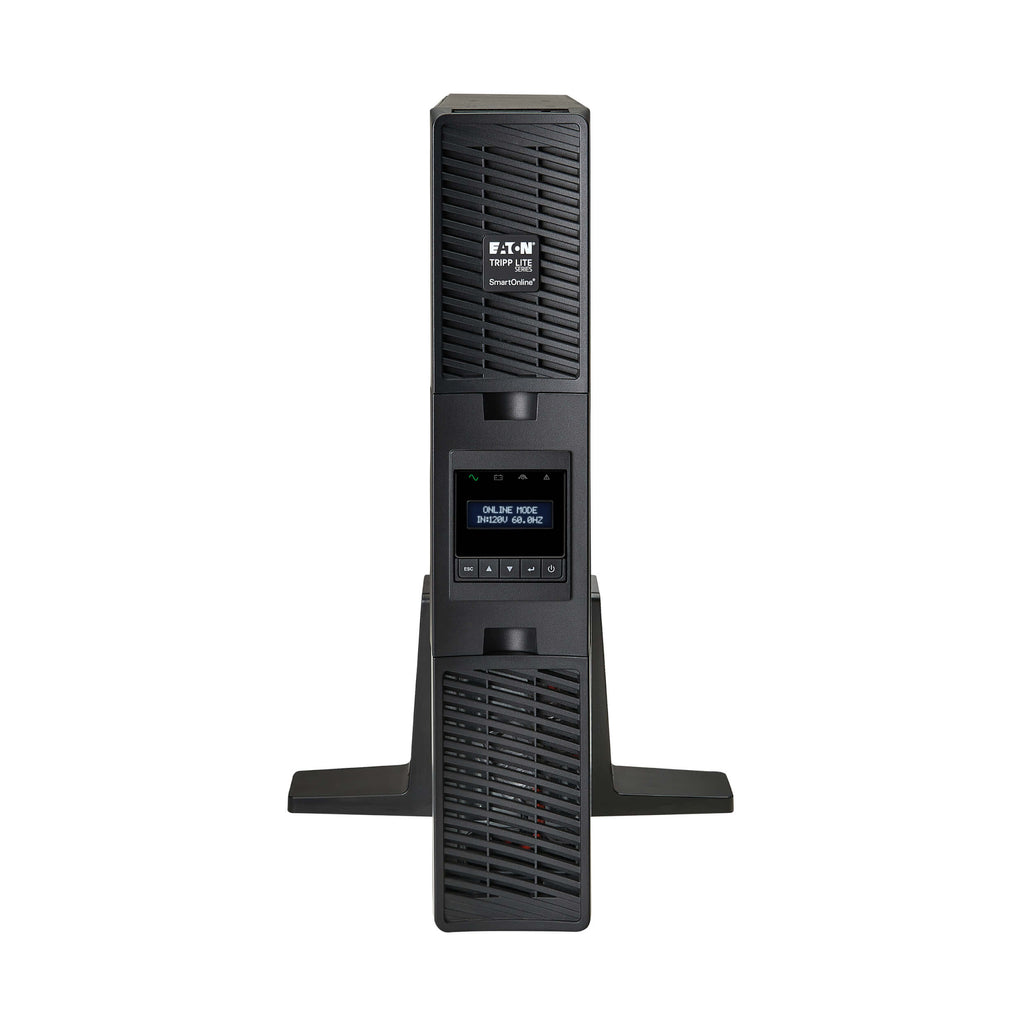

Rotatable LCD screen for rack or tower installation
-
ENERGY STAR® qualified, RoHS & REACH compliant
| Category | Details |
|---|---|
| Model | SU3000RTXLCD2UN |
| UPS Type | On-Line, Double-Conversion |
| Capacity | 3000VA / 2700W |
| Input Voltage | 100V / 110V / 120V AC (Factory default: 120V) |

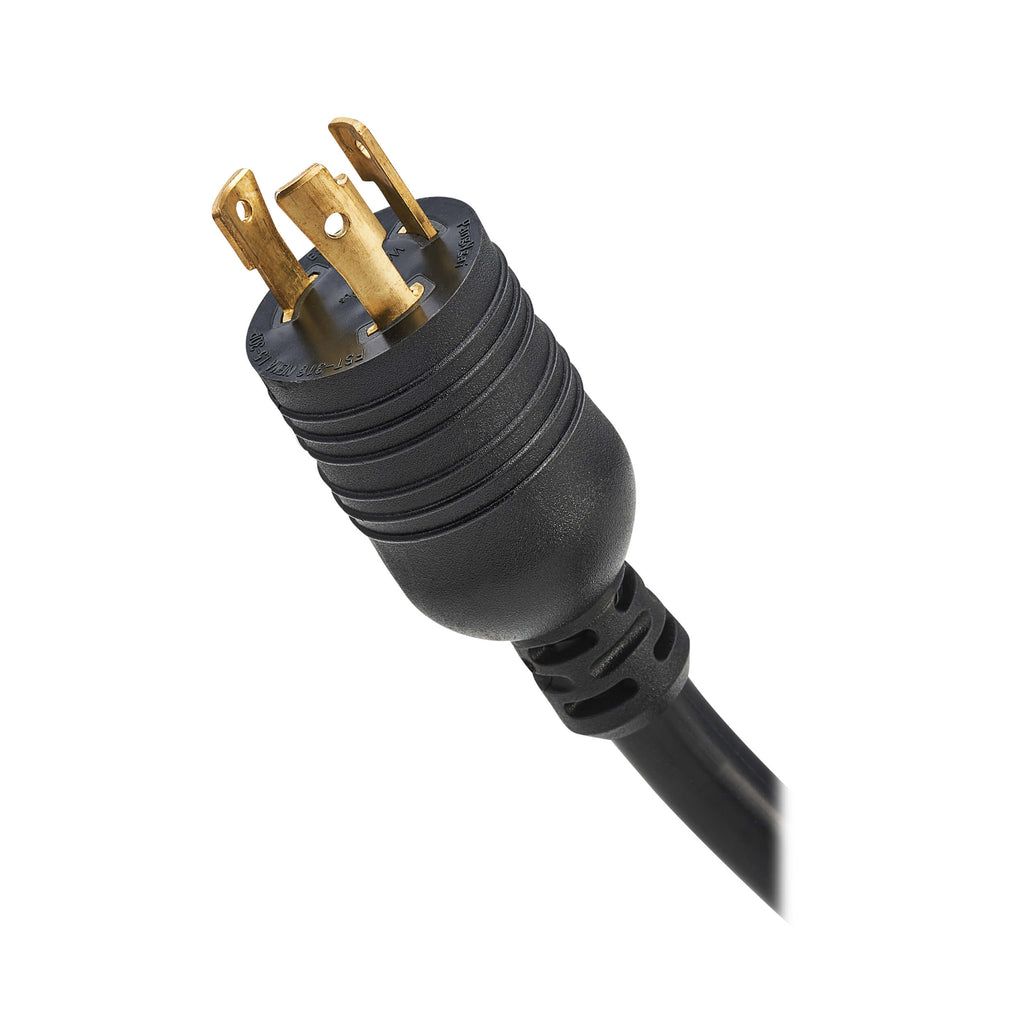

| Input Plug Type | NEMA L5-30P |
| Input Current | 24A |
| Power Factor (Input) | 0.99 |
| Output Voltage | 100V / 110V / 115V / 120V / 127V |

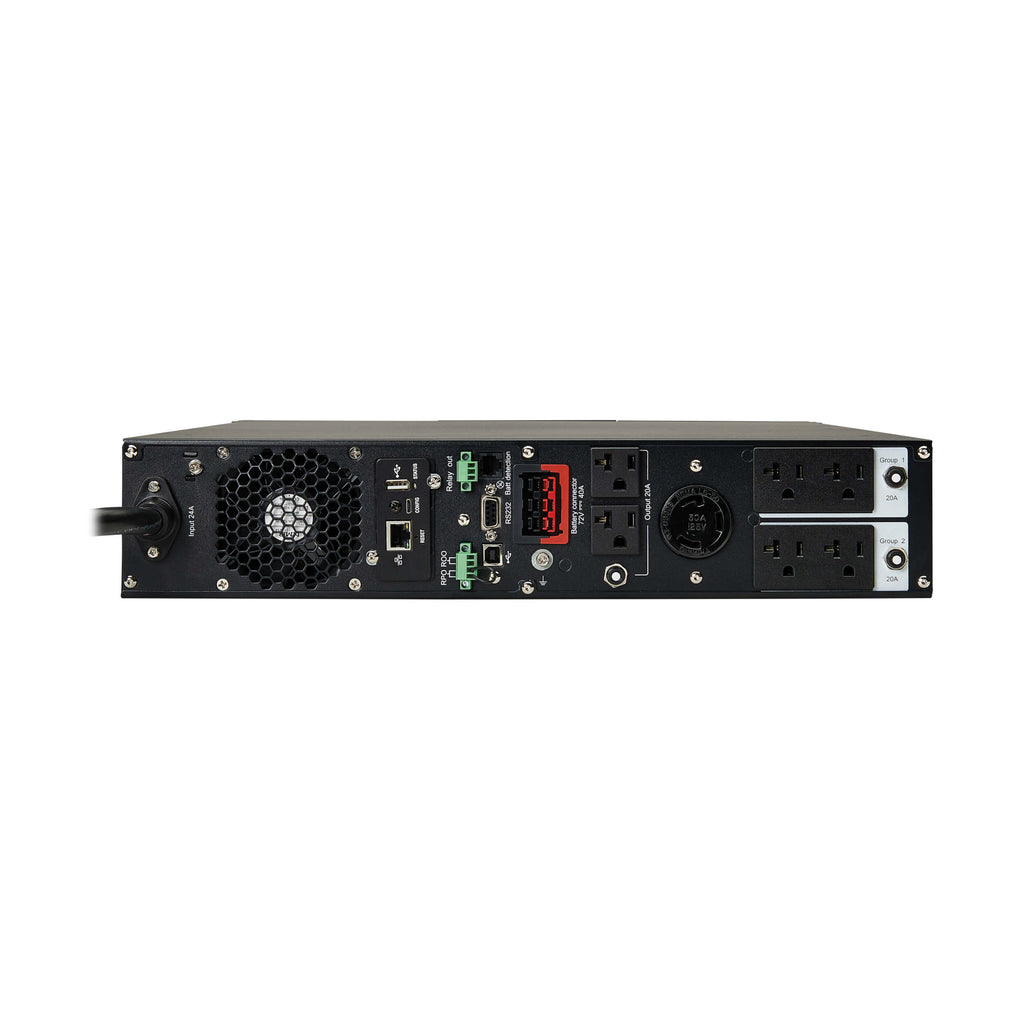

| Output Receptacles | (6) NEMA 5-20R, (1) NEMA L5-30R |
| Output Waveform | Pure Sine Wave (AC & Battery Mode) |
| Voltage Regulation | ±1% (Line Mode), ±2% (Battery Mode) |
| Battery Type | Valve Regulated Lead Acid (VRLA), Hot-swappable |
| Runtime (Full Load) | 4.8 minutes (2700W) |
| Runtime (Half Load) | 13.9 minutes (1350W) |
| Expandable Battery Options | Up to 4 × BP72RT Modules |
| Recharge Time | 3 hours to 90% |
| Communications | RS-232, USB, Contact Closure, WEBCARDLXE Network Card |

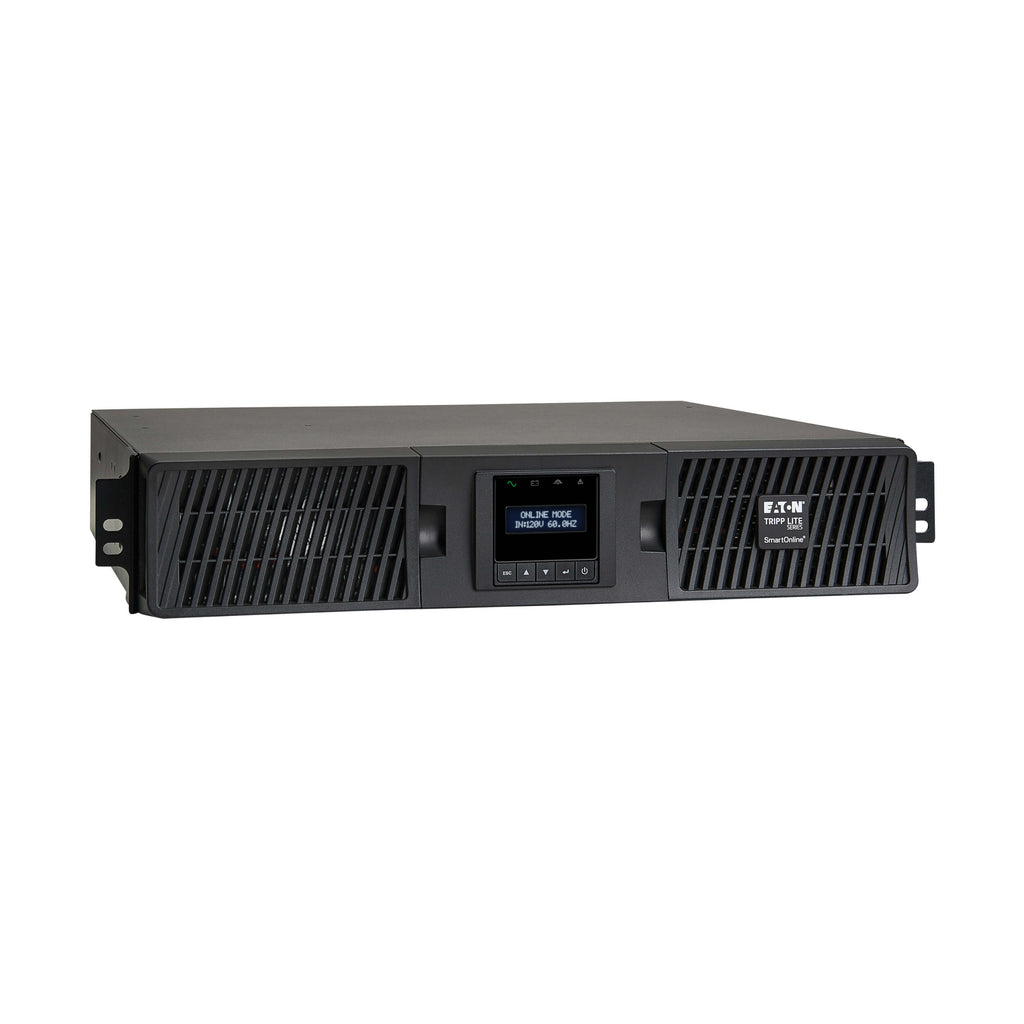

| Display | Rotatable LCD with system status, alarms, and analytics |
| Form Factor | 2U Rack/Tower Convertible |
| Dimensions (HxWxD) | 3.41 × 17.33 × 23.82 in |
| Weight | 63.06 lbs (28.6 kg) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Efficiency (AC Mode) | 91.6% |
| Efficiency (Economy Mode) | 97.2% |
| Certifications | UL 1778, CSA, NOM, CE, ENERGY STAR, FCC, RoHS, REACH |
| Warranty | 2-year limited warranty |
| Connected Equipment Insurance | $250,000 (U.S., Canada & Puerto Rico) |
| Optional Accessories | BP72RT Battery Pack, RK2PC 2-Post Rail Kit |
| Manufacturer | Eaton (Tripp Lite Series) |
