Description

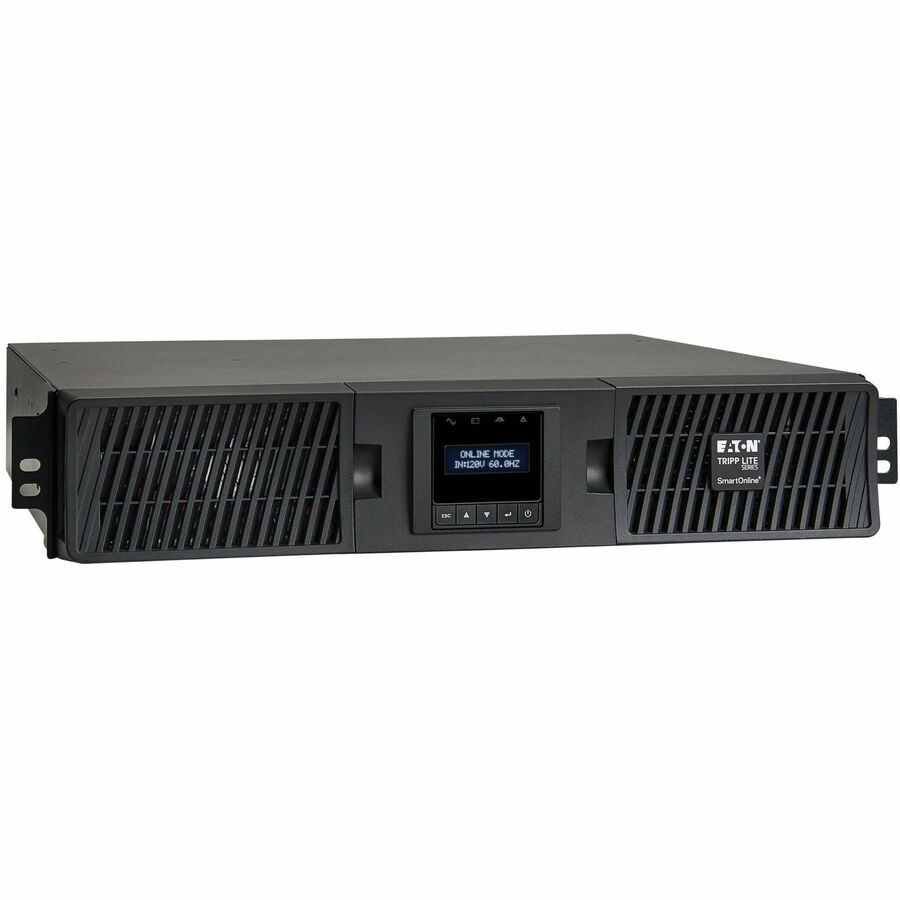

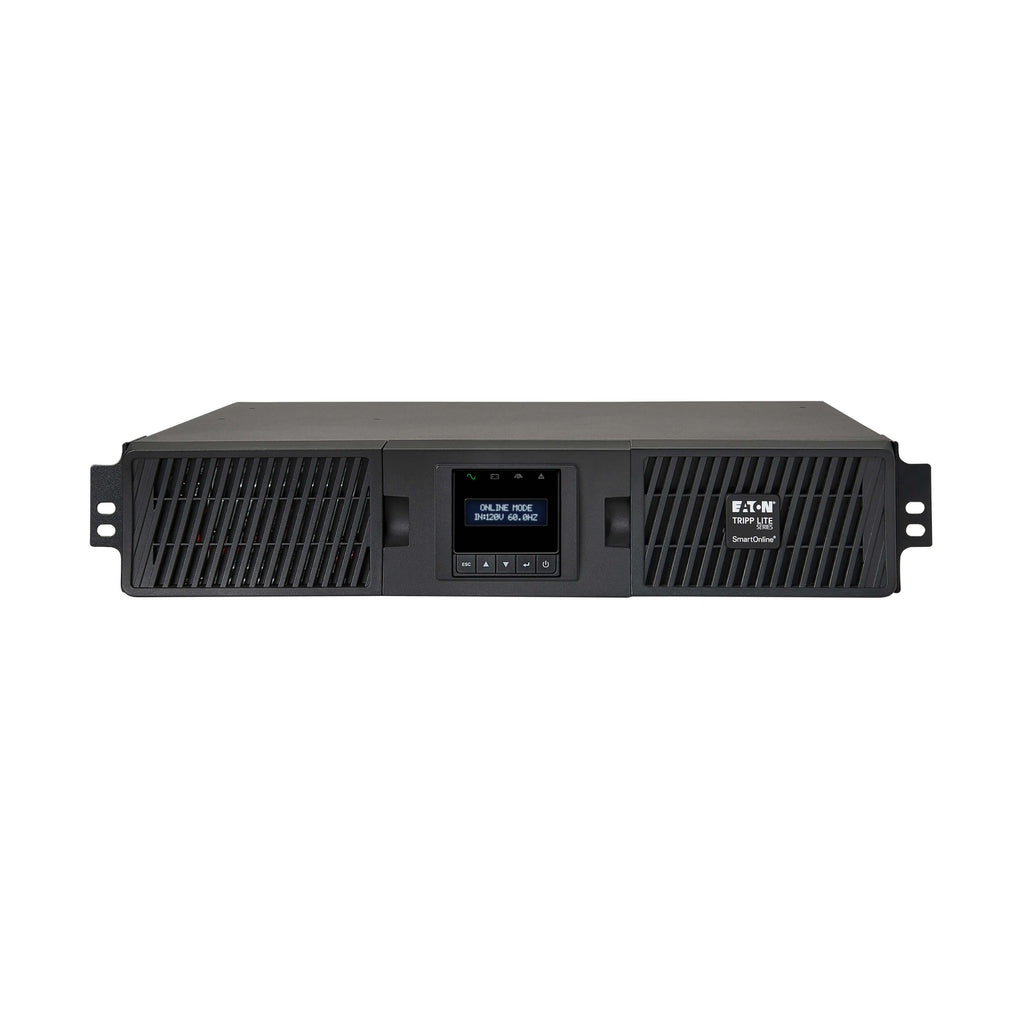

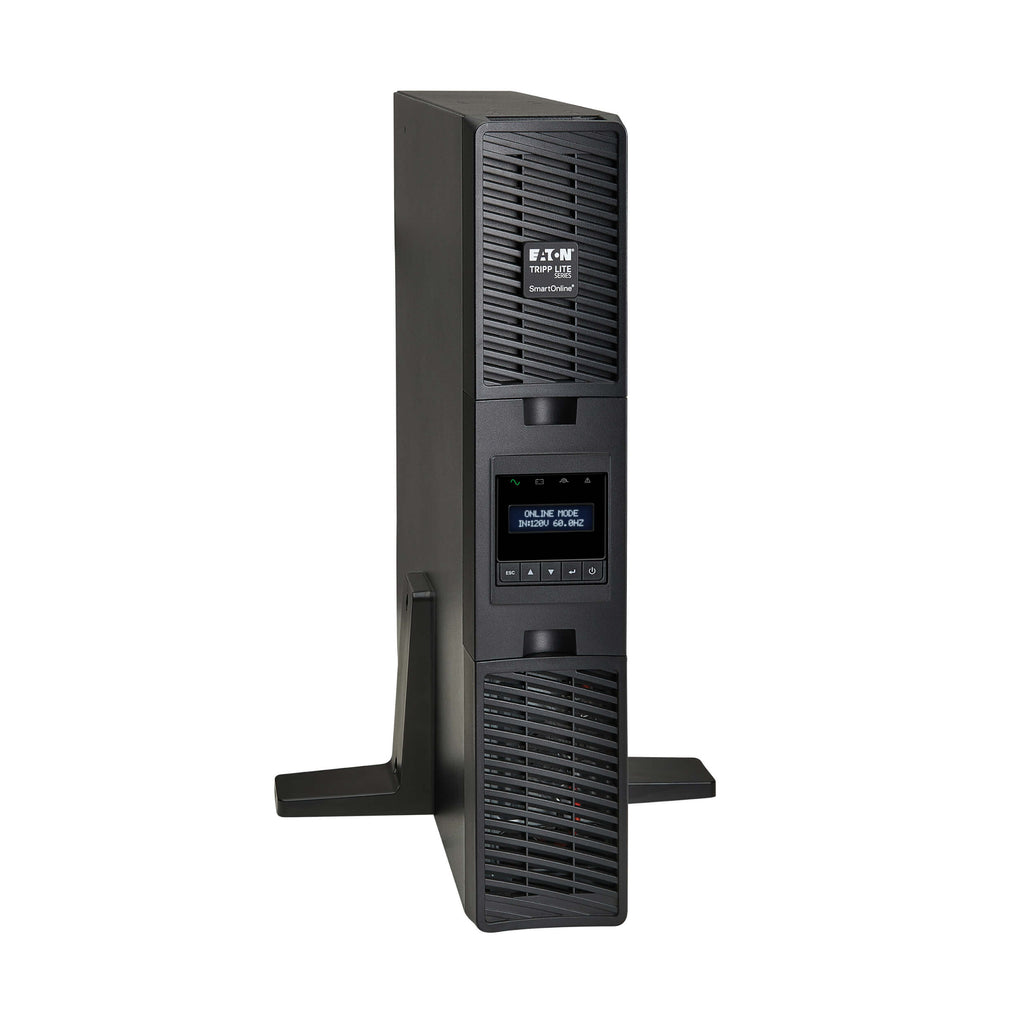

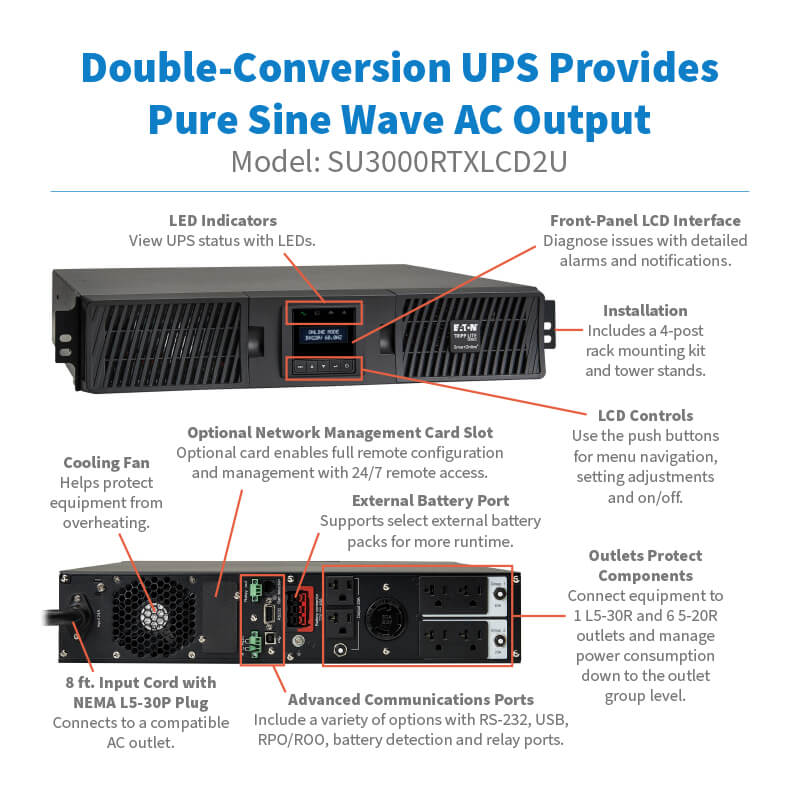

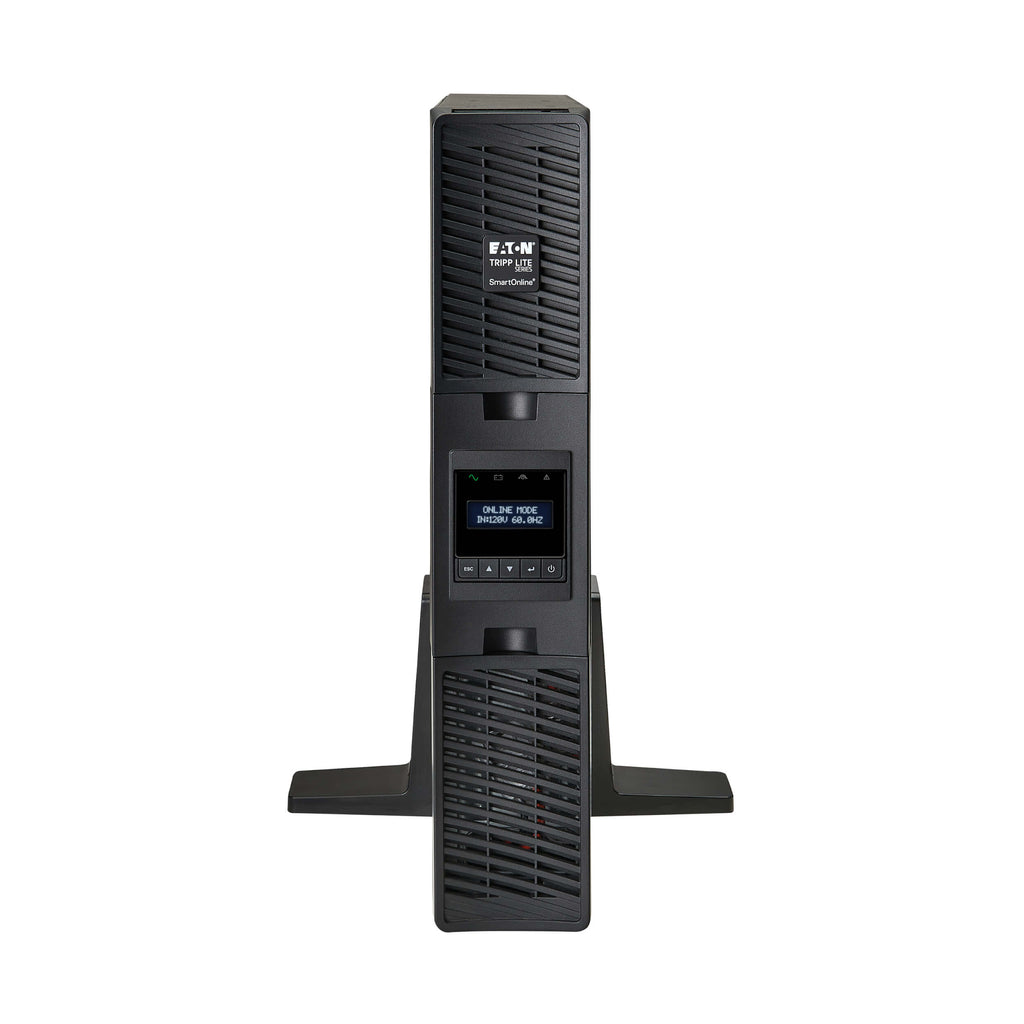

The Eaton Tripp Lite SmartOnline SU3000RTXLCD2U is a 3000VA/2700W true online double-conversion UPS system that provides premium power protection for mission-critical IT equipment. Ideal for healthcare, education, government, and enterprise environments, this compact 2U unit ensures continuous, clean, and reliable sine wave output with zero transfer time during outages. Features include advanced LCD monitoring, USB and DB9 ports, 7 protected outlets (including 2 load banks), and optional remote management via WEBCARDLXE. With field-replaceable, hot-swappable batteries and extended runtime capability, the SU3000RTXLCD2U offers exceptional resilience and scalability in both rack and tower configurations.
| Specification | Details |
|---|---|
| Model Number | SU3000RTXLCD2U |
| Form Factor | 2U Rack/Tower Convertible |
| Input Voltage | 100V / 110V / 120V AC (Nominal: 120V) |
| Input Plug Type | NEMA L5-30P |
| Input Cord Length | 8 ft. (2.44 m) |
| Output Capacity | 3000 VA / 2700 W |
| Output Voltage | 100V–127V Selectable |

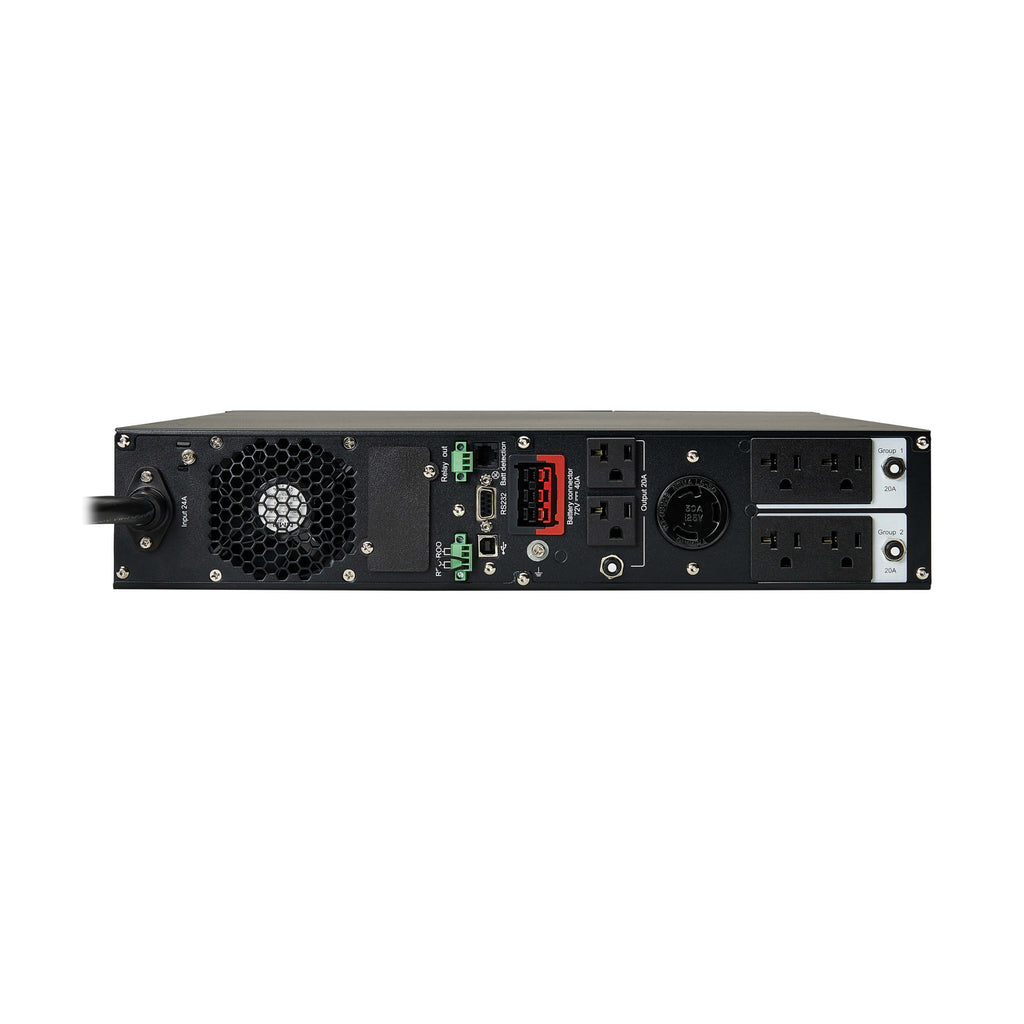

| Outlets | (6) 5-20R, (1) L5-30R |
| Output Waveform | Pure Sine Wave (AC & Battery Mode) |
| Battery Type | VRLA, Hot-Swappable |
| Runtime @ Full Load | 4.8 min (2700W) |
| Runtime @ Half Load | 13.9 min (1350W) |
| Expandable Runtime | Yes, with up to 4 BP72RT EBMs |
| Recharge Time | 3 Hours to 90% |
| Network Management | Optional WEBCARDLXE Slot (Not compatible with WEBCARDLX) |
| Communications | USB, RS-232, Contact Closure, EPO/ROO |
| Display | Front Panel LCD with Rotating Screen |
| Efficiency | 91.6% (Online), 97.2% (Economy Mode) |
| Cooling | Fan |
| Dimensions (HWD) | 3.41 x 17.33 x 23.82 in |
| Weight | 63.06 lbs (28.6 kg) |
| Certifications | ENERGY STAR, UL 1778, CE, RoHS, FCC, REACH |
| Warranty | 2-Year Limited Warranty |
