Description

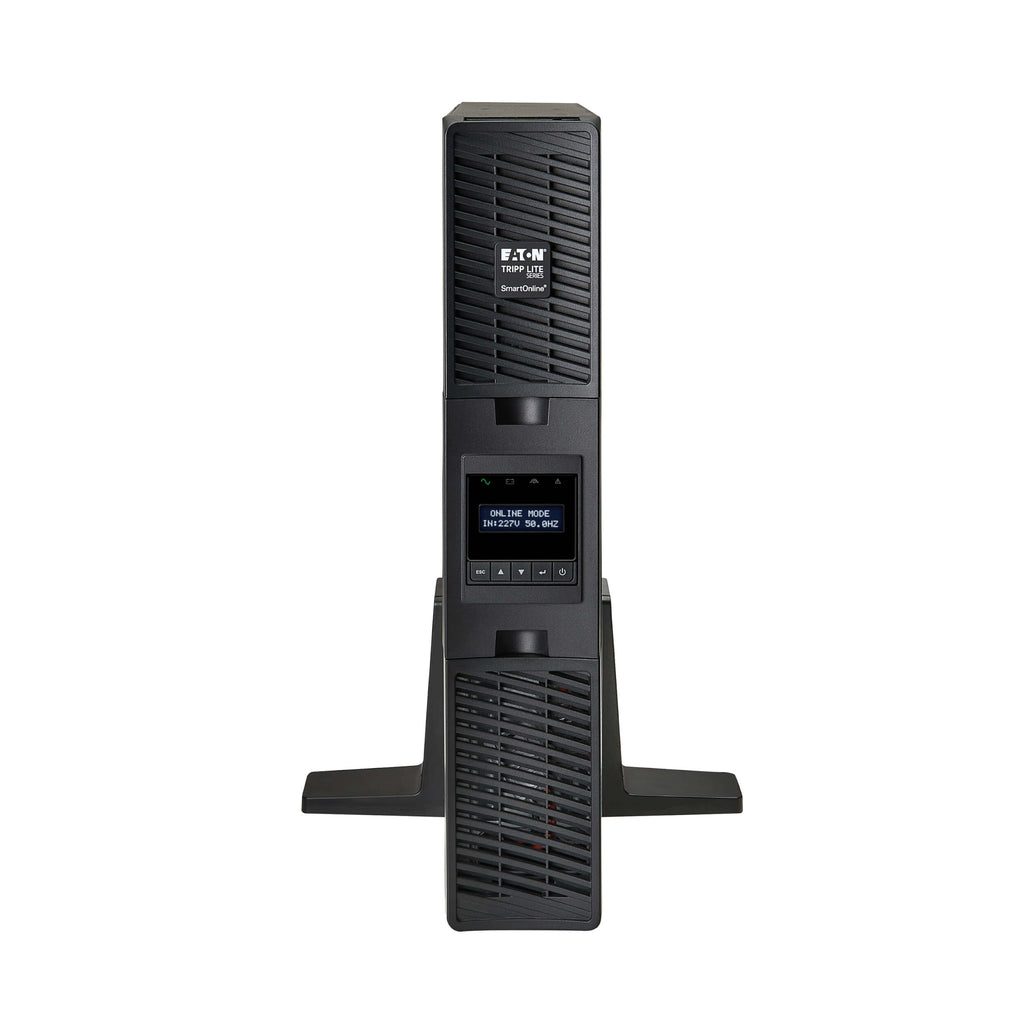

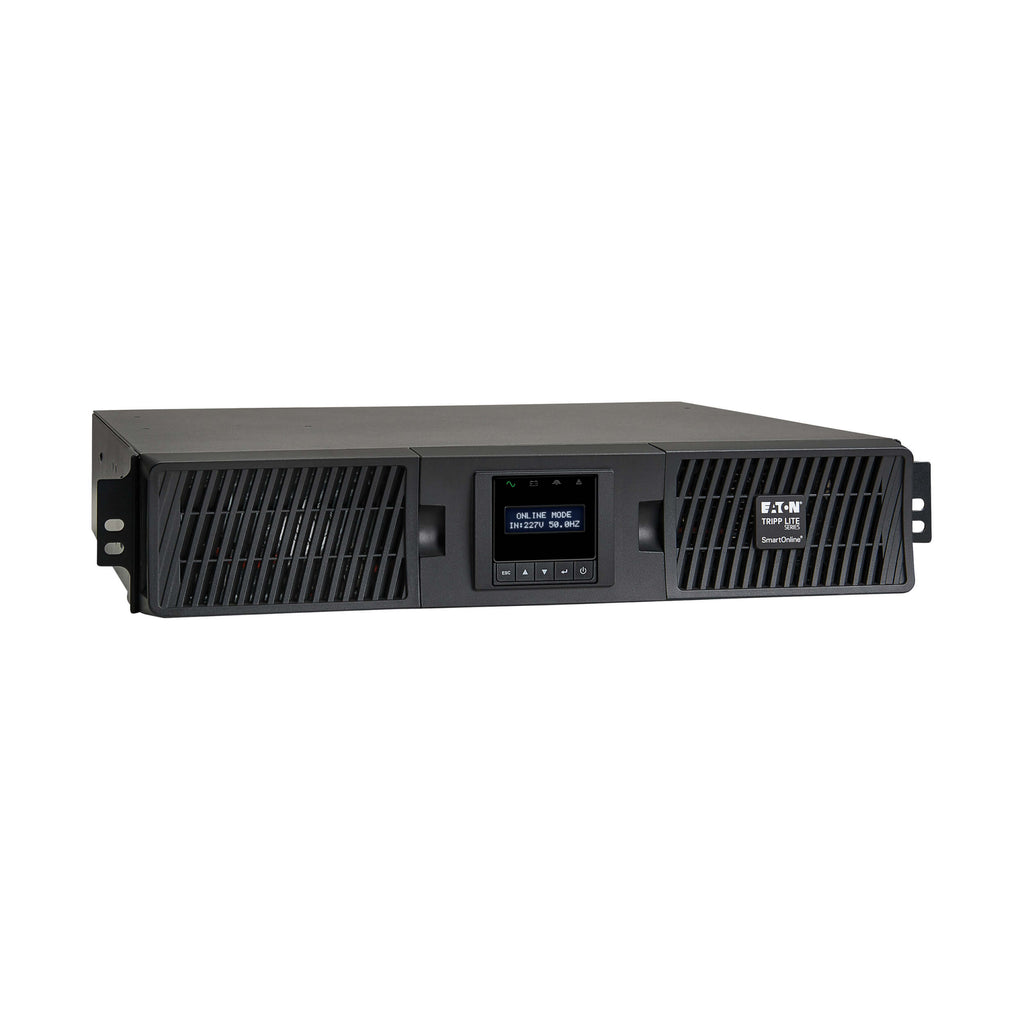

The Eaton Tripp Lite SUINT3000LCD2U is a high-performance 3000VA/2700W double-conversion online UPS designed for mission-critical IT, education, healthcare, and government environments. Delivering continuous pure sine wave output, it ensures uninterrupted power and full isolation from AC disturbances such as surges, brownouts, and line noise.
This SmartOnline UPS offers zero transfer time between on-line and battery modes to prevent system downtime, along with hot-swappable, field-replaceable VRLA batteries for extended reliability. For prolonged outages, it supports up to four external battery modules (BP72RT).

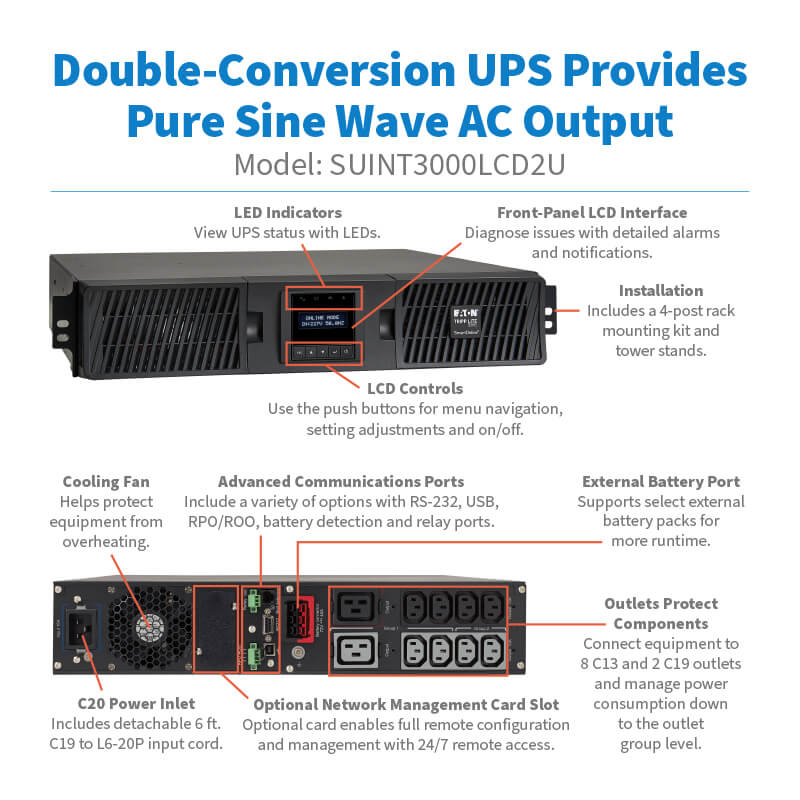

Its front-panel LCD interface provides real-time analytics, event logs, and power status, while optional remote management via the WEBCARDLXE network card enables 24/7 monitoring and control. With 10 total outlets (8 C13, 2 C19), load bank management, and high efficiency (up to 98% in economy mode), this 2U rack/tower UPS is the ideal choice for enterprise-grade power continuity and equipment protection.
| Category | Details |
|---|---|
| Model Number | SUINT3000LCD2U |
| Form Factor | 2U Rackmount / Tower Convertible |
| Topology | Online, Double-Conversion |
| Capacity | 3000VA / 2700W |
| Input Voltage | 200V / 208V / 220V / 230V / 240V AC (208V default) |

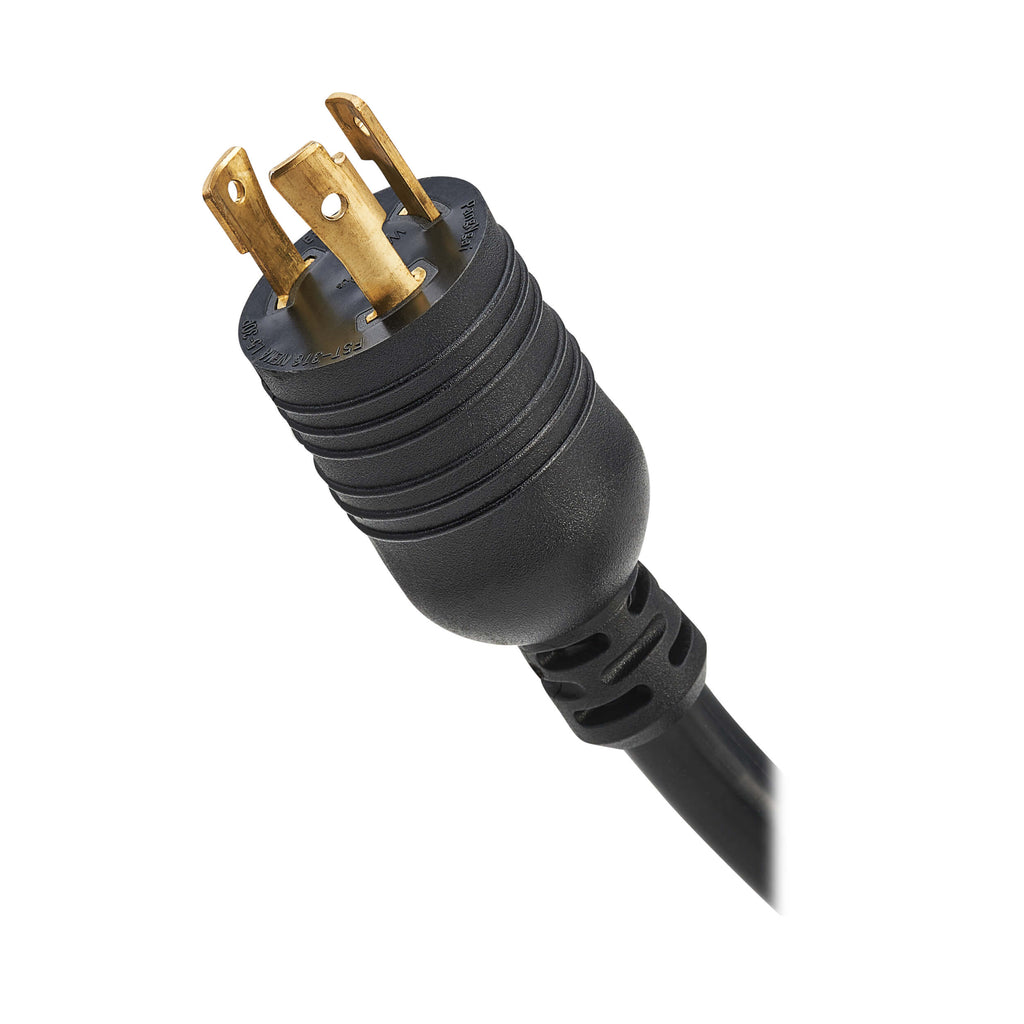

| Input Connection | C20 inlet with 6 ft (1.8 m) NEMA L6-20P power cord |
| Input Current | 16A max |
| Output Voltage | 200V–240V AC (Pure Sine Wave) |

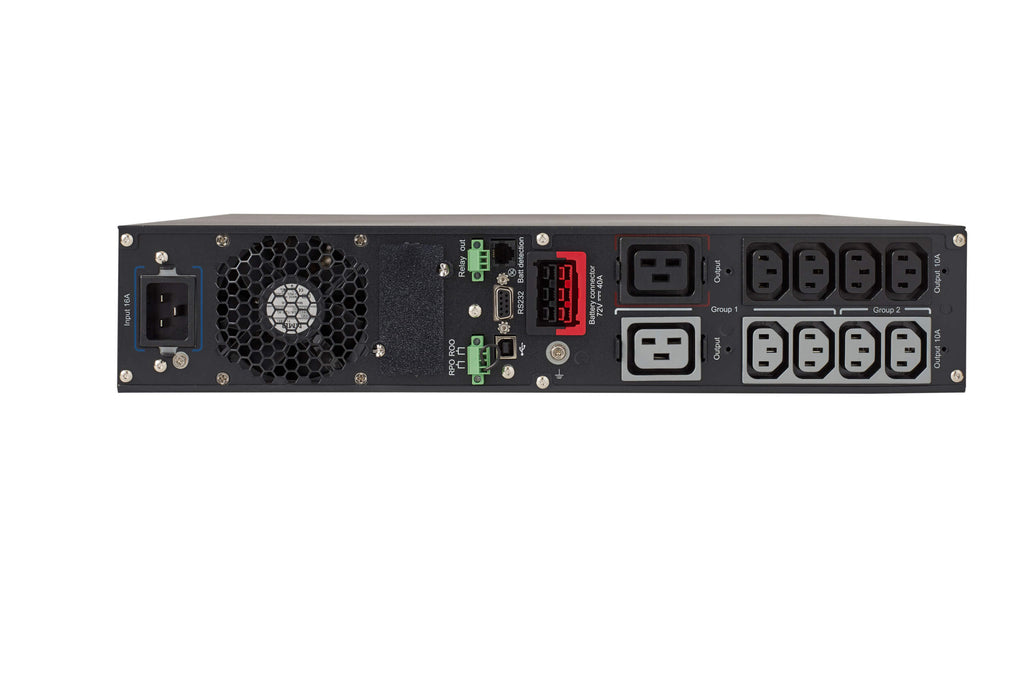

| Output Receptacles | (8) IEC C13, (2) IEC C19 |
| Load Banks | Two individually controllable load banks |
| Output Frequency | 50 / 60 Hz (auto-sensing, ±0.5%) |
| Efficiency | 93.7% (Online); 98% (Economy Mode) |
| Battery Type | Hot-swappable, user-replaceable VRLA |
| Runtime (Full Load / Half Load) | 3.8 min (2700W) / 10.8 min (1350W) |
| Extended Runtime | Supports up to 4 × BP72RT modules |
| Recharge Time | 3 hours to 90% capacity |
| Communication Ports | USB, RS-232, Dry Contact Relay, SNMP/Web Card Slot |
| Optional Network Card | WEBCARDLXE (for remote management) |
| Display | Rotatable LCD panel with status, event logs, and system analytics |
| Noise Level | 47 dB at 1m |
| EMI/RFI Suppression | Yes (296 Joules) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Dimensions (H × W × D) | 3.41 × 17.33 × 23.82 in (8.7 × 44 × 60.5 cm) |
| Weight | 61.29 lbs (27.8 kg) |

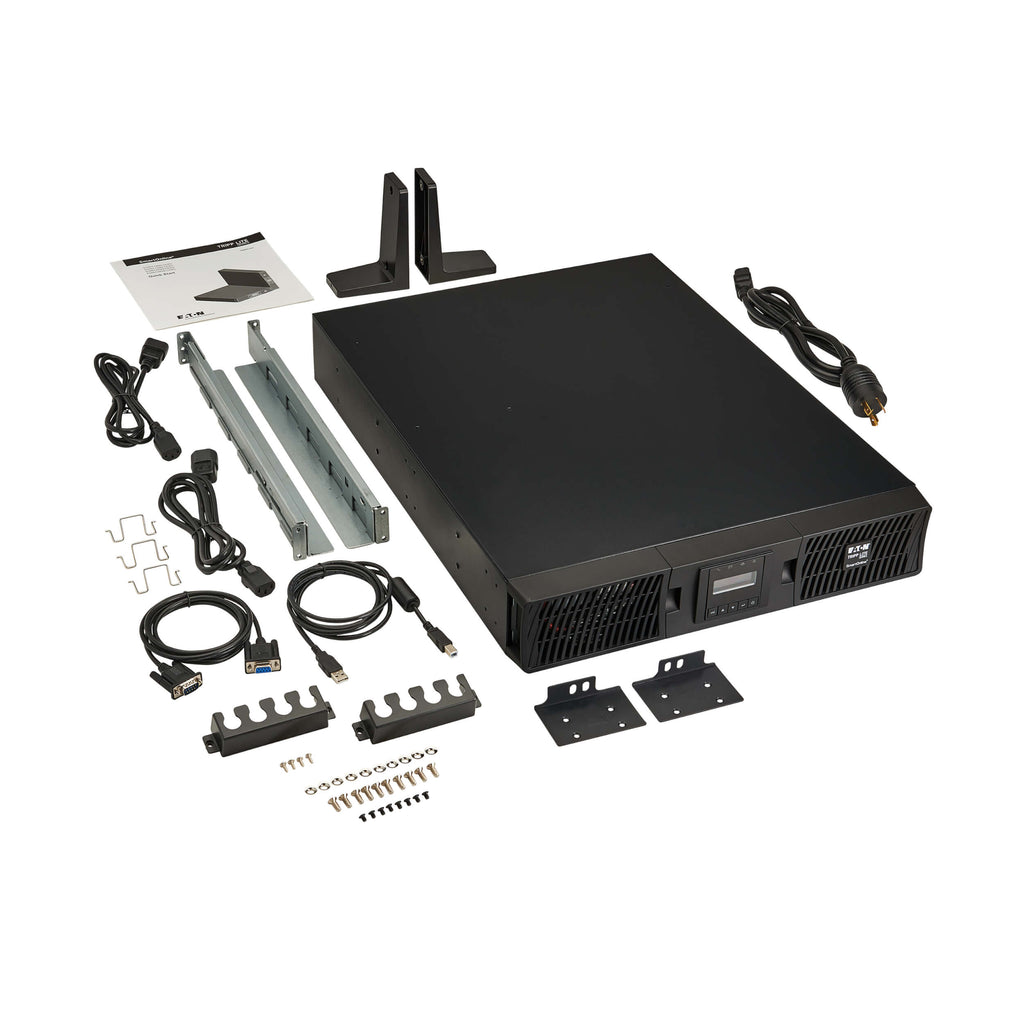

| Mounting Options | 4-post rackmount (included), tower (stands included), 2-post optional (RK2PC) |
| Certifications | UL 1778, CSA, NOM, CE, FCC, RoHS, REACH |
| Warranty | 2-year limited warranty |
