Description

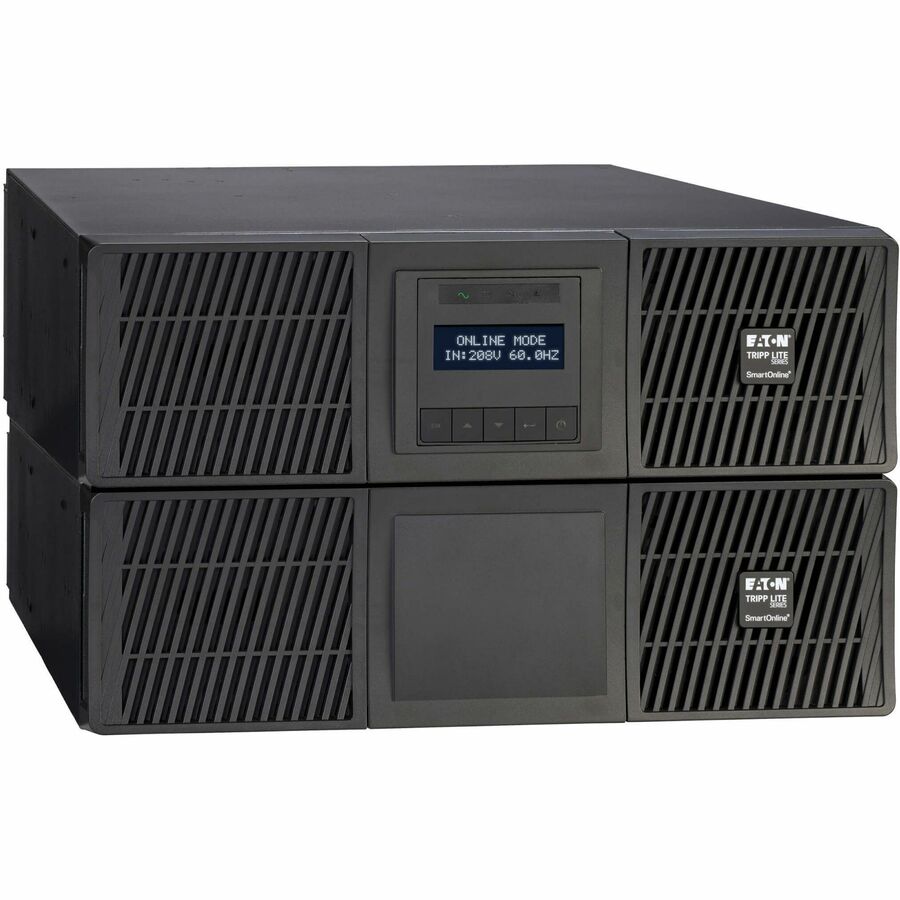

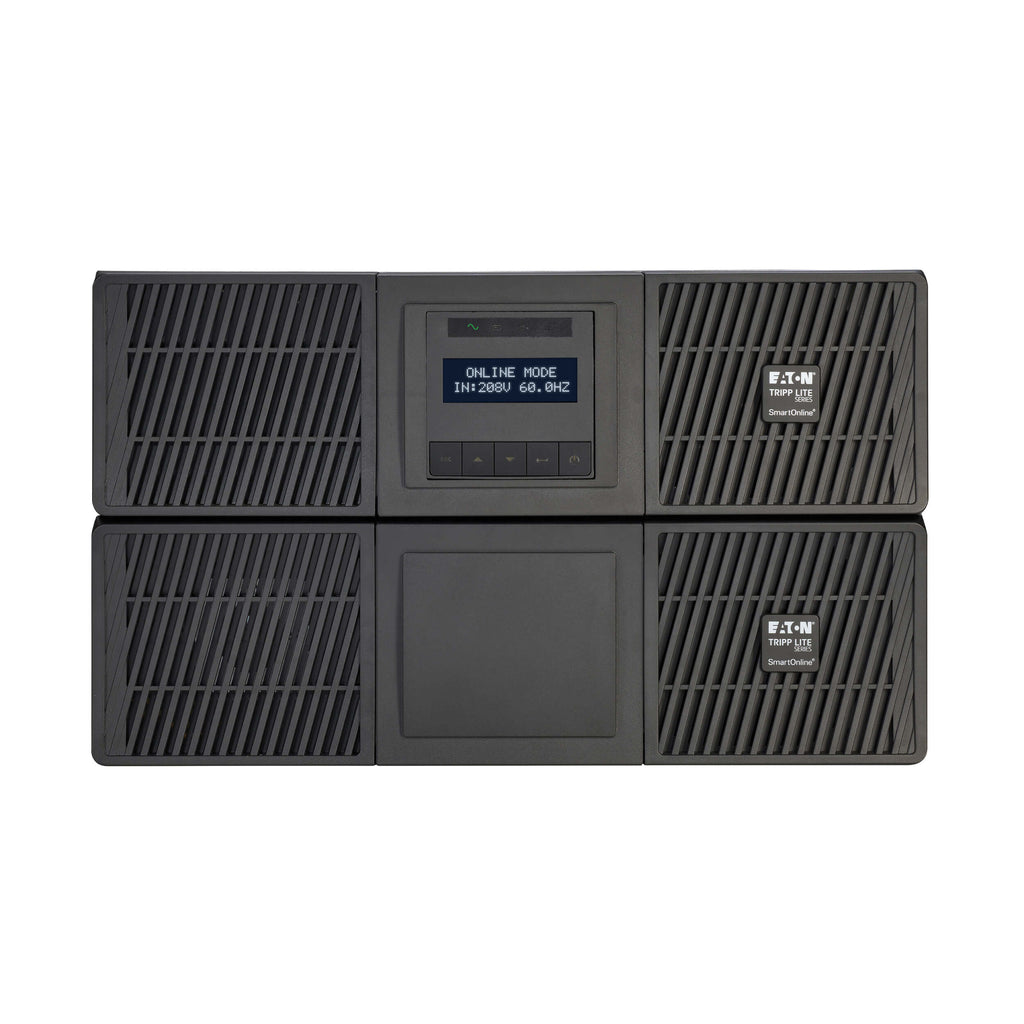

The Eaton Tripp Lite series SmartOnline SU5000RTF is a high-performance 6U double-conversion UPS system designed for mission-critical IT and edge network applications. It provides 5000VA/4500W of pure sine wave backup power with a built-in stepdown transformer that converts 208V input into 120V output, enabling flexible equipment compatibility. This system ensures zero transfer time and superior power protection against blackouts, brownouts, surges, and line noise.

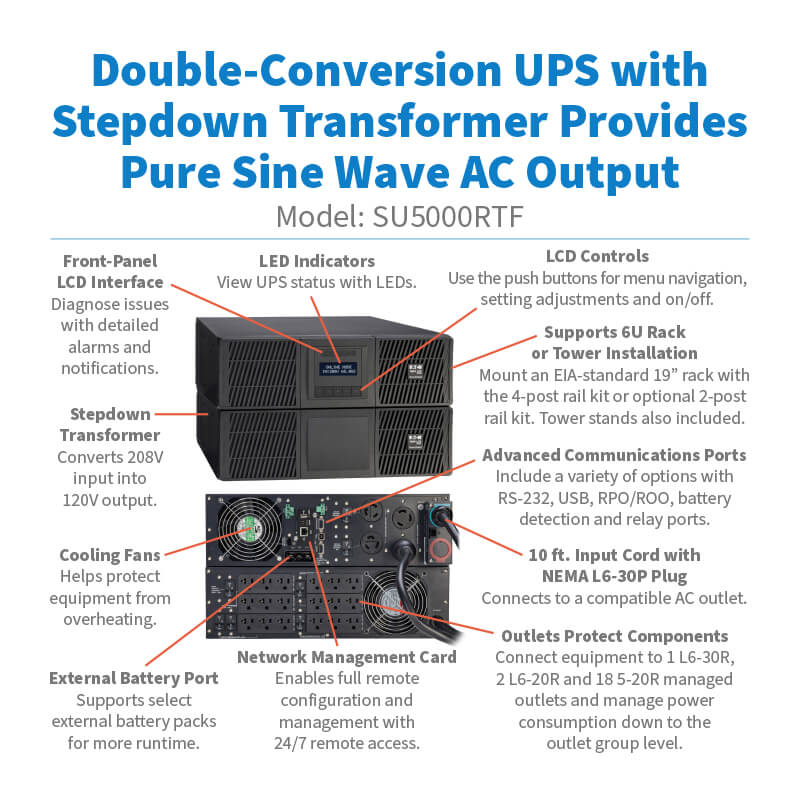

Equipped with a pre-installed WEBCARDLXE network interface, it offers full remote management capabilities. The system includes 18 5-20R, 2 L6-20R, and 1 L6-30R outlets, plus support for hardwired output. Add up to four external BP180RT battery modules (sold separately) for extended runtime. The SU5000RTF can be installed in rack or tower configurations and is ideal for servers, networking hardware, and industrial automation environments.
| Specification | Details |
|---|---|
| Model Number | SU5000RTF |
| UPS Type | Online Double-Conversion |
| Output Capacity | 5000VA / 4500W |
| Output Voltage | 120V via transformer; Supports 120V–240V |
| Input Voltage | 208V (Factory default); Supports 200–240V |
| Input Plug Type | NEMA L6-30P |

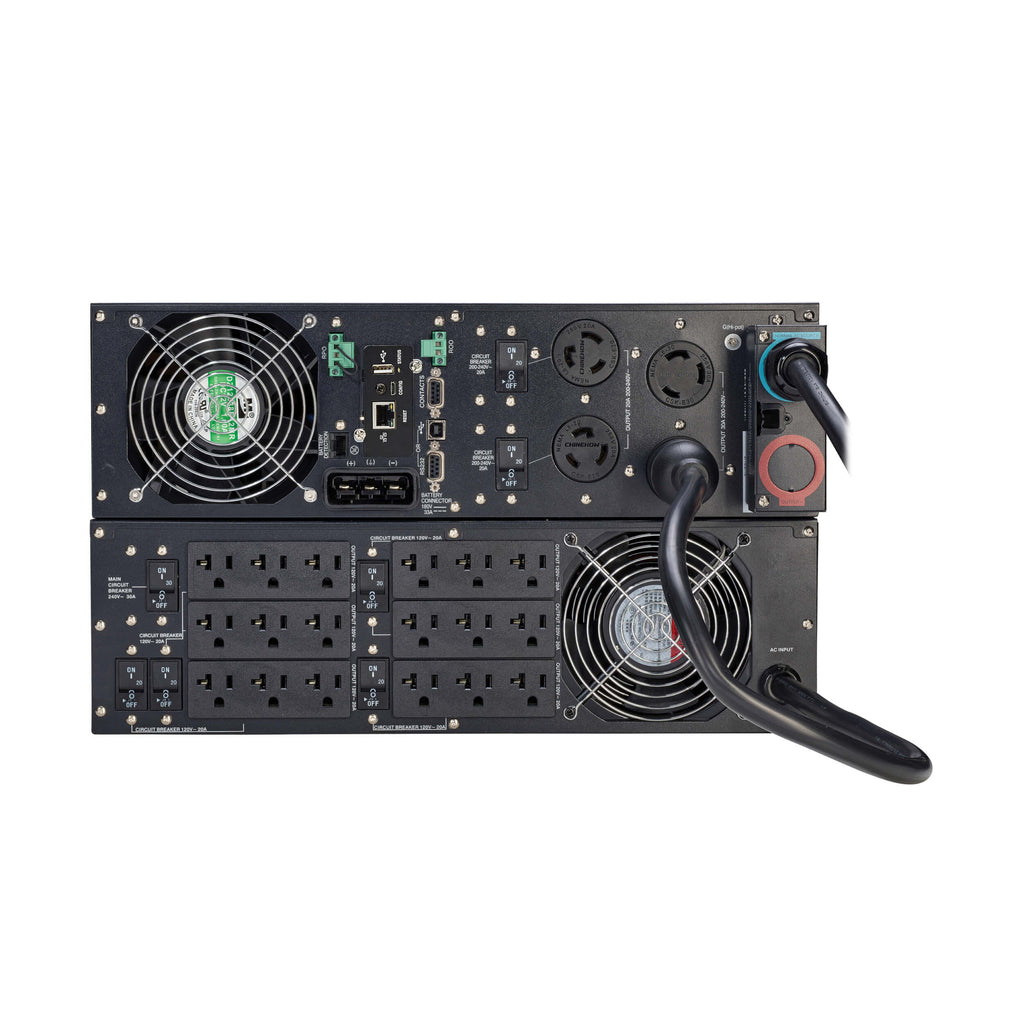

| Outlets | 18 x 5-20R, 2 x L6-20R, 1 x L6-30R, 1 x Hardwire |
| Stepdown Transformer | Included (208V to 120V) |
| Runtime (Full/Half Load) | 3 min (4500W) / 11 min (2250W) |
| Expandable Runtime | Yes, with up to 4 × BP180RT battery modules |
| Battery Type | Valve Regulated Lead Acid (VRLA), hot-swappable |
| Network Card | Included (WEBCARDLXE for SNMP/Web monitoring) |
| Communication Ports | USB, RS-232, Contact Closure, ROO/RPO |
| Display | Rotatable LCD graphical interface |

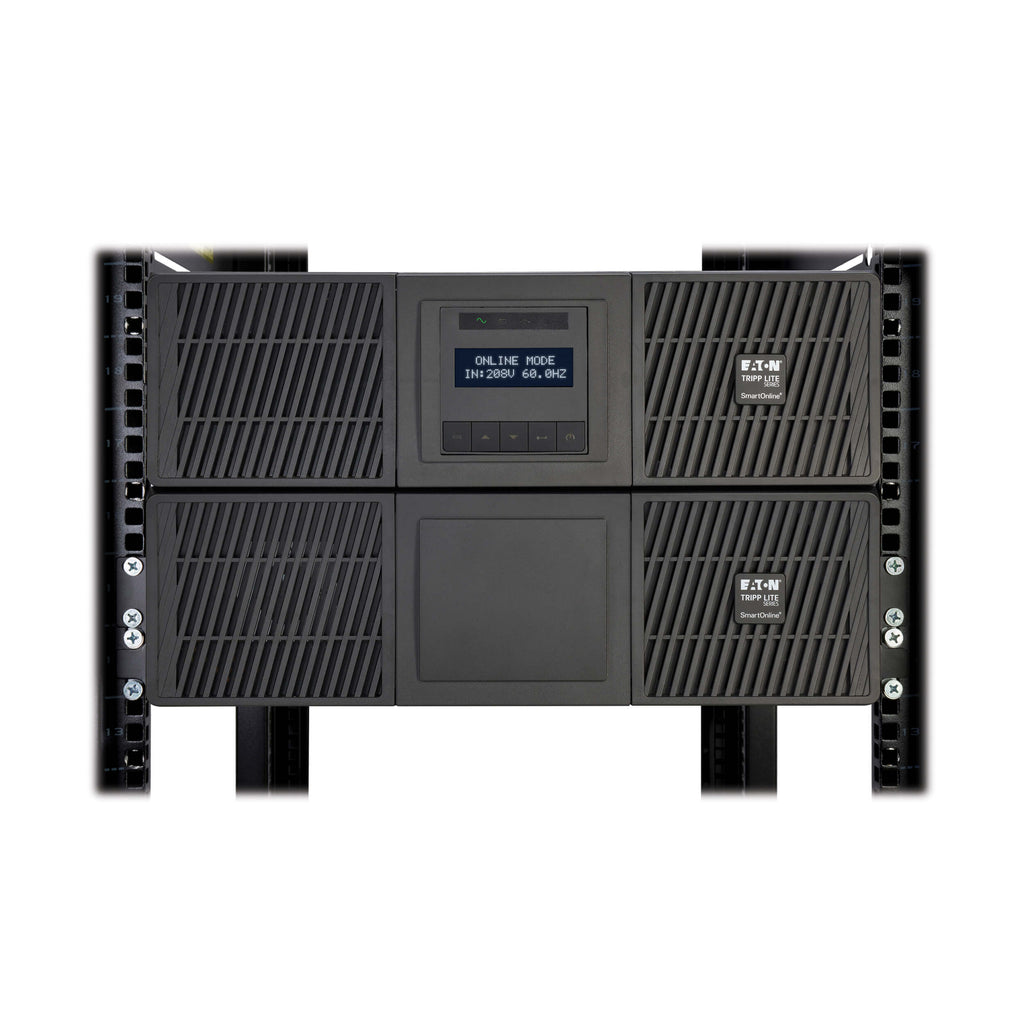

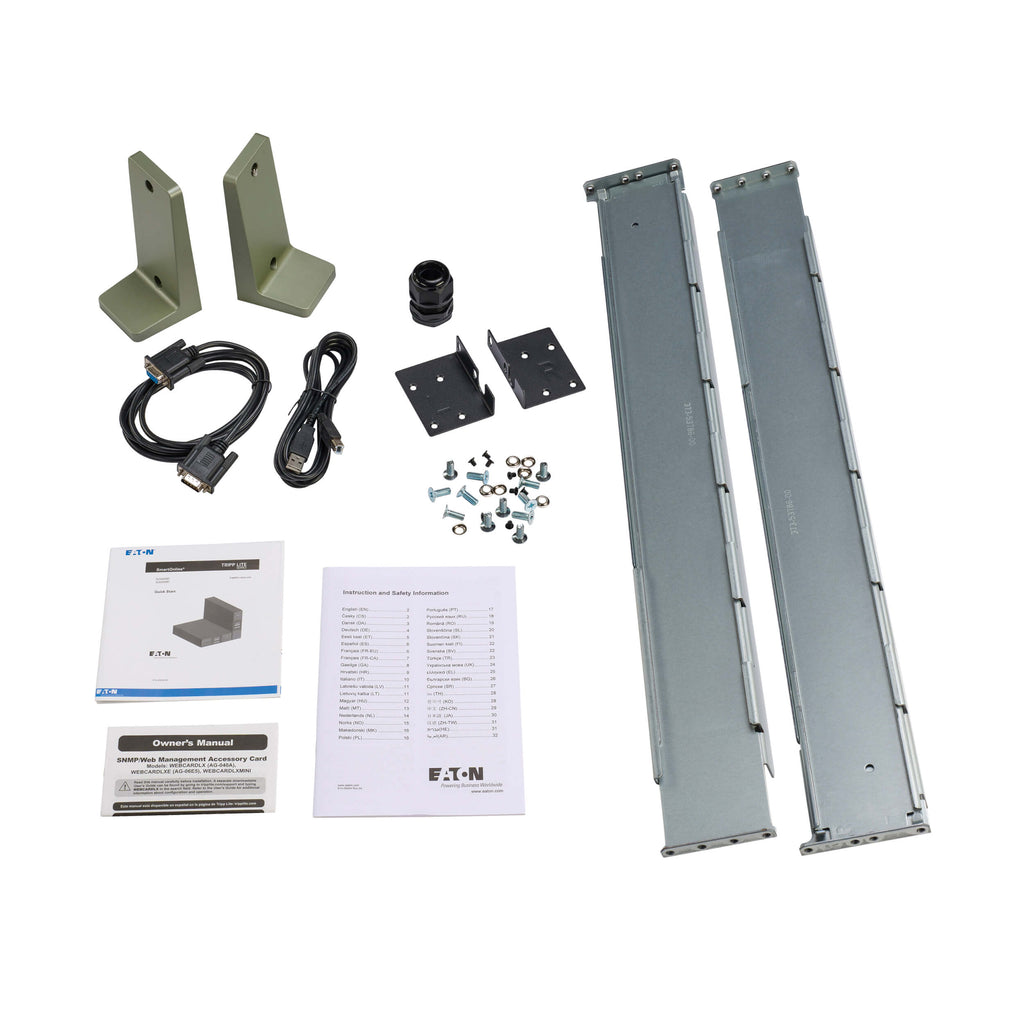

| Form Factor | 6U Rack/Tower (mounting hardware included) |
| Dimensions (H x W x D) | 10.2 x 17.3 x 27.0 in (6U) |
| Weight | 201 lbs (91.17 kg) |
| Efficiency (Online/Eco Mode) | 93% / 98% |
| Certifications | UL 1778, ENERGY STAR, RoHS, FCC Class A, CE |
| Warranty | 2-Year Limited Warranty |
| Connected Equipment Insurance | $250,000 Ultimate Lifetime Insurance (U.S. & Canada) |
