Description

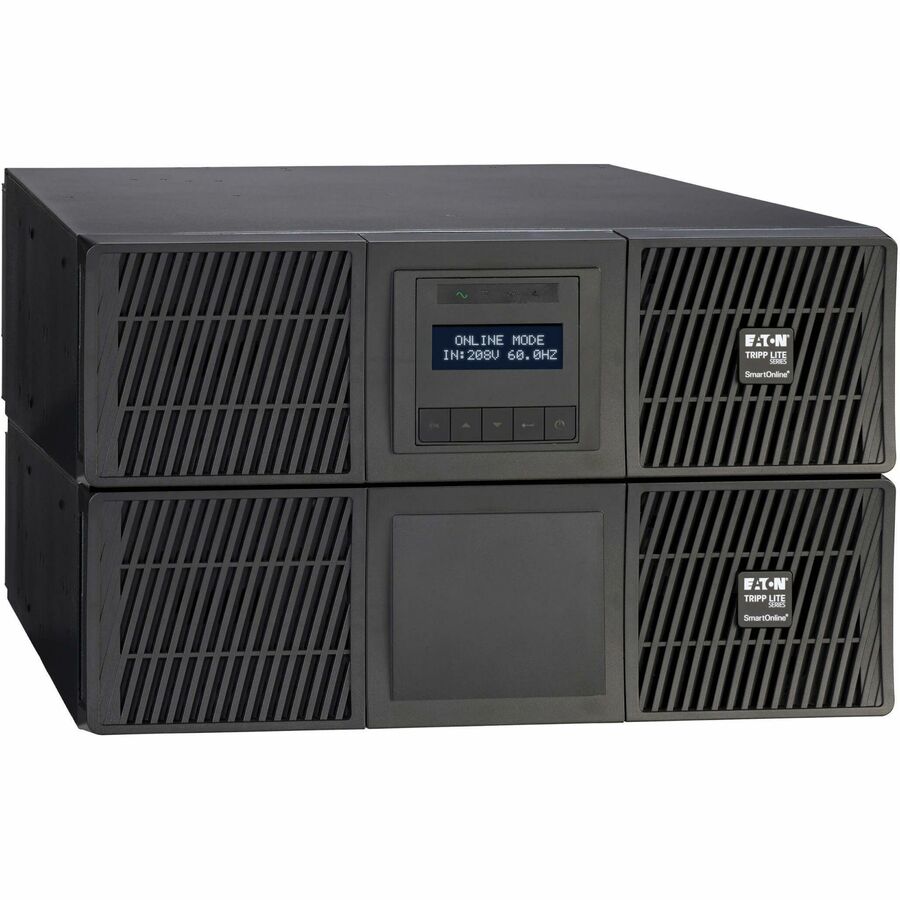

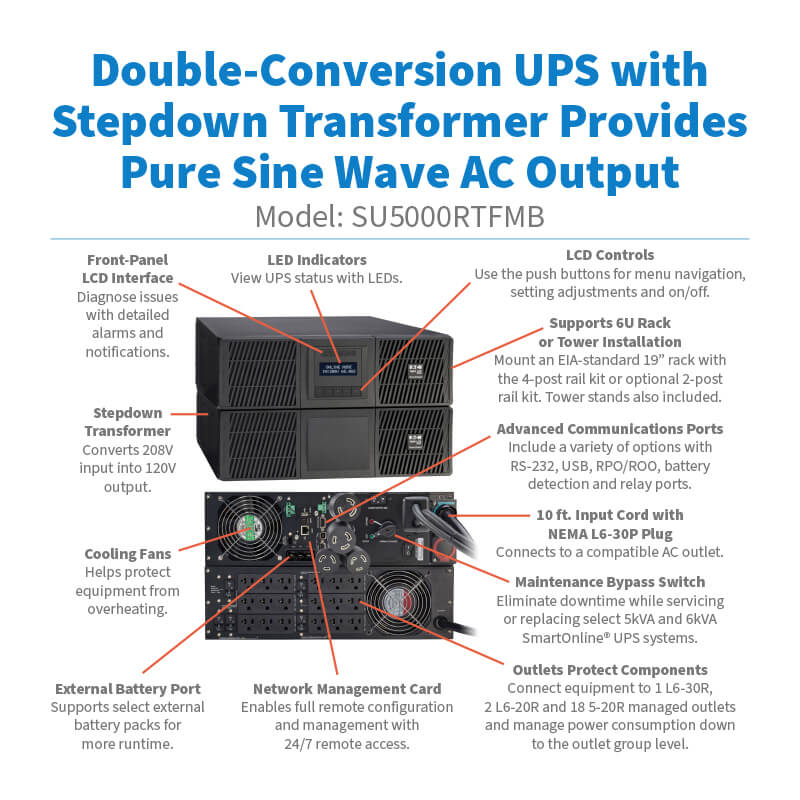

The Eaton Tripp Lite SmartOnline SU5000RTFMB is a 6U rack/tower-mount 5000VA/4500W double-conversion UPS that provides advanced power protection for mission-critical IT and edge network systems. Featuring a built-in stepdown transformer and integrated maintenance bypass, it allows simultaneous support for both 208V and 120V equipment without downtime during servicing. The pre-installed WEBCARDLXE network card enables full remote monitoring and SNMP management. Extended runtime is possible with up to four optional external battery packs (BP180RT). Its pure sine wave output, hot-swappable VRLA batteries, and versatile form factor make it ideal for enterprise-grade continuity and reliability.
| Category | Details |
|---|---|
| Model Number | SU5000RTFMB |
| Form Factor | Rack/Tower (6U) |
| UPS Type | Online, Double-Conversion |
| Input Voltage | 208V nominal (200–240V supported), 30A service |
| Input Plug Type | NEMA L6-30P, 10 ft. cord |
| Output Capacity | 5000VA / 4500W |
| Output Voltage | 120V (via stepdown transformer) and 208V (via hardwire) |

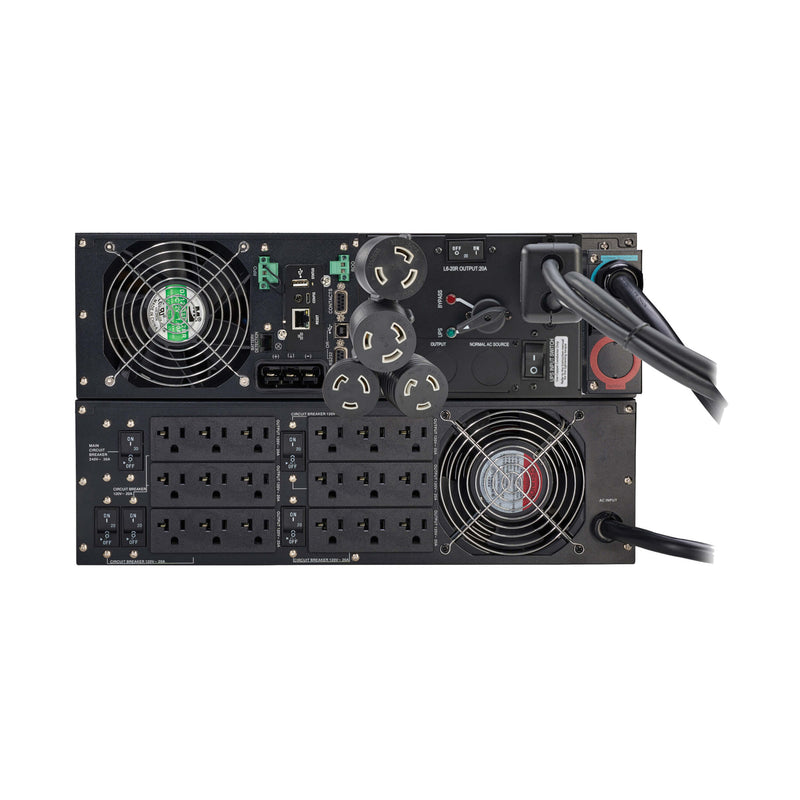

| Output Receptacles | (18) 5-20R, (2) L6-20R, (1) L6-30R, Hardwire (200–240V) |
| Maintenance Bypass | Included (SUPDMBP6K) |
| Stepdown Transformer | Included (SUTFMR) |
| Waveform | Pure Sine Wave (AC & Battery mode) |
| Battery Type | VRLA, hot-swappable, expandable w/ up to 4× BP180RT modules |
| Runtime @ Full Load | 3 minutes |
| Runtime @ Half Load | 11 minutes |
| Communication Ports | USB, RS-232, Dry Contact, Network (WEBCARDLXE pre-installed) |

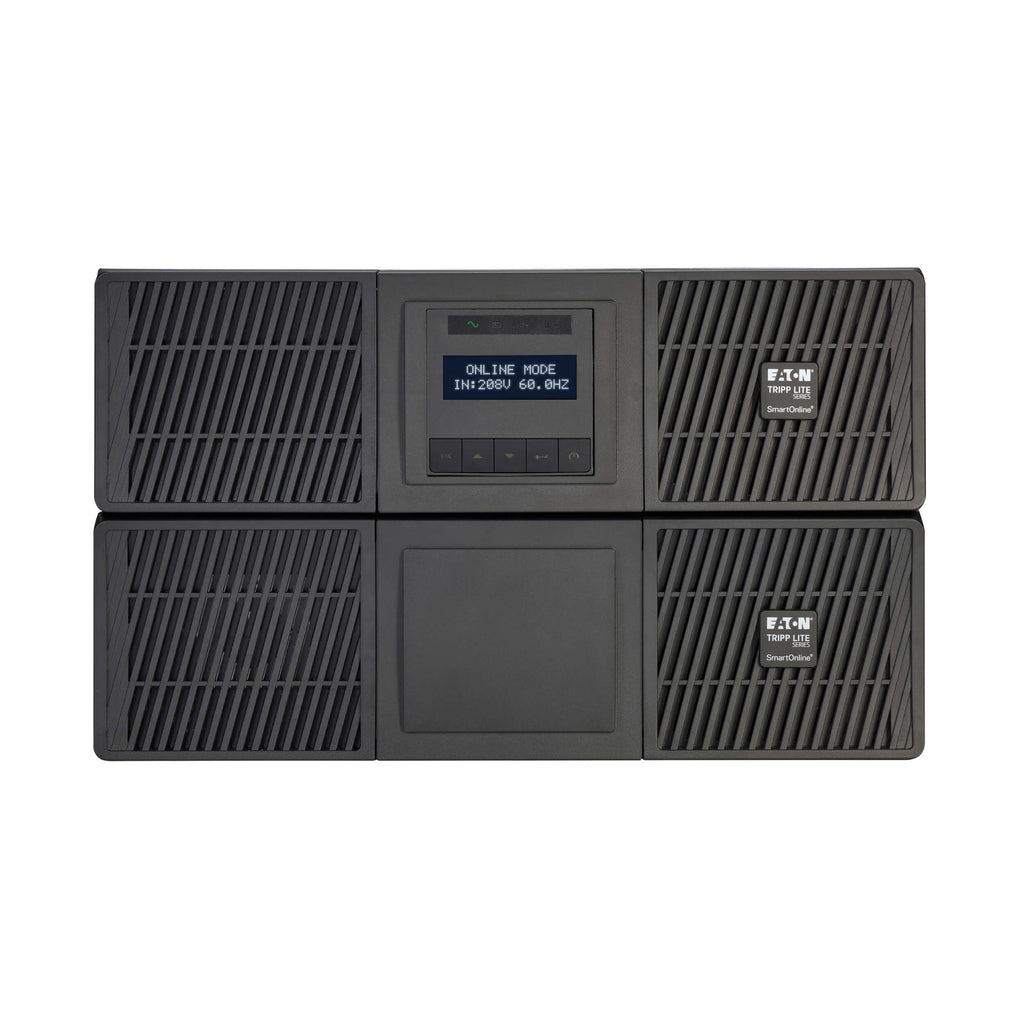

| LCD Display | Graphical, rotatable for tower/rack use |

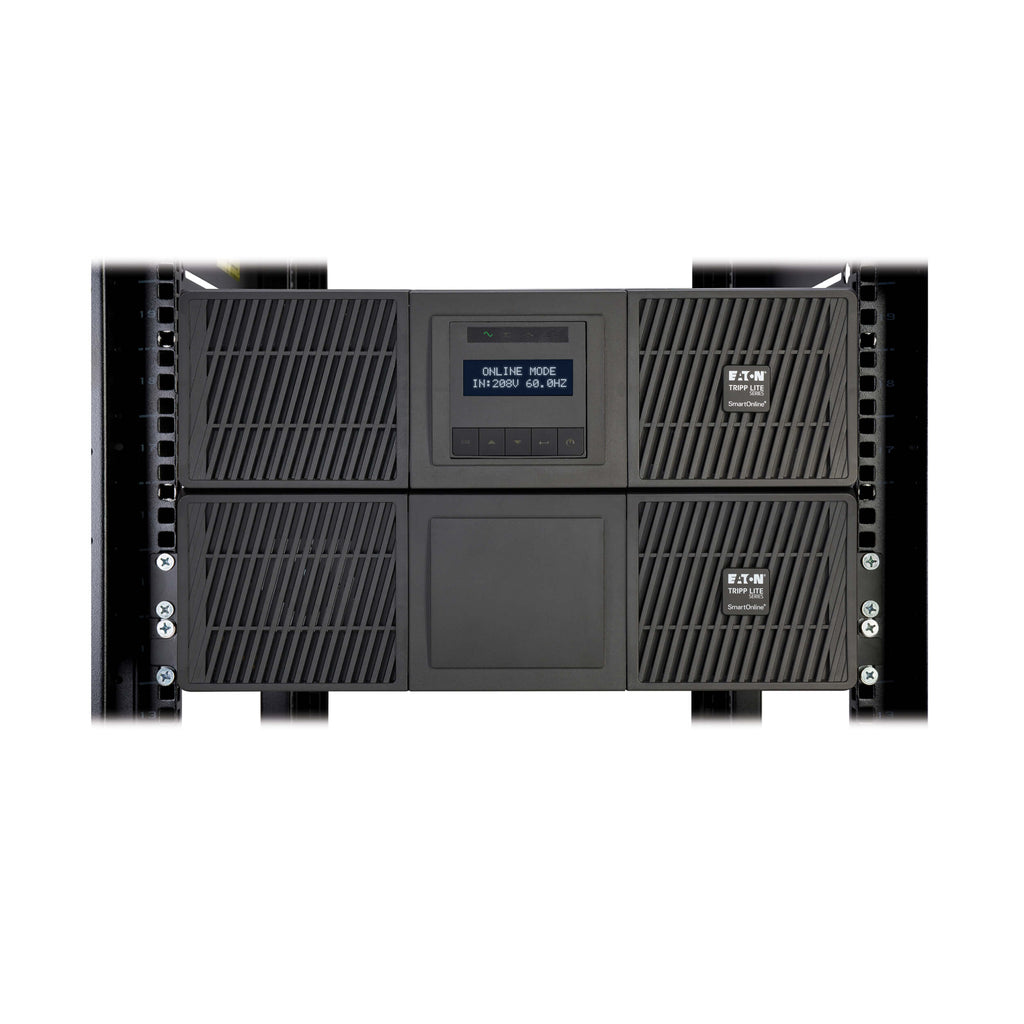

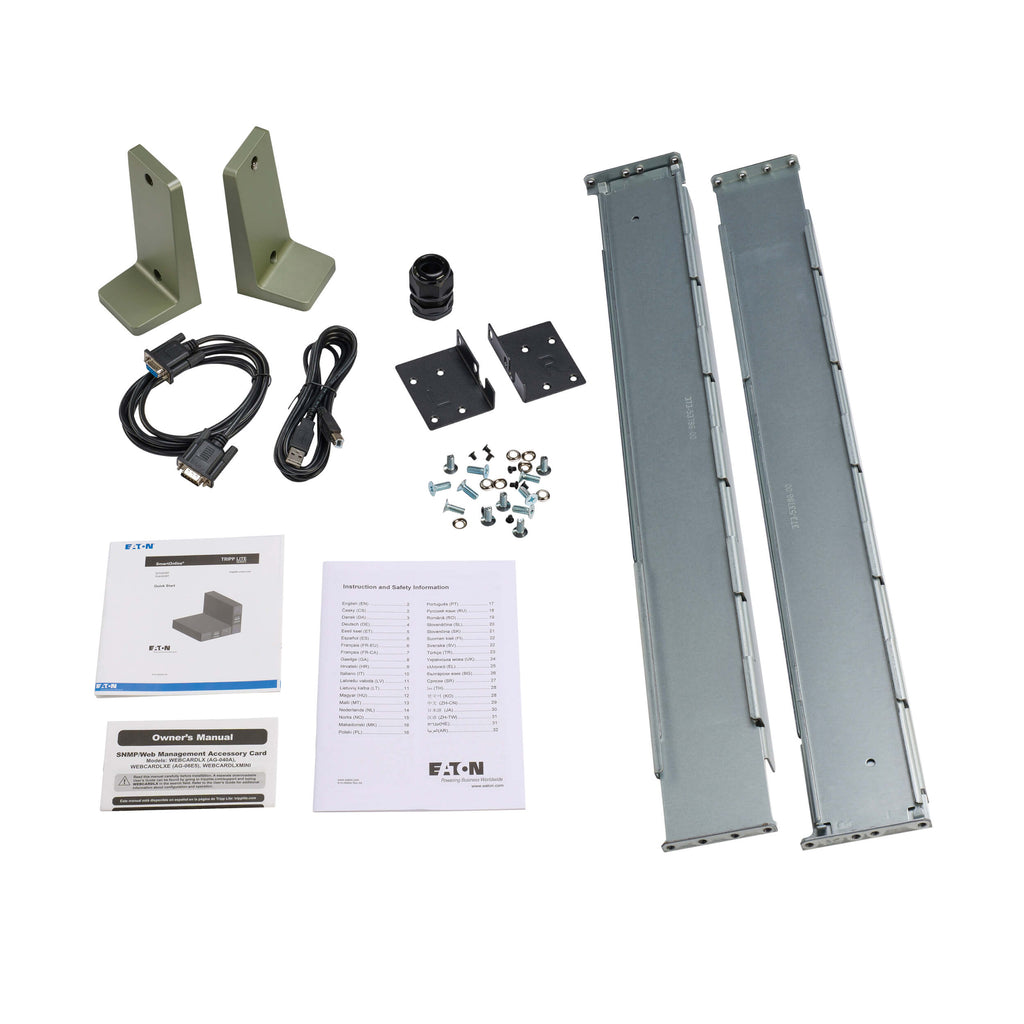

| Mounting Accessories | 4-post rack rails, tower stands included |
| Operating Temp | 0° to 40°C (32° to 104°F) |
| Certifications | ENERGY STAR, UL 1778, RoHS, FCC Class A, CE |
| Unit Dimensions (HWD) | 10.2 x 17.3 x 34.0 in (6U) |
| Shipping Dimensions | 39.45 x 38.00 x 28.50 in |
| Unit Weight | 206.5 lbs (93.7 kg) |
| Warranty | 2-year limited warranty + $250,000 insurance (USA/Canada/Puerto Rico) |
