Description

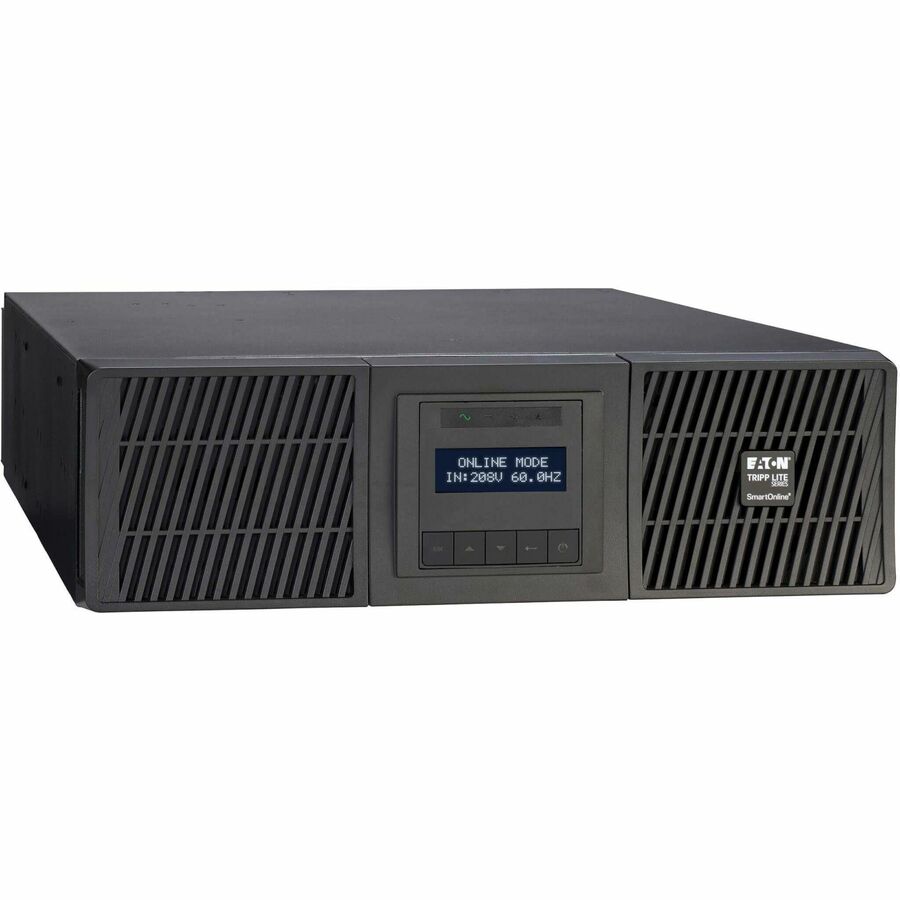

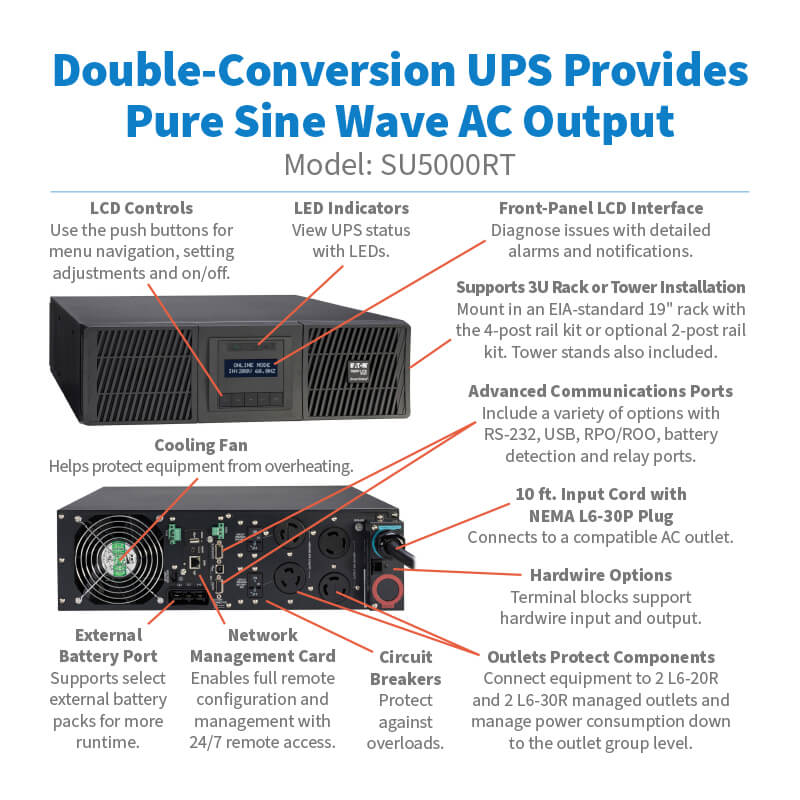

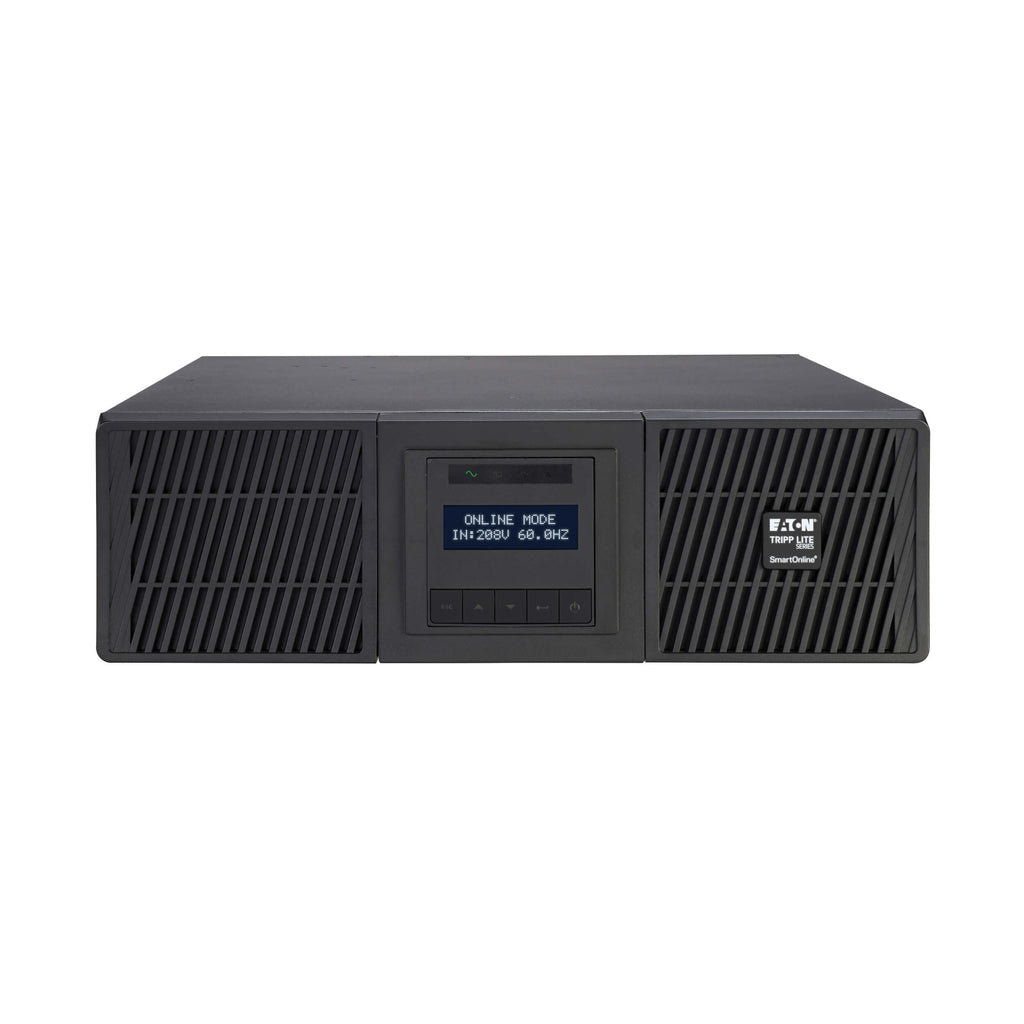

The Eaton Tripp Lite series SU5000RT is a high-performance SmartOnline 5000VA/4500W 208V Double-Conversion UPS system designed for mission-critical IT, edge networks, and industrial applications. Featuring pure sine wave output and zero transfer time, this 3U rack/tower UPS protects connected equipment against blackouts, surges, line noise, and brownouts. It comes with a pre-installed WEBCARDLXE network management card, supports hardwired output, and provides extended runtime with optional external battery packs. With hot-swappable VRLA batteries and a rotating LCD interface, the SU5000RT ensures operational continuity and user-friendly monitoring across demanding environments.
| Category | Details |
|---|---|
| Model Number | SU5000RT |
| Topology | Online, Double-Conversion |
| Output Capacity | 5000VA / 4500W |
| Output Voltage | 200V / 208V / 220V / 230V / 240V AC |

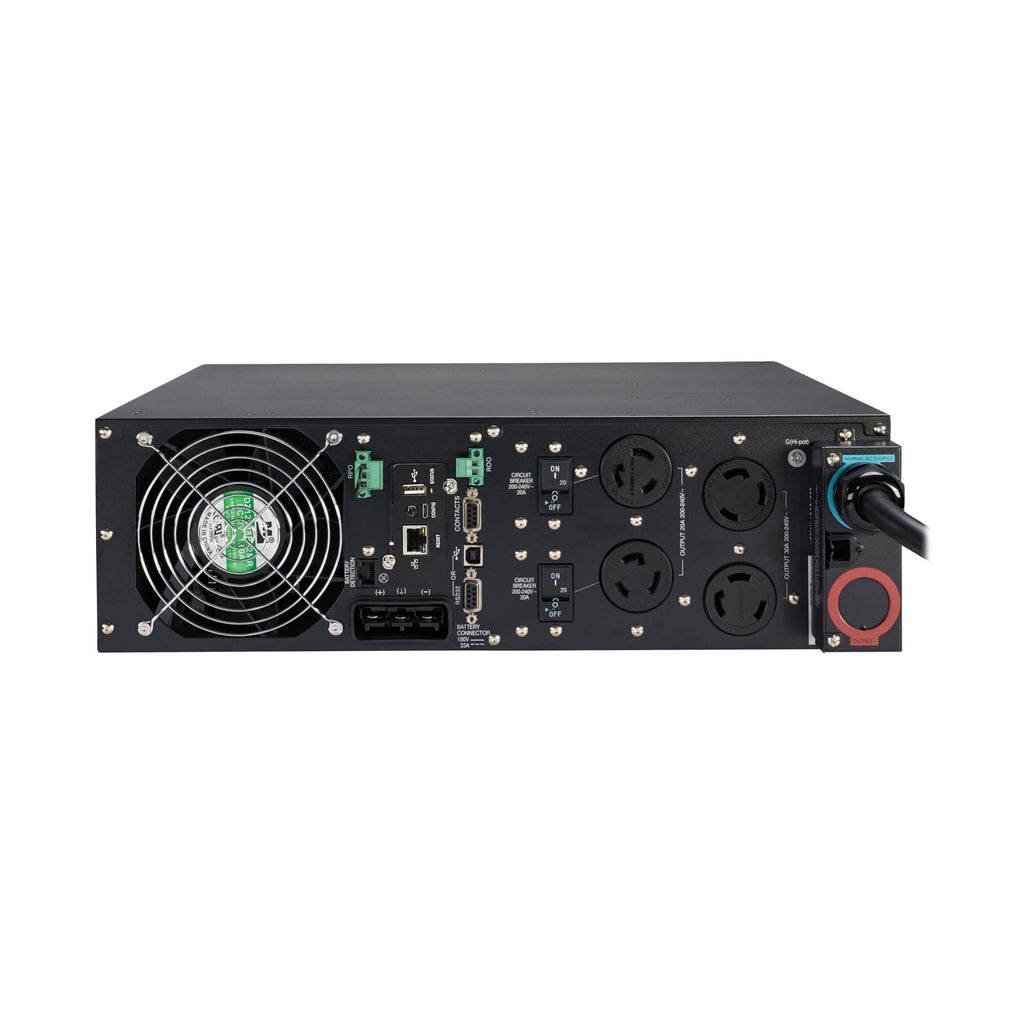

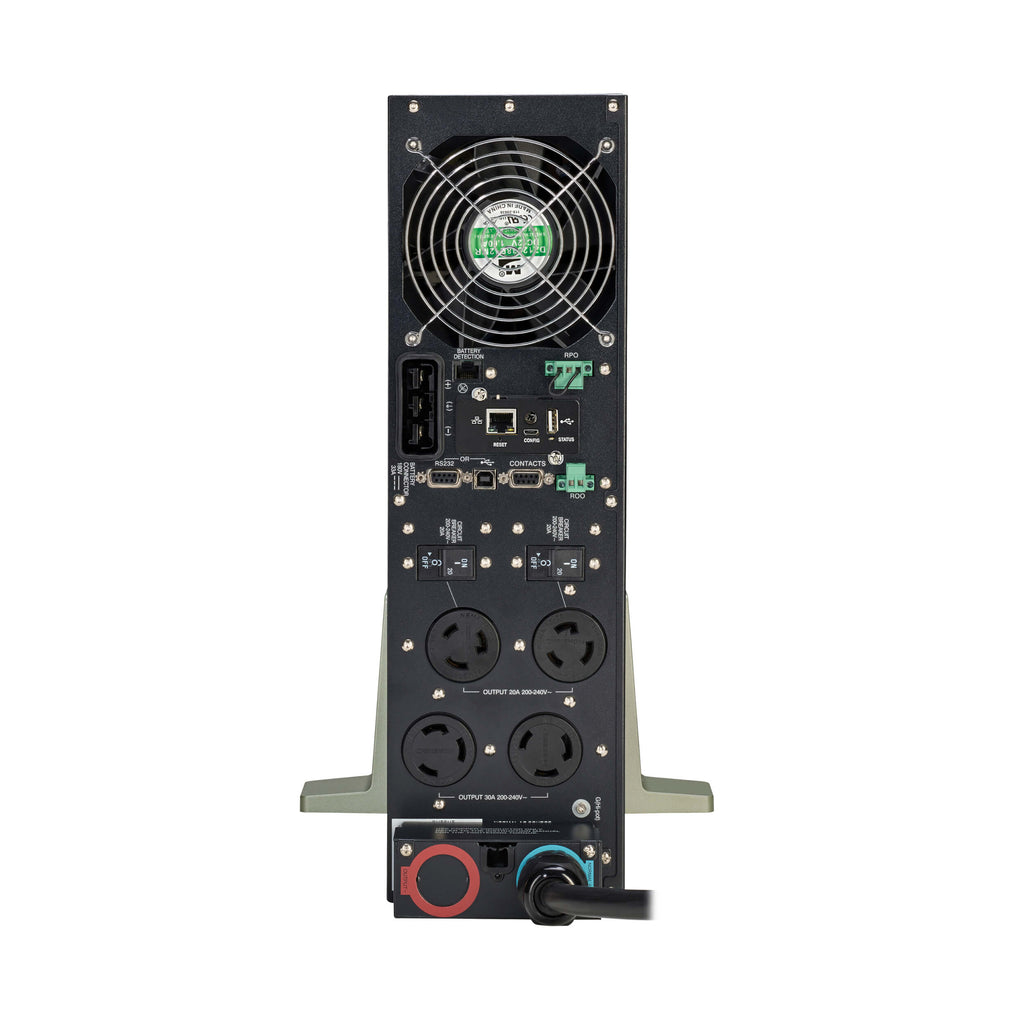

| Output Receptacles | (2) L6-20R, (2) L6-30R, Hardwired |
| Input Voltage | 208V nominal (configurable 200–240V) |
| Input Plug Type | NEMA L6-30P |
| Cord Length | 10 ft. (3.05 m) |
| Battery Type | Hot-swappable VRLA |
| Runtime @ Full Load | 3 minutes (4500W) |
| Runtime @ Half Load | 11 minutes (2250W) |
| Extended Runtime | Yes – supports up to 4× BP180RT modules |
| Network Management | WEBCARDLXE pre-installed |
| LCD Interface | Graphical, menu-driven, rotatable and tiltable |

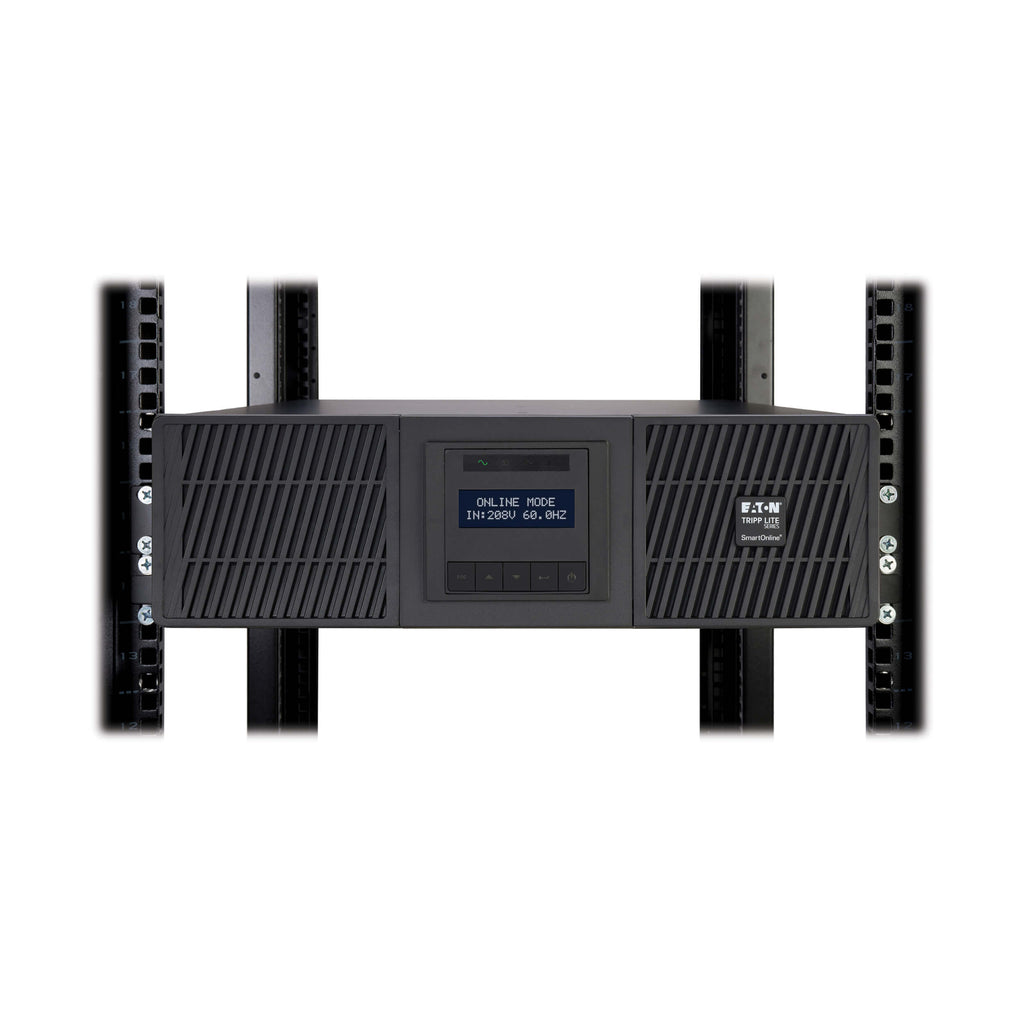

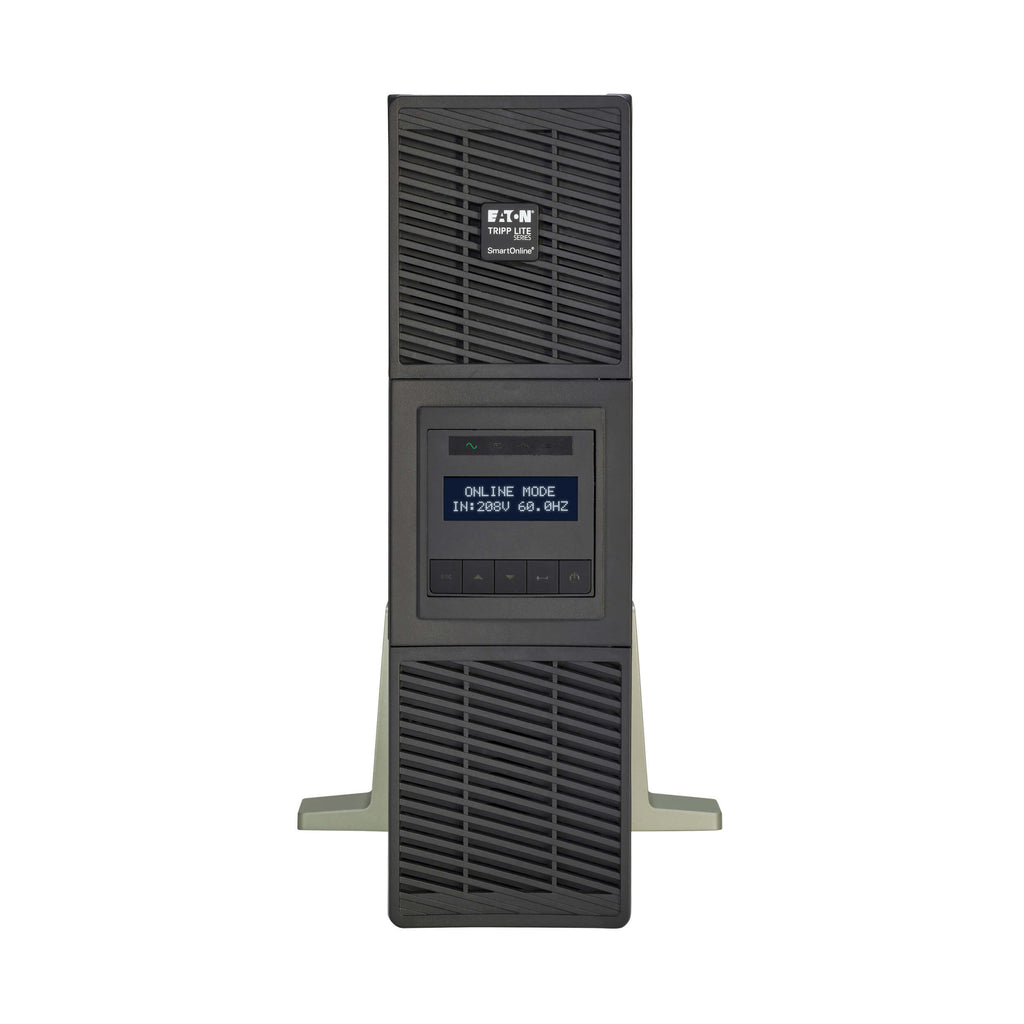

| Form Factor | 3U Rackmount / Tower |
| Dimensions (HxWxD) | 5.1 x 17.3 x 27.03 in. (129.5 x 439.4 x 686.6 mm) |
| Unit Weight | 106 lbs (48.08 kg) |
| Cooling | Fan |
| Noise Level | < 45 dB at 1 meter |
| Certifications | ENERGY STAR, UL 1778, FCC Class A, RoHS, CE, NOM, EN 62040-2, cTUVus |
| Operating Temp. | 0° to 40°C (32° to 104°F) |
| Relative Humidity | 0–95% non-condensing |
| Warranty | 2-Year Limited (U.S. & Canada) |
