Description

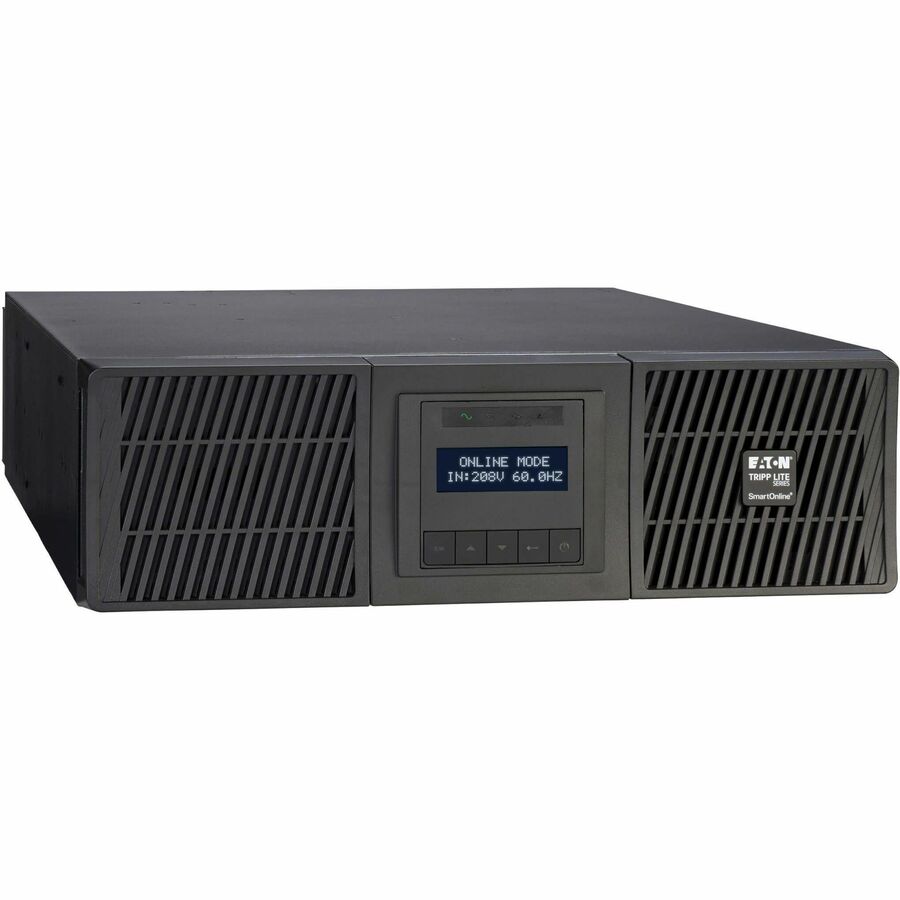

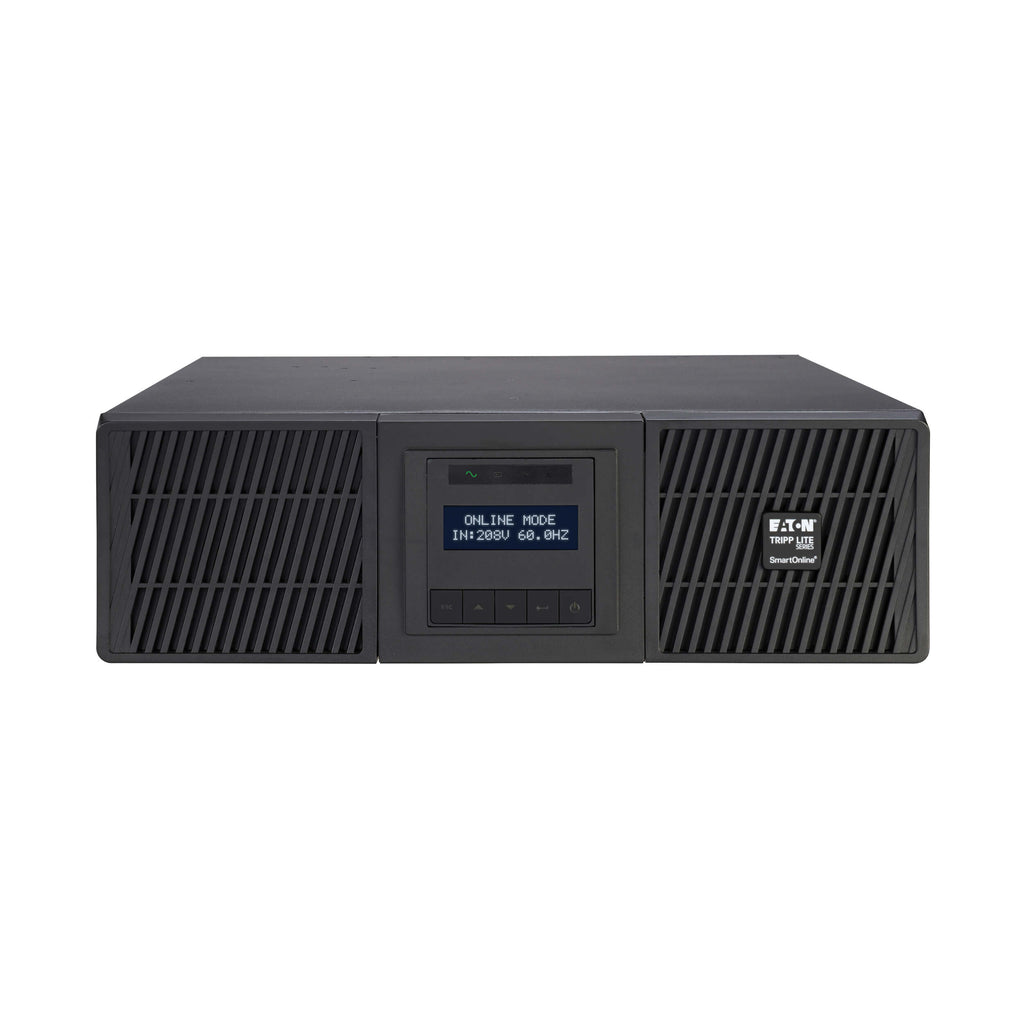

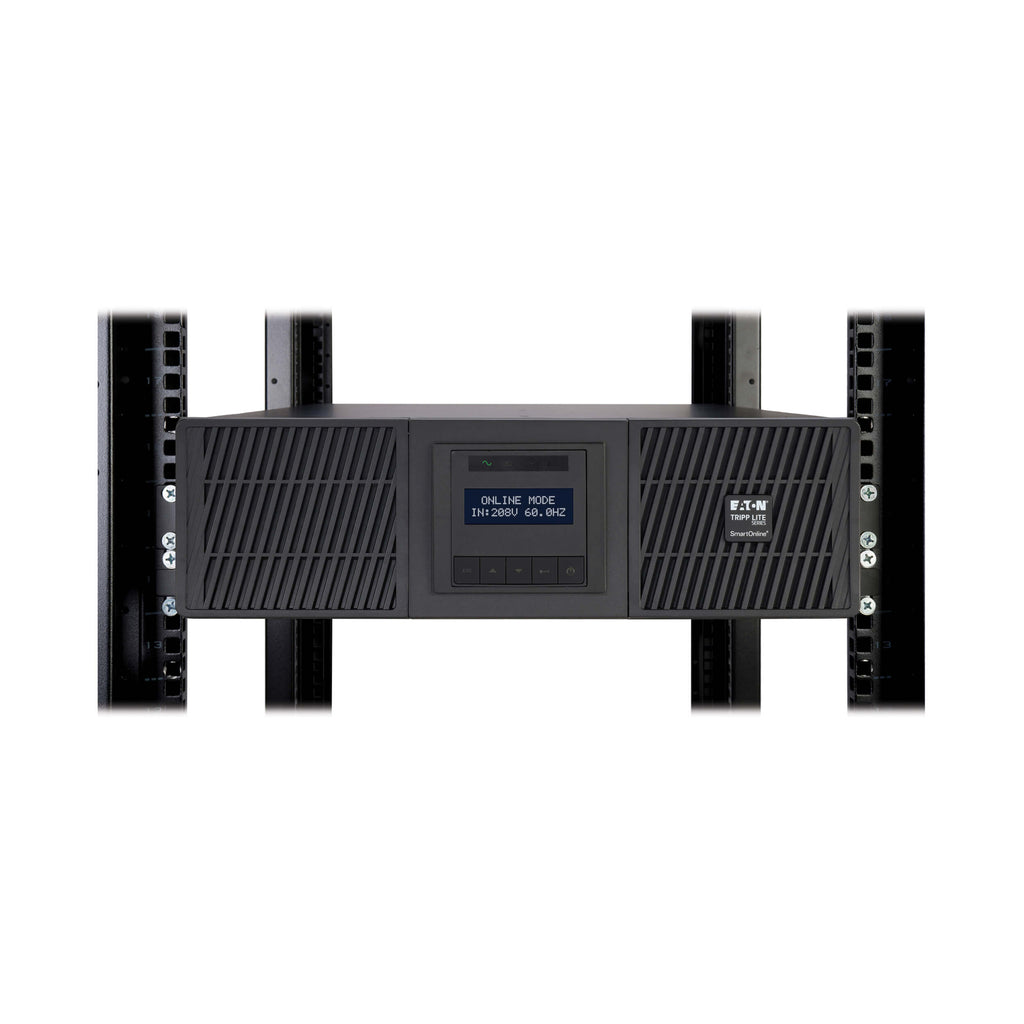

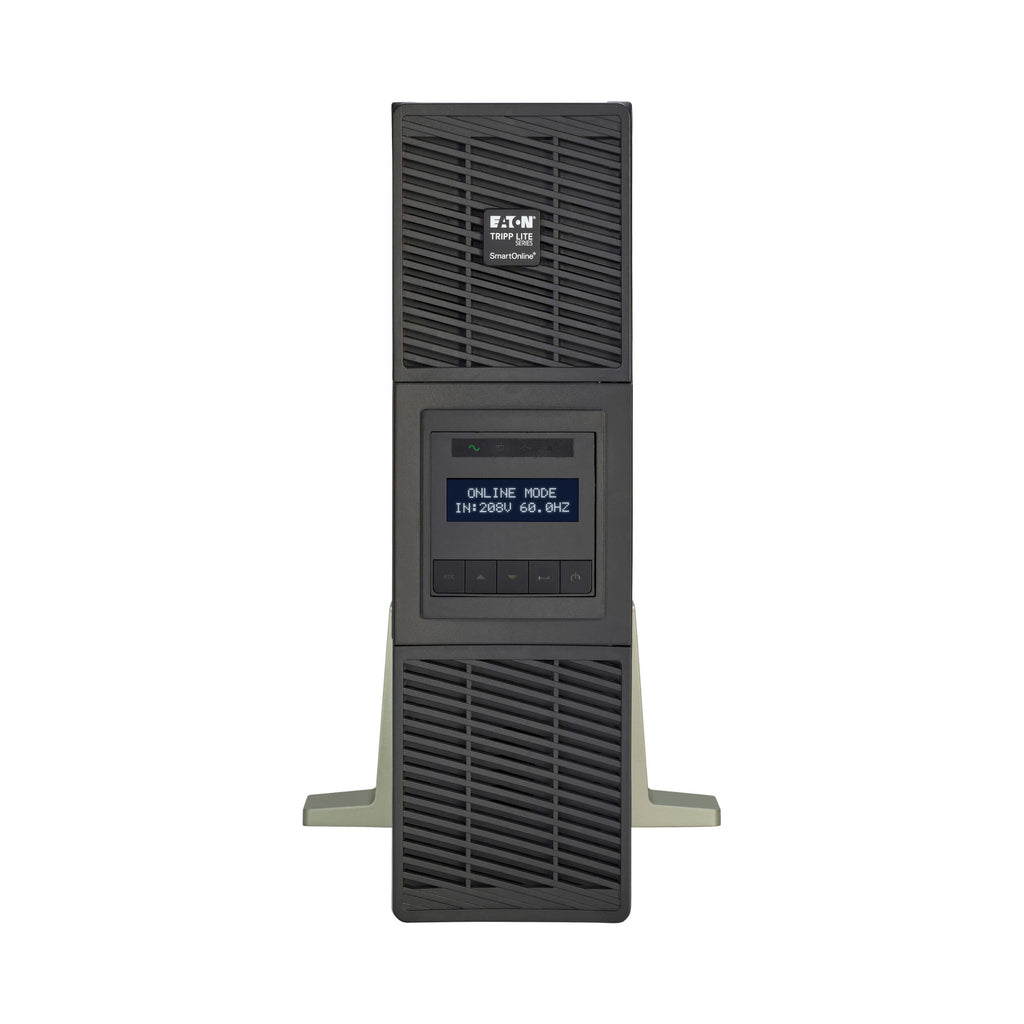

The Eaton Tripp Lite series SU5000RTMB SmartOnline® UPS delivers reliable 5000VA/4500W double-conversion power protection for mission-critical IT infrastructure, edge networks, and data-intensive applications. This 3U rack/tower convertible UPS includes a maintenance bypass switch for uninterrupted power during service, and a pre-installed WEBCARDLXE network interface for 24/7 remote monitoring and control.
With a pure sine wave output, surge protection, and zero transfer time, the SU5000RTMB ensures clean, continuous power. Expandable battery support (up to four BP180RT EBMs) provides hours of extended runtime. Ideal for commercial, healthcare, education, and finance sectors.
| Specification | Details |
|---|---|
| Model Number | SU5000RTMB |
| Power Capacity | 5000VA / 4500W |
| Input Voltage | 208V (Factory default); Supports 200V–240V |
| Input Plug Type | NEMA L6-30P; 10 ft (3.05 m) cord |

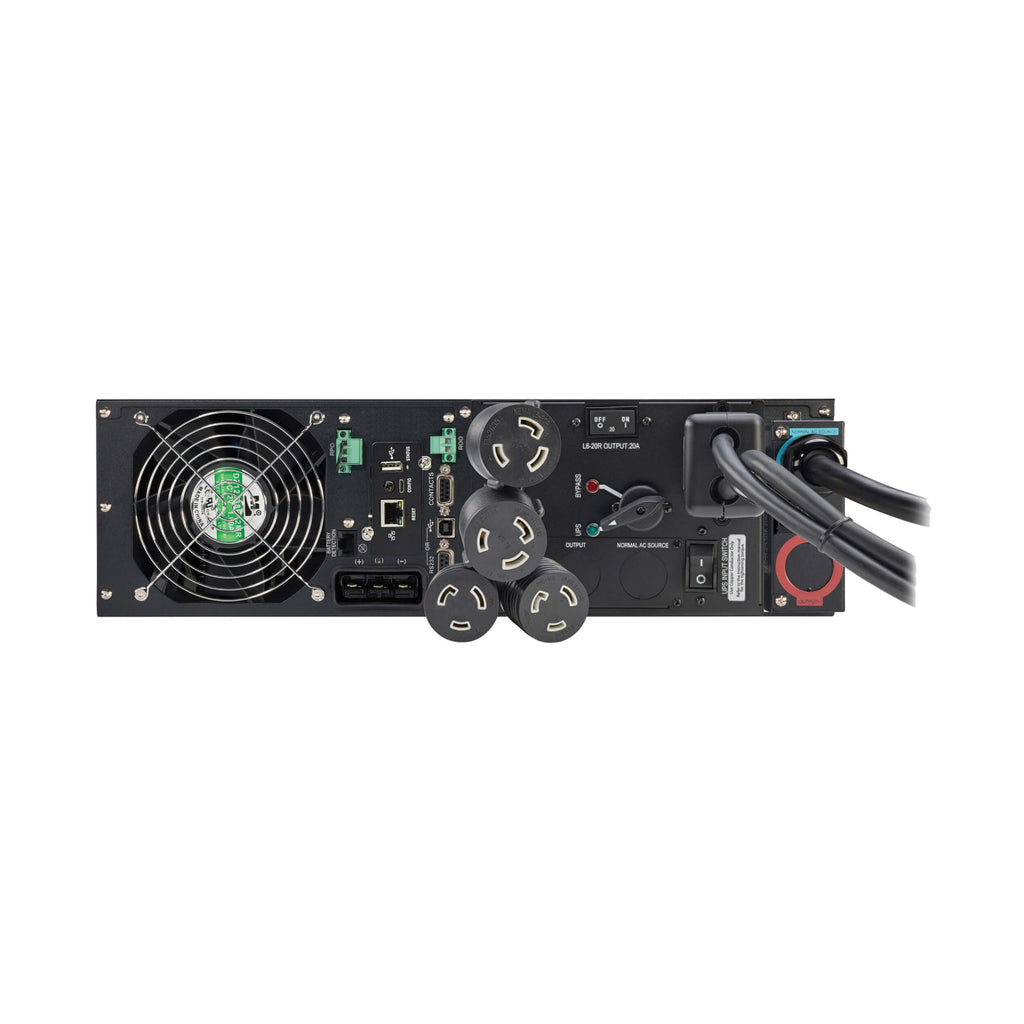

| Output Receptacles | (2) L6-20R, (2) L6-30R, Hardwire |
| Form Factor | 3U Rack/Tower Convertible |
| Output Voltage | 200V, 208V, 220V, 230V, 240V |
| Waveform | Pure Sine Wave |
| Runtime | 3 min @ Full Load (4500W); 11 min @ Half Load (2250W) |
| Battery Type | VRLA, Hot-Swappable |
| Expandable Battery Support | Yes, up to 4 × BP180RT |
| Bypass | Manual Maintenance Bypass (SUPDMBP6K included) |
| Network Management | WEBCARDLXE (included), SNMP/Web Monitoring |
| LCD Display | Rotatable and tiltable graphical LCD |
| Communications Ports | USB, RS-232, Contact Closure, RPO/ROO |
| Efficiency | 93% Online, 98% Economy Mode |
| Audible Noise | < 45 dB @ 1 meter |
| Dimensions (HxWxD) | 5.1 x 17.3 x 34 in (with bypass) |
| Unit Weight | 111.5 lbs (50.58 kg) |
| Certifications | ENERGY STAR, RoHS, UL 1778, CE, FCC, NOM, CSA |
| Warranty | 2-Year Limited Warranty, $250,000 Insurance (U.S./Canada) |
