Description

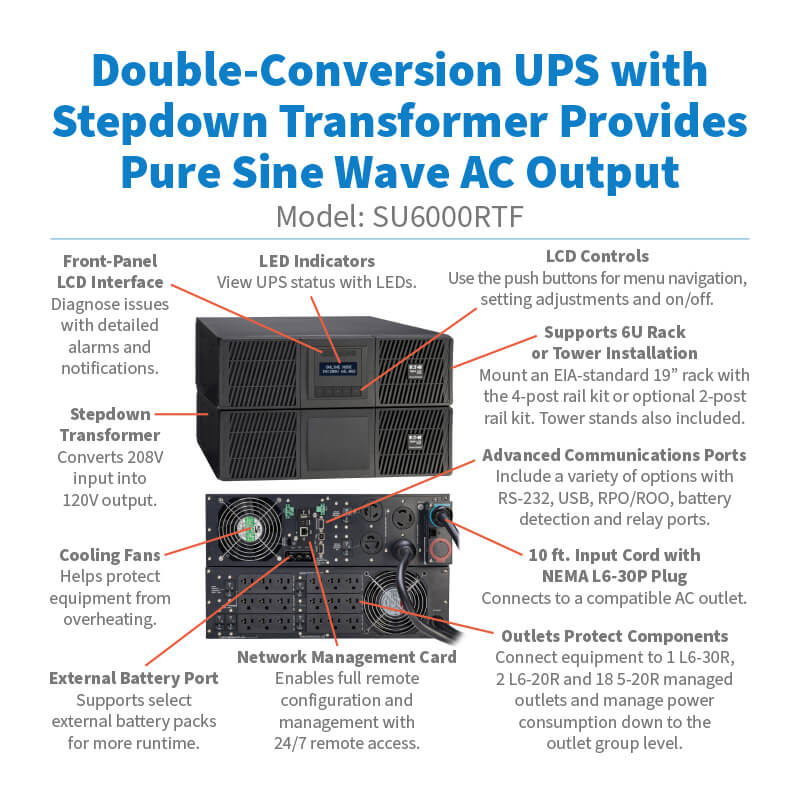

The Eaton Tripp Lite SmartOnline® SU6000RTF is a 6000VA/5400W double-conversion UPS system designed to deliver seamless, high-availability power protection for mission-critical IT and network environments. Equipped with a stepdown transformer, it provides both 208V and 120V output through a wide array of NEMA outlets, making it ideal for mixed-voltage equipment deployments. This 6U rack/tower UPS includes a pre-installed WEBCARDLXE for remote SNMP management, offers expandable runtime via optional EBMs, and delivers pure sine wave output with zero transfer time. Ideal for data centers, edge computing, and industrial power continuity.
| Feature | Details |
|---|---|
| Model Number | SU6000RTF |
| UPS Type | Online, Double-Conversion |
| Form Factor | Rack/Tower, 6U |
| Rated Power Capacity | 6000VA / 5400W |
| Output Voltage | 120V (via stepdown transformer), also supports 200V–240V |
| Input Voltage | 200V, 208V, 220V, 230V, 240V (Factory configured to 208V) |
| Input Plug | NEMA L6-30P |

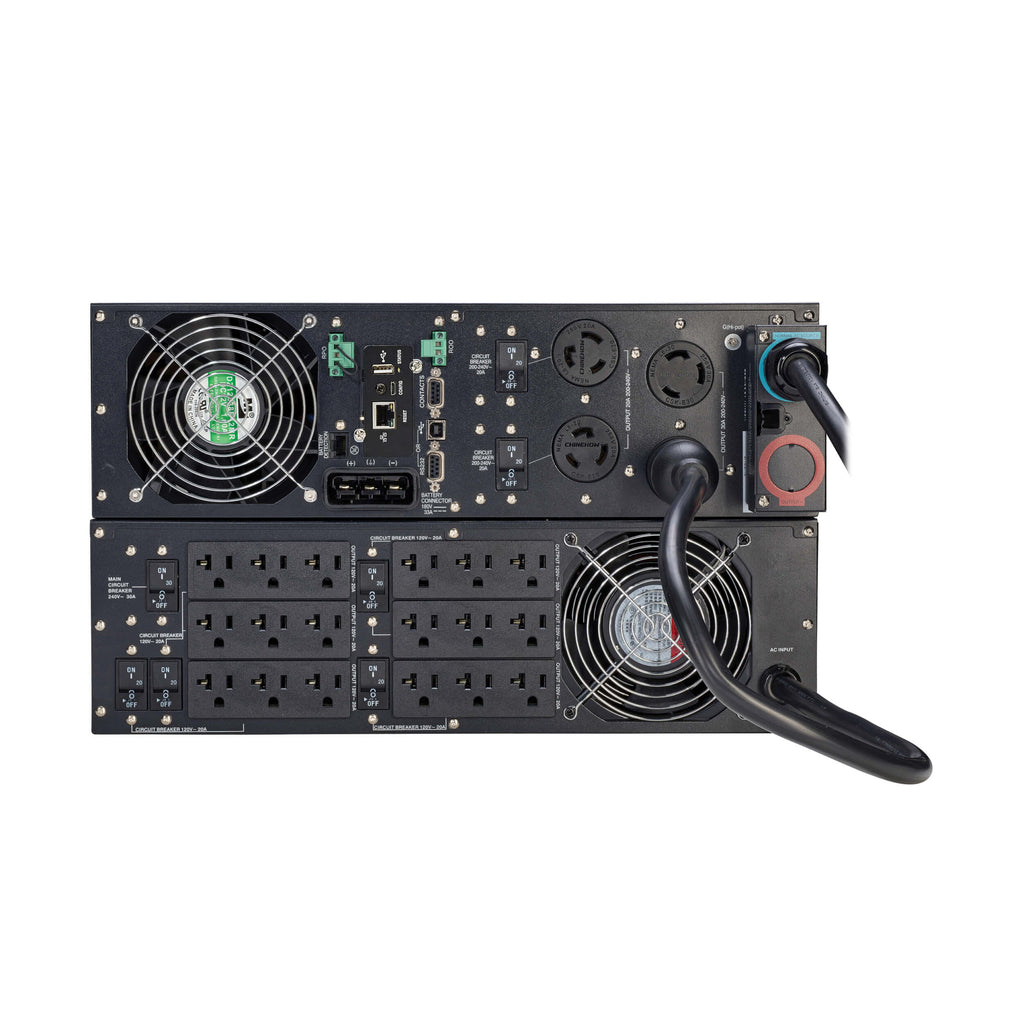

| Output Receptacles | 18 × 5-20R, 2 × L6-20R, 1 × L6-30R, 1 × Hardwire (200–240V) |
| Battery Type | Valve-Regulated Lead Acid (VRLA), hot-swappable |
| Runtime | 3 min (full load), 8 min (half load), expandable with up to 4× BP180RT EBMs |
| Communications | USB, RS-232, Contact Closure, WEBCARDLXE Network Interface |
| Display | LCD with 4 LED indicators, tiltable and rotatable |
| Efficiency | Up to 98% (economy mode), 93% (online mode) |

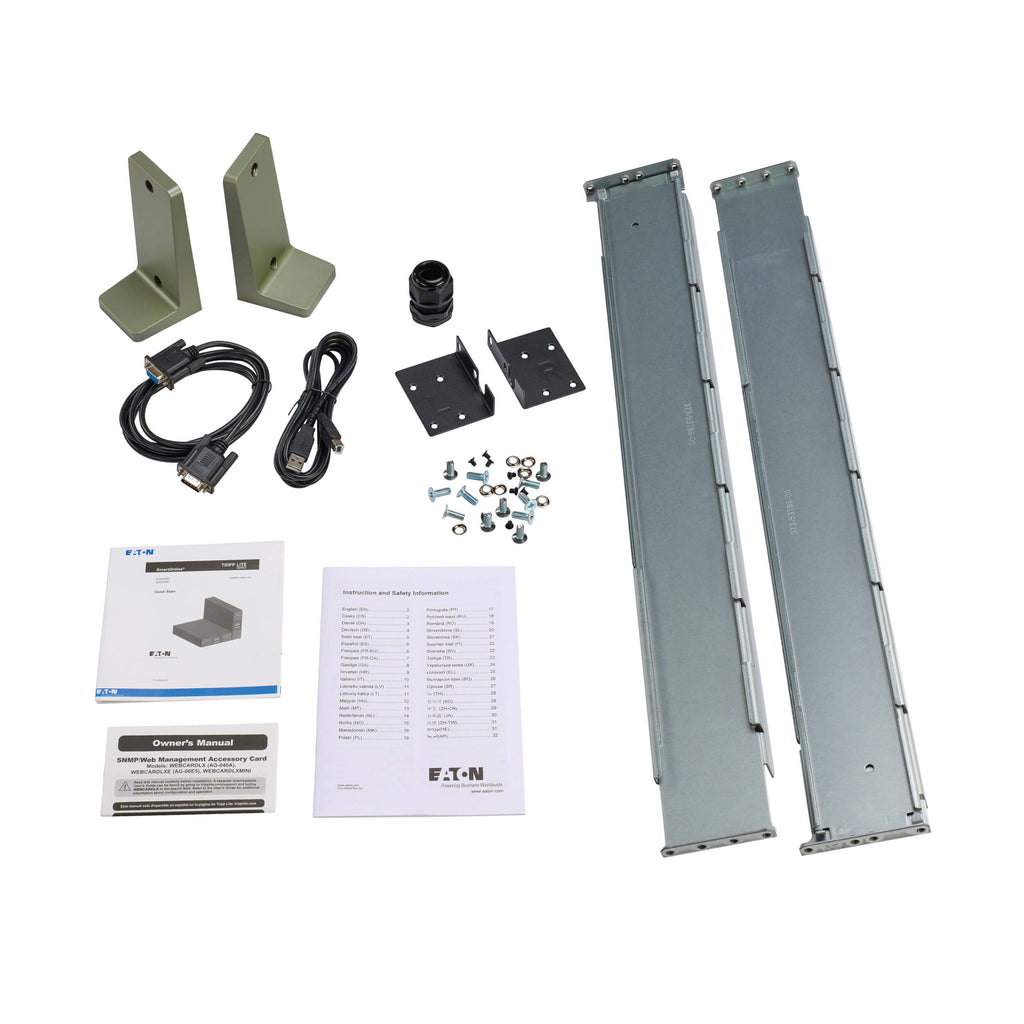

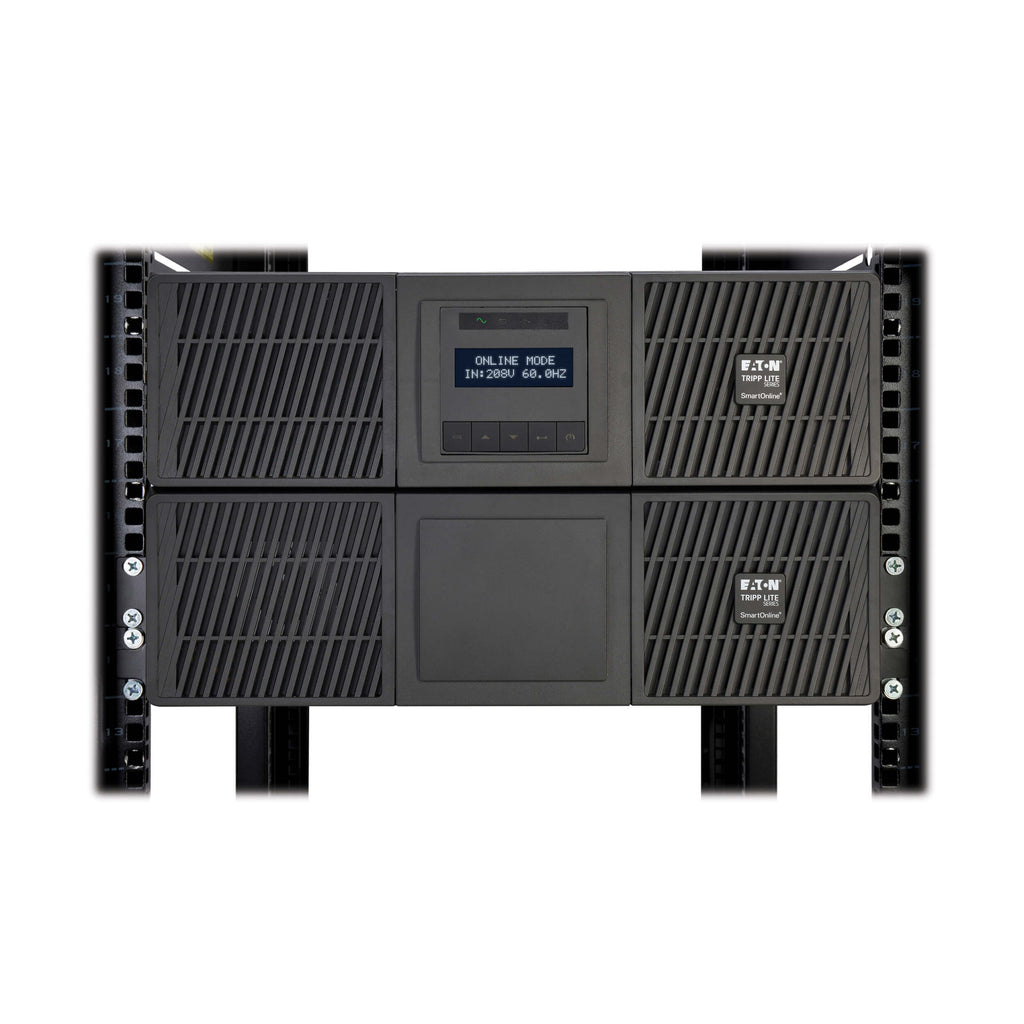

| Mounting Options | 4-post rack (included), 2-post rack (optional RK2PC), Tower (included) |
| Cooling | Fan cooled |
| Noise Level | <45 dB at 1 meter |
| Certifications | UL 1778, cTUVus, ENERGY STAR, FCC Class A, RoHS, NOM, CE |
| Warranty | 2-Year Limited Warranty + $250,000 Connected Equipment Insurance |
