Description

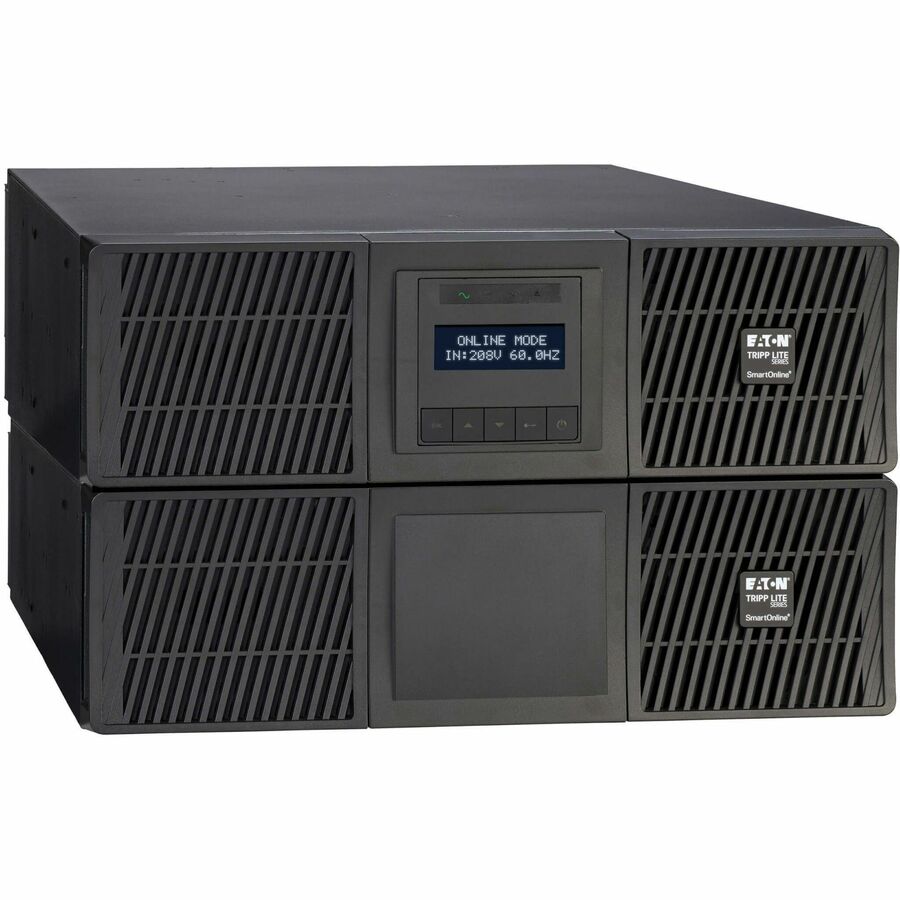

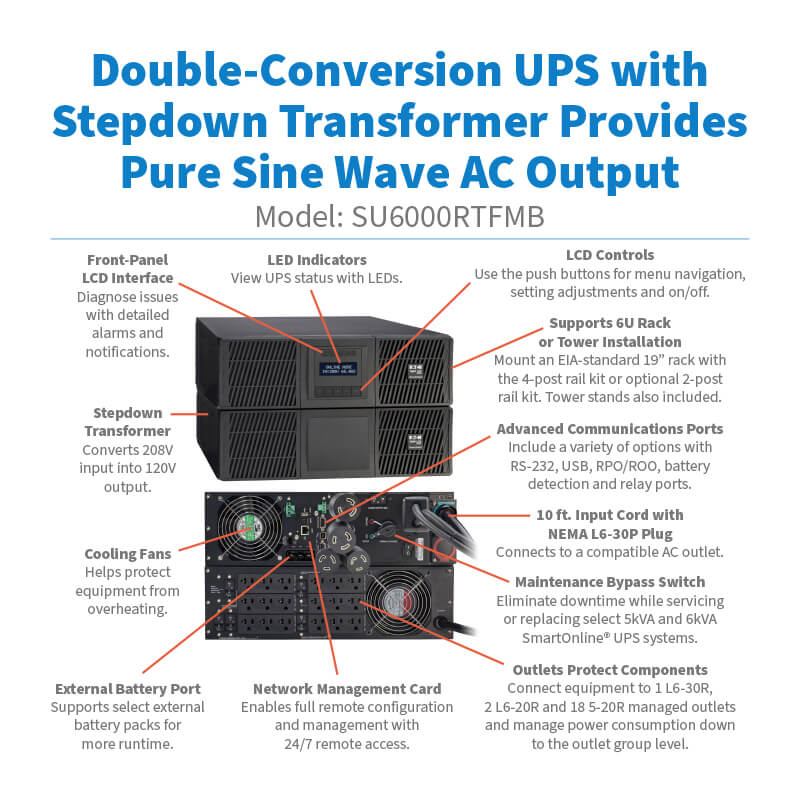

The Eaton Tripp Lite Series SU6000RTFMB is a premium 6000VA/5400W Online Double-Conversion UPS system designed to safeguard mission-critical IT and edge network applications. Featuring a built-in stepdown transformer and manual maintenance bypass, it provides pure sine wave output with seamless power transition and real-time protection against surges, blackouts, and noise.
Equipped with 18 x 5-20R, 2 x L6-20R, and 1 x L6-30R outlets, plus a pre-installed WEBCARDLXE for full remote SNMP management, this 6U rack/tower UPS supports hot-swappable batteries and extended runtime with optional EBMs (BP180RT). An intuitive rotating LCD, USB/RS-232 interfaces, and tool-less rack or tower installation round out its robust feature set.
| Feature | Details |
|---|---|
| Model Number | SU6000RTFMB |
| Topology | Online, Double-Conversion |
| Capacity | 6000VA / 5400W |
| Output Voltage | 120V (via stepdown transformer), supports 100–240V nominal |
| Input Voltage | 208V (factory default), supports 200–240V |

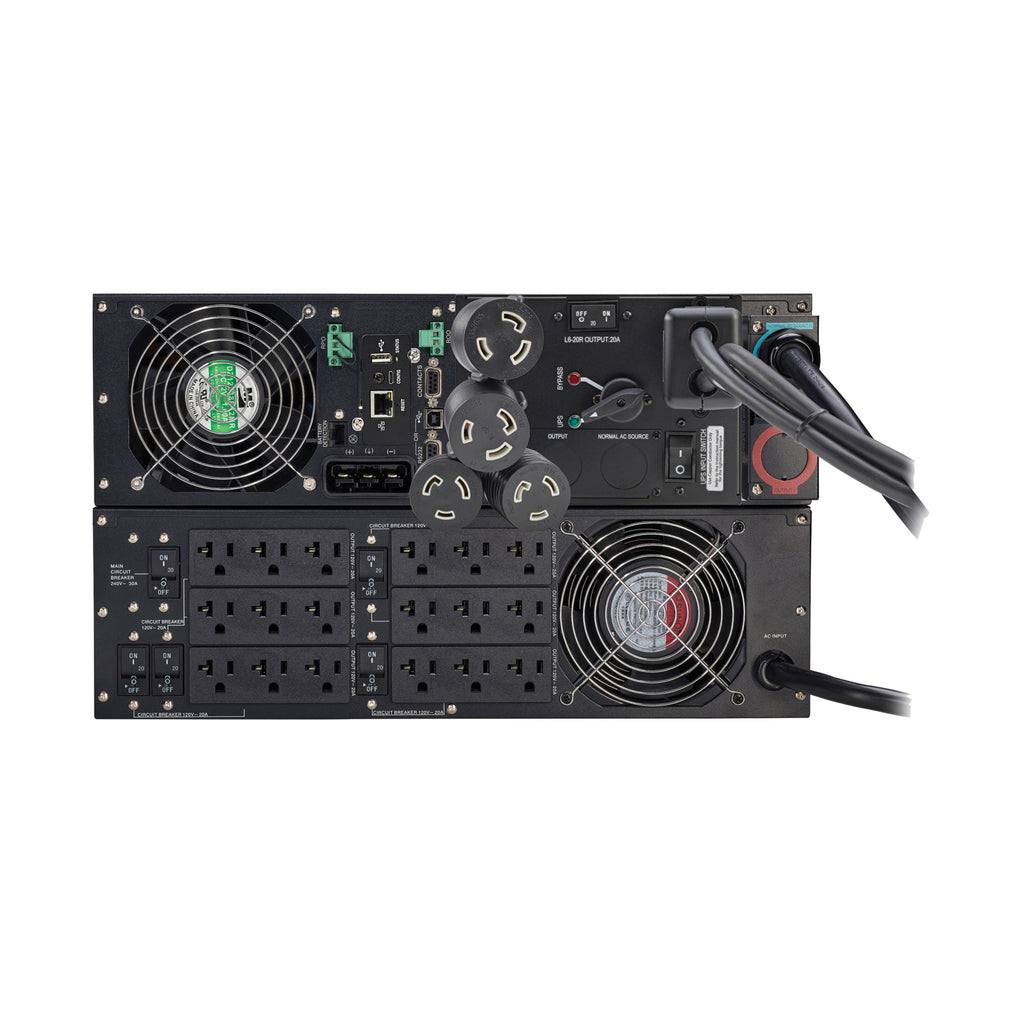

| Output Connections | (18) 5-20R, (2) L6-20R, (1) L6-30R, (1) Hardwire (200–240V) |
| Input Plug | NEMA L6-30P |
| Battery Type | Valve-Regulated Lead Acid (VRLA), Hot-swappable |
| Runtime (Full/Half Load) | 3 min / 8 min |
| Extended Runtime | Supports up to 4 EBMs (BP180RT) |
| Bypass | Manual Maintenance Bypass (SUPDMBP6K) Included |
| Network Management | Pre-installed WEBCARDLXE (SNMP/Web/Auto Probe) |
| Communications Ports | USB, RS-232, Contact Closure, ROO/RPO |

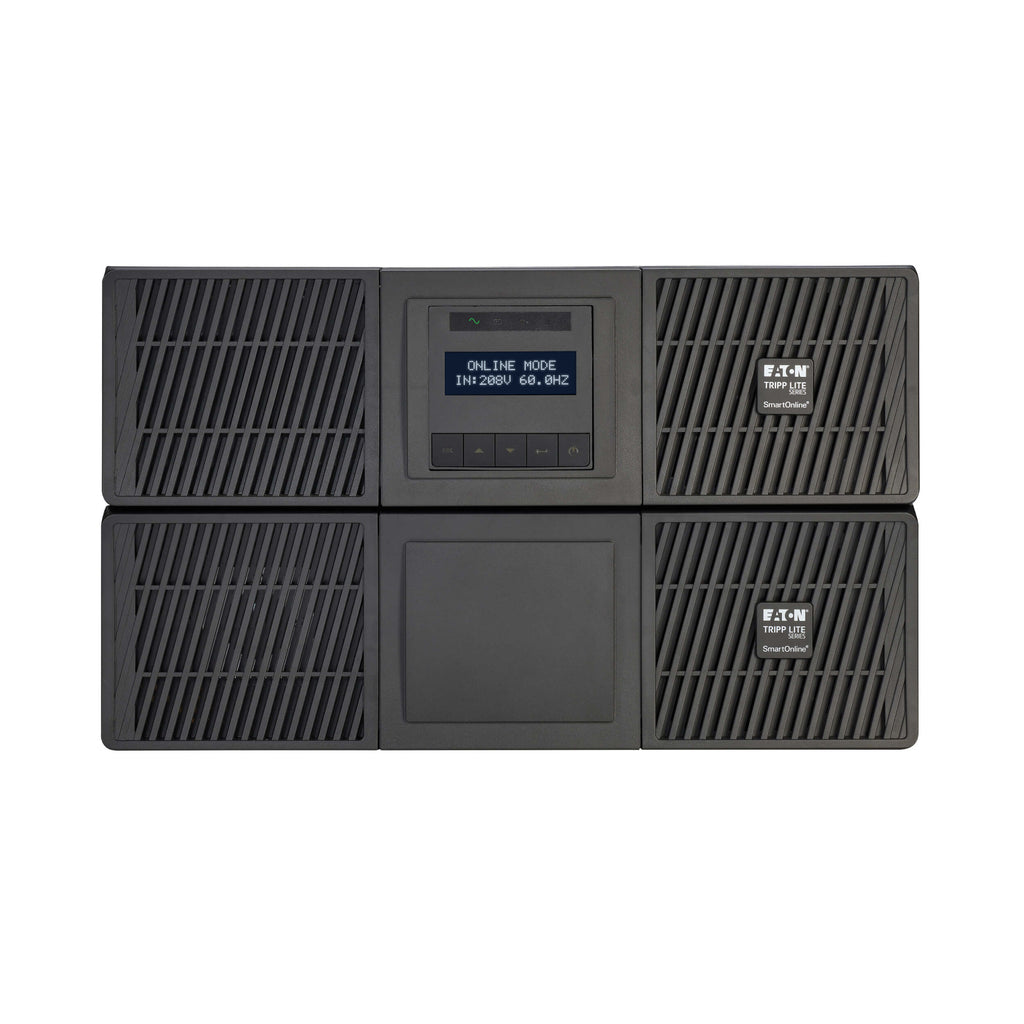

| LCD Interface | Rotatable, backlit graphical LCD display |

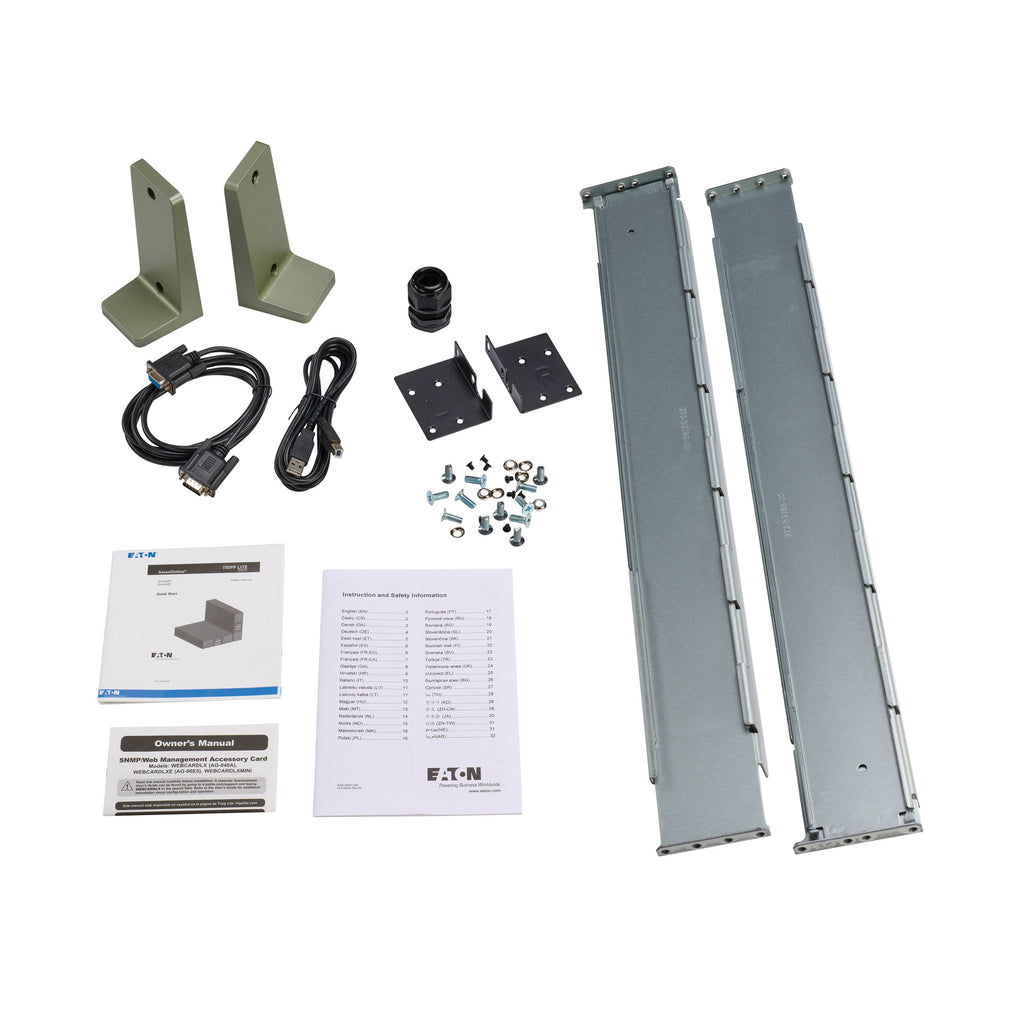

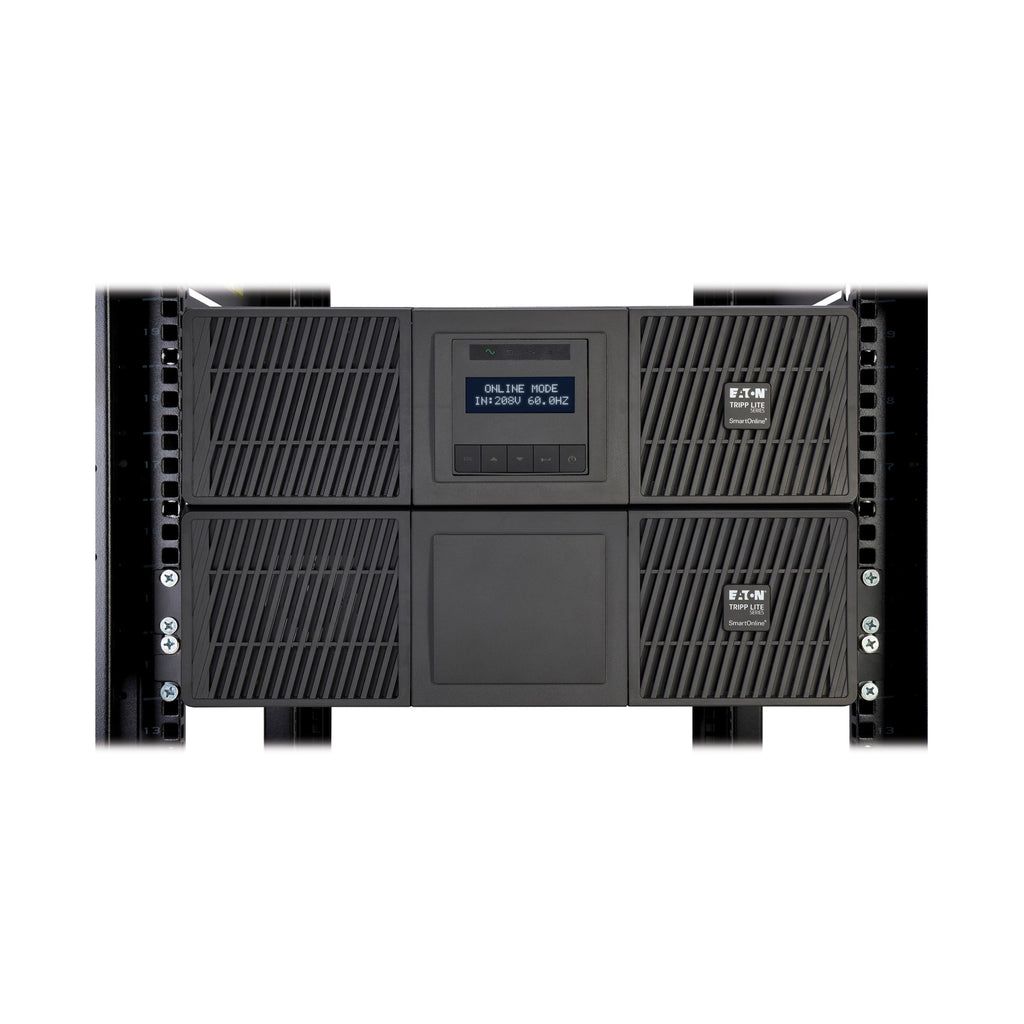

| Mounting Format | 6U Rackmount or Tower (rails and stands included) |
| Dimensions (HxWxD) | 10.2 x 17.3 x 34.0 in (259 x 439 x 864 mm) |
| Weight | 206.5 lbs (93.7 kg) |
| Cooling | Fan-cooled |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Efficiency | 93% (Online), 98% (Economy Mode) |
| Certifications | ENERGY STAR, UL 1778, FCC Class A, CE, RoHS, NOM, cTUVus |
| Warranty | 2-Year Limited Warranty + $250,000 Connected Equipment Insurance |
