Description
The Eaton Tripp Lite SmartOnline SU6000RT delivers 6000VA/5400W of clean, reliable power through a true online double-conversion architecture, making it ideal for mission-critical IT, edge network, healthcare, education, or financial environments. Featuring two L6-20R and two L6-30R outlets plus a hardwire output, this 3U rack/tower UPS ensures continuous sine wave output with zero transfer time.
Equipped with a pre-installed WEBCARDLXE, it supports remote monitoring, SNMP management, and advanced automation functions. The unit also supports extended runtime with up to four BP180RT external battery modules (sold separately). With a rotatable LCD, hot-swappable VRLA batteries, USB/RS-232 ports, and EPO support, this UPS combines robust performance with intelligent control.
| Specification | Details |
|---|---|
| Model | SU6000RT |
| Topology | Online, Double-Conversion |
| Form Factor | 3U Rackmount / Tower |
| Power Capacity | 6000VA / 5400W |
| Input Voltage | 200V, 208V, 220V, 230V, 240V (factory set to 208V) |
| Input Plug Type | NEMA L6-30P |
| Input Cord Length | 10 ft. (3.05 m) |
| Output Receptacles | (2) L6-20R, (2) L6-30R, Hardwire |
| Output Voltage Regulation | ±1% (line & battery mode) |
| Output Waveform | Pure Sine Wave |
| Runtime (Full Load/Half Load) | 3 min / 8 min |
| Battery Type | Valve Regulated Lead Acid (VRLA), Hot-swappable |
| Expandable Runtime | Yes – supports up to 4x BP180RT external battery packs |
| Interface | Rotatable LCD with alarm indicators |
| Network Management | WEBCARDLXE (SNMP, HTTP, auto-reboot) |
| Communications Ports | USB, RS-232, Contact Closure, ROO/RPO |

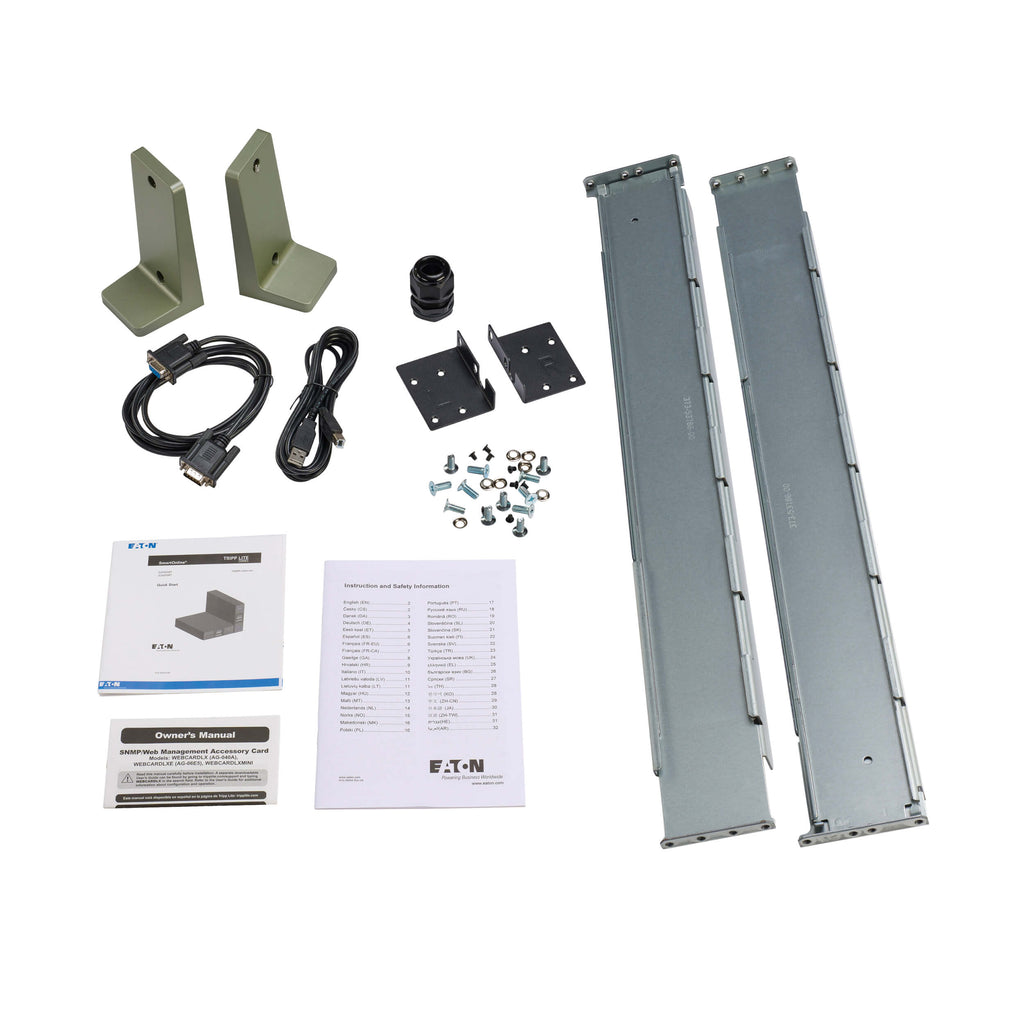

| Mounting Hardware | 4-post rack rail kit and tower support stands included |
| Operating Temp. Range | 0° to 40°C (32° to 104°F) |
| Noise Level | < 45 dB at 1 meter |
| Certifications | UL 1778, ENERGY STAR, FCC Class A, RoHS, cTUVus |
| Warranty | 2-Year Limited (USA/Canada) + $250,000 Connected Equipment Insurance |
| Dimensions (H x W x D) | 5.1 x 17.3 x 27.03 in |
| Weight | 106 lbs (48.08 kg) |
