Description
The Eaton Tripp Lite SMART1000RMX2UN delivers 1000VA/1000W of reliable sine wave backup power and advanced protection for enterprise, telecom, and IT environments. Designed for rack or tower installation, this line-interactive UPS safeguards critical networking and server equipment from power interruptions, surges, brownouts, and EMI/RFI noise.
Equipped with a pre-installed WEBCARDLXE for full remote network management, it allows 24/7 monitoring, auto-reboot, and safe shutdown through IP-based access. The unity power factor (1.0 PF) ensures maximum load efficiency, while Automatic Voltage Regulation (AVR) stabilizes power from 80V to 151V without draining the battery.

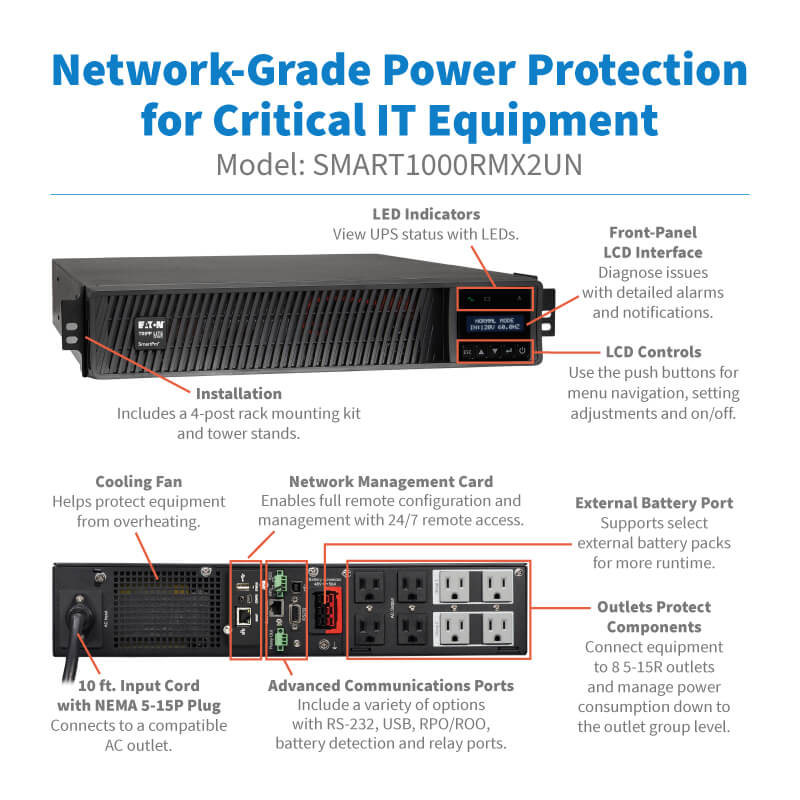

The SMART1000RMX2UN features eight NEMA 5-15R outlets, including two programmable load banks for power prioritization and runtime extension. The rotatable LCD screen provides real-time UPS data and status, and hot-swappable VRLA batteries deliver up to 17 minutes at half load (expandable with optional BP48VRM2U battery packs). ENERGY STAR® 2.0 certification ensures efficiency and reduced operating costs for environmentally responsible performance.
| Category | Specification |
|---|---|
| Model Number | SMART1000RMX2UN |
| Brand | Eaton Tripp Lite |
| UPS Type | Line-Interactive |
| Topology | Sine Wave, Extended Run |
| Capacity | 1000 VA / 1000 W |
| Power Factor | 1.0 (Unity) |
| Input Voltage Range | 80–151V AC (adjustable to 70–153V) |
| Input Connection | NEMA 5-15P plug (10 ft cord) |
| Output Voltage | 120V nominal (110V / 115V / 120V selectable) |

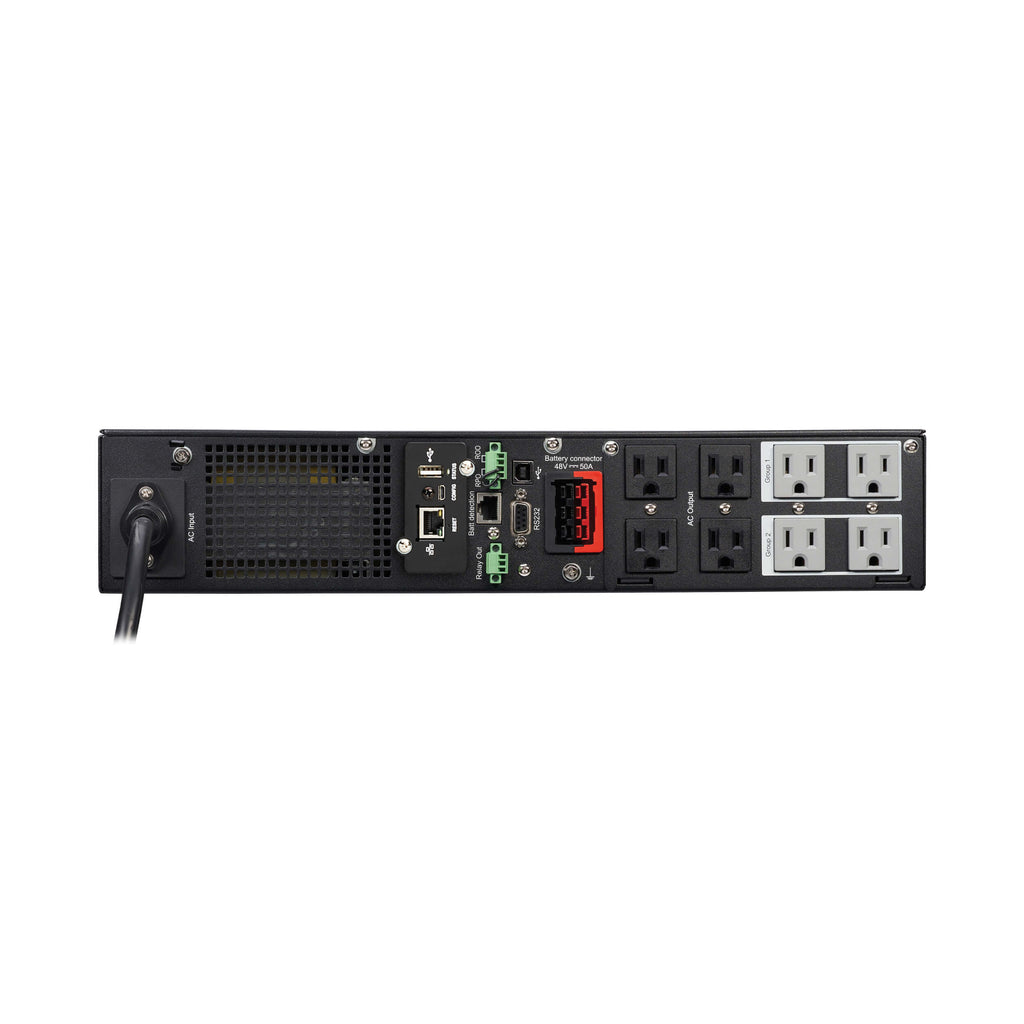

| Output Outlets | 8 × NEMA 5-15R (2 programmable load banks) |
| Output Waveform | Pure Sine Wave |
| Voltage Regulation (AVR) | Maintains 120V during brownouts/overvoltages |
| Runtime (Full Load) | 6 minutes (1000W) |
| Runtime (Half Load) | 17 minutes (500W) |
| Battery Type | Hot-swappable VRLA (48V DC) |
| Extended Battery Support | Up to 4× BP48VRM2U modules |
| Recharge Time | <4.5 hours (10–90%) |
| Network Management | WEBCARDLXE (pre-installed, SNMP v1/v2c/v3) |
| Interface Ports | USB, DB9, Dry Contact, EPO/ROO, RJ45 |
| Display | 2-line rotatable LCD with 10 monitoring screens |
| Efficiency | 96% (AC Mode), ENERGY STAR 2.0 Certified |
| Noise Suppression | 380 Joules, EMI/RFI Filtering |

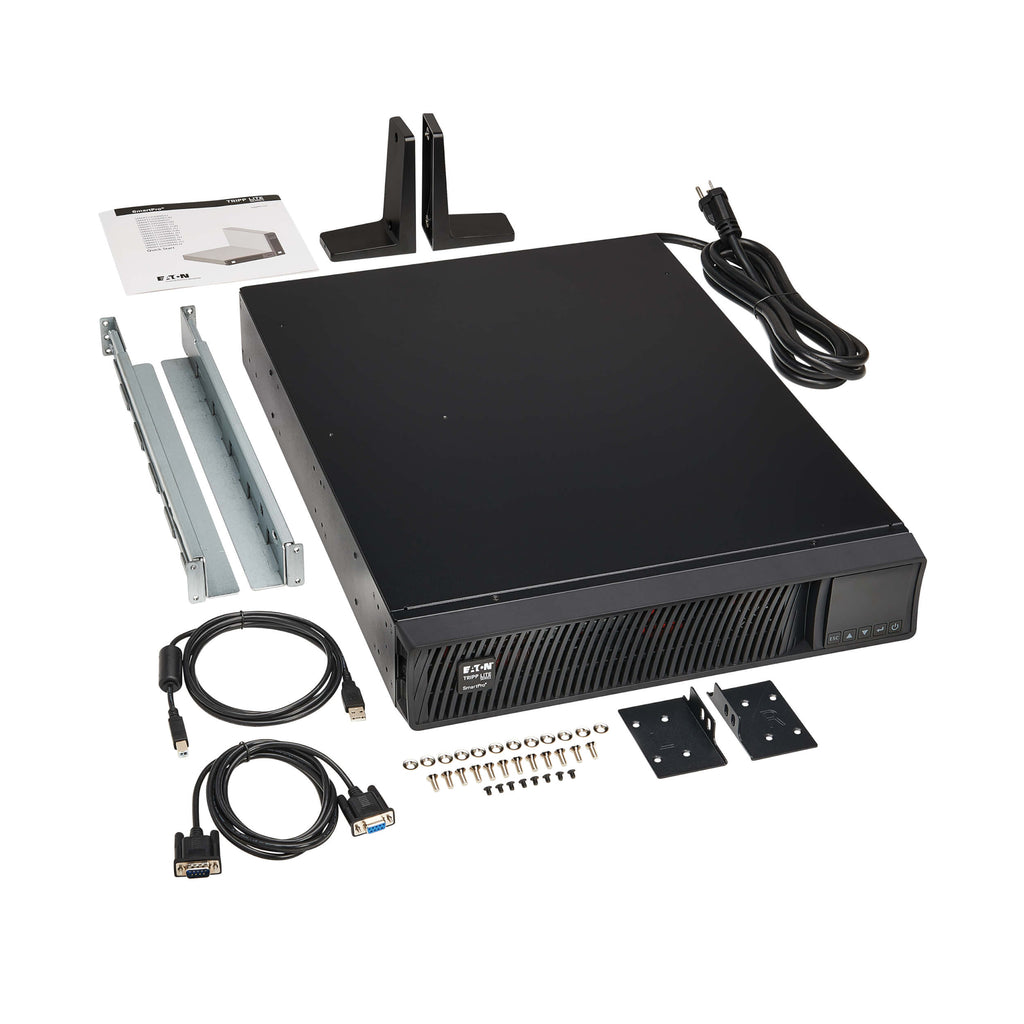

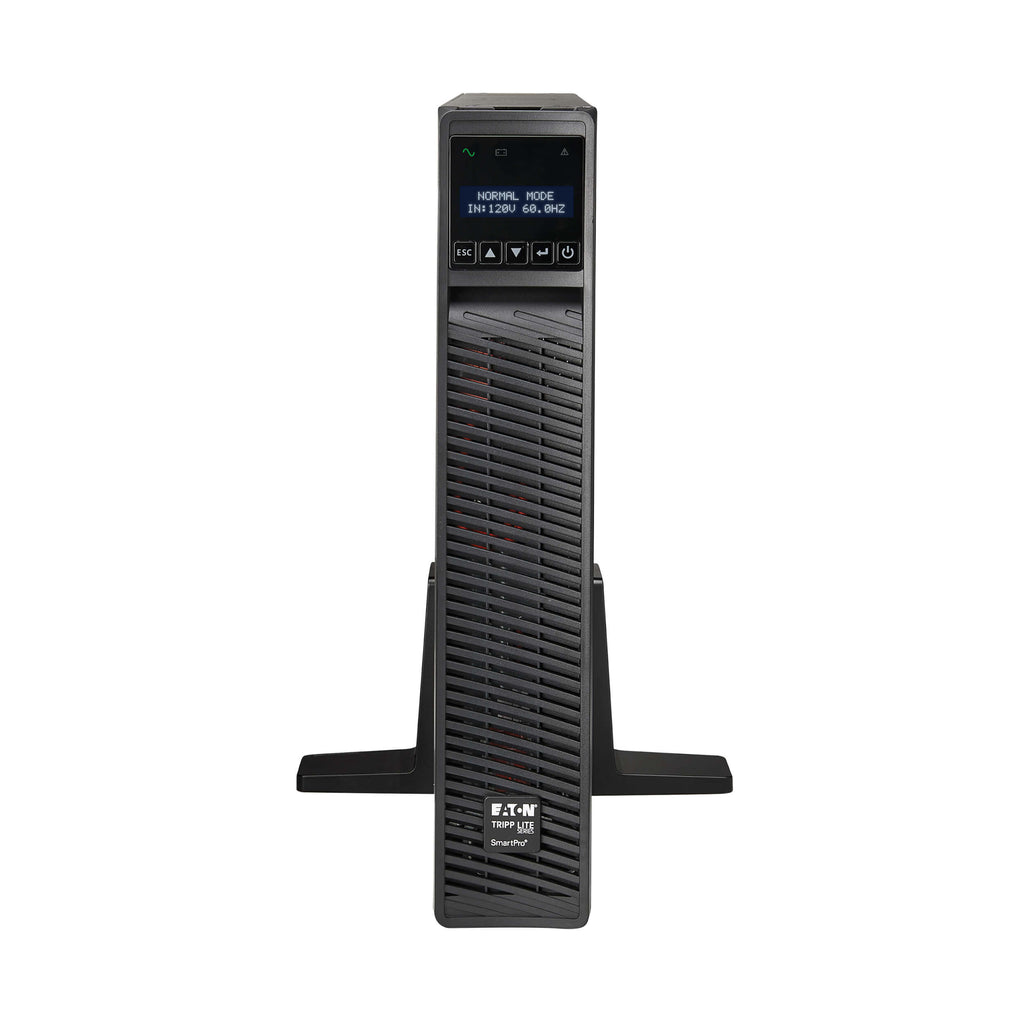

| Mounting Options | 2U Rackmount or Tower (kit and stands included) |
| Cooling | Dual Fans |
| Dimensions (H × W × D) | 3.4 × 17.2 × 17.6 in (2U) |
| Weight | 44.5 lbs (20.18 kg) |
| Operating Temperature | 0°C – 40°C |
| Certifications | UL 1778, CSA, EN/IEC 62040-2, ENERGY STAR 2.0 |
| Warranty | 2-Year Standard (3-Year with Registration) |
| Connected Equipment Insurance | $250,000 (U.S., Canada, Puerto Rico) |
