Description

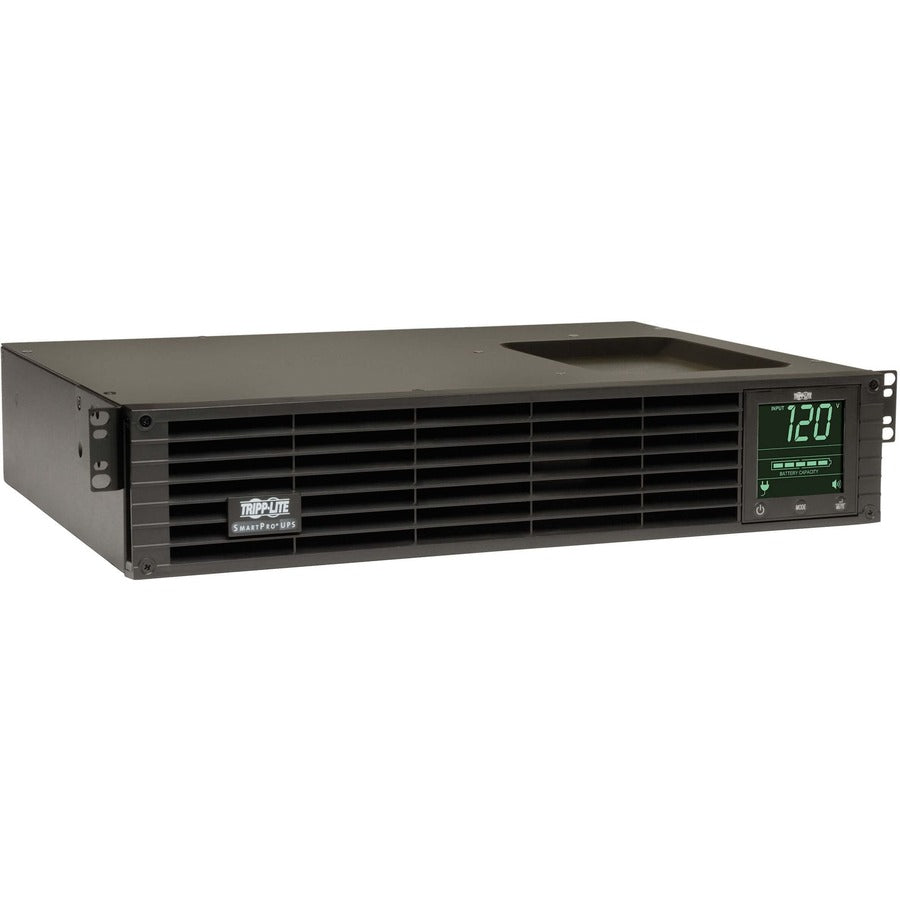

Protect critical IT infrastructure with the Eaton Tripp Lite series SMART1500RM2UN SmartPro® Line-Interactive UPS. Featuring 1500VA/1350W capacity in a compact 2U rack/tower design, this UPS delivers reliable sine wave output and automatic voltage regulation (AVR) to safeguard servers, storage devices, and network hardware from blackouts, surges, and line noise.
The SMART1500RM2UN includes a pre-installed WEBCARDLX network interface for remote management, 8 NEMA 5-15R outlets (4 switchable), interactive LCD screen, and USB/serial/EPO connectivity. With up to 13 minutes of runtime at half load, hot-swappable batteries, and ENERGY STAR® level efficiency, this model is ideal for demanding environments needing high availability and minimal downtime.
| Category | Details |
|---|---|
| Model | SMART1500RM2UN |
| UPS Type | Line-Interactive |
| Form Factor | 2U Rack/Tower |
| Input Voltage | 120V AC |
| Input Plug Type | NEMA 5-15P |
| Input Cord Length | 10 ft (3.05 m) |
| Output Capacity | 1500VA / 1350W |
| Output Voltage | 120V (Nominal), Pure Sine Wave |

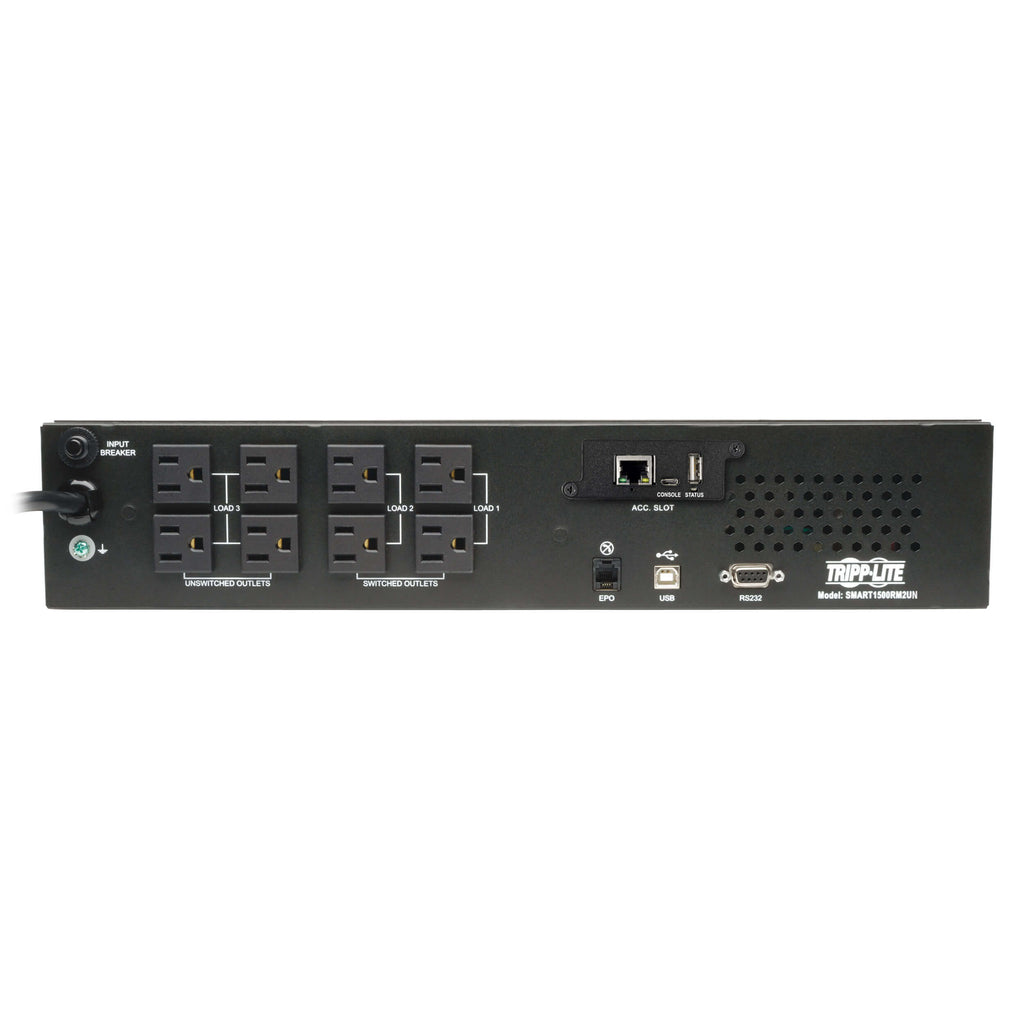

| Output Receptacles | 8 × NEMA 5-15R (4 switchable) |
| Runtime @ Half Load | Up to 13 minutes (675W) |
| Runtime @ Full Load | Up to 4.5 minutes (1350W) |
| Surge Protection | 570 joules |

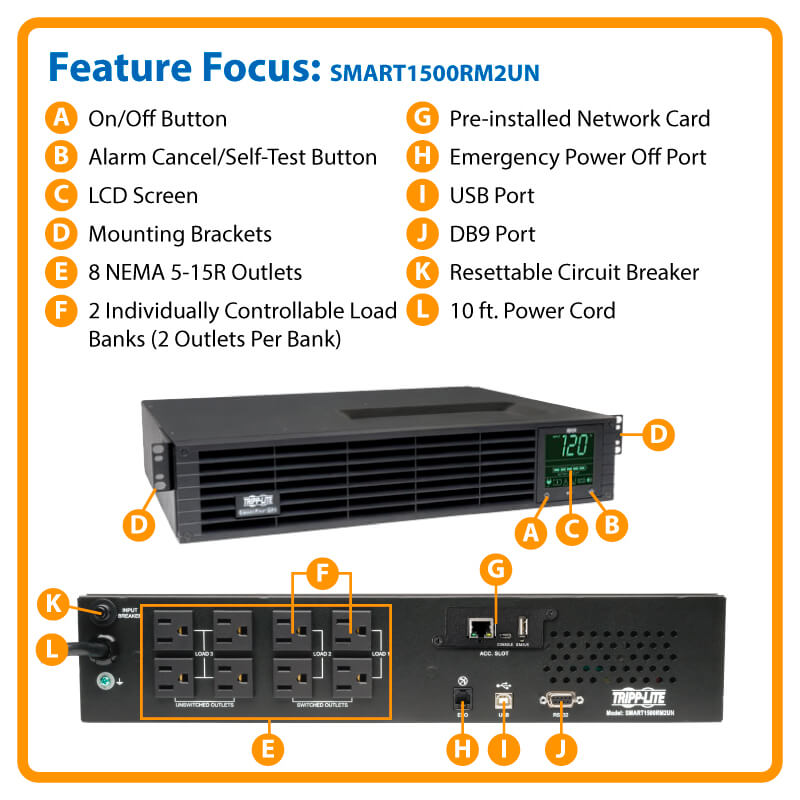

| Communication Ports | USB, DB9 Serial, EPO, Pre-installed WEBCARDLX |
| Remote Management | HTML5 Web Browser, SNMP v1/v2c/v3, Telnet, SSH |
| Display | Rotatable LCD Status Panel |
| Battery Type | VRLA (Hot-swappable, user-replaceable) |
| Replacement Battery | Eaton RBC93-2U |
| Voltage Regulation | AVR maintains 83V–147V without battery use |
| Certifications | UL 1778, CSA, NOM, FCC Part 15 Class B, RoHS |
| Dimensions (HWD) | 3.45 x 17.3 x 13.45 in (88 x 439 x 342 mm) |
| Weight | 46.5 lbs (21.09 kg) |
| Operating Temp | 0° to 40°C |
| Warranty | 2-Year (extendable to 3 with registration), $250,000 Connected Equipment Insurance |
