Description

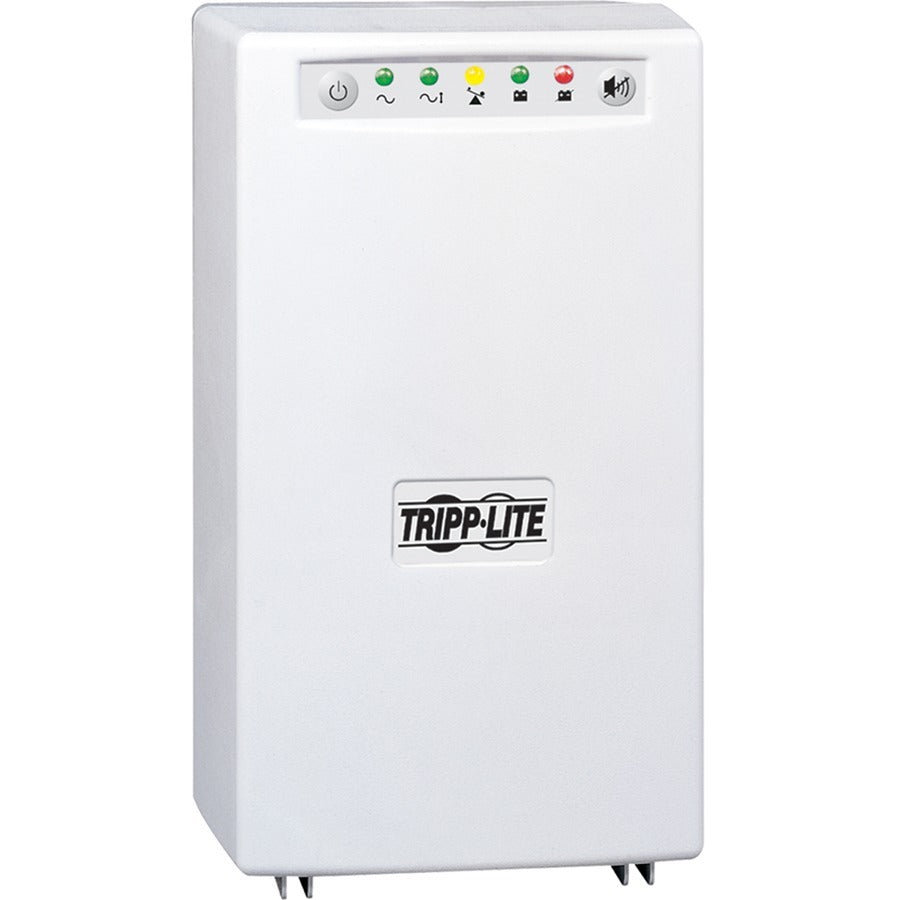

The Eaton Tripp Lite SmartPro SMART1200XLHGL is a 1kVA/750W medical-grade line-interactive tower UPS designed for use in patient-care vicinities. Compliant with UL 60601-1 standards and built with a full isolation transformer and hospital-grade outlets, this UPS ensures safe and clean power delivery for sensitive healthcare equipment.
Equipped with long-lasting LiFePO4 (Lithium Iron Phosphate) batteries providing up to 10 minutes of runtime at full load, the SMART1200XLHGL offers reliable backup during outages, supports automatic voltage regulation (AVR), and delivers 940 joules of surge protection.
Its 4 NEMA 5-15R-HG outlets and USB/DB9 communication ports enable seamless monitoring and system shutdown using Eaton’s PowerAlert® software. The unit also features LED indicators, alarm silencing, and <100μA leakage current for ultimate patient safety and compliance.
| Specification | Details |
|---|---|
| Model Number | SMART1200XLHGL |
| UPS Type | Line-Interactive Tower UPS |
| Power Capacity | 1000VA / 750W |
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Runtime (Full Load) | 10 minutes (750W) |
| Runtime (Half Load) | 28 minutes (375W) |
| Input Voltage | 120V AC |
| Input Plug | NEMA 5-15P-HG (Hospital-Grade), 6 ft. cord |
| Output Receptacles | (4) NEMA 5-15R-HG (Hospital-Grade) |
| Surge Protection | 940 Joules |
| Isolation Transformer | Built-in with Faraday Shield; <100µA leakage current |
| Voltage Regulation | AVR: 81V–143V input corrected to nominal 120V |
| Waveform (AC Mode) | Sine Wave |
| Waveform (Battery Mode) | PWM Sine Wave |
| Communication Ports | USB and DB9 Serial |
| Monitoring Software | PowerAlert® (Free Download) |
| Certifications | UL 60601-1, UL 1778, CSA, EN60601-1-2, IEC60601-1-2 |
| Warranty | 5-Year Limited (UPS and Battery) |
| Dimensions (H x W x D) | 12.5 x 7.5 x 9.5 in (318 x 191 x 241 mm) |
| Weight | 33.6 lbs (15.24 kg) |
| Operating Temp | 0°C to 40°C (32°F to 104°F) |
| Noise Filtering | EMI/RFI Suppression |
| Transfer Time | 2–4 milliseconds |
| Cold Start Capable | Yes |
| Installation Form Factor | Tower (Wall-mount optional with UPSWM bracket) |
