Description
The Eaton Tripp Lite SmartPro SMART1000RM1UN is a compact, 1U rackmount line-interactive sine wave UPS designed to safeguard mission-critical servers, networking equipment, and telecom systems. Delivering 1kVA/800W of reliable power, it maintains 120V output with automatic voltage regulation (AVR) to correct under- and overvoltages without draining the battery.

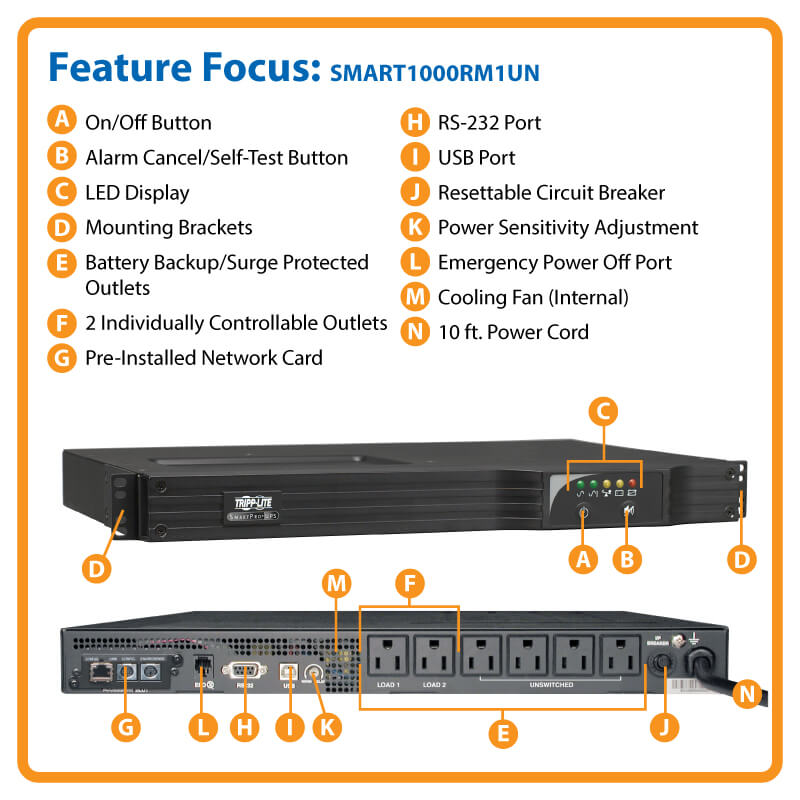

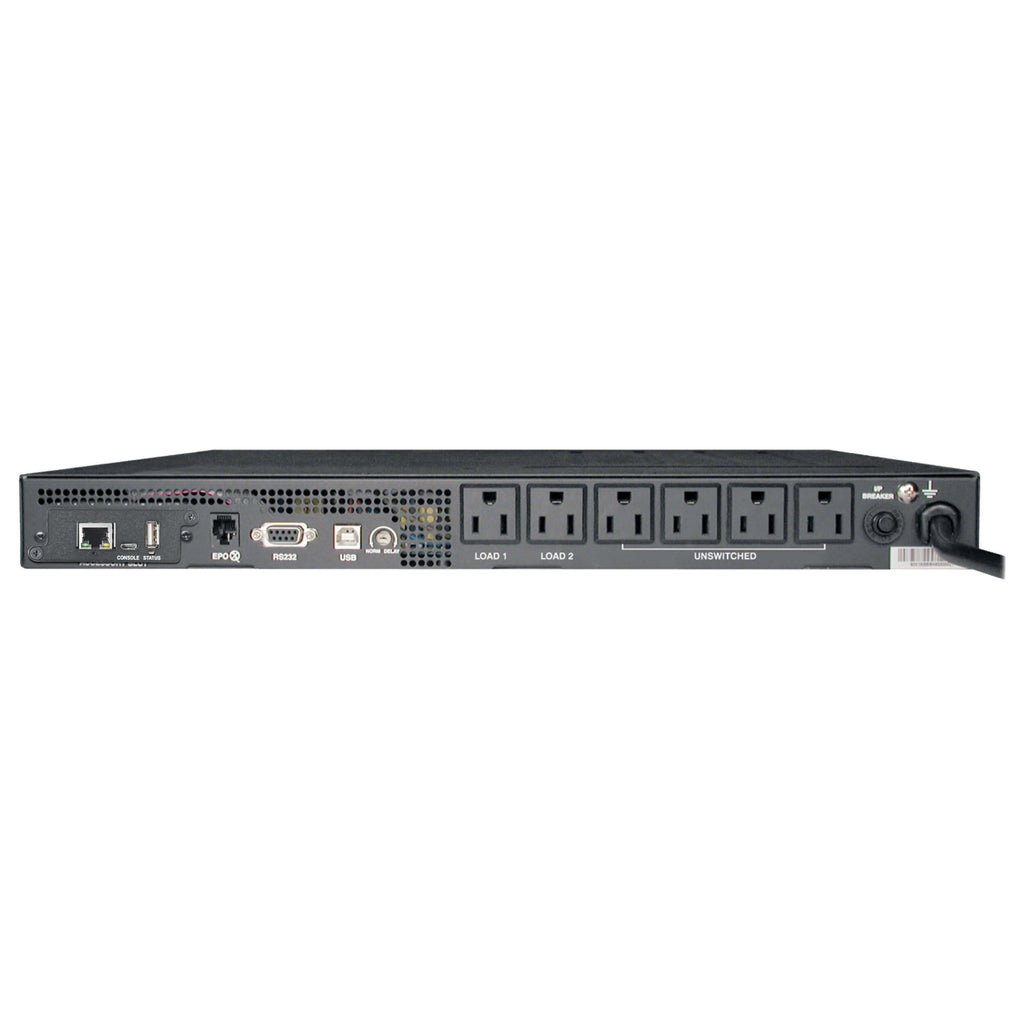

It comes pre-installed with a WEBCARDLX network interface, providing full remote management via web browser, SNMP, Telnet, SSH, or CLI. Ideal for enterprise environments, this UPS features 6 NEMA 5-15R outlets (two switchable load banks for remote control or reboot), a 10-ft. power cord, and 450-joule surge suppression.
Hot-swappable, field-replaceable batteries support up to 14 minutes at half load and 4 minutes at full load, ensuring uptime during outages. With 99% AC efficiency, network-grade EMI/RFI line noise filtering, and TAA compliance, the SMART1000RM1UN delivers high-availability protection with remote monitoring and advanced Auto Probe functionality for proactive device management.
| Category | Specification |
|---|---|
| Model Number | SMART1000RM1UN |
| Brand | Eaton Tripp Lite Series |
| UPS Type | Line-Interactive Sine Wave UPS |
| Form Factor | 1U Rackmount / Vertical Tower |
| Input Voltage | 120V AC (Single-Phase) |
| Input Plug Type | NEMA 5-15P |
| Input Cord Length | 10 ft (3.05 m) |
| Output Capacity | 1000 VA / 800 W |
| Output Receptacles | (6) NEMA 5-15R (2 switchable load banks) |
| Output Voltage Regulation | ±5% (Battery Mode); -21% to +8% (Line Mode) |
| Waveform Type | Pure Sine Wave (Battery Mode) |
| Power Factor | 0.8 |
| Runtime | 14 min (half load), 4 min (full load) |
| Battery Type | Valve-Regulated Lead Acid (VRLA), Hot-swappable |
| Recharge Time | <4 hours (10%–90%) |
| Automatic Voltage Regulation (AVR) | Corrects input voltages from 83V–147V |
| Network Interface | Pre-installed WEBCARDLX (SNMP, SSH, CLI, Web) |
| Communications Ports | USB, DB9, RJ11 EPO, Network port |
| Surge Suppression | 450 joules |
| Line Noise Filtering | EMI/RFI suppression |

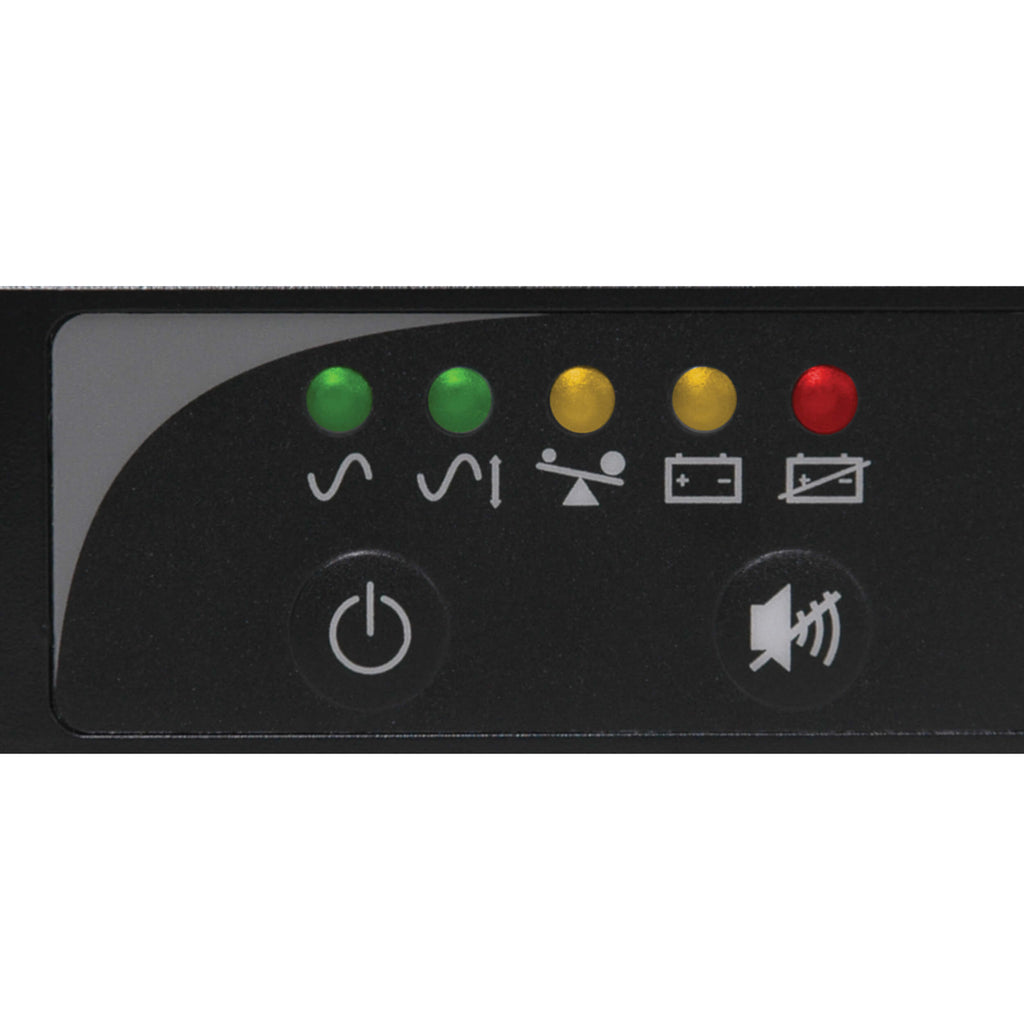

| Indicators & Controls | 5 LED indicators, audible alarms |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 0–95% (non-condensing) |
| Cooling | Internal fan |
| Dimensions (HxWxD) | 1.75 x 17.5 x 16.75 in (44 x 445 x 425 mm) |
| Weight | 32 lbs (14.5 kg) |
| Certifications | UL 1778, CSA, NOM, FCC Class A, RoHS, TAA |
| Warranty | 2-year (extendable to 3-year with registration) |
