Description

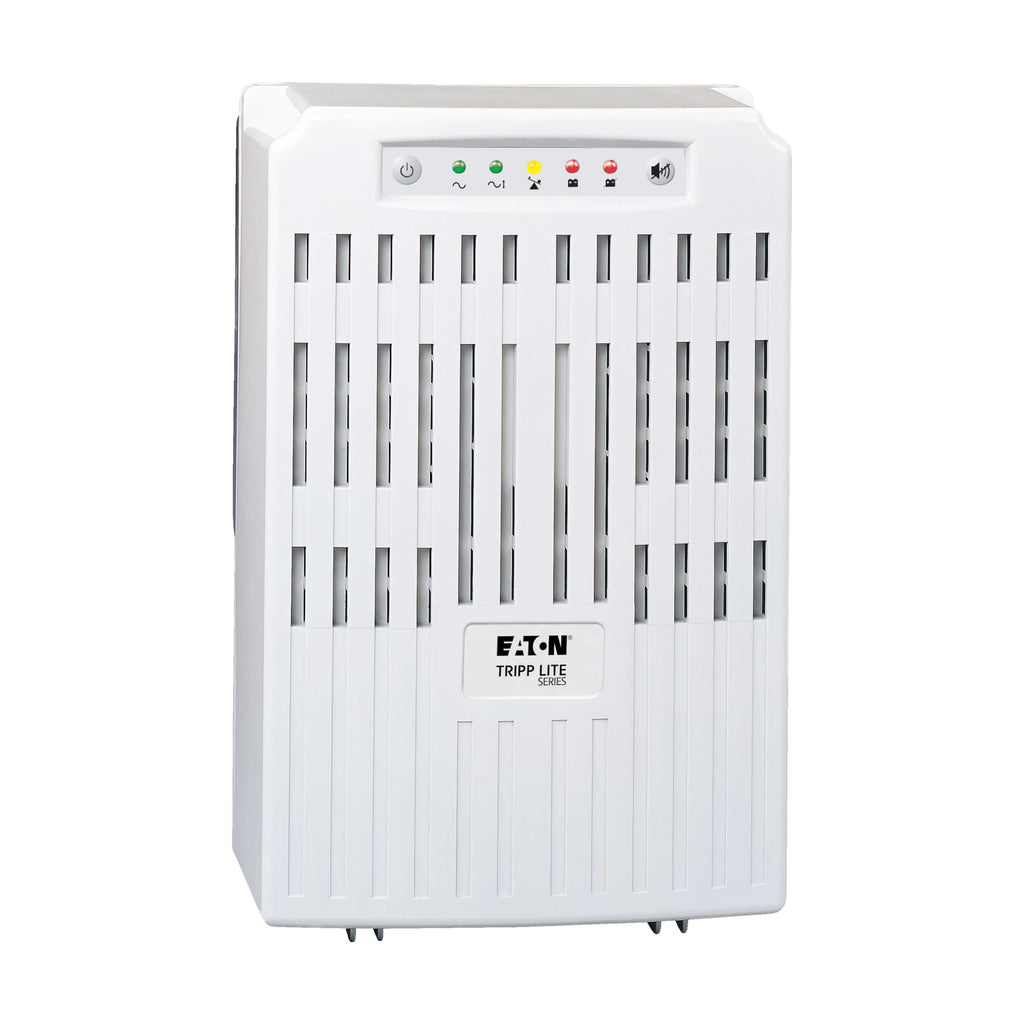

The Eaton Tripp Lite SmartPro SMART2200VS is a high-performance 2.2kVA/1.6kW line-interactive UPS designed to safeguard servers, networking gear, and telecom systems from power interruptions, voltage fluctuations, and surges. Compact yet powerful, it provides up to 19 minutes of runtime at half load and features automatic voltage regulation (AVR) to correct brownouts and overvoltages without drawing on battery power.

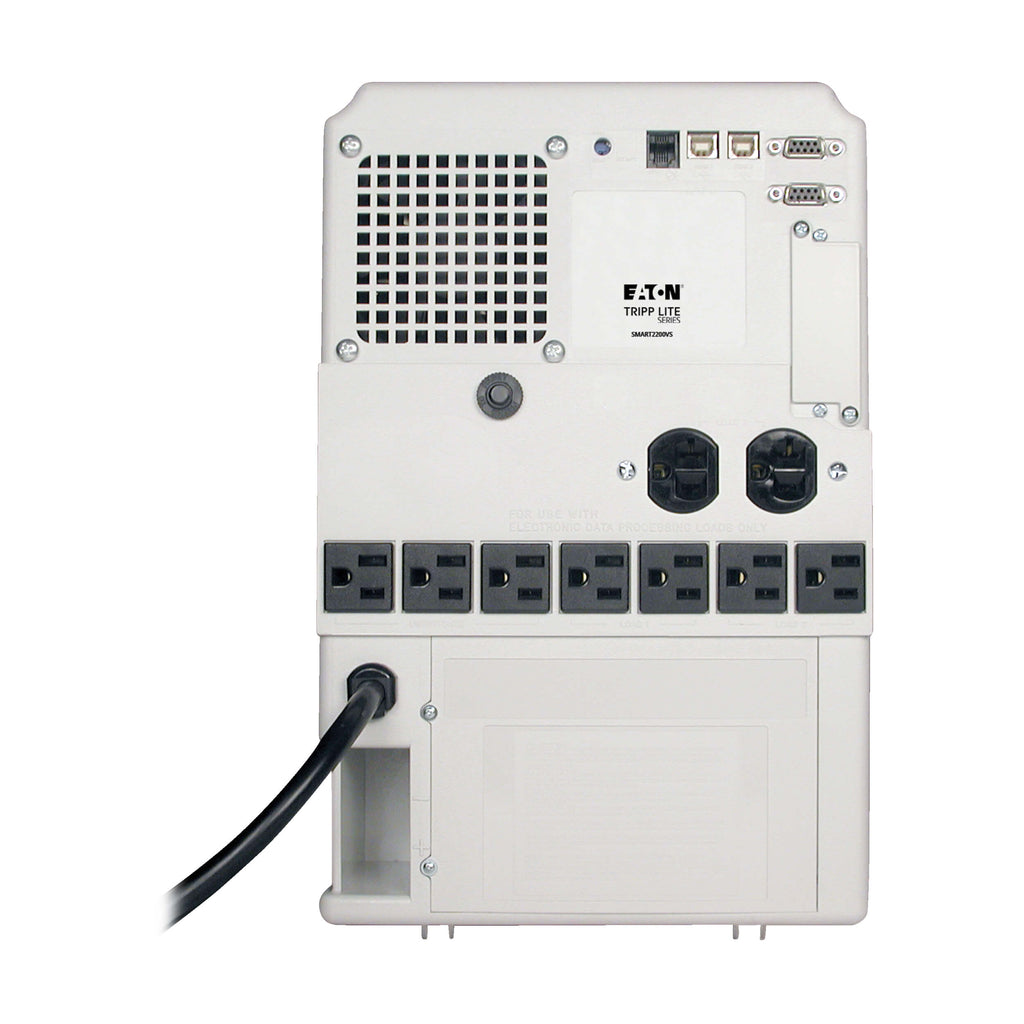

Equipped with nine outlets (7 NEMA 5-15R and 2 NEMA 5-15/20R), this UPS supports load management through three individually controllable outlet pairs, allowing selective reboot or power cycling of connected devices. It includes USB and serial ports for advanced monitoring and integrates seamlessly with PowerAlert® and Watchdog software for remote management and auto-recovery of unresponsive systems.
The SMART2200VS supports optional network management cards (TLNETCARD, WEBCARDLX, SNMPWEBCARD), ensuring flexibility for IT environments that demand uptime and control. Featuring hot-swappable batteries, an EPO interface, and Ultimate Lifetime Insurance coverage up to $250,000, it’s a reliable power protection solution for enterprise-grade applications.
| Category | Specification |
|---|---|
| Model Number | SMART2200VS |
| Form Factor | Tower |
| Topology | Line-Interactive |
| Capacity | 2200VA / 1600W |
| Nominal Voltage | 120V AC |
| Input Plug | NEMA 5-20P |
| Input Voltage Range | 79V – 147V (Automatic Voltage Regulation) |
| Output Outlets | 9 (7 × NEMA 5-15R, 2 × NEMA 5-15/20R) |
| Load Management | 3 switchable two-outlet load banks |
| Output Waveform | Sine wave (AC mode), PWM sine wave (Battery mode) |
| Runtime | 7 min (Full Load 1600W), 19 min (Half Load 800W) |
| Battery Type | Valve Regulated Lead Acid (VRLA), Hot-swappable |
| Recharge Time | < 4 hours (10% to 90%) |
| DC System Voltage | 48V |
| Monitoring Ports | 2 × USB, 2 × DB9 serial |
| Software Support | PowerAlert®, Watchdog |
| Optional Network Cards | TLNETCARD, WEBCARDLX, SNMPWEBCARD |
| Indicators & Alarms | 5 LEDs (line/battery/overload/regulation/battery), audible alarms |
| Efficiency | 94% (AC mode, 100% load) |
| Noise Level | < 47dBA at 1 meter |
| Dimensions (H × W × D) | 14.2 × 9.2 × 12 in (361 × 234 × 305 mm) |
| Weight | 52.4 lb (23.77 kg) |
| Operating Temperature | 0° to 40°C |
| Certifications | UL 1778, CSA, NOM, RoHS, FCC Part 15 Class A |
| Warranty | 2 years (3 years with registration) |
| Connected Equipment Insurance | $250,000 (U.S., Canada, Puerto Rico) |
