Description

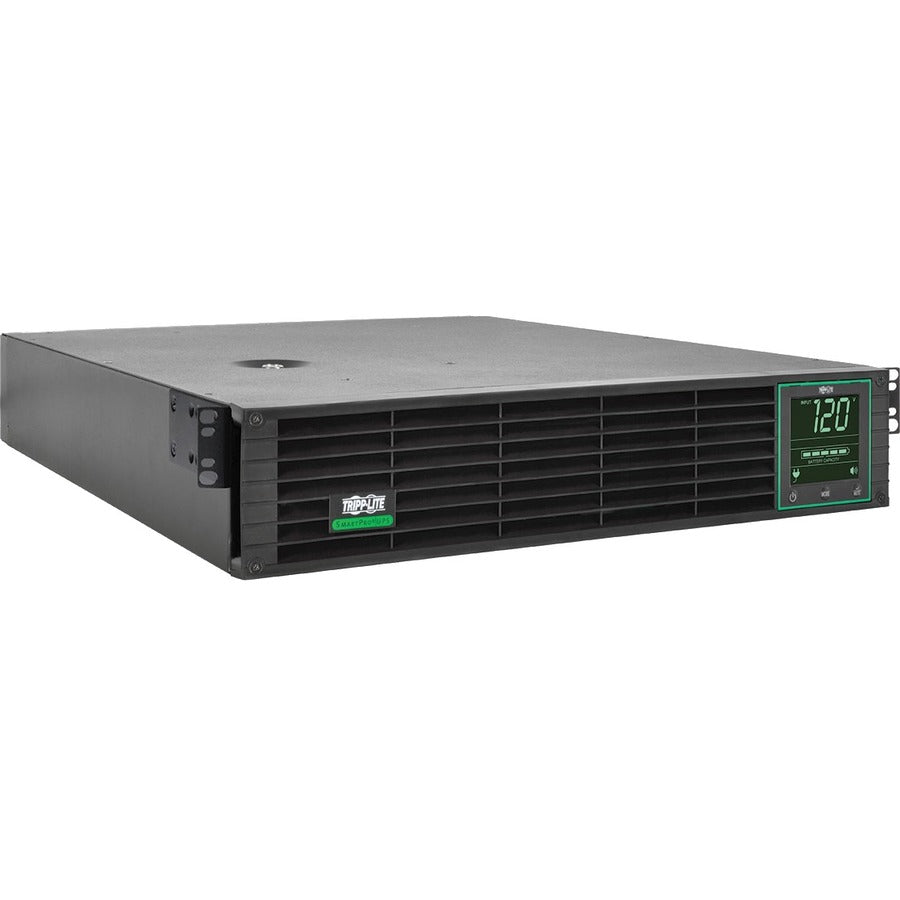

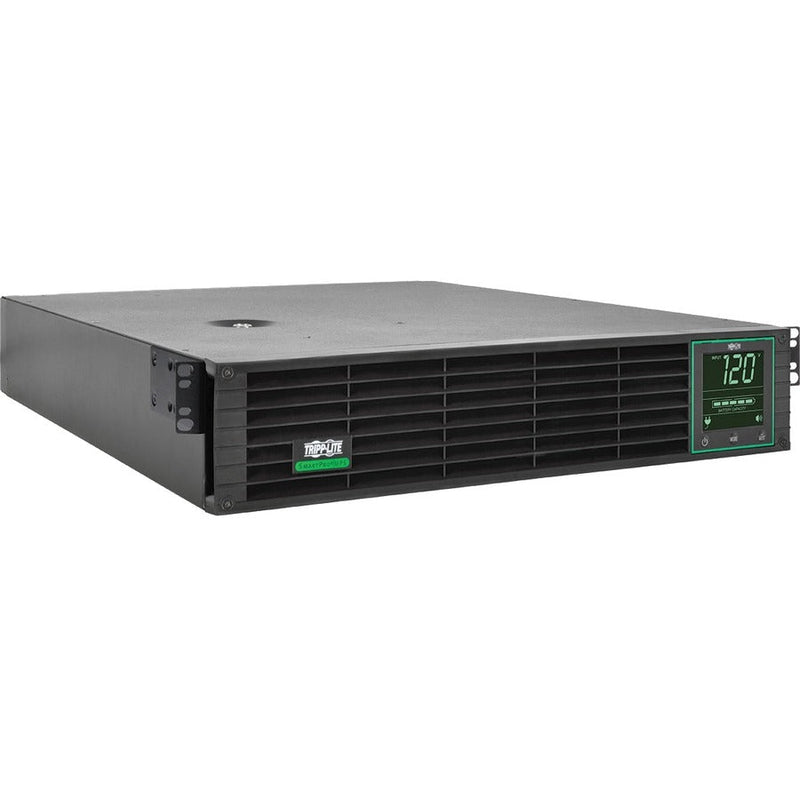

The Eaton SMART2200RM2UL SmartPro® UPS delivers reliable, high-efficiency power protection for mission-critical equipment. Designed with lithium iron phosphate (LiFePO4) battery technology, it ensures extended service life, faster recharge times, and higher efficiency than traditional lead-acid batteries.
With a compact 2U rackmount form factor, the UPS provides 2.2kVA/1.92kW of pure sine wave power. It features automatic voltage regulation (AVR), surge suppression, and EMI/RFI filtering. Eight total outlets (including 2 controllable load banks), USB and DB9 ports, plus compatibility with Eaton WEBCARDLX network management card make this unit ideal for server rooms, network closets, and distributed IT environments.
| Specification | Details |
|---|---|
| Model | SMART2200RM2UL |
| Form Factor | 2U Rackmount |
| UPS Type | Line-Interactive with Pure Sine Wave |
| Input Voltage | 120V AC (NEMA 5-20P plug, 10-ft cord) |
| Input Voltage Range | 83V – 145V |
| Output Capacity | 2200 VA / 1920 W |
| Output Voltage | 120V (nominal) |
| Power Factor | 0.87 |
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Runtime (Half/Full Load) | 11.7 min / 5.1 min |
| Recharge Time | < 2 hours (100% capacity) |
| Outlets | 4x NEMA 5-15R, 4x NEMA 5-15/20R (2 switchable) |
| Efficiency (Line Mode) | 97% |
| Surge Protection | 570 Joules, EMI/RFI filtering |
| Communications | USB, DB9, EPO, SNMP/Web card slot |
| LCD Display | Yes (interactive and rotatable) |
| Dimensions (HxWxD) | 87 x 440 x 489 mm (3.43 x 17.32 x 19.27 in) |
| Weight | 18.95 kg (41.78 lbs) |
| Mounting Options | 4-post (included), 2-post/tower/wall (optional accessories) |
| Certifications | UL 1778, CSA, FCC Part 15 Class A, RoHS |
| Warranty | 5-Year Limited Warranty |
| Connected Equipment Insurance | $250,000 (U.S., Canada, Puerto Rico only) |
