Description

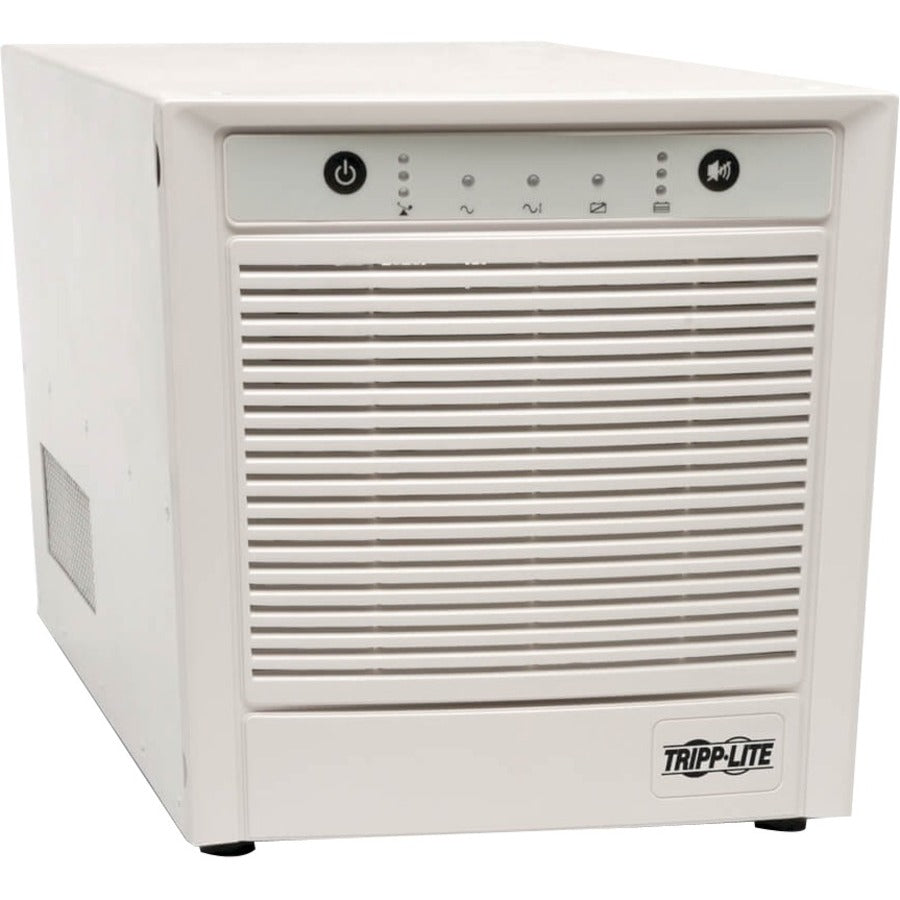

The Eaton SmartPro SMART2500XLHG is a medical-grade 2.2kVA/1.92kW line-interactive UPS system engineered to meet UL 60601-1 3rd edition requirements for patient-care environments. It provides full isolation via an internal low-impedance transformer with Faraday shielding and reduces cumulative leakage current to less than 100 μA, ensuring safety in clinical labs, diagnostic imaging, and other healthcare applications.
With advanced line-interactive topology, the SMART2500XLHG corrects brownouts and overvoltages without using battery power, providing regulated 120V output. The system supports extended runtimes with optional external battery packs (BP48V24-2U or BP48V60RT-3U) and includes built-in USB, DB9 serial, and SNMP slot for WEBCARDLXE integration.
Designed for fixed installations, the SMART2500XLHG features 8 total outlets (4 NEMA 5-15/20R, 4 IEC C13), robust EMI/RFI suppression, pure sine wave output, and hospital-grade load isolation. Ideal for use where safe, reliable, and medically compliant power backup is non-negotiable.
| Category | Details |
|---|---|
| Model | SMART2500XLHG |
| UPS Type | Line-Interactive, Medical-Grade |
| Output Power Capacity | 2200 VA / 1920 W |
| Input Voltage | 120V AC (IEC C20 inlet, locking clamp) |
| Output Voltage | 120V AC nominal (Pure Sine Wave) |
| Voltage Regulation | AVR: 81–143V input range; ±5% output regulation |

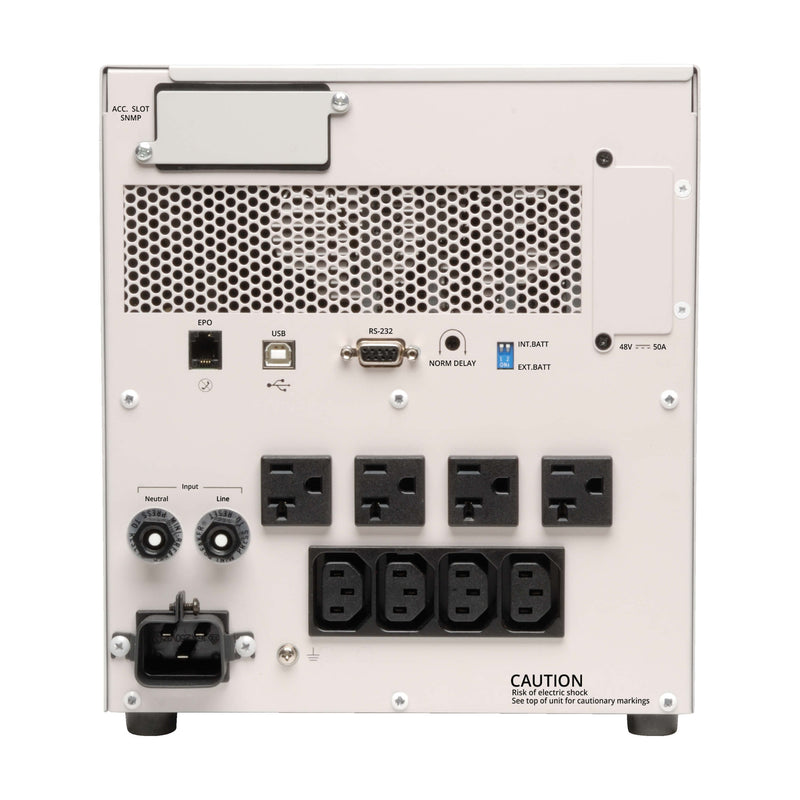

| Outlets | (4) NEMA 5-15/20R, (4) IEC C13 (hospital grade) |
| Battery Type | Valve Regulated Lead Acid (VRLA), Hot-swappable |
| Runtime (Full Load) | ~4.4 minutes (1920W) |
| Runtime (Half Load) | ~13 minutes (960W) |
| Extended Battery Support | Yes – BP48V24-2U (1x), BP48V60RT-3U (multi-pack) |
| Recharge Time | ≤4.5 hours |
| Isolation Transformer | Yes – with Faraday Shield, ≤100 µA leakage current |

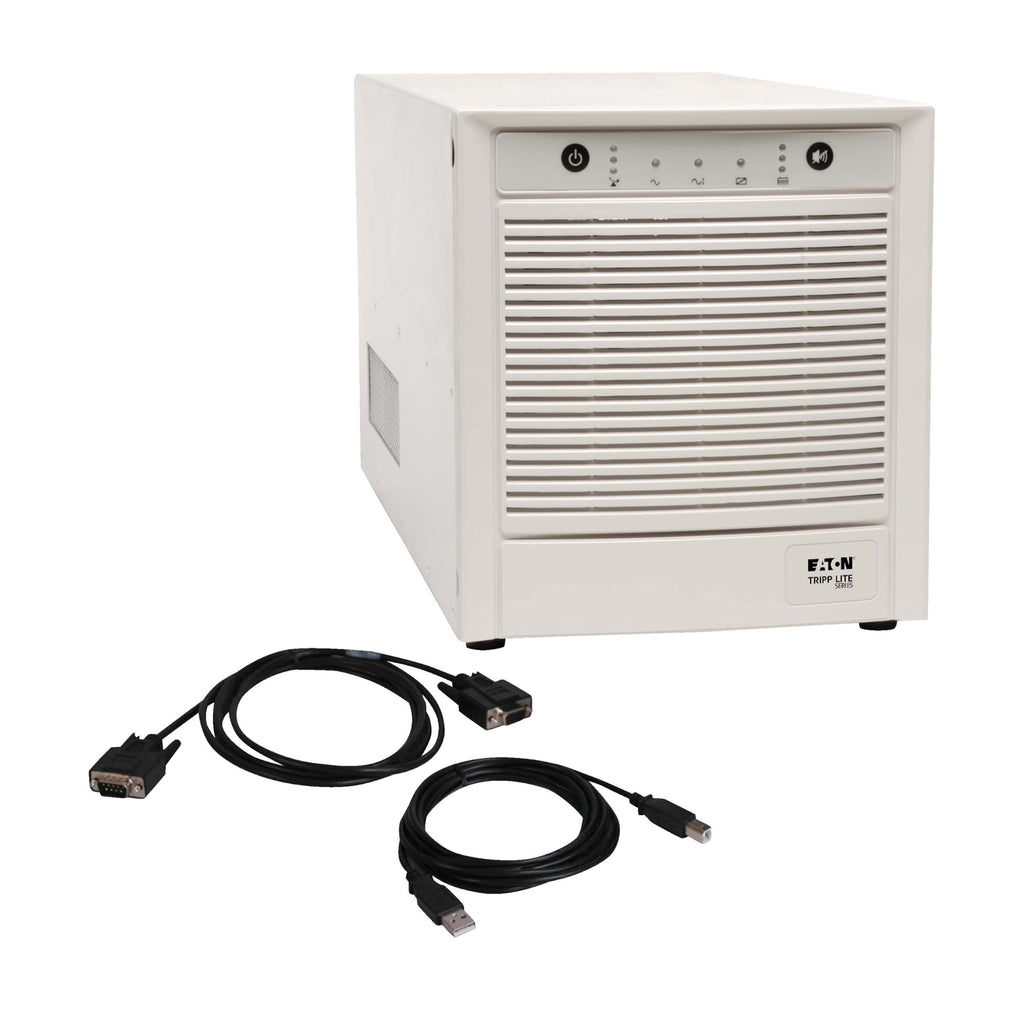

| Communications | USB, DB9 Serial, EPO, SNMPWEBCARD (optional), PowerAlert Software included |
| Certifications | UL 60601-1, IEC 60601-1-2:2014 4th Ed, UL 1778, CSA, NOM |
| Surge Protection | 940 Joules |
| Cooling | Fan-cooled |
| Form Factor | Tower (Optional wall mount with UPSWM kit) |
| Dimensions (H x W x D) | 9.72 x 8.90 x 19.09 in (24.69 x 22.61 x 48.49 cm) |
| Weight | 73.3 lbs (33.25 kg) |
| Operating Temp | 0°C to 40°C (32°F to 104°F) |
| Warranty | 2-Year Limited Warranty |
