Description
The Eaton Tripp Lite SmartPro SM2200RMXL2UPN is a high-performance, line-interactive UPS system designed to safeguard critical network, telecom, and digital signage equipment from power interruptions. Delivering 2200VA / 1920W of pure sine wave output with Automatic Voltage Regulation (AVR), it ensures stable and reliable power even in environments prone to brownouts or overvoltages.

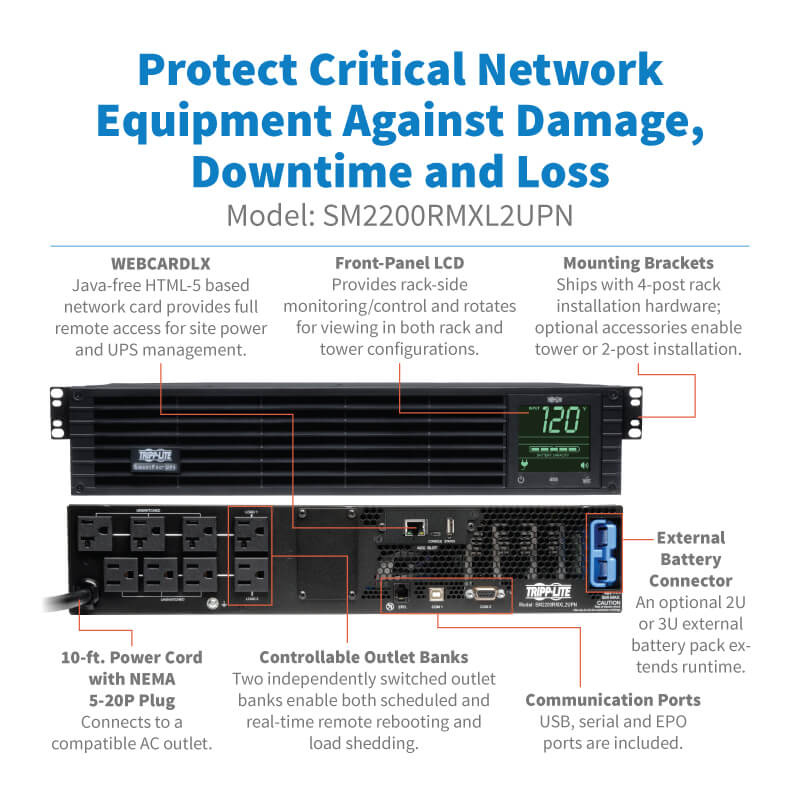

Equipped with a pre-installed WEBCARDLXE network interface, users can remotely monitor, control, and configure the UPS through secure web access (HTTPs, SNMP, SSH, or Telnet). The eight NEMA outlets—four 5-15R and four 5-15/20R—provide battery backup, surge protection (570 joules), and voltage regulation for mission-critical systems.
With expandable runtime support through external battery packs and 96% operating efficiency, this 2U rackmount UPS is engineered for energy-conscious businesses requiring maximum uptime. A front-panel LCD provides real-time diagnostics, while USB, DB9, and EPO interfaces ensure seamless integration with network and IT management systems.

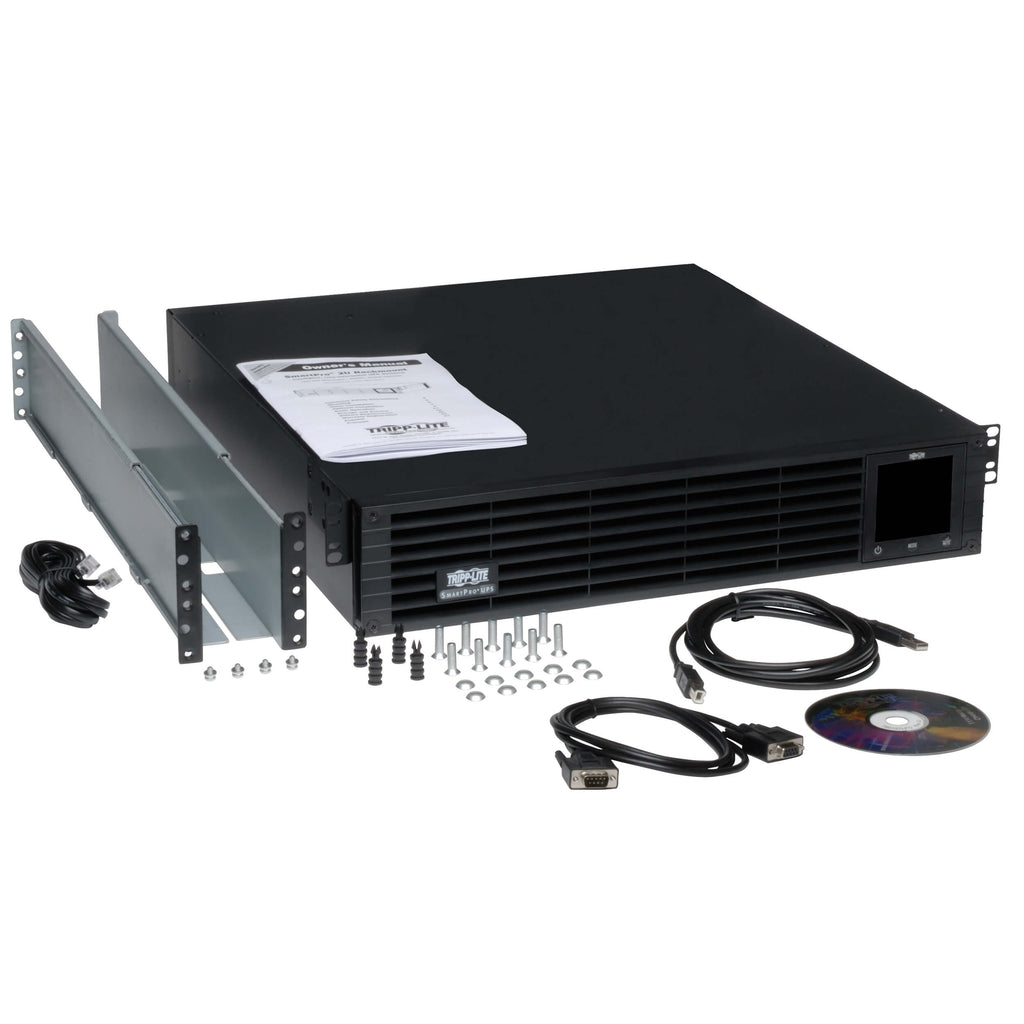

Ideal for protecting servers, switches, security systems, and digital signage, the SM2200RMXL2UPN offers hot-swappable VRLA batteries, a 10-ft power cord, and versatile installation options including rack, tower, or wall mounting—making it an adaptable power protection solution for any professional environment.
| Category | Specification |
|---|---|
| Model | SM2200RMXL2UPN |
| Brand | Eaton (Tripp Lite Series) |
| UPS Type | Line-Interactive |
| Form Factor | Rackmount (2U) / Tower convertible |
| Power Capacity | 2200 VA / 1920 W |
| Input Voltage | 120V AC |

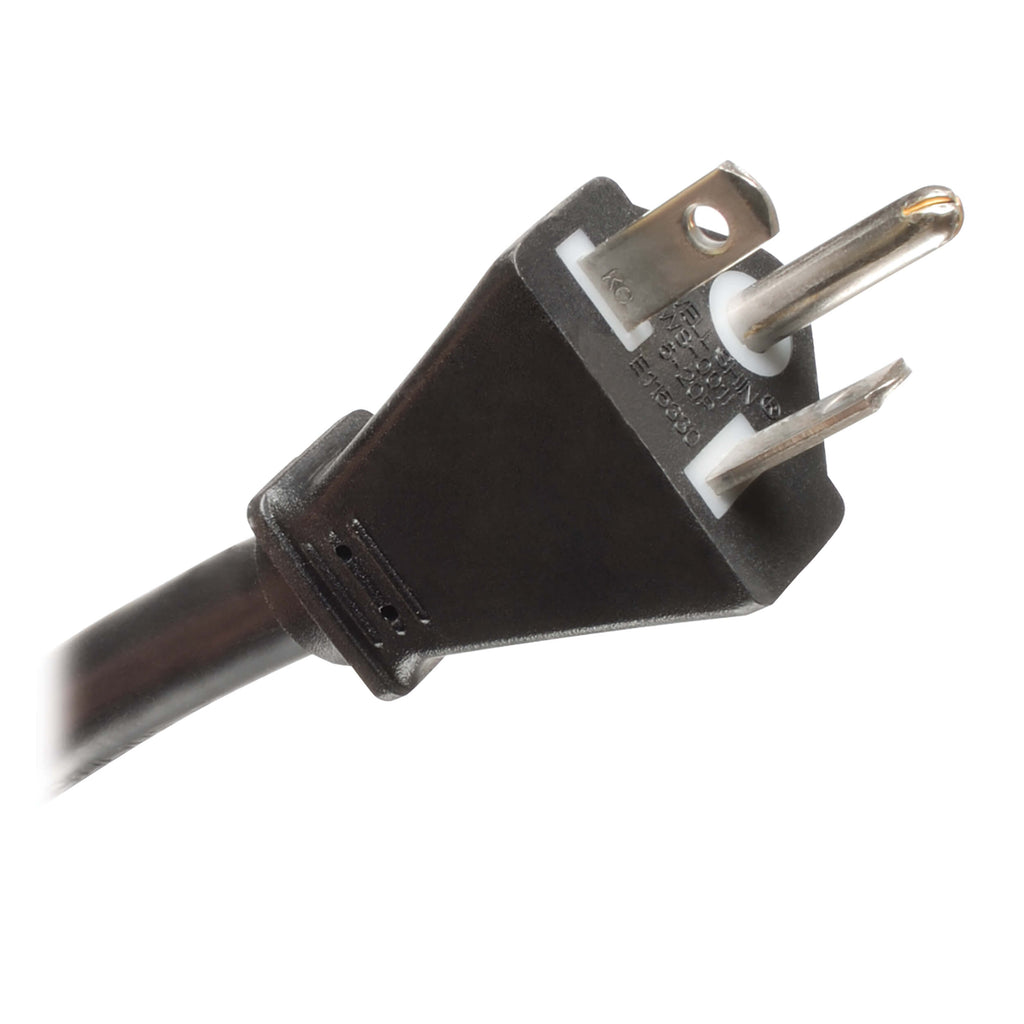

| Input Plug Type | NEMA 5-20P |
| Input Cord Length | 10 ft (3.1 m) |
| Output Voltage | 120V nominal |

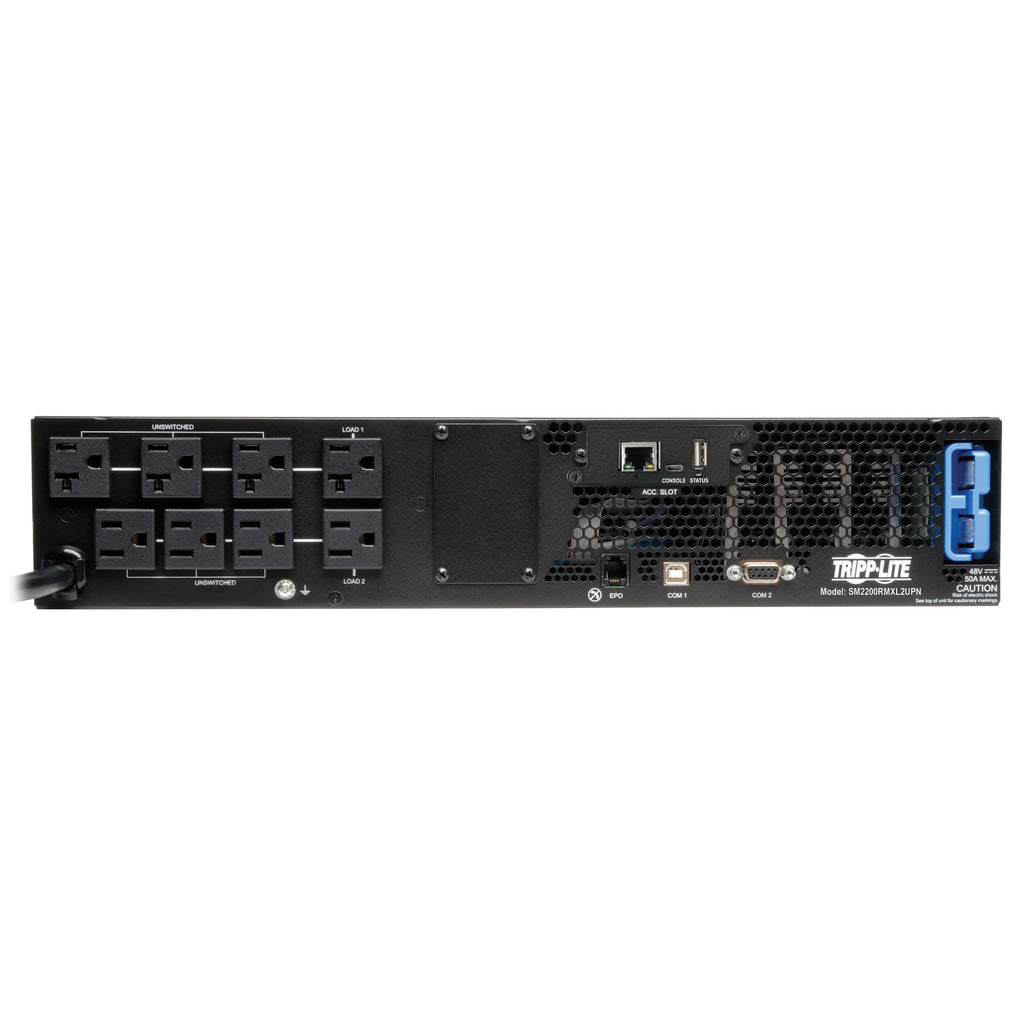

| Output Receptacles | (4) NEMA 5-15R, (4) NEMA 5-15/20R |
| Output Waveform | Pure Sine Wave |
| Power Factor | 0.9 |
| Voltage Regulation | AVR (83V–145V correction range) |
| Surge Protection | 570 Joules |
| Battery Type | Valve-Regulated Lead Acid (VRLA), Hot-swappable |
| Runtime (Half Load) | 12 minutes (960W) |
| Runtime (Full Load) | 4.5 minutes (1920W) |
| External Battery Support | Yes, BP48V27-2US / BP48V24-2U / BP48V60RT3UTAA |
| Recharge Time | <4.5 hours (to 90%) |
| Network Management | Pre-installed WEBCARDLXE (SNMP, SSH, HTTPs) |
| Ports | USB, DB9 Serial, EPO |

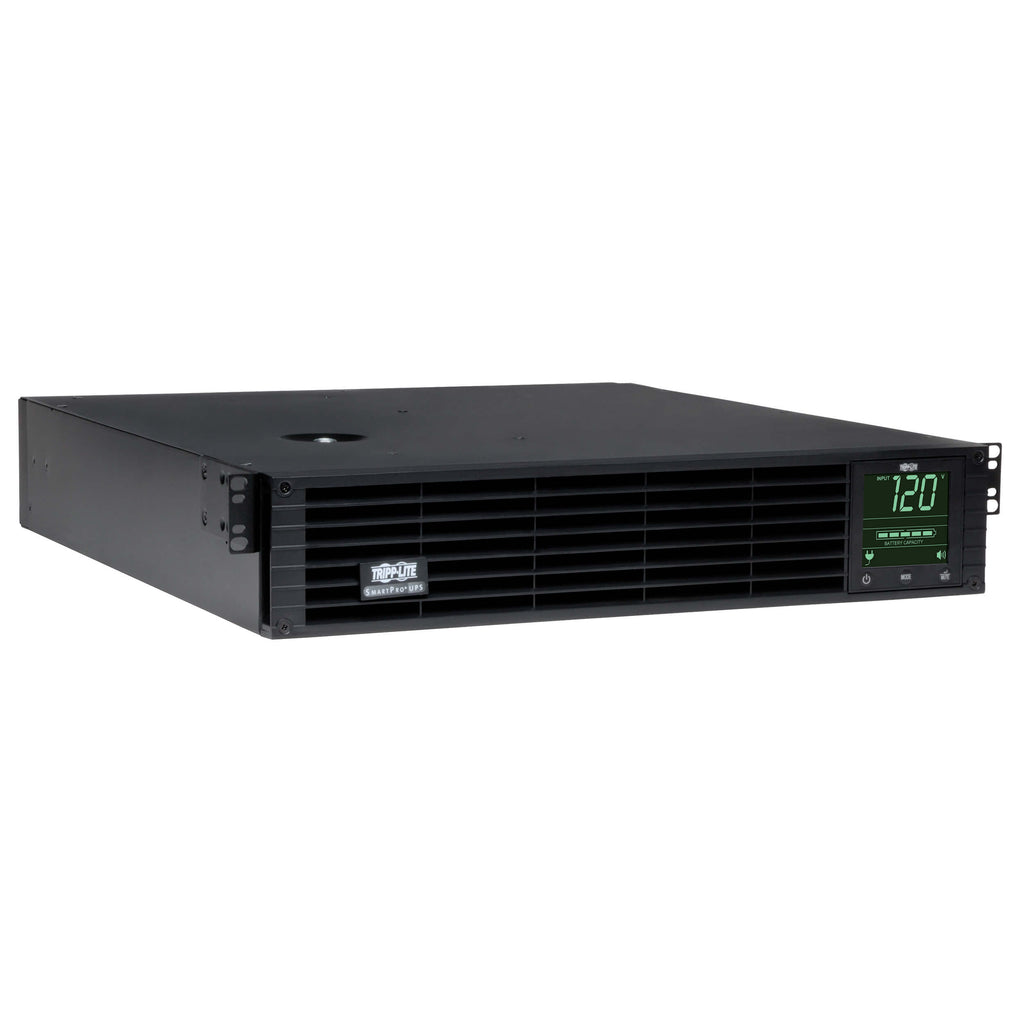

| Display | LCD screen with status, runtime, and voltage indicators |
| Efficiency | 96% (AC mode) |
| Noise Level | ≤45 dBA |
| Dimensions (H x W x D) | 3.5 x 17.5 x 19 in (89 x 445 x 483 mm) |
| Weight | 64 lbs (29.03 kg) |
| Rack Height | 2U |
| Operating Temperature | 0°C to 40°C |
| Humidity | 0–95% non-condensing |
| Certifications | UL 1778, CSA, FCC Part 15 Class A, RoHS |
| Warranty | 2 years (3 years with registration) |
