Description

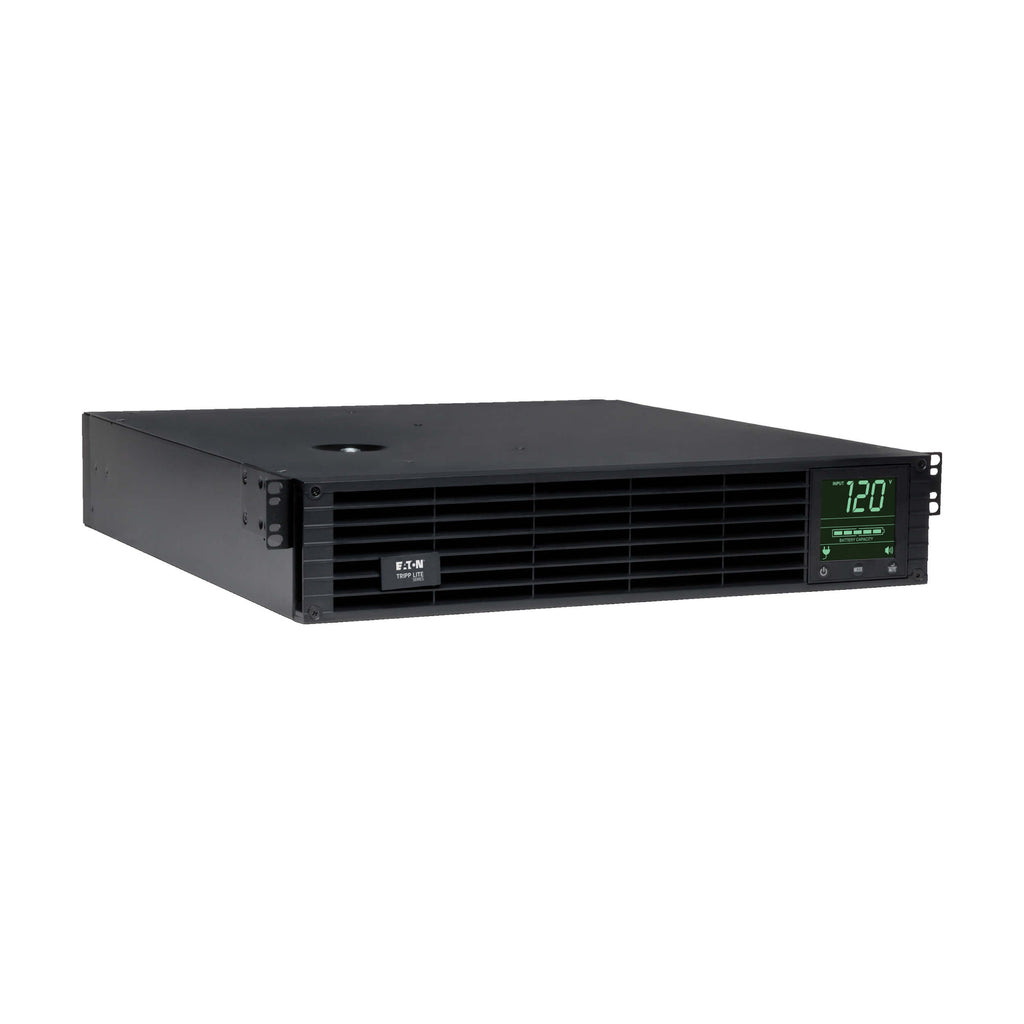

The Eaton Tripp Lite SmartPro SM2200RMXL2UP is a 2U rack/tower line-interactive UPS designed to deliver network-grade power protection for servers, telecommunications, and network equipment. Featuring 2.2kVA (2200VA) / 1920W capacity, it provides pure sine wave output and Automatic Voltage Regulation (AVR) to correct brownouts and overvoltages without depleting the battery.
Its 96% line-mode efficiency reduces heat and operating costs, while the interactive LCD interface offers real-time UPS and site-power data plus user configuration options. The unit includes two independently switched load banks for remote rebooting and load management, USB, DB9, and EPO ports, and an optional WEBCARDLXE slot for network monitoring.
With hot-swappable batteries and optional external battery packs (BP48V24-2U, BP48V60RT3UTAA, BP48V27-2US), the SM2200RMXL2UP offers flexible extended runtime. It meets UL 1778, CSA, FCC Class A, RoHS, and TAA compliance standards and includes Eaton’s Ultimate Lifetime Insurance coverage up to $250,000 (U.S., Canada, and Puerto Rico).
Ideal for enterprise environments needing continuous uptime, intelligent monitoring, and scalable power protection in compact rackmount deployments.
| Category | Details |
|---|---|
| Model | SM2200RMXL2UP |
| Form Factor | 2U Rack/Tower Convertible |
| Topology | Line-Interactive, Pure Sine Wave |
| Capacity | 2200VA / 1920W |
| Input Voltage | 120V AC |

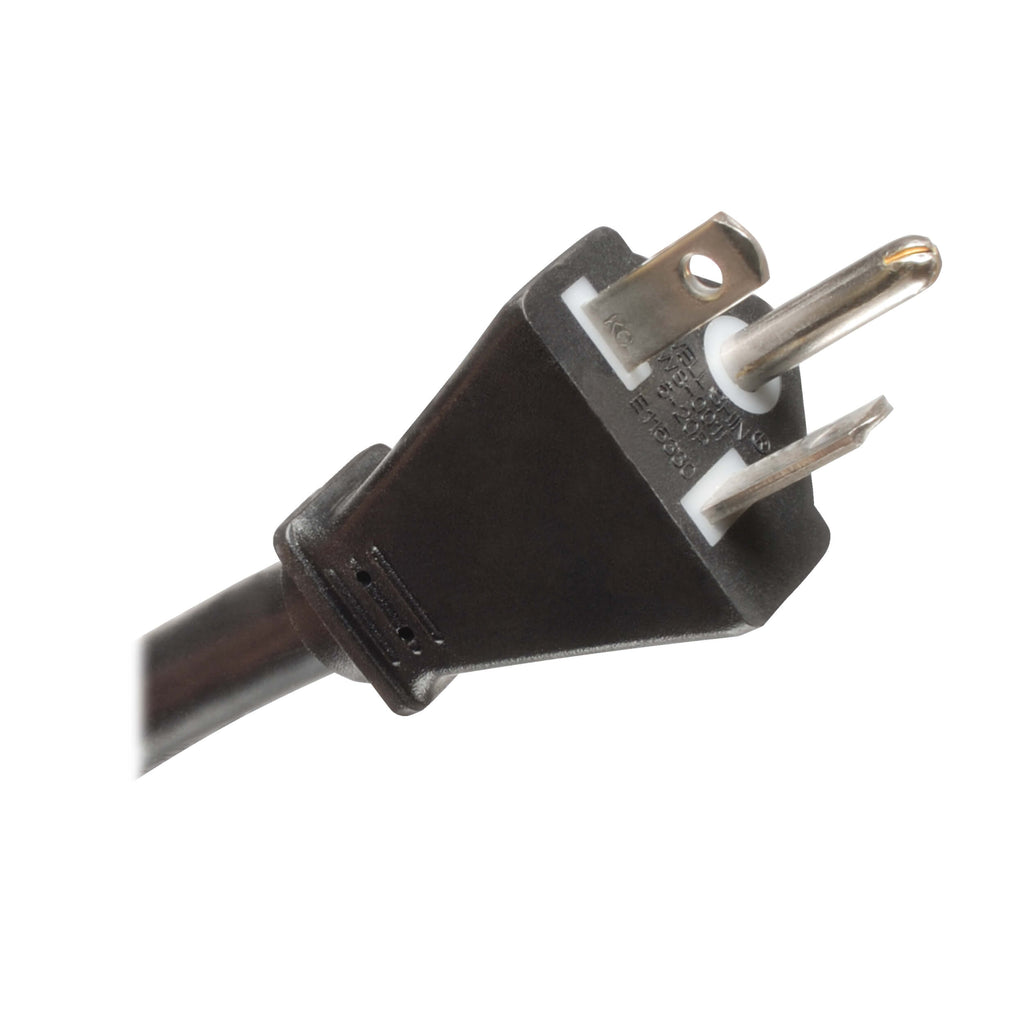

| Input Plug Type | NEMA 5-20P |
| Input Cord Length | 10 ft (3.1 m) |
| Output Voltage | 110V / 115V / 120V |

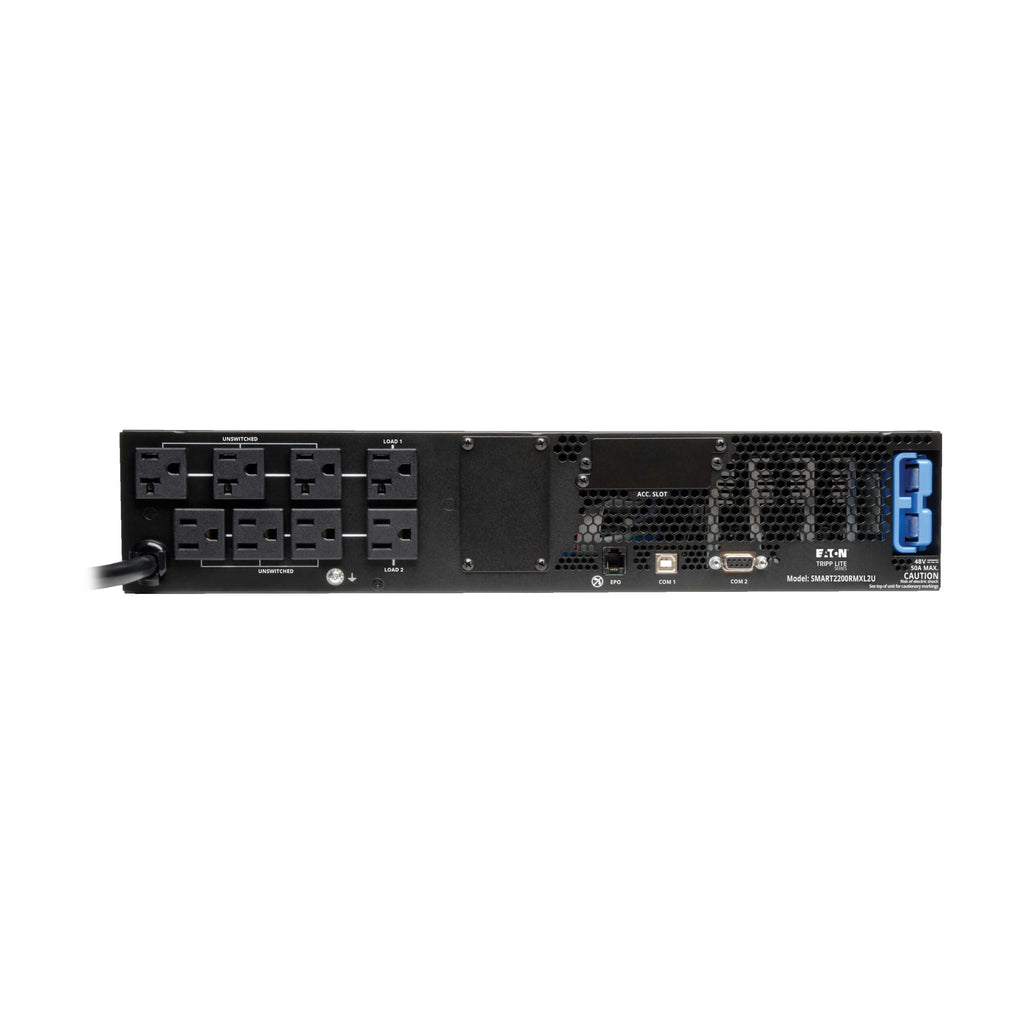

| Output Receptacles | (4) NEMA 5-15R, (4) NEMA 5-15/20R |
| Load Banks | 2 Independently Switched Banks |
| Efficiency (Line Mode) | 96% |
| Battery Type | Valve-Regulated Lead Acid (VRLA), Hot-Swappable |
| Runtime @ 50% Load (960W) | ~12 minutes |
| Runtime @ Full Load (1920W) | ~4.5 minutes |
| Extended Battery Options | BP48V24-2U, BP48V27-2US, BP48V60RT3UTAA |
| Recharge Time | <4.5 hours (from 10% to 90%) |
| Voltage Regulation (AVR) | ±12% / ±24% boost, -12% trim |

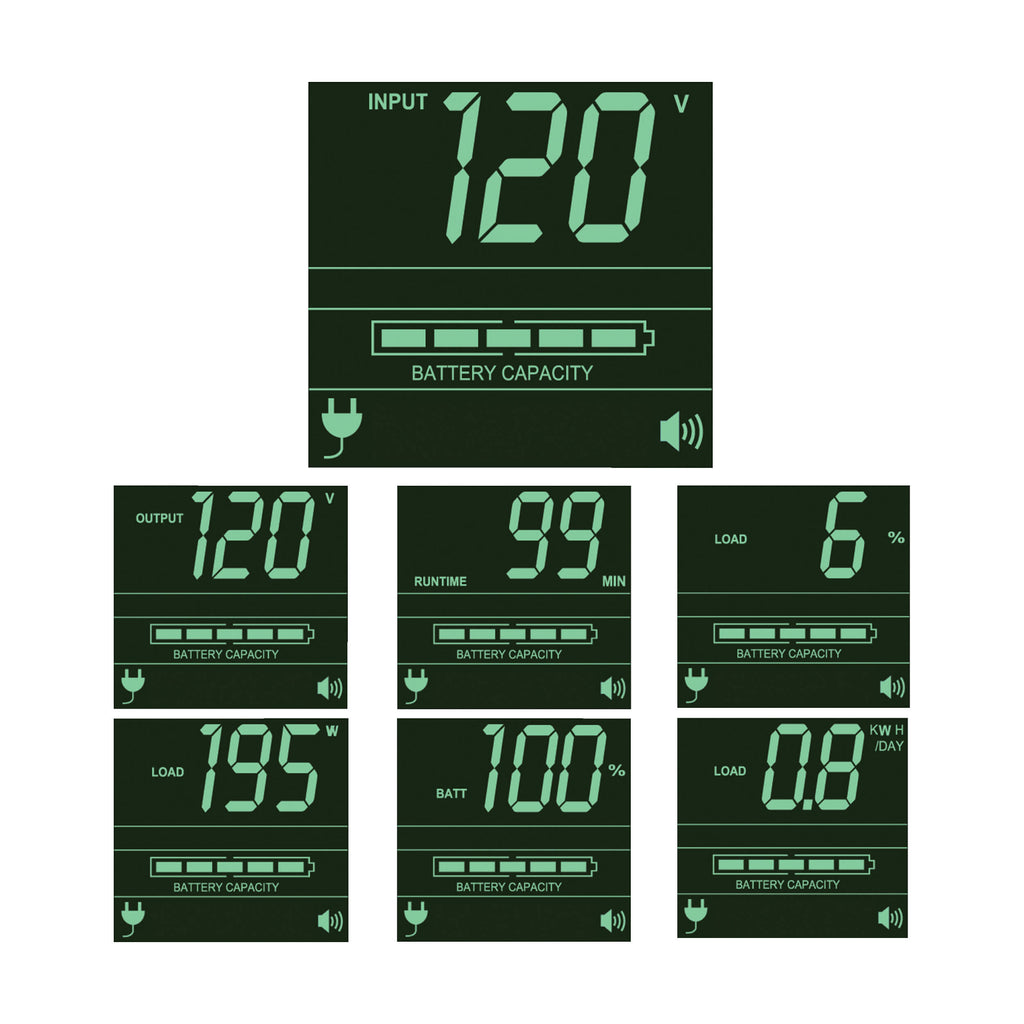

| Display Interface | LCD with Mode/Enter Buttons |
| Communications Ports | USB (HID), DB9 Serial, EPO |
| Network Management | Optional WEBCARDLXE Slot |
| Transfer Time | 5 ms (line to battery) |
| Cooling | Fan-Cooled |
| Noise Level | ≤45 dBA |

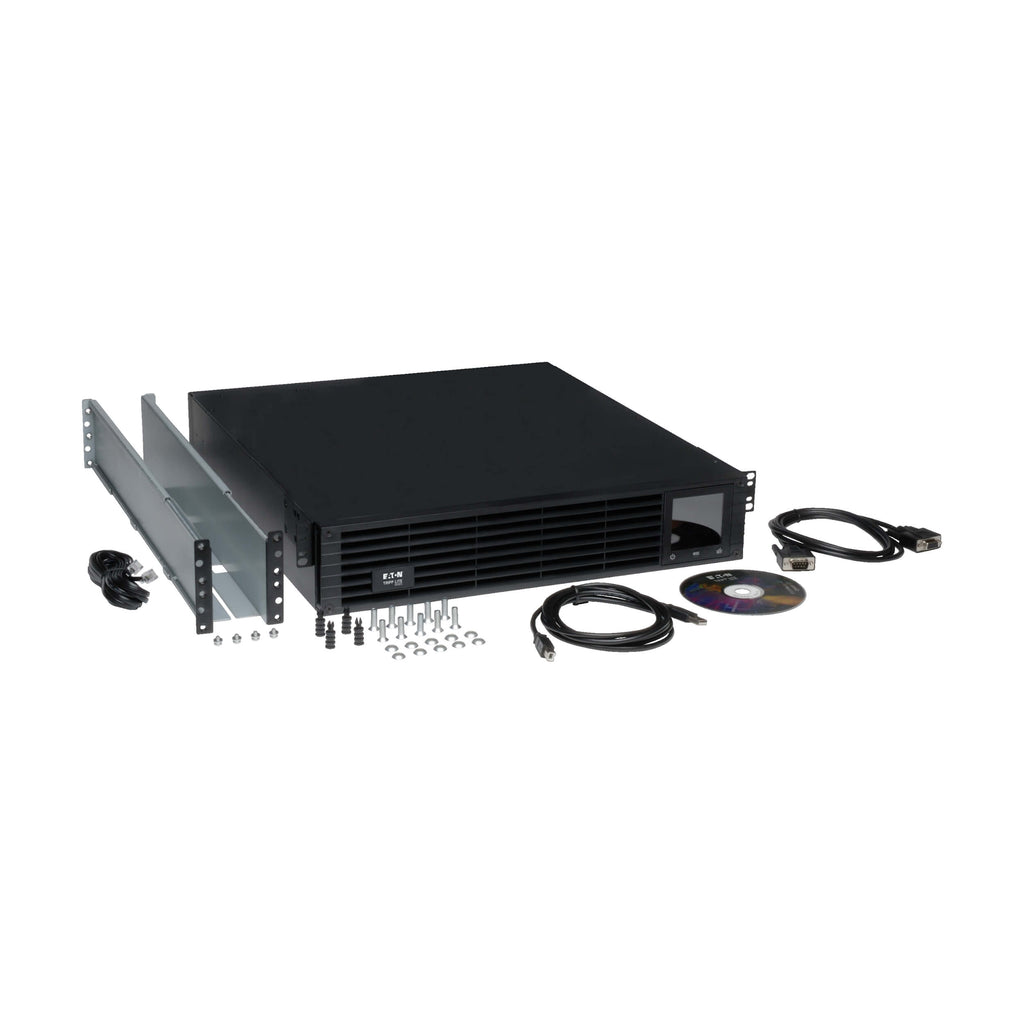

| Mounting Hardware | 4-Post Rack Kit Included |
| Dimensions (H × W × D) | 3.5 × 17.5 × 19 in (89 × 445 × 483 mm) |
| Weight | 64 lb (29.03 kg) |
| Operating Temperature | 0°C – 40°C |
| Compliance | UL 1778, CSA, FCC Part 15 Class A, RoHS, TAA |
| Warranty | 2 Years Standard, 3 Years with Registration |
| Connected Equipment Insurance | $250,000 (U.S., Canada, Puerto Rico) |
