Description

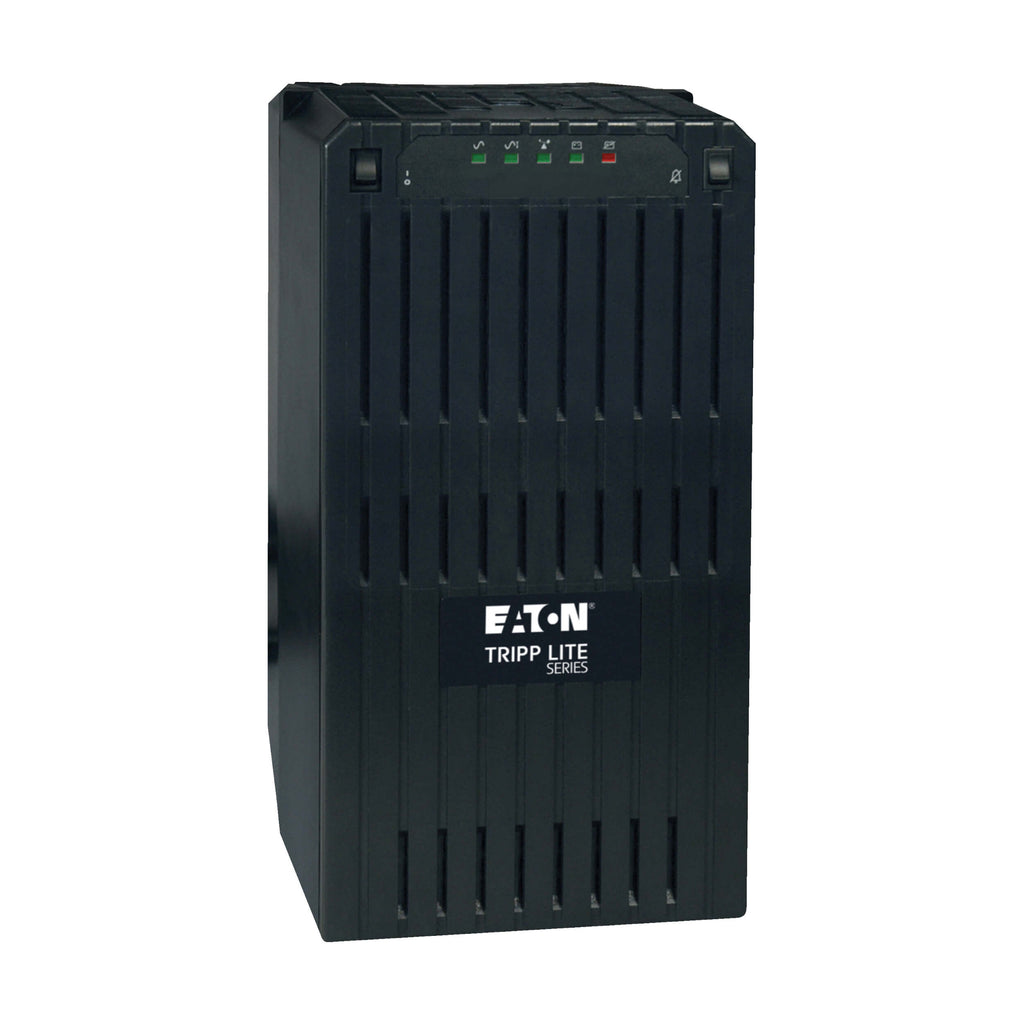

The Eaton Tripp Lite SmartPro SMART3000NET is a 3kVA/2.4kW line-interactive UPS designed to protect servers, networking equipment, and telecom systems from blackouts, brownouts, and surges. Featuring Automatic Voltage Regulation (AVR) and network-grade AC surge suppression, it delivers stable 120V power and ensures continuous operation during outages. Its internal batteries provide up to 23 minutes at half load and 7 minutes at full load, with expandable runtime using external battery packs (BP24V28-2U or BP24V70-3U).
Equipped with three DB9 ports (1 RS-232 + 2 contact-closure), eight protected outlets (4 NEMA 5-15R and 4 NEMA 5-15/20R), and two independently switchable load banks, the SMART3000NET allows flexible control and detailed monitoring via PowerAlert® UPS software. Audible alarms and front-panel LEDs display real-time UPS and battery conditions. Its robust design, high efficiency (99%), and support for cold-start operation make it ideal for large network and telecom applications requiring dependable, intelligent power protection.
| Category | Details |
|---|---|
| Model Number | SMART3000NET |
| UPS Type | Line-Interactive Tower UPS |
| Capacity | 3000VA / 2400W |
| Power Factor | 0.8 |
| Input Voltage | 120V AC |
| Voltage Range (AVR) | 87–140V |
| Output Voltage | 120V nominal |

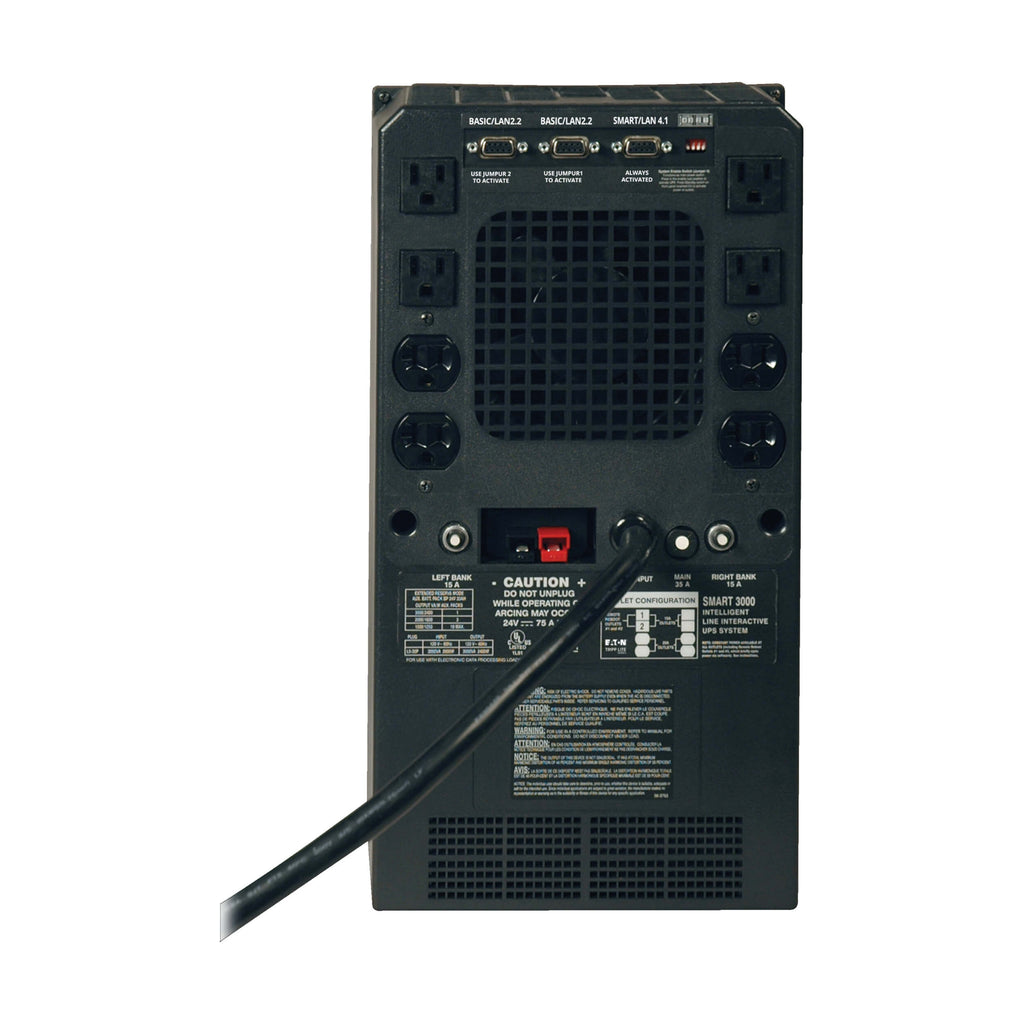

| Output Receptacles | (4) NEMA 5-15R, (4) NEMA 5-15/20R |
| Load Banks | 2 individually switchable single-outlet banks |
| Input Plug Type | NEMA L5-30P |
| Input Cord Length | 8 ft (2.4 m) |
| Runtime (Full Load) | 7 minutes (2400W) |
| Runtime (Half Load) | 23 minutes (1200W) |
| External Battery Packs | BP24V28-2U (limit 1), BP24V70-3U (multi-pack compatible) |
| Battery Type | Valve-Regulated Lead Acid (VRLA) |
| Battery Voltage | 24V DC |
| Recharge Time | <9 hours (from 10% to 90%) |
| Surge Protection | 480 joules, instantaneous response |

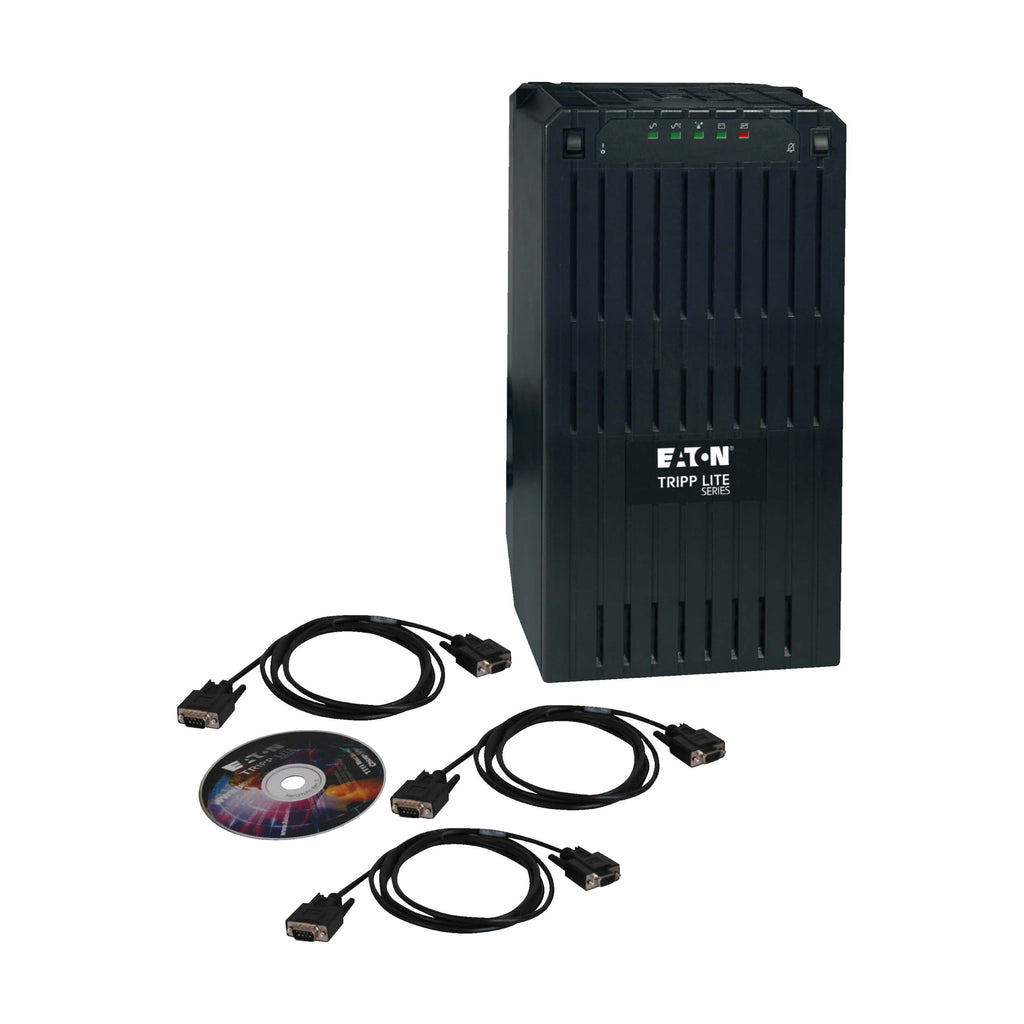

| Communication Ports | (3) DB9 (1 RS-232, 2 contact-closure) |
| Software | PowerAlert® UPS Monitoring (free download) |
| LED Indicators | Line power, battery power, overload, voltage regulation, low/replace battery |
| Audible Alarms | Power failure and low battery alerts |
| Cooling Method | Fan-cooled |
| Dimensions (H x W x D) | 17 x 9 x 13 in (432 x 229 x 330 mm) |
| Weight | 80 lbs (36.3 kg) |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Humidity | 0–95% non-condensing |
| Certifications | UL 1778, CSA, NOM, FCC Class A, RoHS |
| Warranty | 2-year standard; 3-year with registration |
| Connected Equipment Insurance | $250,000 Ultimate Lifetime Insurance (U.S., Canada & Puerto Rico) |
