Description

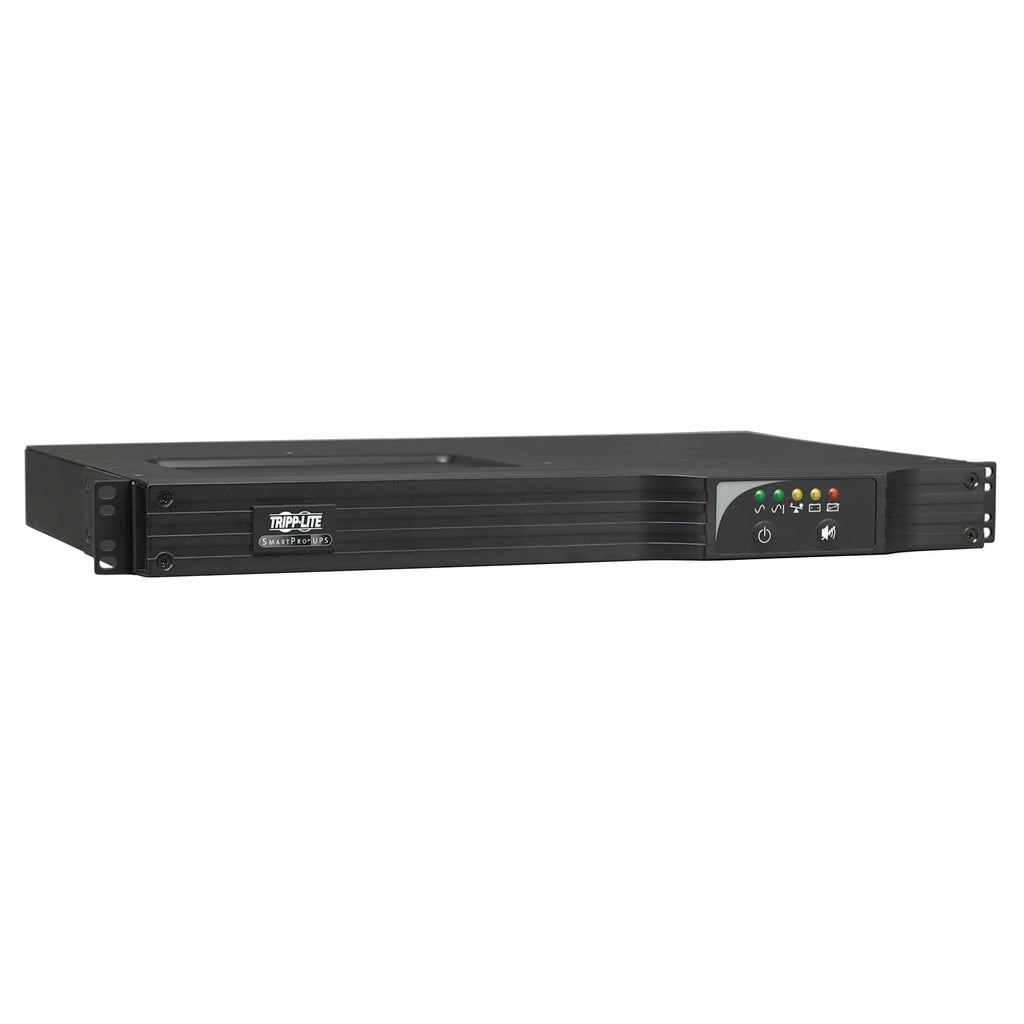

The Tripp Lite SmartPro SMART750RM1UN is a compact, line-interactive UPS designed to protect critical IT and network equipment from power disturbances. Delivering 750VA / 600W of pure sine wave output, this 1U rackmount or vertical UPS ensures stable, clean power for servers, switches, and edge network devices.
Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages without draining the battery, maximizing uptime and efficiency. The unit includes a pre-installed network management card, enabling secure remote monitoring, configuration, and control through standard web browsers and network protocols.

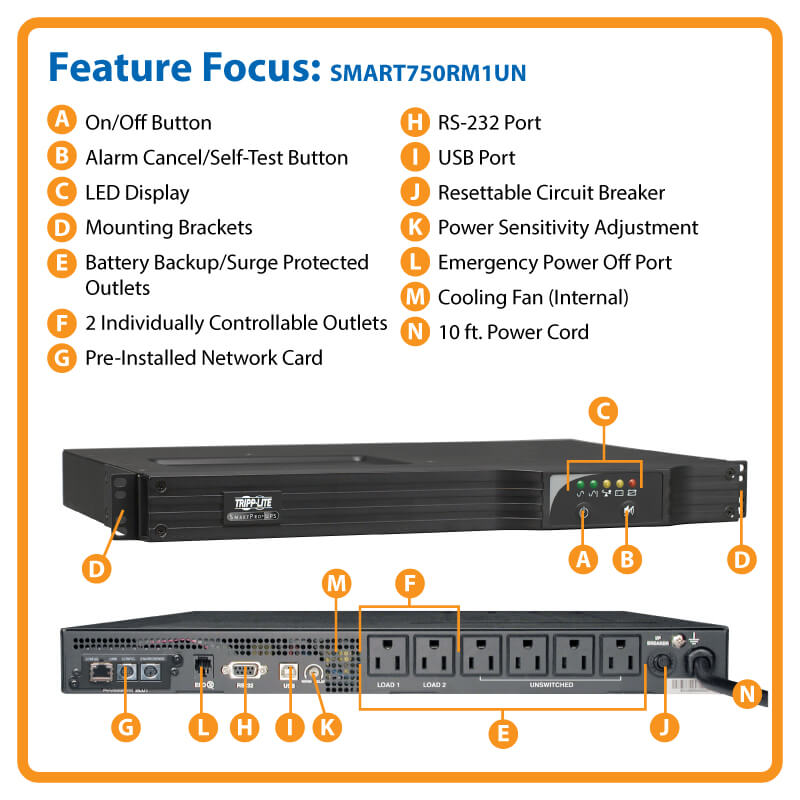

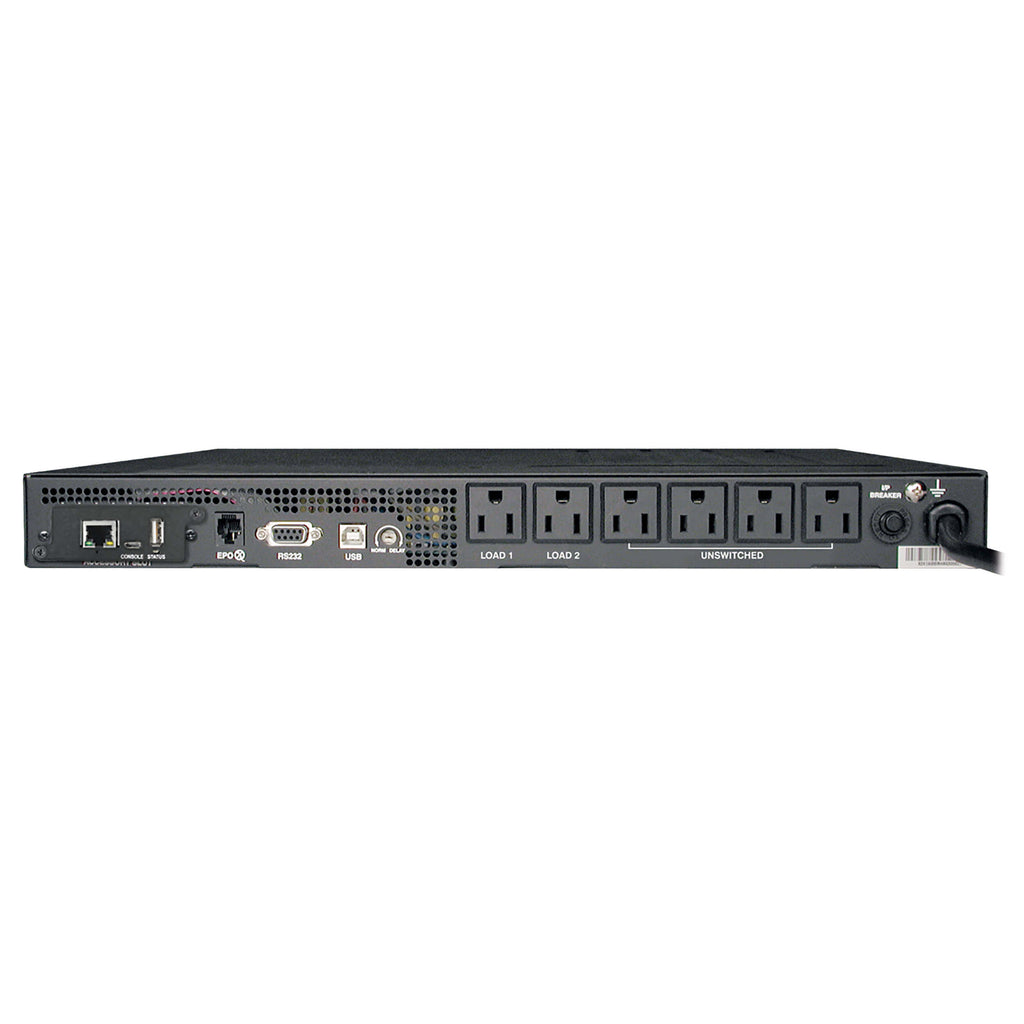

With six NEMA 5-15R outlets, dual switched load banks for remote rebooting, and hot-swappable batteries, the SMART750RM1UN is ideal for data centers, network closets, and enterprise edge environments requiring dependable, remotely managed power protection.
| Specification | Details |
|---|---|
| Brand | Tripp Lite |
| Series | SmartPro |
| Model | SMART750RM1UN |
| UPS Type | Line-Interactive |
| Capacity | 750VA / 600W |
| Power Factor | 0.8 |
| Output Waveform | Pure Sine Wave |
| Nominal Voltage | 120V AC |
| Input Voltage Range | 83V – 147V |
| Form Factor | 1U Rackmount / Vertical |
| Rack Height | 1U |
| Input Plug | NEMA 5-15P |
| Output Receptacles | 6 × NEMA 5-15R |
| Load Banks | 2 Switched Load Banks |
| Automatic Voltage Regulation | Yes |
| Transfer Time | 5 ms AC to DC |
| Battery Type | Valve-Regulated Lead Acid (VRLA) |
| Battery Access | Front, Hot-Swappable |
| Runtime (Half Load) | Approx. 13 minutes |
| Runtime (Full Load) | Approx. 5 minutes |
| Network Management | Pre-installed Network Card |
| Interfaces | USB, Serial (DB9), Network, EPO |
| Mounting Support | 2-Post & 4-Post Racks |
| Efficiency (Line Mode) | Up to 98% |
| Compliance | TAA Compliant |
| Cooling | Fan-Cooled |
| Color | Black |
