Description

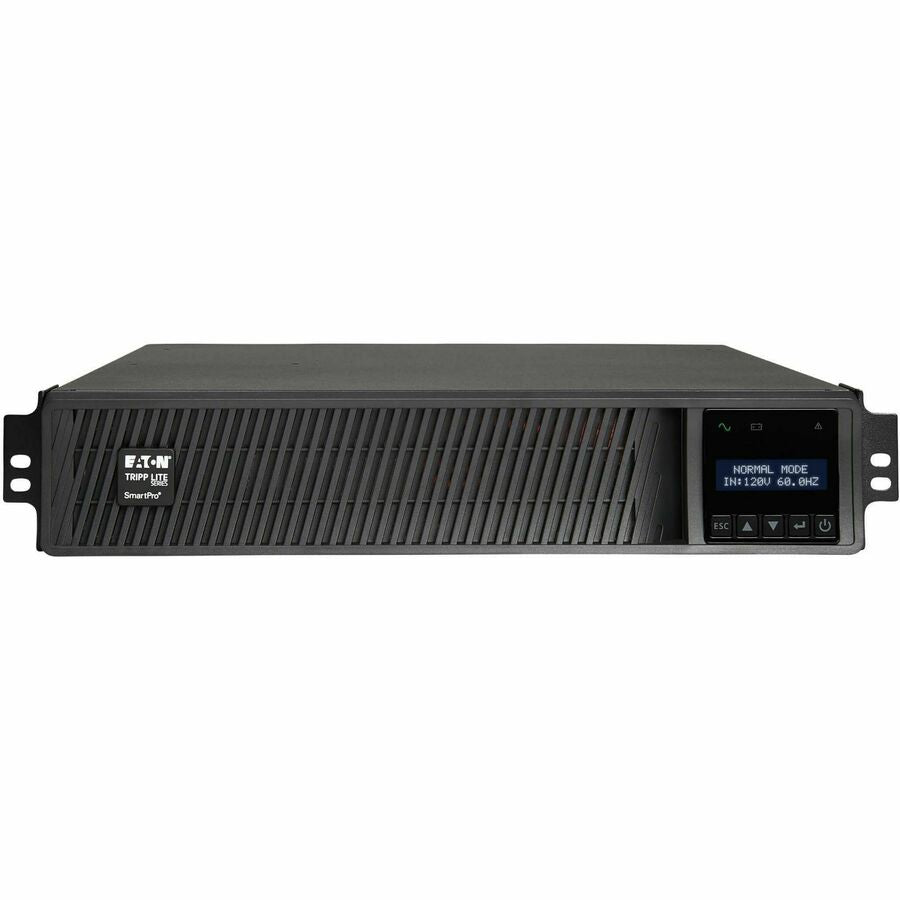

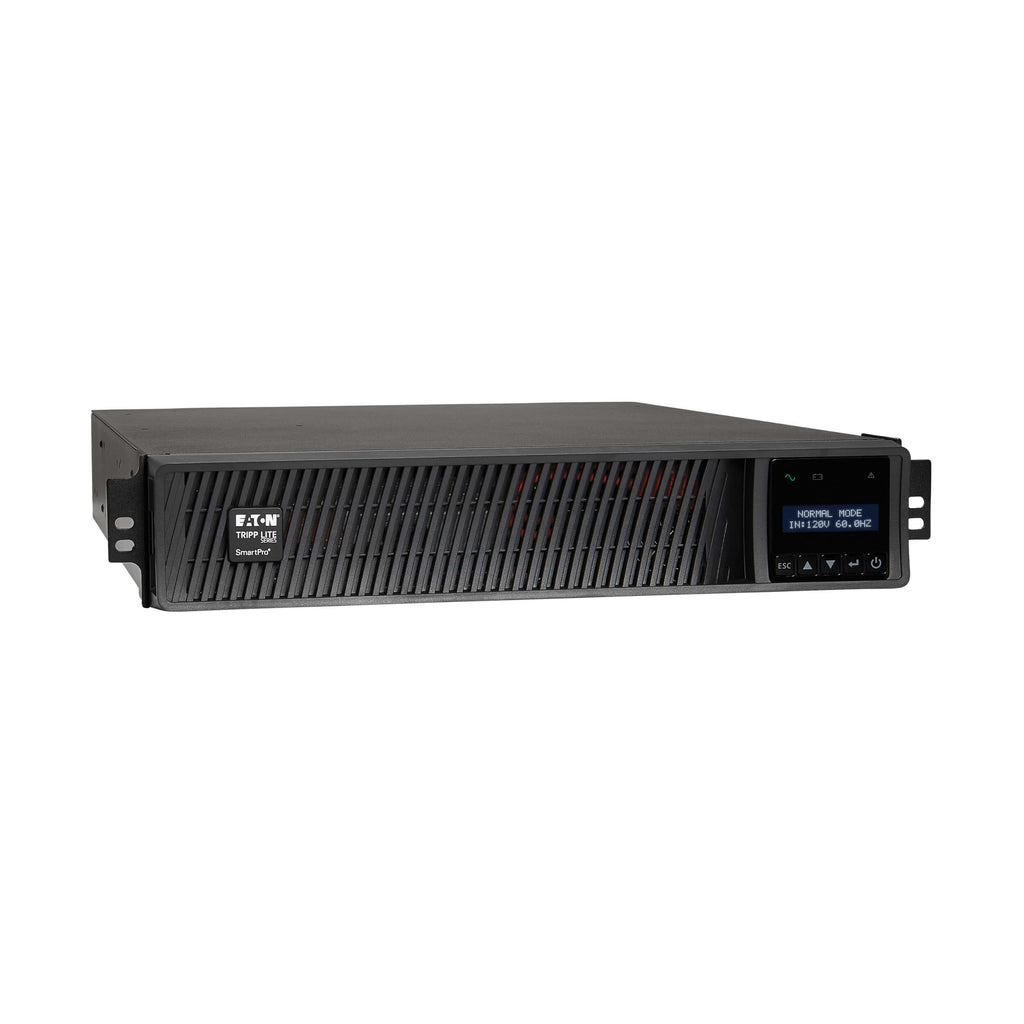

The Eaton Tripp Lite SmartPro SMART1500RMXLN is a 1440VA/1440W 120V Line-Interactive Sine Wave UPS designed for rack or tower installations. Equipped with a pre-installed WEBCARDLXE network card, this ENERGY STAR® certified UPS delivers reliable power protection for servers, VoIP systems, switches, and critical IT infrastructure. It offers 8 NEMA 5-15R outlets, automatic voltage regulation (AVR), hot-swappable batteries, and extended runtime support with up to four external BP48VRM2U battery packs (sold separately). The intuitive LCD panel, intelligent load shedding, remote management, and clean sine wave output make it an ideal choice for enterprise and telecom environments.
| Feature | Details |
|---|---|
| Model Number | SMART1500RMXLN |
| UPS Type | Line-Interactive |
| Power Capacity | 1440VA / 1440W (Unity Power Factor) |
| Input Voltage | 120V AC |
| Input Plug Type | NEMA 5-15P |
| Input Cord Length | 10 ft (3.1 m) |
| Output Voltage | 120V nominal |

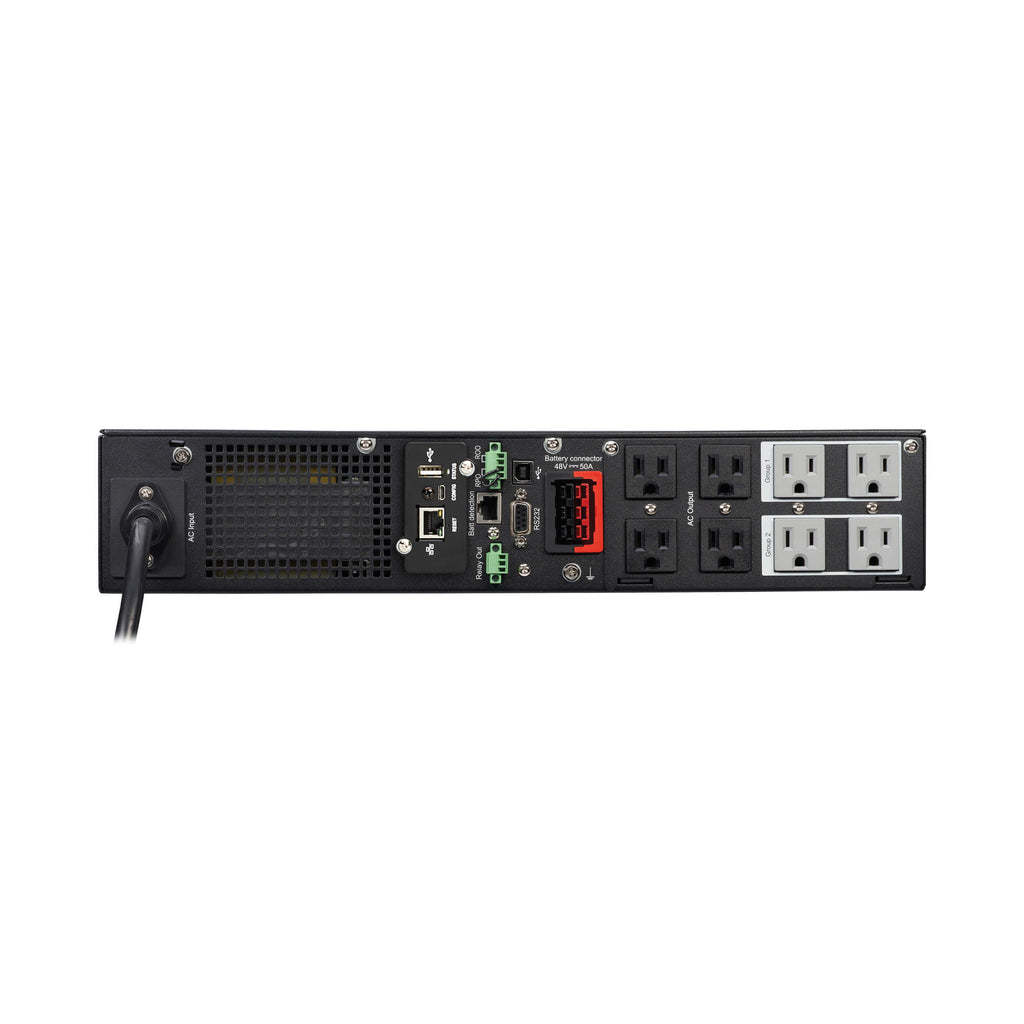

| Output Receptacles | 8 x NEMA 5-15R |
| Waveform | Pure Sine Wave (Battery Mode) |
| Load Management | 2 individually controllable outlet banks |
| Runtime (Full/Half Load) | 5.1 min (1440W) / 15.1 min (720W) |
| Expandable Runtime | Yes, with up to 4x BP48VRM2U external batteries |
| Battery Type | Hot-swappable, user-replaceable 48V VRLA |
| Network Management | Included WEBCARDLXE; SNMP, NUT, USB, RS-232 |
| Display | 2-line LCD with 10 selectable screens |
| Rack Height | 2U |

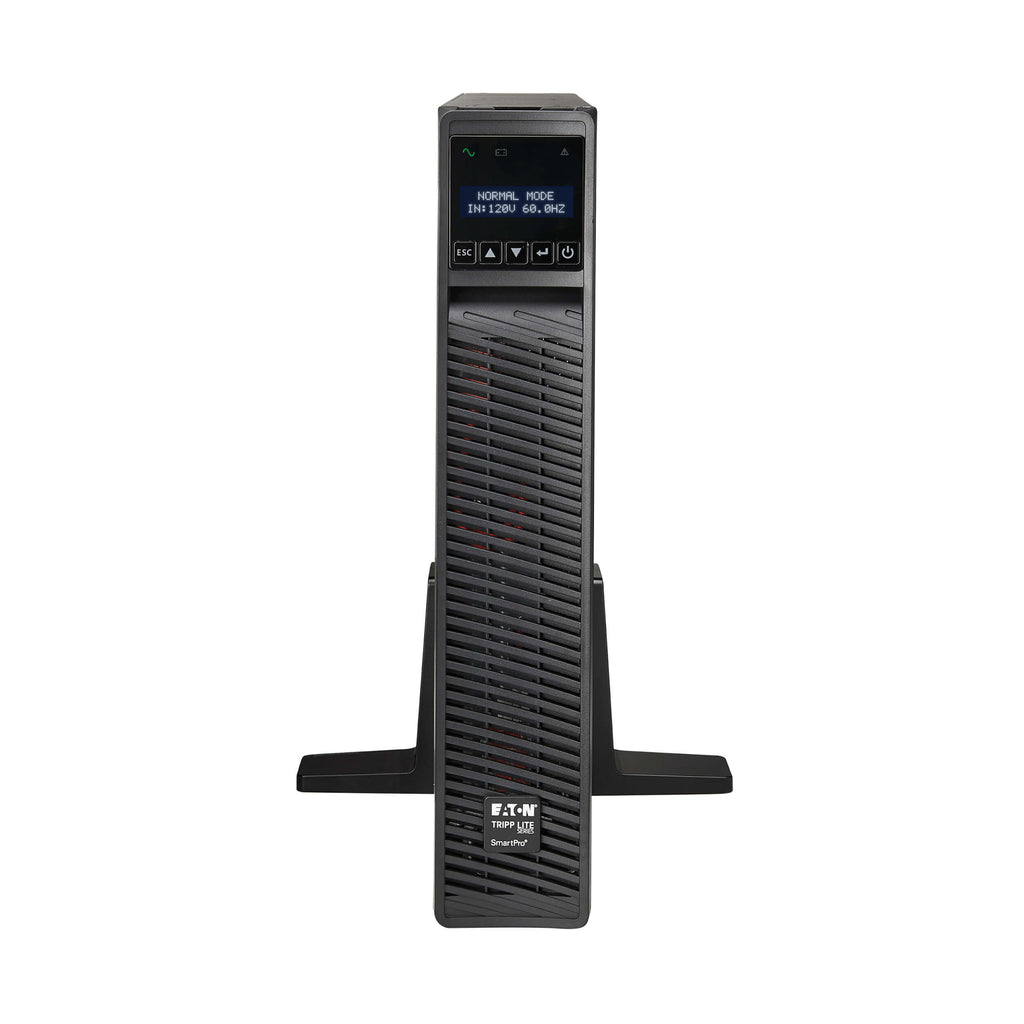

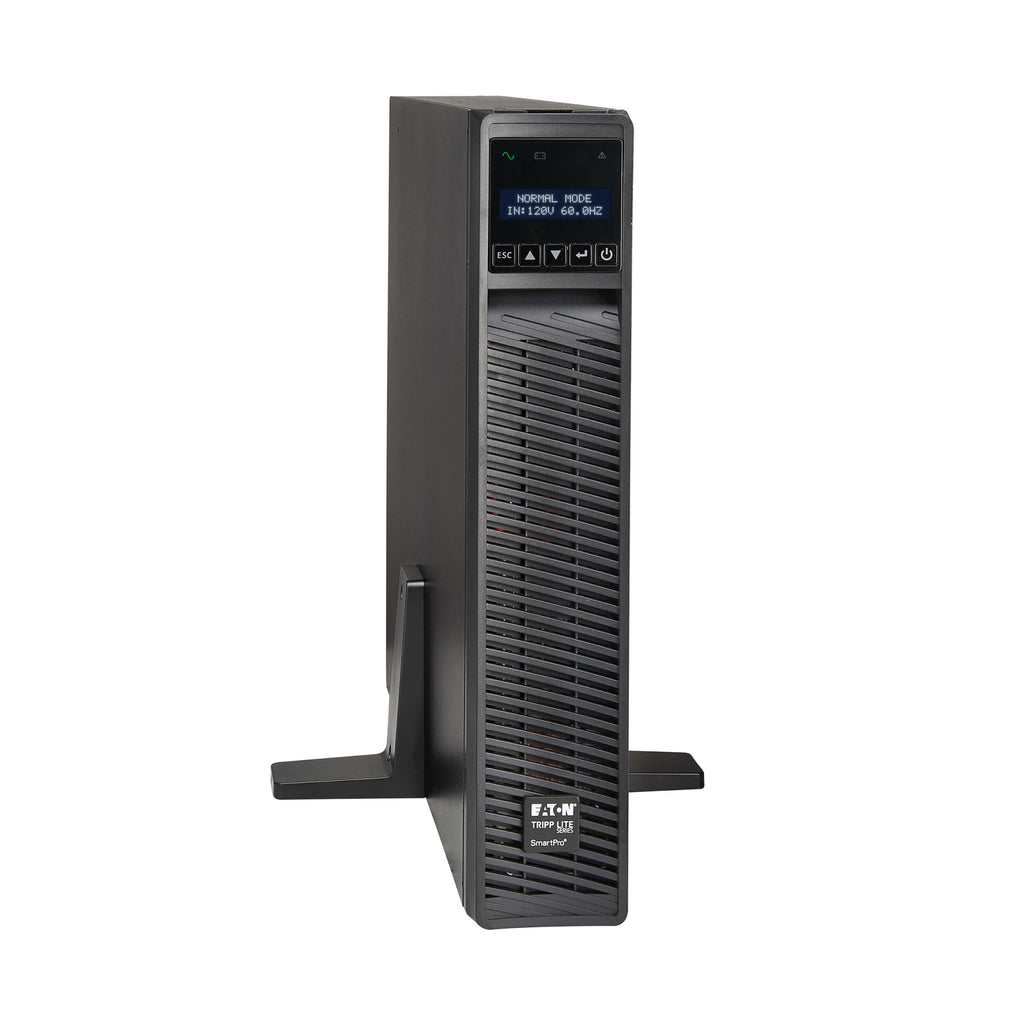

| Mounting Options | 4-post rack, Tower (with stands) |
| Dimensions (HxWxD) | 3.45 x 17.2 x 17.6 in (8.76 x 43.69 x 44.70 cm) |
| Weight | 50.7 lbs (23 kg) |
| Efficiency | Up to 96% (AC mode) |
| Certifications | ENERGY STAR 2.0, UL 1778, CSA, RoHS |
| Warranty | 2 years standard (3 years with registration) |
