Description

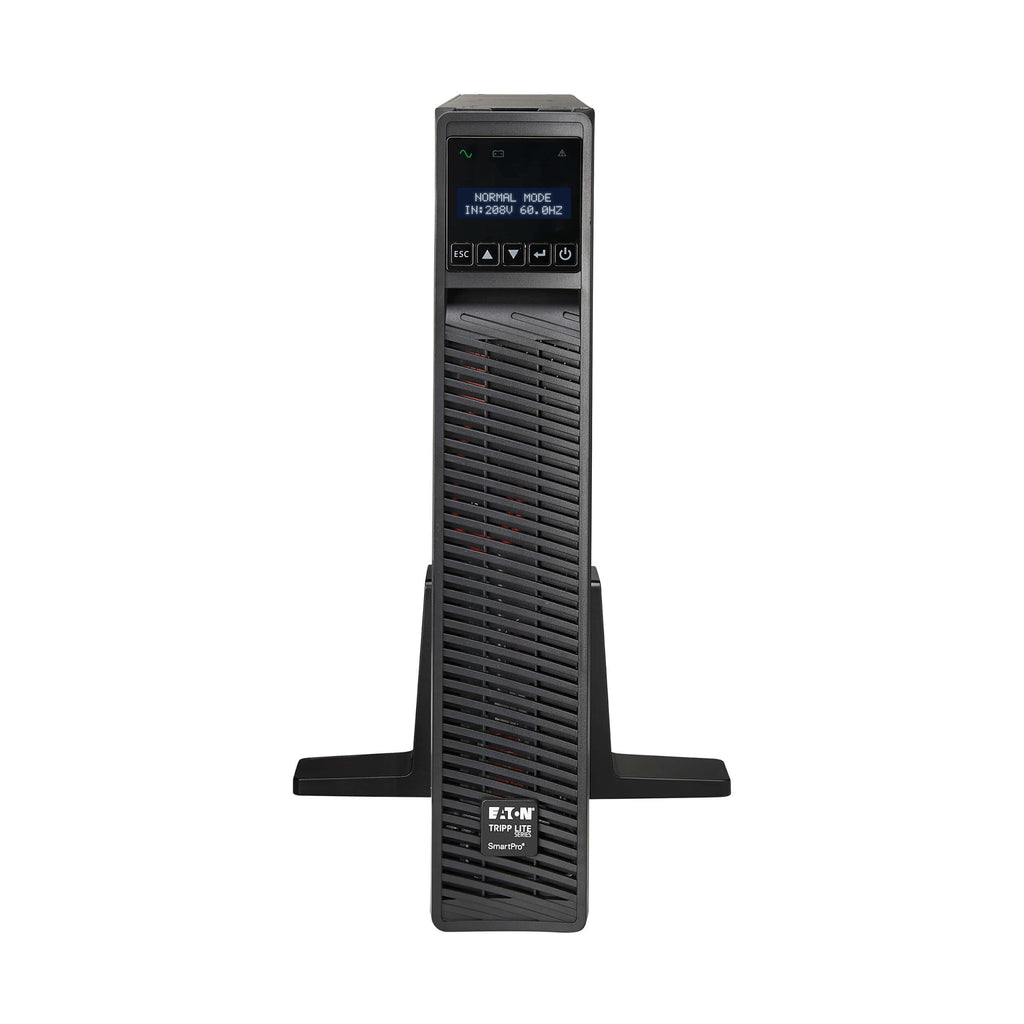

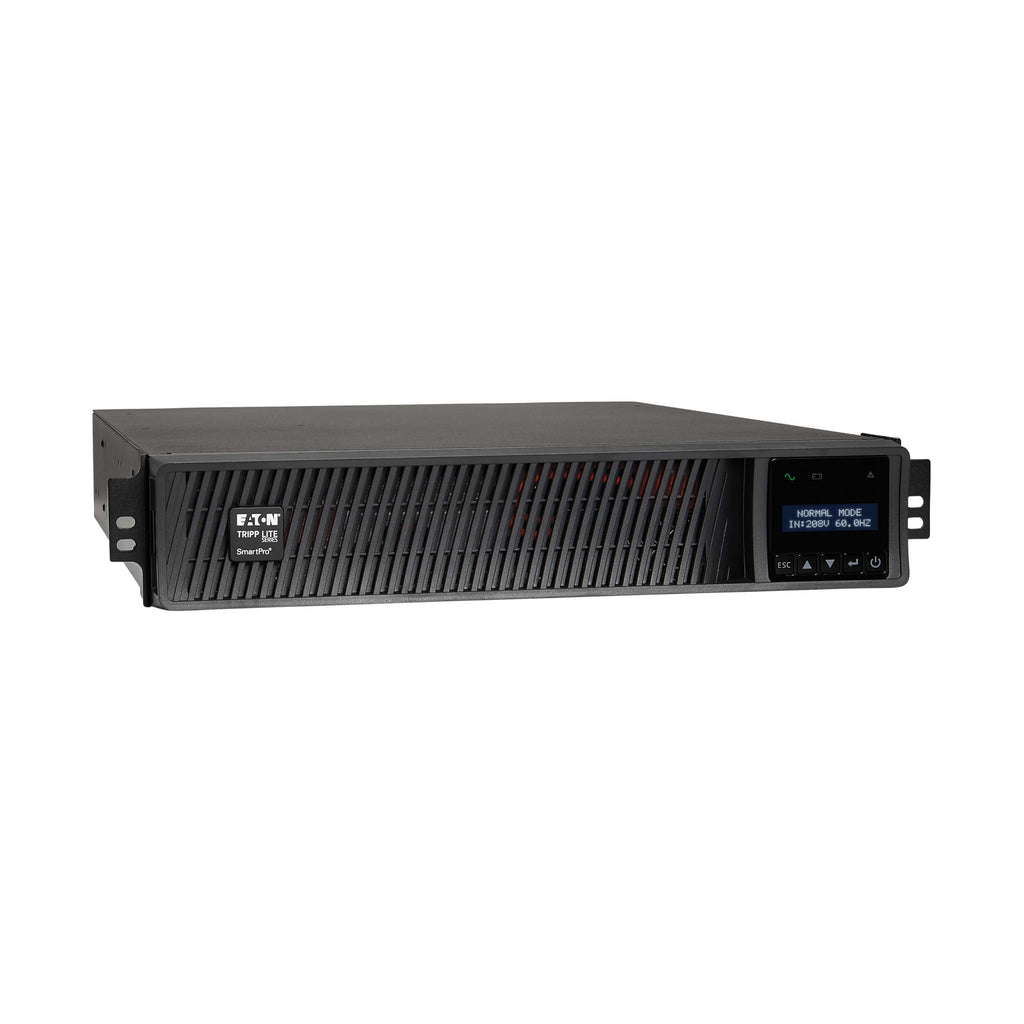

The Eaton Tripp Lite SmartPro SMX1500XLRT2UN provides premium power protection and battery backup for distributed IT, telecom, and enterprise environments. Designed for servers, switches, VoIP systems, and storage equipment, this line-interactive 1500VA/1500W UPS delivers pure sine wave output, ensuring reliable performance and minimal downtime during blackouts, brownouts, or voltage fluctuations.

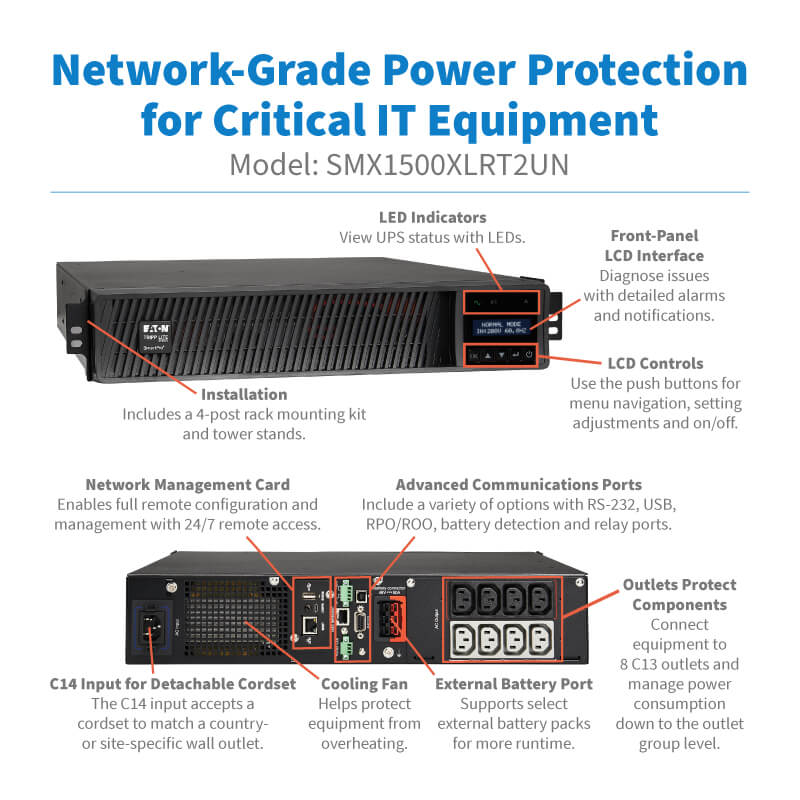

Equipped with Automatic Voltage Regulation (AVR), it stabilizes input power without depleting the battery, while the pre-installed WEBCARDLXE allows for 24/7 remote monitoring and management. The system includes eight C13 outlets (two programmable load banks) and supports extended battery runtime with up to four optional BP48VRM2U external battery packs.
Its ENERGY STAR® certification ensures high operational efficiency, while the LCD interface and intuitive controls simplify power management. Featuring hot-swappable VRLA batteries, USB/DB9 connectivity, and rack/tower versatility, the SMX1500XLRT2UN is ideal for mission-critical environments demanding dependable uptime and control.
| Category | Details |
|---|---|
| Brand | Eaton Tripp Lite |
| Model | SMX1500XLRT2UN |
| UPS Type | Line-Interactive Sine Wave UPS |
| Capacity | 1500VA / 1500W |
| Input Voltage | 208V AC |
| Input Connection | IEC320 C14 |
| Output Voltage | 200V / 208V / 220V / 230V / 240V |

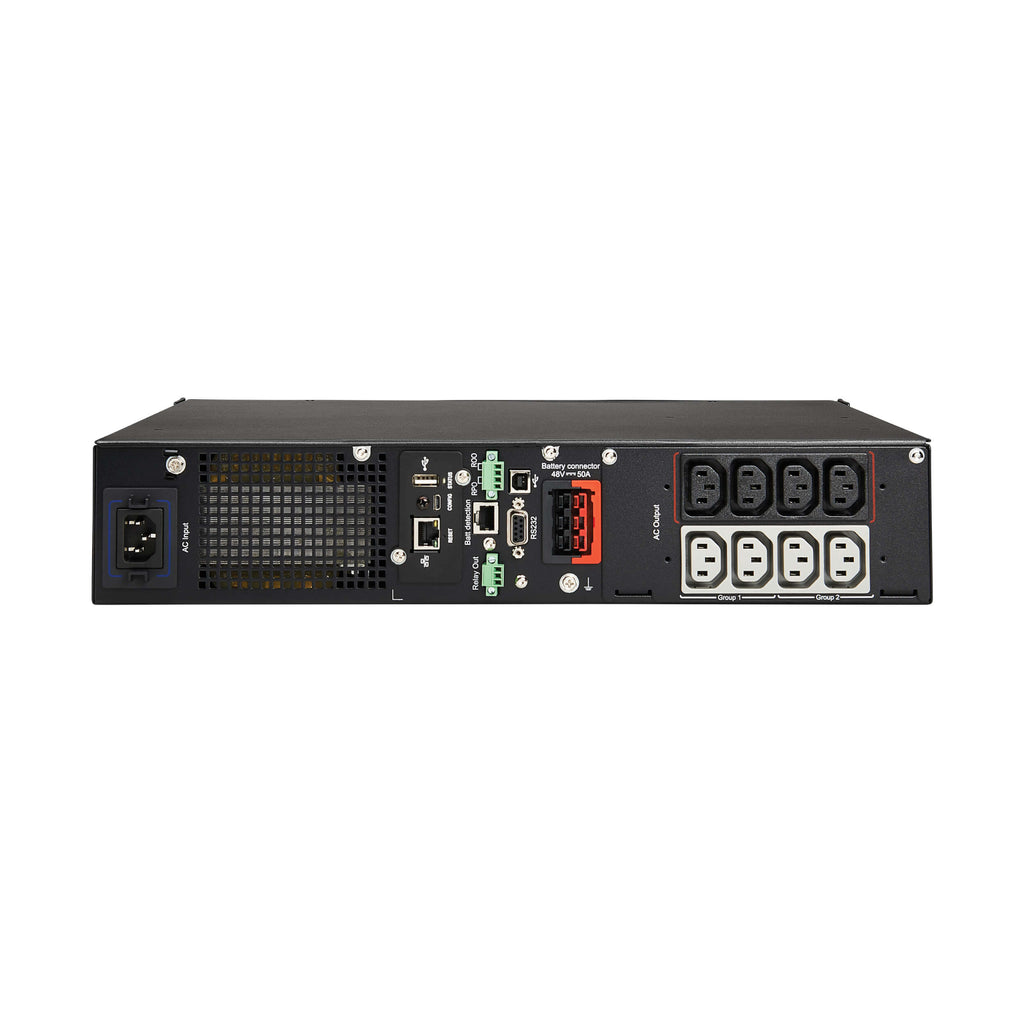

| Output Receptacles | 8 × IEC C13 (2 programmable load banks) |
| Power Factor | 1.0 |
| AVR Range | Maintains 208V nominal during 160–294V input |
| Waveform | Pure Sine Wave (on battery) |
| Battery Type | Hot-swappable Valve-Regulated Lead Acid (VRLA) |
| Runtime | 5 minutes (full load) / 14 minutes (half load) |
| Expandable Runtime | Yes, up to 4 × BP48VRM2U battery packs |
| Recharge Time | < 4.5 hours (from 10% to 90%) |
| Network Management | Pre-installed WEBCARDLXE for SNMP/HTTP monitoring |
| Interfaces | USB, DB9 Serial, RJ45, Dry Contact, EPO/ROO |
| Efficiency | 98% (AC mode) |
| Noise Level | 45 dBA max (at 1m) |
| Cooling | Dual front/rear fans |

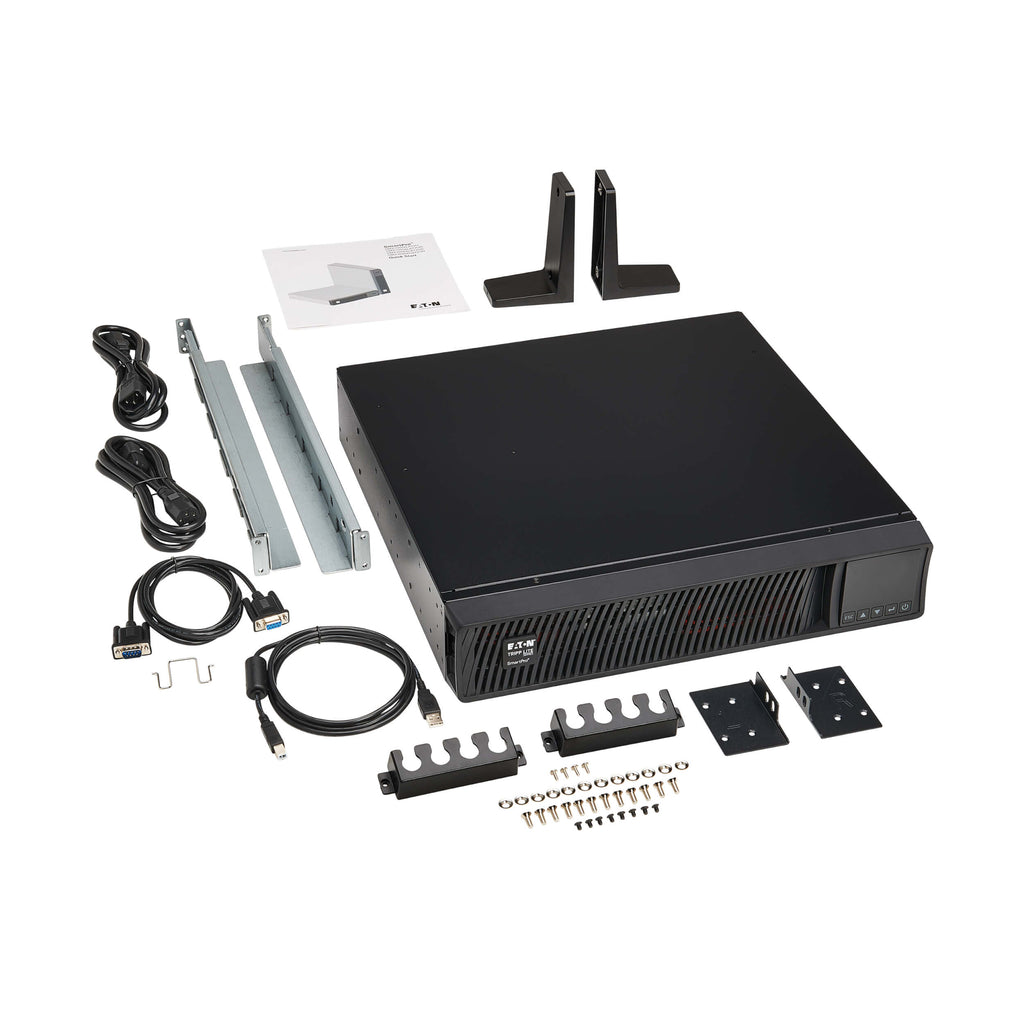

| Form Factor | 2U Rackmount / Tower (brackets & stands included) |
| Dimensions (HxWxD) | 3.4 × 17.2 × 17.6 in (86 × 437 × 447 mm) |
| Weight | 49.4 lbs (22.4 kg) |
| Operating Temperature | 0°–40°C |
| Certifications | UL 1778, ENERGY STAR 2.0, CE, RoHS, FCC Class A |
| Warranty | 2 years standard, 3 years with registration |
