Description

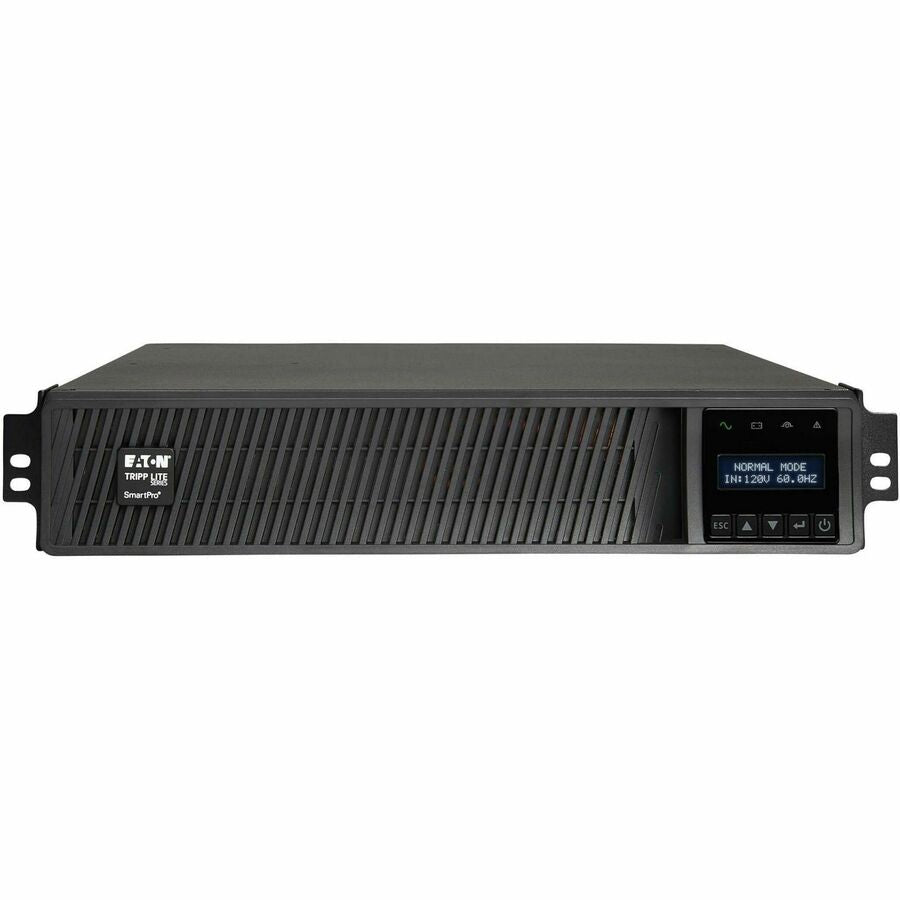

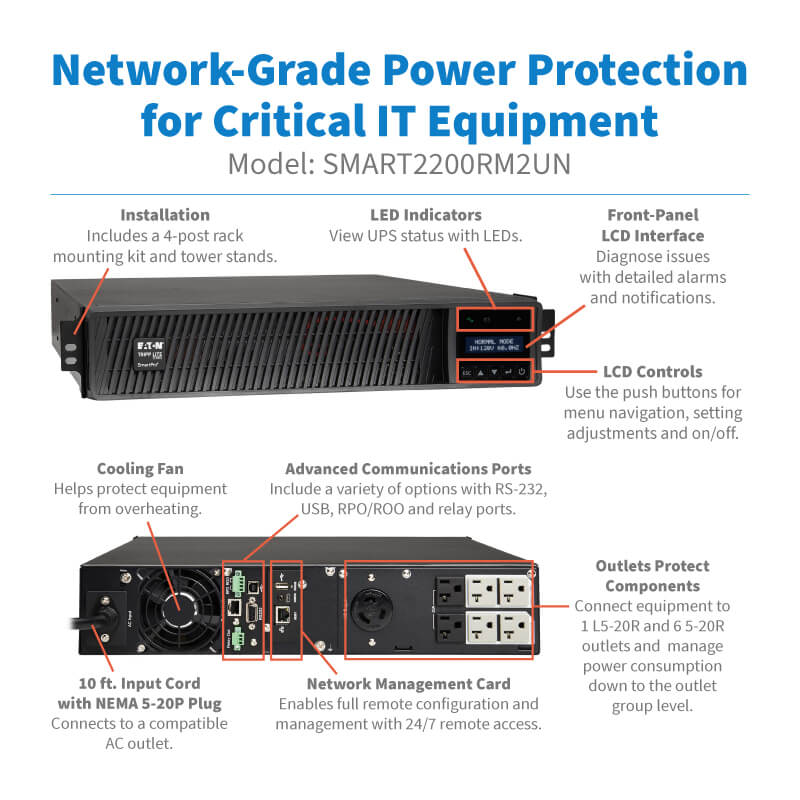

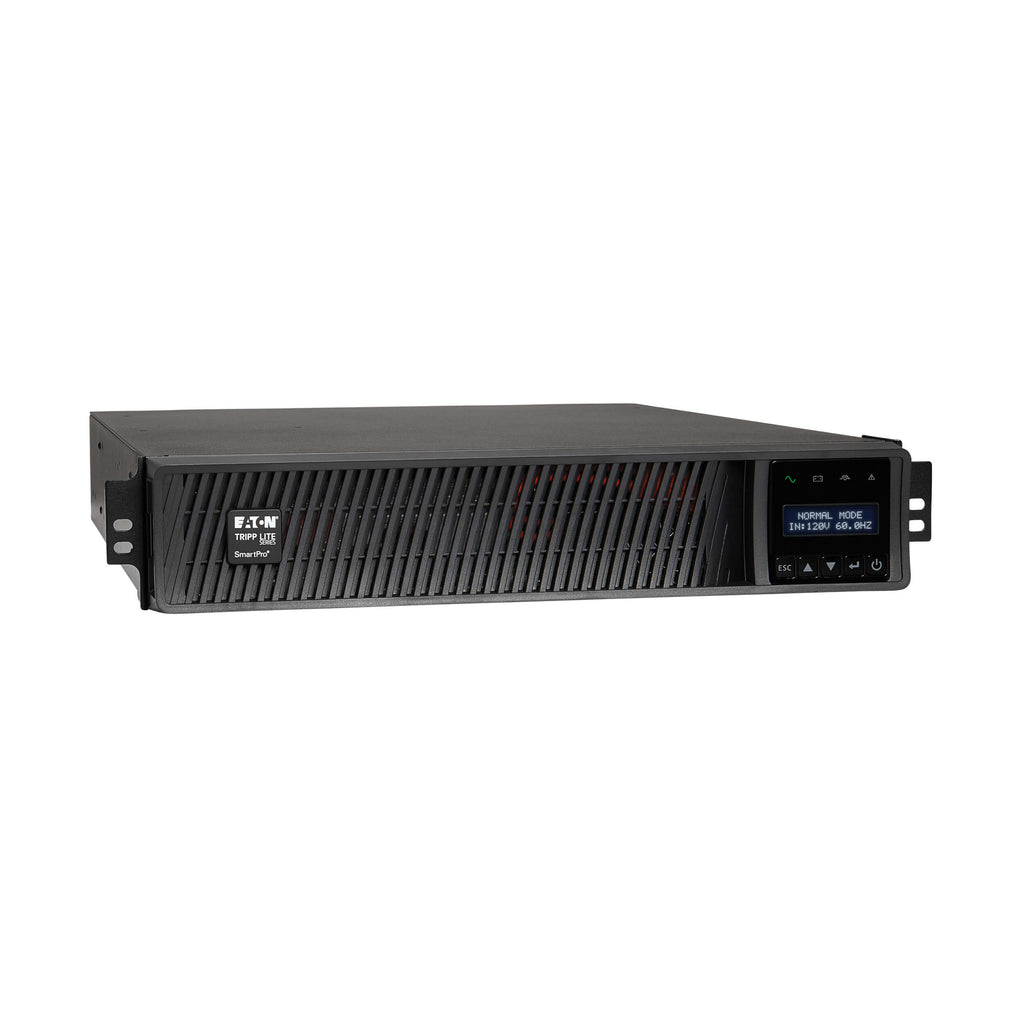

The Eaton Tripp Lite series SMART2200RM2UN delivers reliable power protection and high efficiency in a compact 2U rack/tower design. With 1950VA/1950W output, pure sine wave delivery, and advanced line-interactive technology, this UPS is ideal for safeguarding servers, network equipment, and telecom gear. It features a pre-installed LX network card for 24/7 remote access, LCD interface, AVR, and individually switchable load banks for optimized energy control. Designed with internal hot-swappable VRLA batteries and automatic voltage regulation, it provides continuous uptime and seamless transitions during outages.
Ideal for enterprise IT environments, this UPS also includes USB, DB9, and dry-contact communication ports, as well as comprehensive EMI/RFI noise filtering and surge suppression to ensure peak performance and equipment protection.
| Category | Details |
|---|---|
| Model Number | SMART2200RM2UN |
| UPS Type | Line-Interactive |
| Output Capacity | 1950VA / 1950W (Unity Power Factor) |
| Input Voltage Range | 80V to 151V (adjustable to 70V–153V) |
| Nominal Output Voltage | 120V (Selectable: 100V, 110V, 120V, 125V) |
| Output Waveform | Pure Sine Wave (AC and Battery Mode) |
| Outlets | 6 x NEMA 5-20R, 1 x NEMA L5-20R |
| Load Banks | 2 individually switchable (2x 5-20R each) |

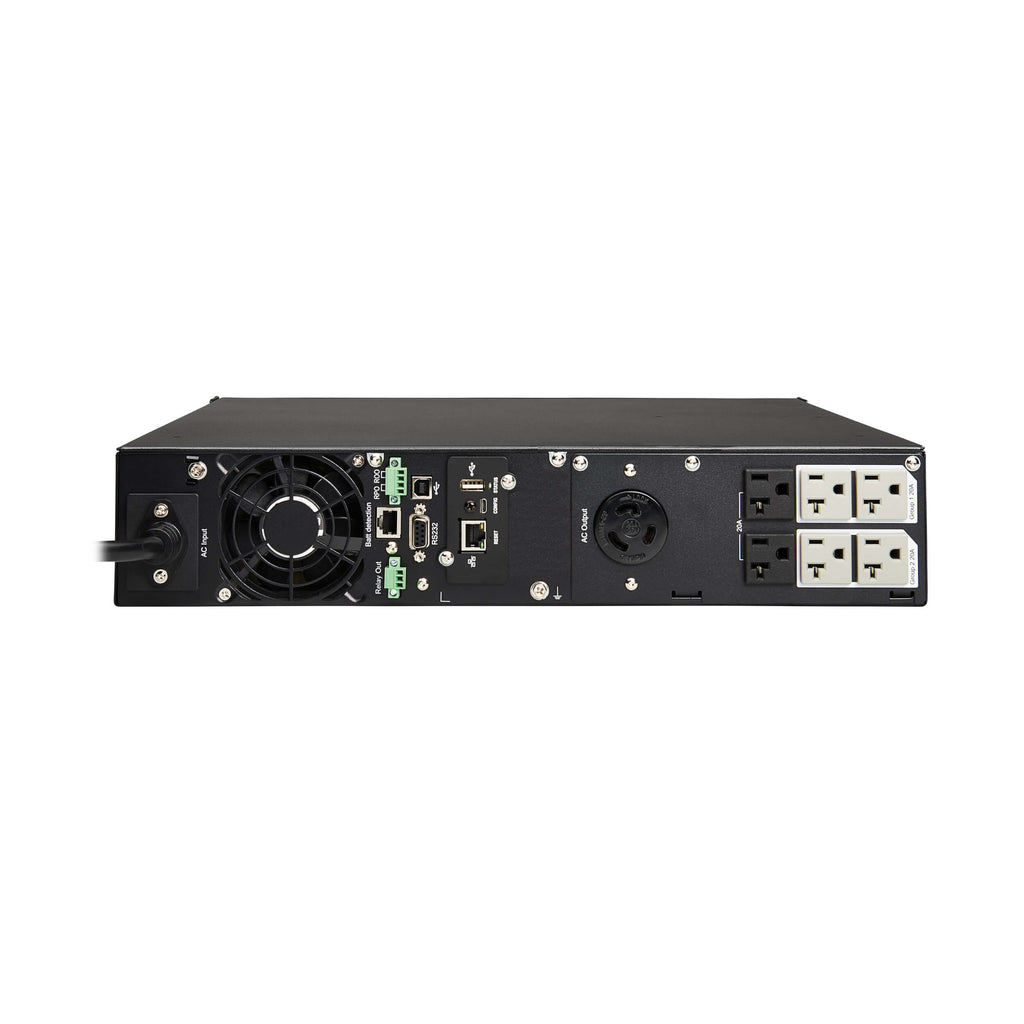

| Interface Ports | USB, DB9 Serial, RJ45, Micro-USB, Dry Contact, EPO/ROO |
| Network Management | Pre-installed WEBCARDLXE (SNMP v1/v2c/v3 compatible) |
| Runtime @ Full Load | ~4 minutes (1950W) |
| Runtime @ Half Load | ~12 minutes (975W) |
| Battery Type | Internal, Hot-swappable VRLA (72VDC) |
| Battery Replacement | RBC94-2U (pre-Feb 2023), 744-A4852 (post-Feb 2023) |
| Voltage Regulation | AVR corrects undervoltage to 102V, overvoltage to 132V |

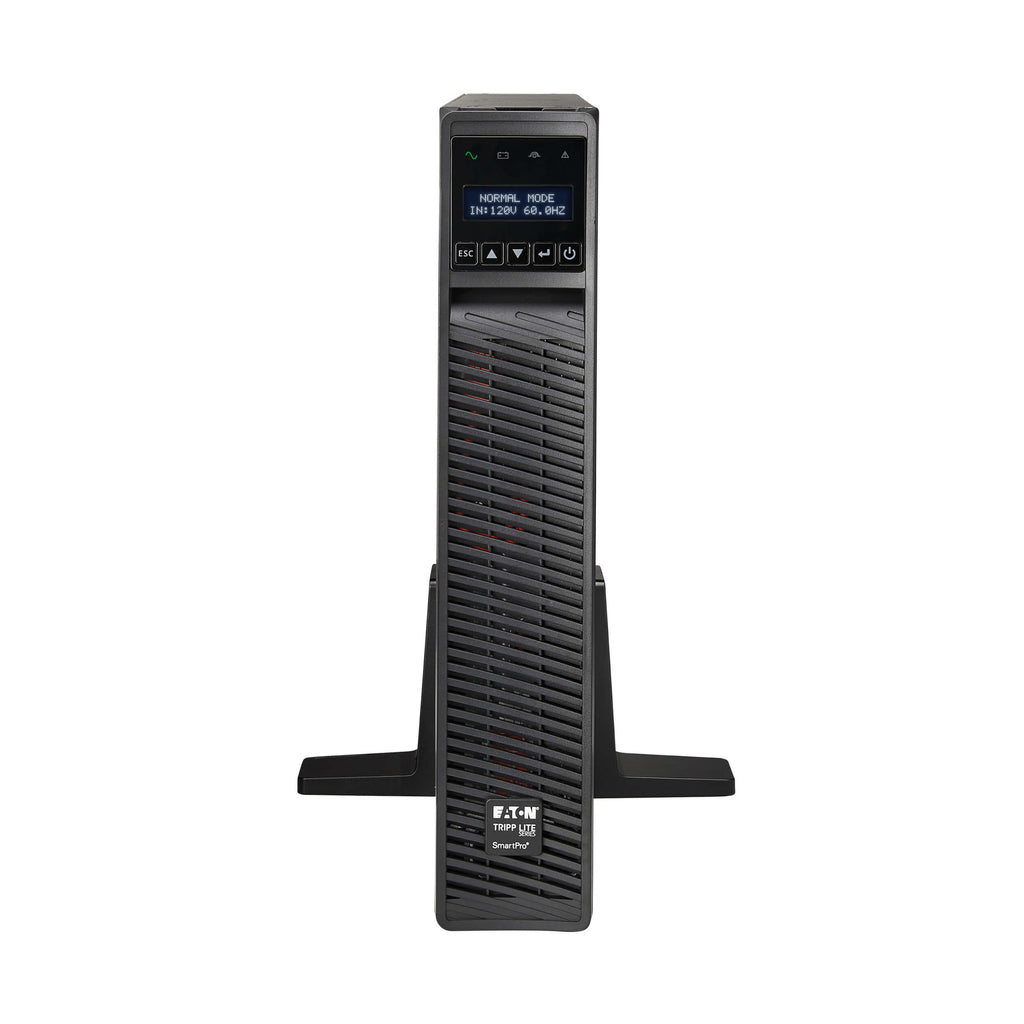

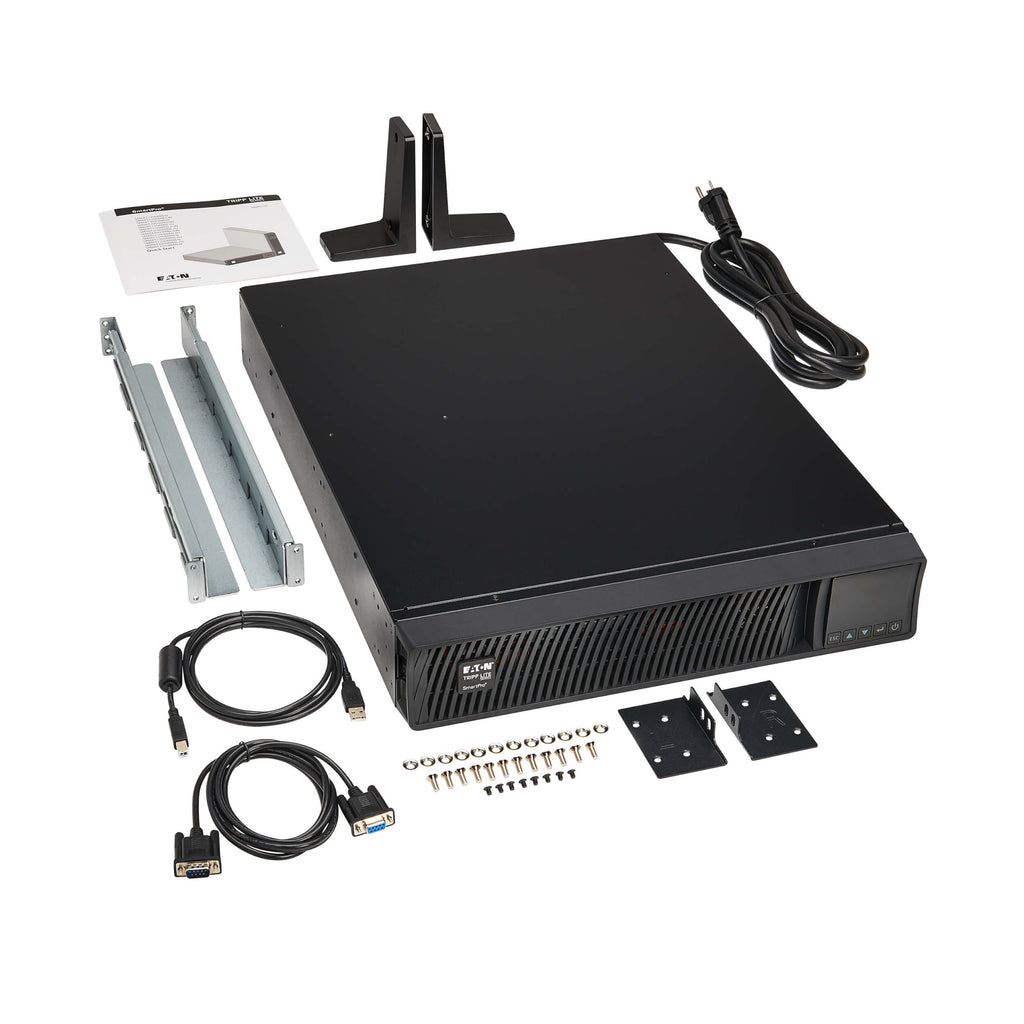

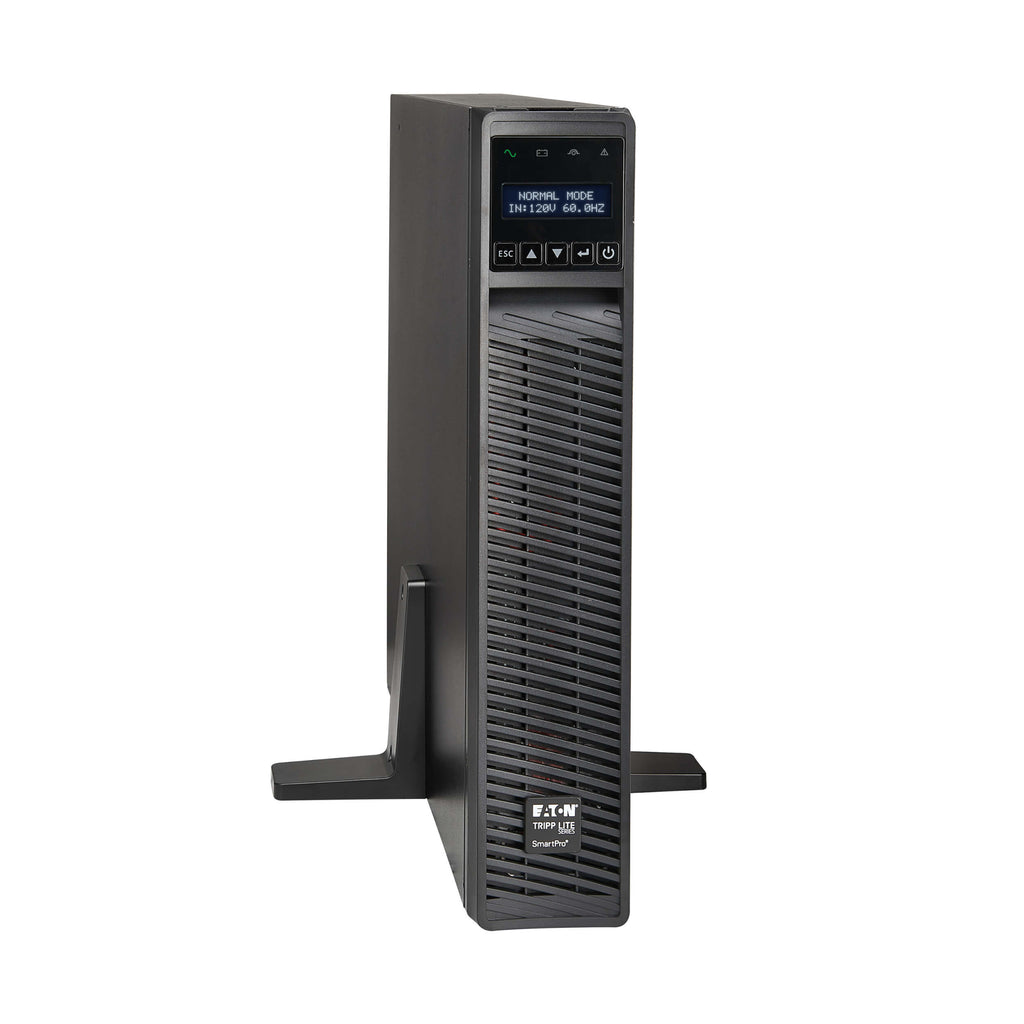

| Form Factor | 2U Rackmount / Tower (mounting hardware included) |
| Dimensions (HWD) | 3.4 x 17.2 x 23.7 in (86 x 437 x 602 mm) |
| Unit Weight | 65.3 lb (29.62 kg) |
| Operating Temp. Range | 32°F to 104°F (0°C to 40°C) |
| Certifications | UL 1778, CSA, NOM, RoHS, FCC Part 15 Class A |
| Warranty | 2 years standard, 3 years with registration |
| Insurance Coverage | $250,000 Ultimate Lifetime Insurance (U.S., Canada, Puerto Rico) |
