Description

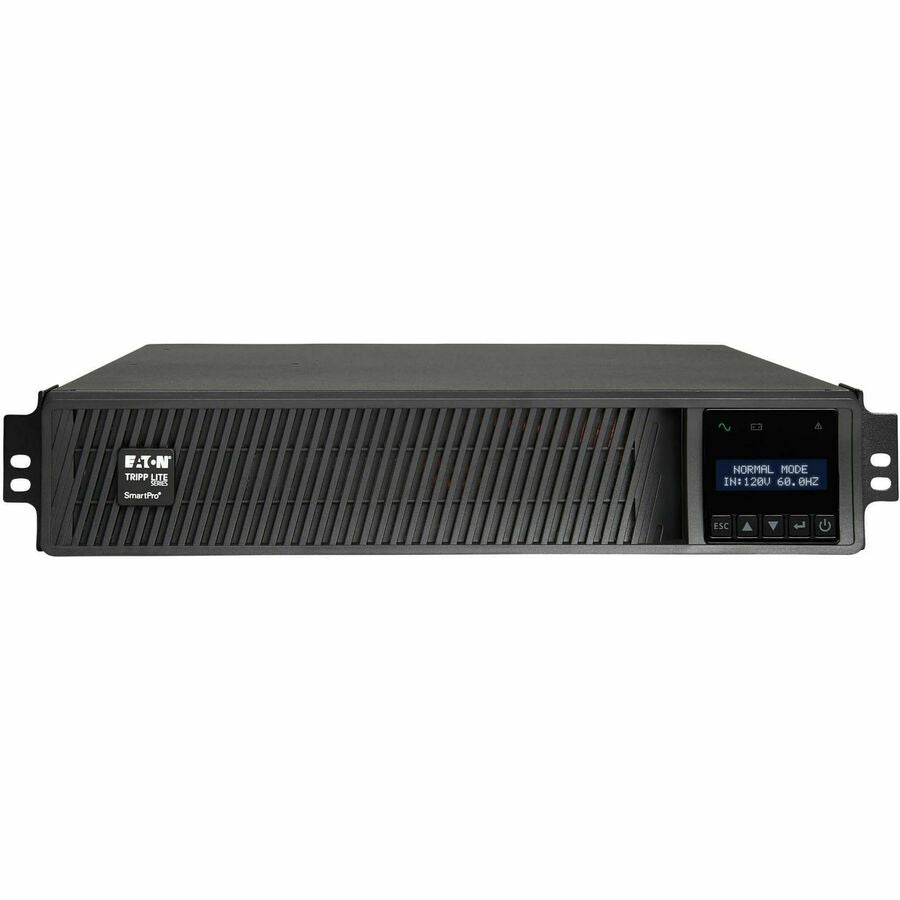

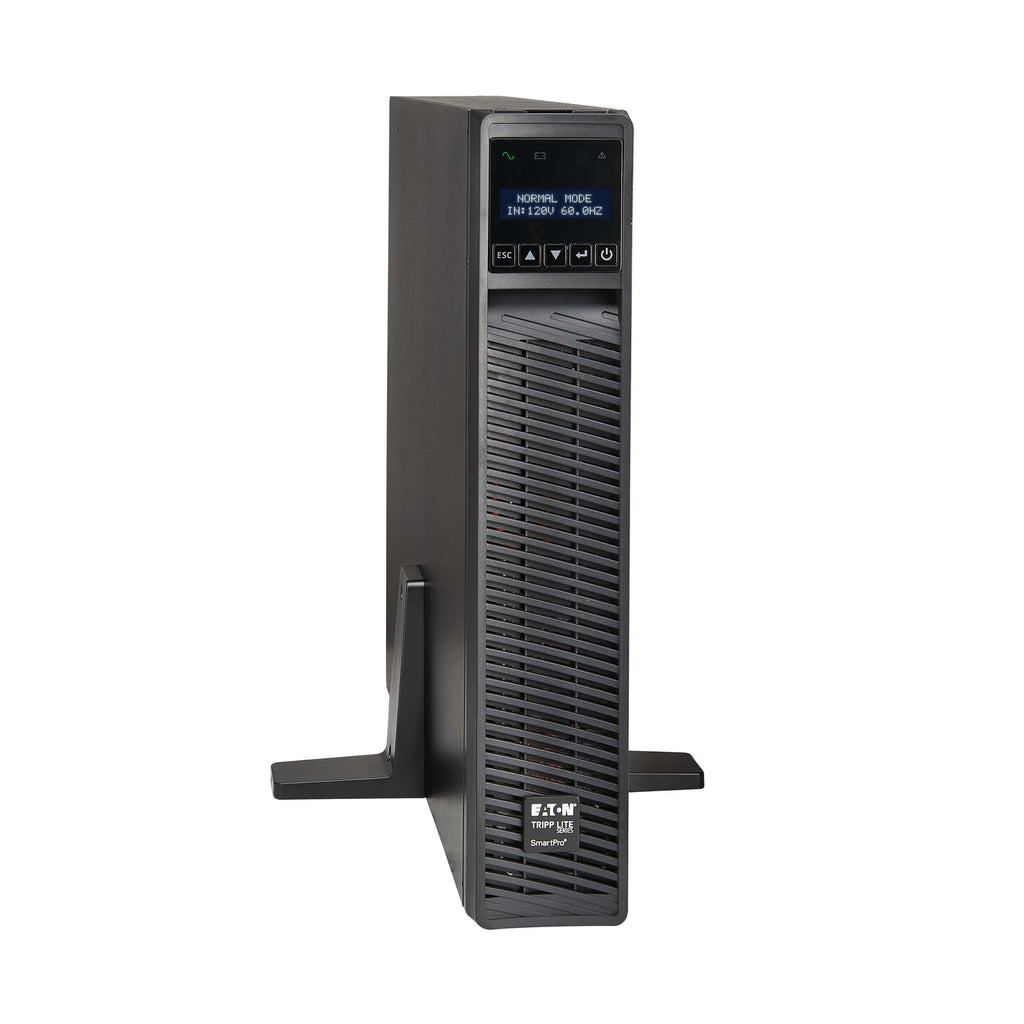

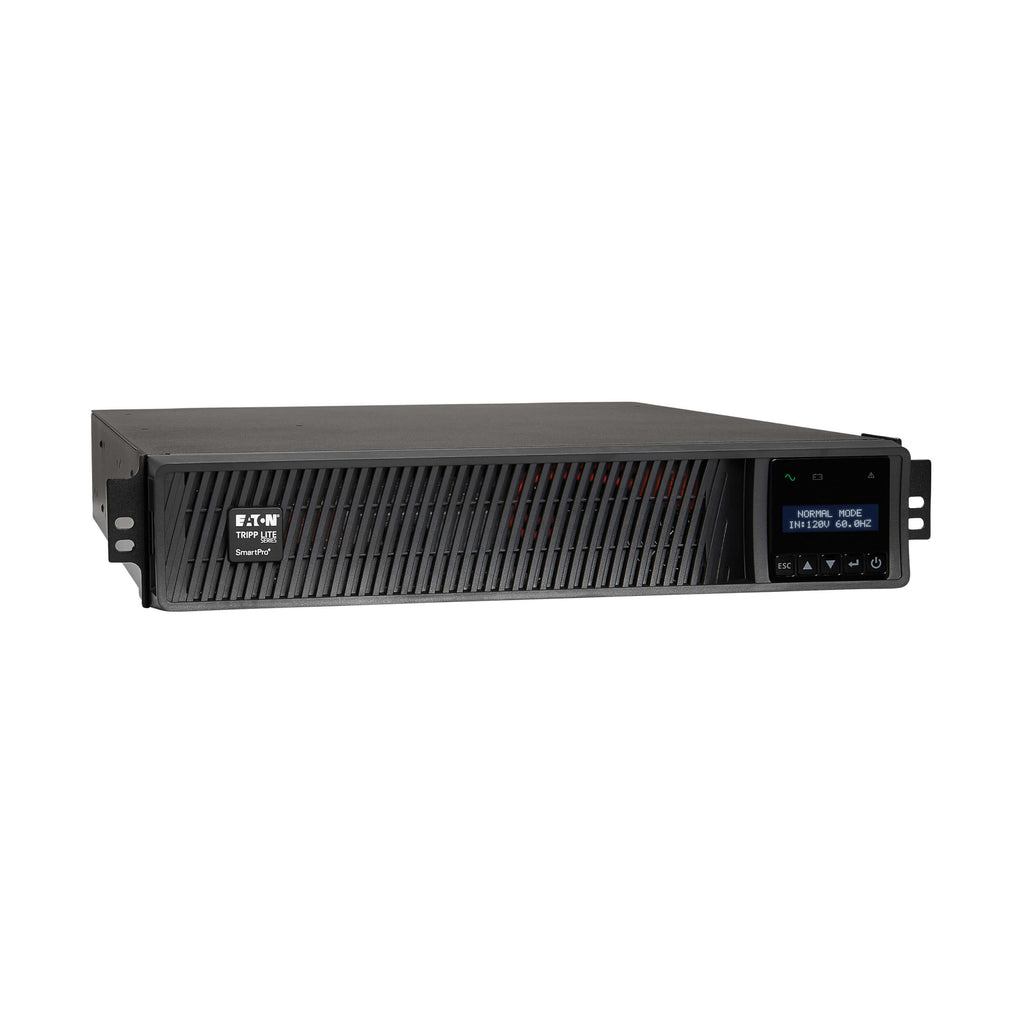

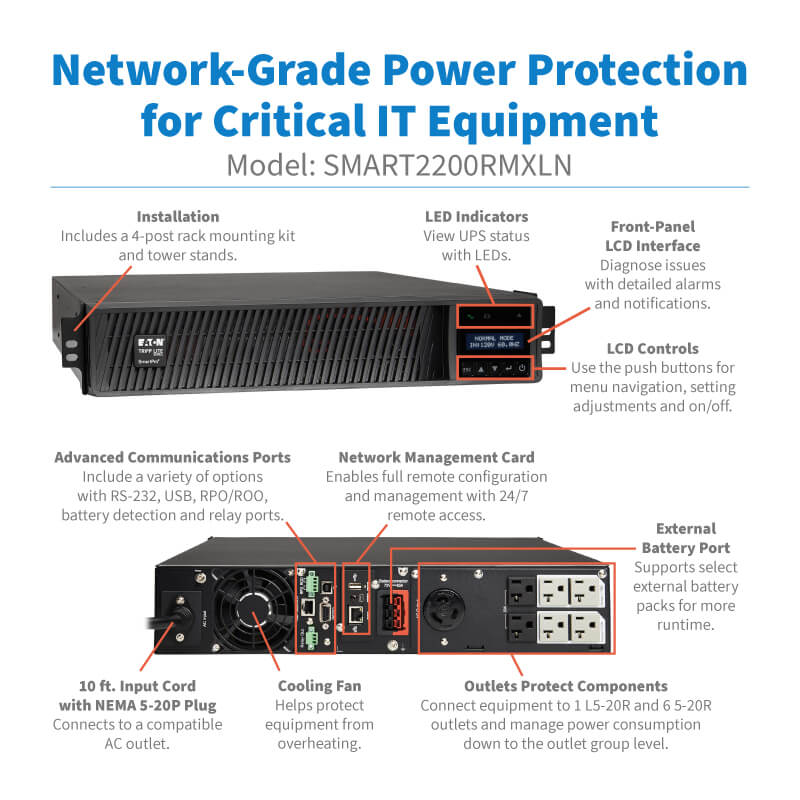

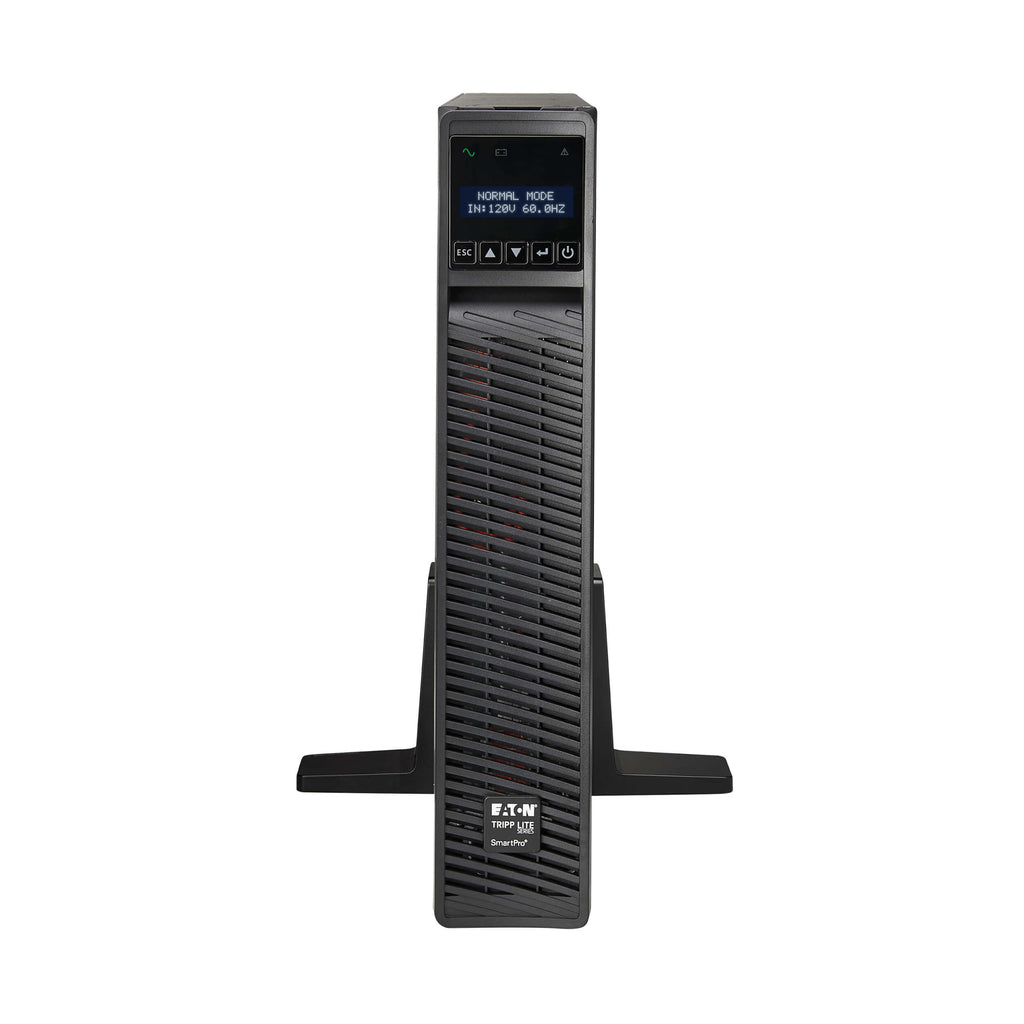

The Eaton Tripp Lite SmartPro SMART2200RMXLN is a 2U rack/tower line-interactive UPS system that delivers reliable 1950VA/1950W pure sine wave backup power to protect your critical IT systems. Designed for enterprise and telecom applications, this ENERGY STAR® 2.0-certified UPS guards against blackouts, surges, brownouts, and EMI/RFI line noise. It features Automatic Voltage Regulation (AVR), hot-swappable batteries, and an advanced LCD panel for monitoring and configuration.
Equipped with a pre-installed WEBCARDLXE network interface, this UPS allows remote management and graceful shutdown of connected equipment. Runtime can be extended with up to four external battery packs (BP72VRM2U). It includes seven outlets (6 × 5-20R, 1 × L5-20R) and supports programmable load shedding via two load banks. Ideal for high-density rack environments, this unit ensures high availability and flexibility for modern IT infrastructures.
| Specification | Details |
|---|---|
| Model Number | SMART2200RMXLN |
| UPS Type | Line-Interactive, Pure Sine Wave |
| Form Factor | 2U Rack/Tower Convertible |
| Capacity | 1950VA / 1950W |
| Input Voltage | 120V AC |
| Input Connection | NEMA 5-20P (10 ft cord) |
| Output Voltage | 100V / 110V / 120V / 125V |

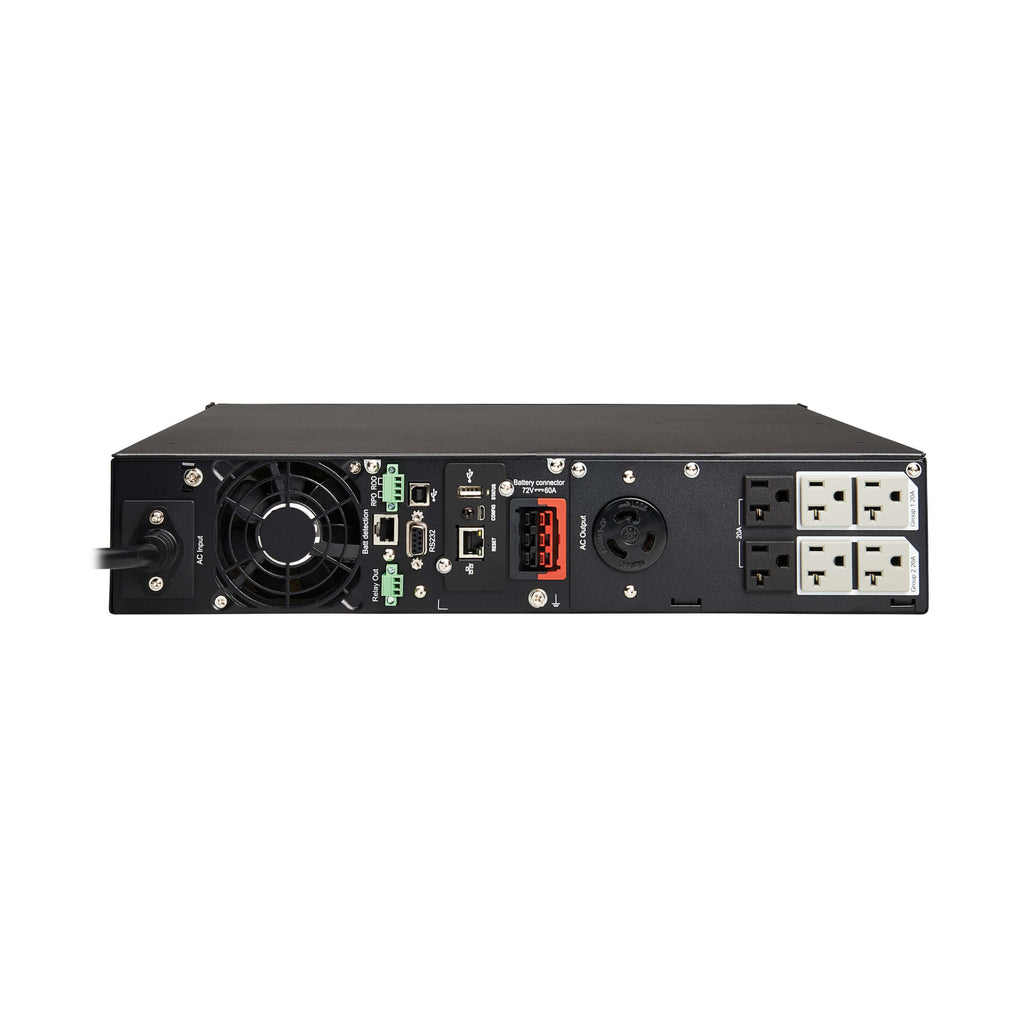

| Outlets | 6 × 5-20R, 1 × L5-20R |
| Waveform | Pure Sine Wave (Line & Battery Mode) |
| Battery Type | Hot-swappable VRLA |
| Runtime (Full/Half Load) | 4 / 12 minutes |
| Expandable Runtime | Yes (up to 4 × BP72VRM2U battery packs) |
| Network Management | Pre-installed WEBCARDLXE |
| LCD Display | 2-line, 10-screen interactive panel |
| Load Management | 2 Switched Load Banks (4 outlets) |
| Surge Protection | 380 Joules / EMI-RFI Noise Filtering |
| Efficiency | 98% in AC mode |
| Certifications | ENERGY STAR 2.0, UL 1778, RoHS, FCC Class A |
| Operating Temp | 0° to 40°C (32° to 104°F) |
| Unit Dimensions (H×W×D) | 3.4 × 17.2 × 23.7 in (86 × 437 × 602 mm) |
| Weight | 65.3 lbs (29.6 kg) |

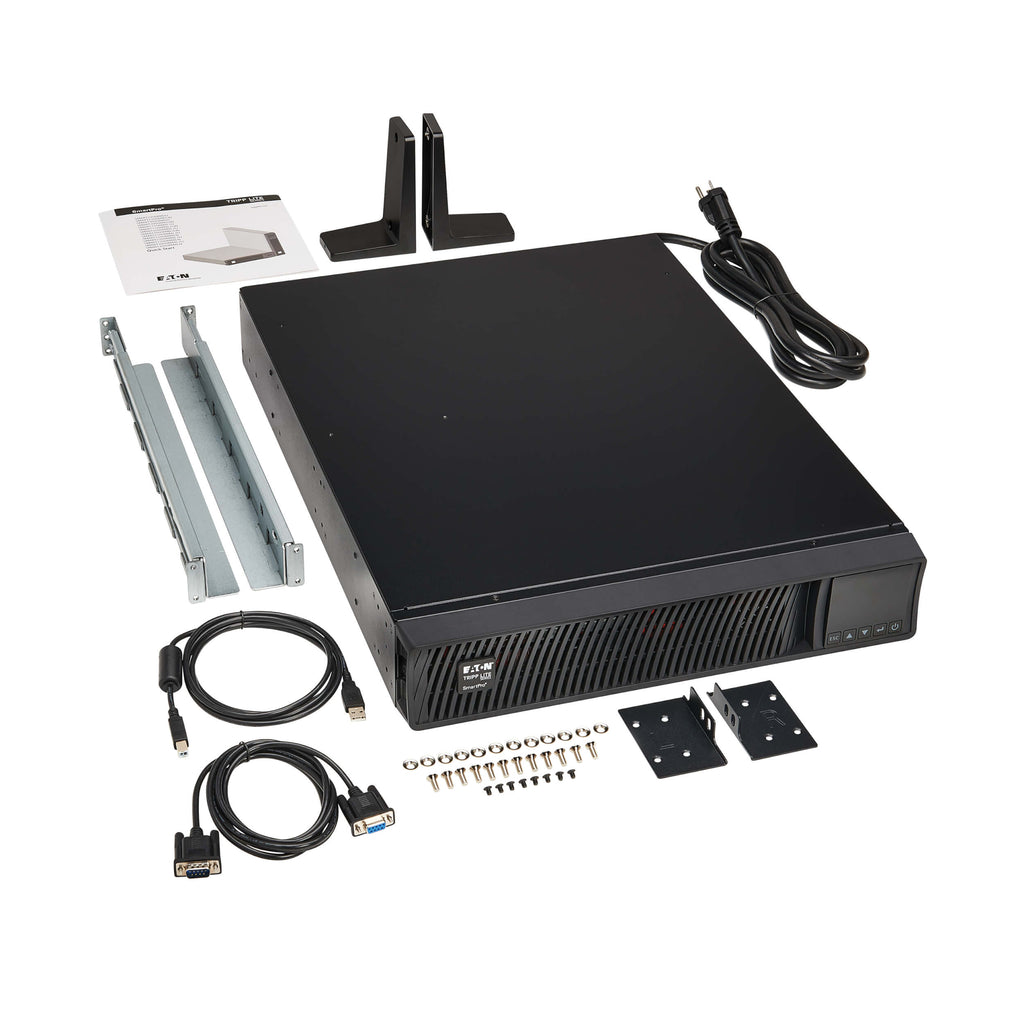

| Included Accessories | USB & DB9 cables, rack hardware, tower stands |
| Warranty | 2 years (3 years with registration) |
| Insurance | $250,000 Connected Equipment Guarantee (US/CA) |
