Description

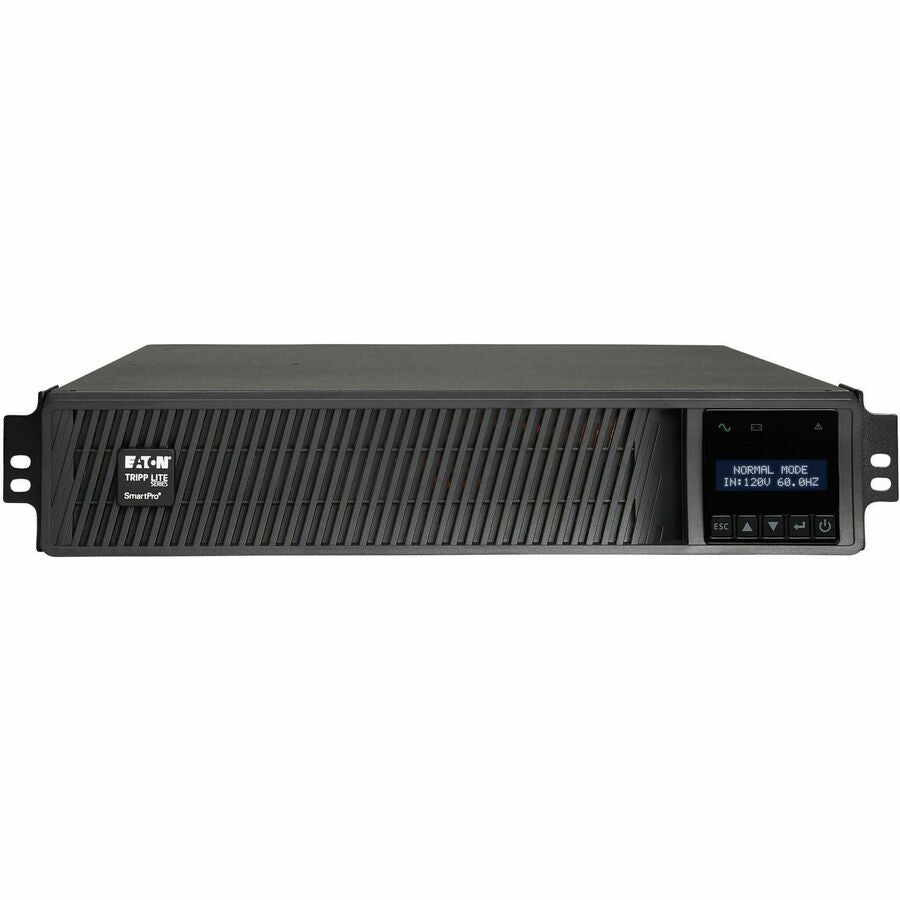

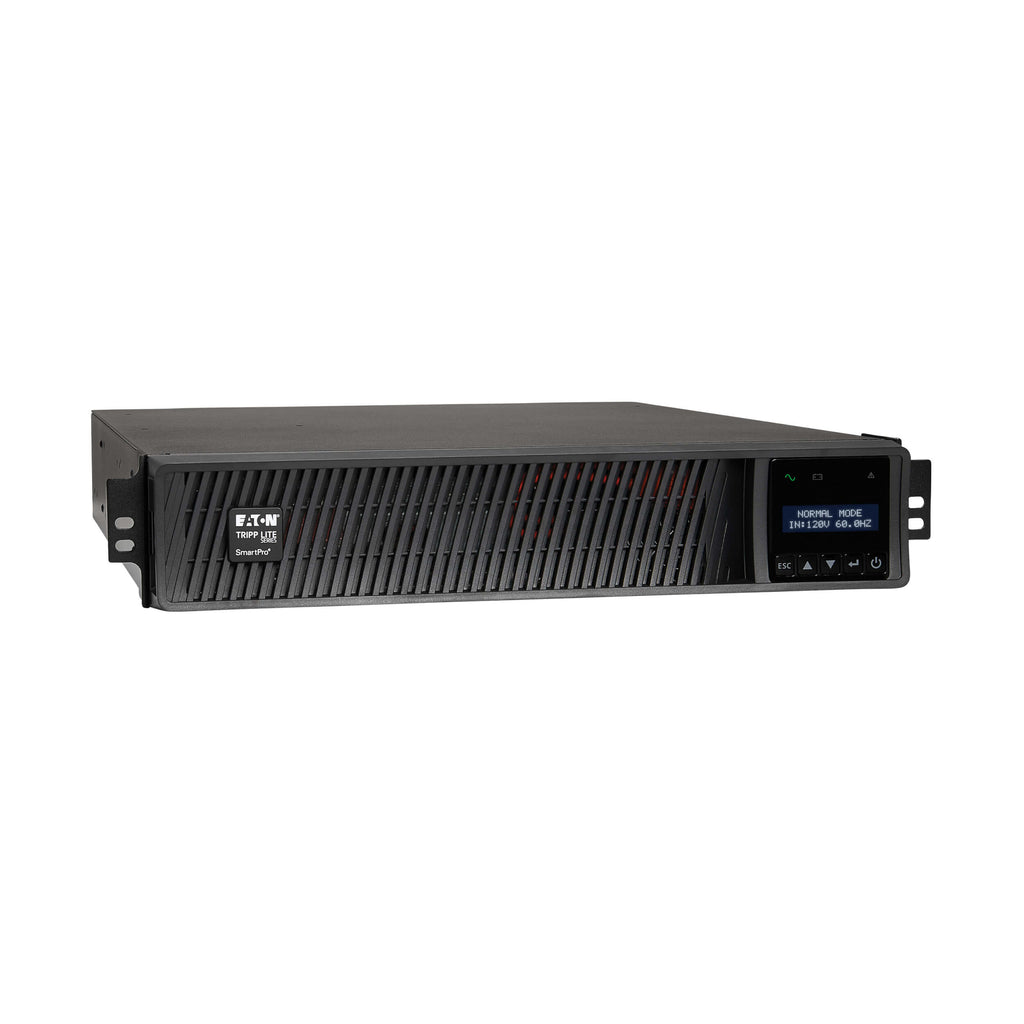

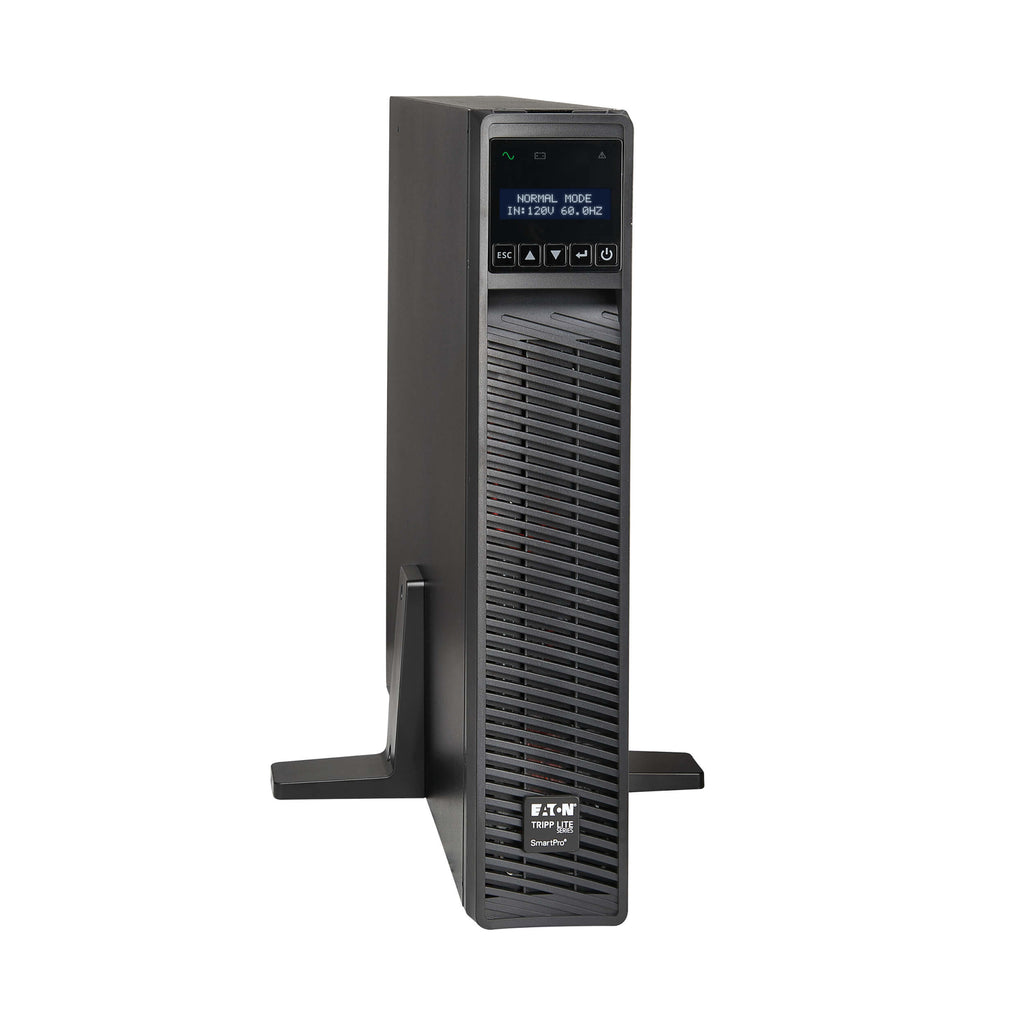

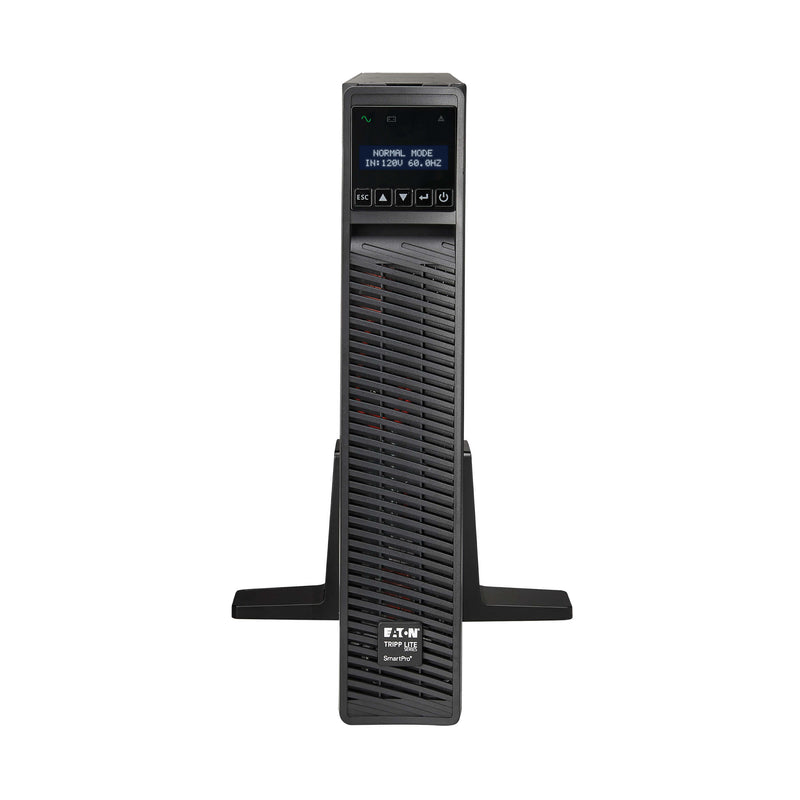

The Eaton Tripp Lite SMART2200RM2U is a high-performance 2U rackmount/tower line-interactive UPS system, delivering reliable backup and sine wave power for critical IT equipment. Designed for enterprise and network environments, it supports up to 1950VA / 1950W power capacity with a true unity power factor.

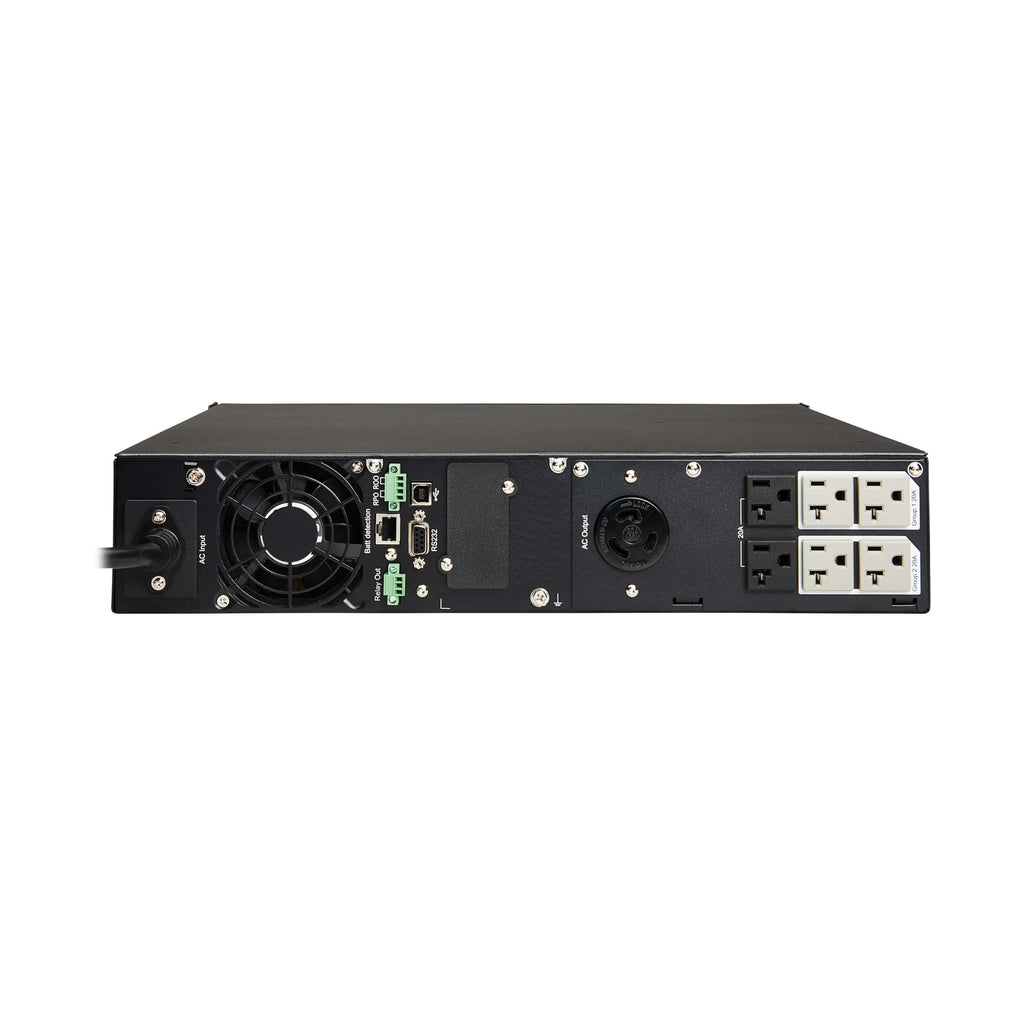

It features 7 NEMA outlets (6×5-20R, 1×L5-20R), hot-swappable internal VRLA batteries, and an intuitive front LCD with 10 monitoring screens. The UPS offers advanced protection against blackouts, brownouts, surges, and EMI/RFI noise, with automatic voltage regulation (AVR) and pure sine wave output in both AC and battery modes.
Optional remote monitoring is available via the WEBCARDLXE (sold separately). ENERGY STAR 2.0 certified, this UPS ensures high efficiency with low operating costs in compact server rooms, network closets, and telecom racks.
| Specification | Details |
|---|---|
| Model Number | SMART2200RM2U |
| UPS Type | Line-Interactive |
| Form Factor | 2U Rackmount or Tower |
| Output Capacity | 1950VA / 1950W (1.0 Power Factor) |
| Output Voltage | 120V nominal (supports 100V–125V) |
| Waveform (AC/Battery Mode) | Pure Sine Wave |
| Output Receptacles | (6) NEMA 5-20R, (1) NEMA L5-20R |
| Load Banks | 2 independently switchable load banks (2x 5-20R each) |
| Input Voltage Range | 80V–151V (adjustable to 70V–153V) |
| Input Plug Type | NEMA 5-20P |
| Input Cord Length | 10 ft (3.1 m) |
| Battery Type | Internal VRLA, hot-swappable |
| Runtime @ Full Load | 4 minutes (1950W) |
| Runtime @ Half Load | 12 minutes (975W) |
| Battery Recharge Time | < 4.5 hours (from 10% to 90%) |
| External Battery Support | Not supported (see SMART2200RMXL2U for expandable runtime) |
| Communication Ports | USB, DB9 Serial, Contact Closure, Dry Contact, ROO/EPO |
| Network Card Slot | Yes (Compatible with WEBCARDLXE only) |
| Display | Rotatable LCD with 10 information screens |
| Certifications | ENERGY STAR 2.0, UL 1778, CSA, FCC Class A, RoHS, NOM |
| Operating Temp | 0°C to 40°C (32°F to 104°F) |
| Unit Dimensions (HWD) | 3.4 × 17.0 × 23.7 in (8.64 × 43.69 × 60.2 cm) |
| Shipping Weight | 78.5 lbs (35.6 kg) |
| Warranty | 2-year standard, 3-year with registration |
