Description

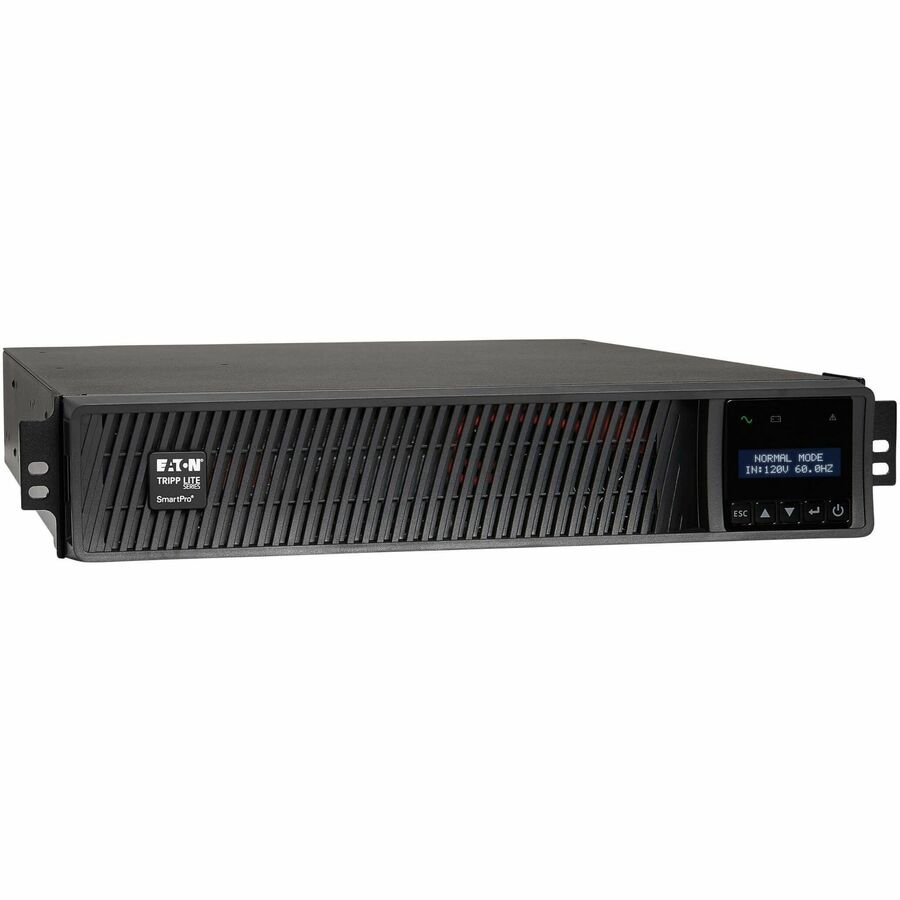

The Eaton Tripp Lite Series SMART2200RXLTAA is a 1950VA/1950W line-interactive sine wave UPS that provides reliable power protection for high-end IT equipment, servers, and telecom systems. Designed for both rackmount (2U) and tower configurations, it features 7 managed outlets (6x 5-20R and 1x L5-20R), automatic voltage regulation (AVR), and pure sine wave output for sensitive devices. Extended runtime support is available via optional battery packs (BP72VRXLTAA), and the unit supports remote management via optional WEBCARDLXE. The UPS includes an intuitive LCD interface and complies with TAA for GSA Schedule purchases, making it ideal for enterprise, government, and critical infrastructure applications.
| Feature | Details |
|---|---|
| Model Number | SMART2200RXLTAA |

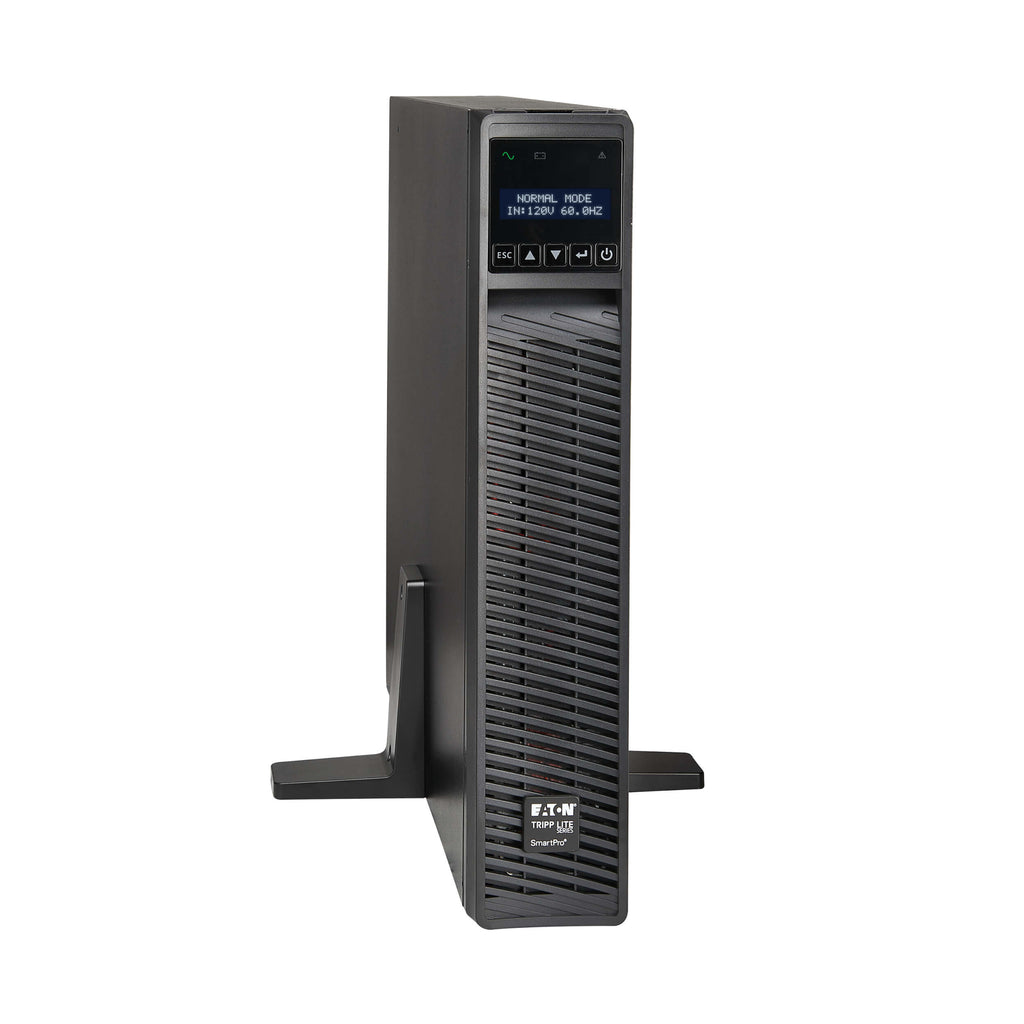

| Form Factor | Rack/Tower (2U) |
| Power Capacity | 1950VA / 1950W |
| Input Voltage | 120V AC (80–151V range with AVR) |

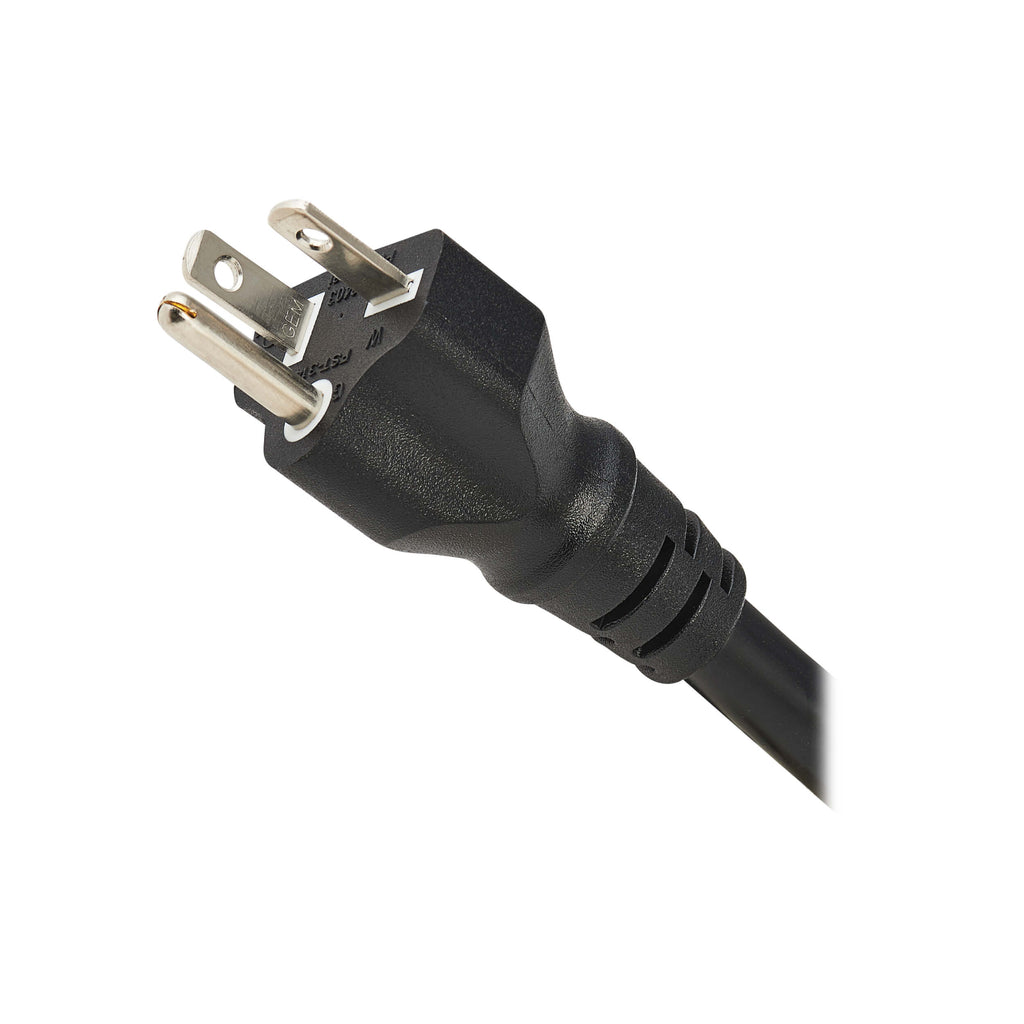

| Input Plug Type | NEMA 5-20P, 10-ft cord |

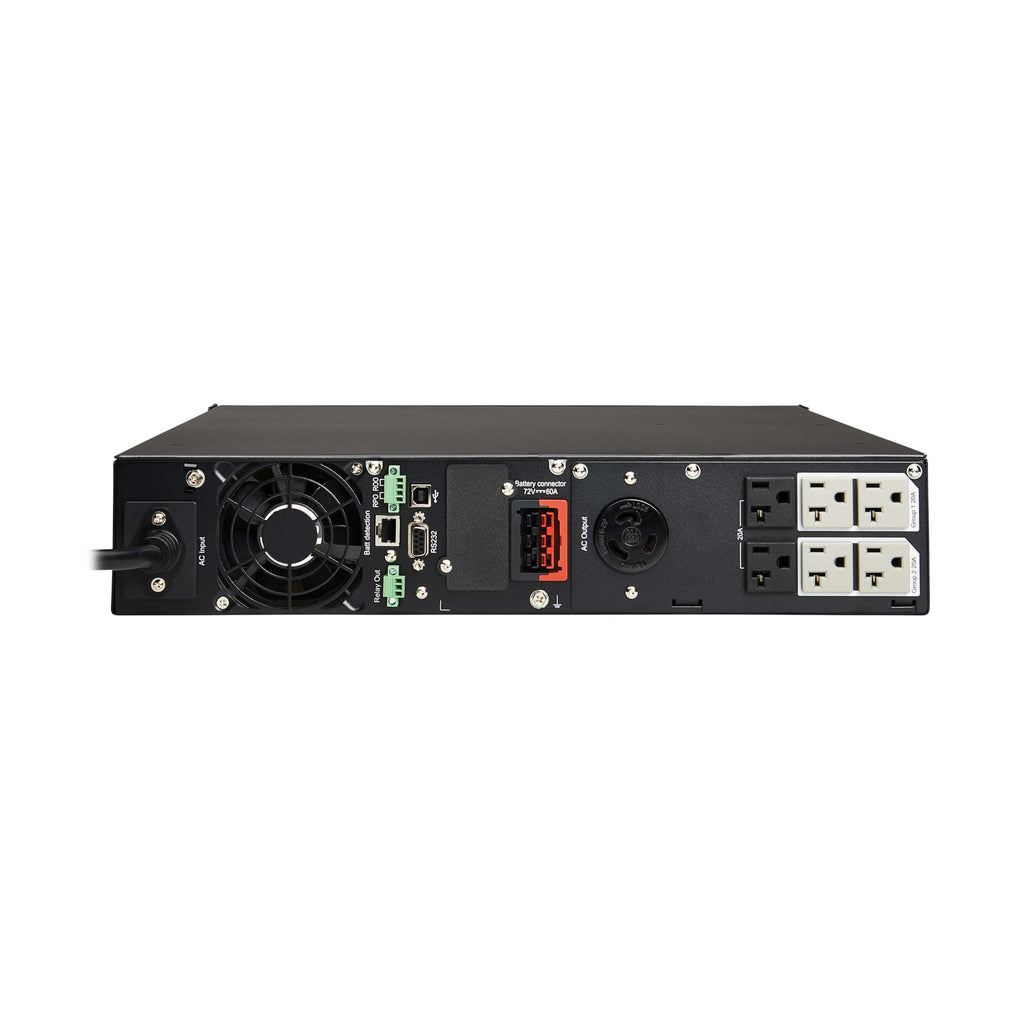

| Output Receptacles | (6) NEMA 5-20R, (1) NEMA L5-20R (2 switched load banks) |
| Waveform Type | Pure Sine Wave |
| Voltage Regulation | AVR (80–151V corrected to 120V) |
| Runtime (Half/Full Load) | 12 min (975W) / 4 min (1950W) |
| Expandable Runtime | Yes, with up to 4x BP72VRXLTAA battery packs |
| Battery Type | VRLA (Hot-swappable, User-replaceable) |
| Recharge Time | < 4.5 hours (10% to 90%) |
| Display | 2-line rotatable LCD, LED indicators |

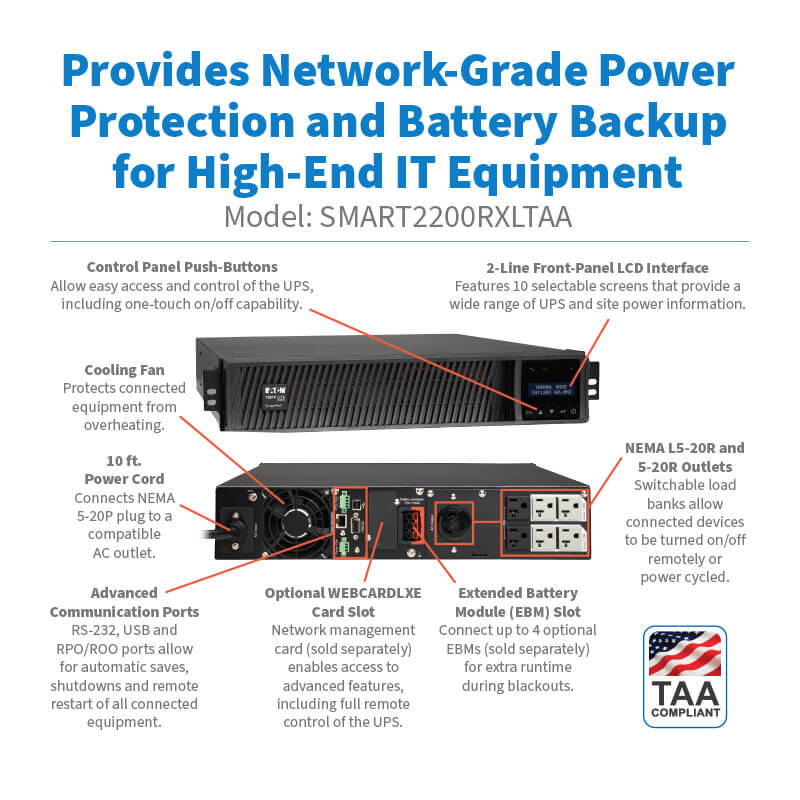

| Communications | USB, DB9 Serial, Contact Closure, ROO/RPO, Slot for optional WEBCARDLXE |
| Certifications | ENERGY STAR, TAA Compliant, RoHS, UL 1778, FCC Class B, CE, CSA |
| Operating Temp | 0°C to 40°C |

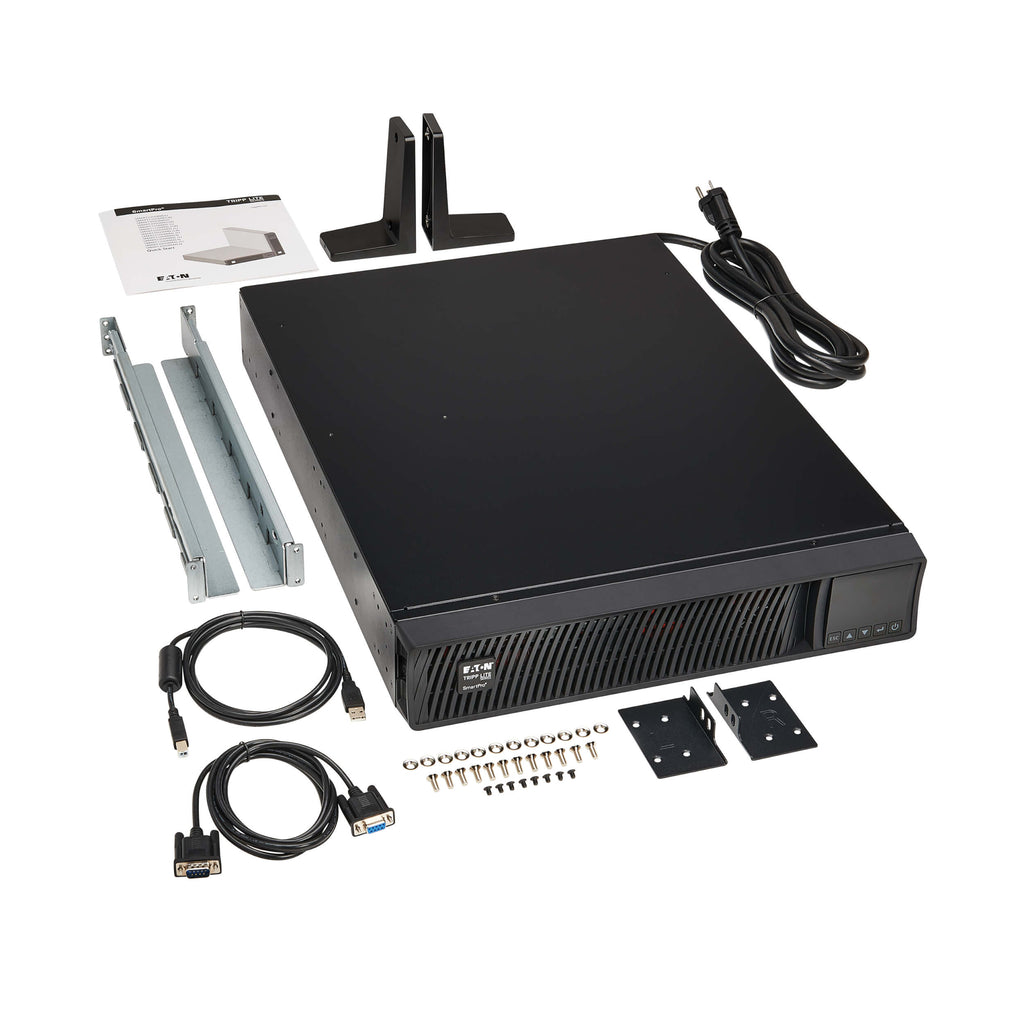

| Mounting Options | 4-post rackmount, tower with included stands |
| Dimensions (H x W x D) | 3.4 x 17.0 x 23.7 in (86 x 437 x 602 mm) |
| Unit Weight | 65.3 lbs (29.62 kg) |
| Warranty | 2 years (3 years with registration), $250,000 connected equipment insurance |
