Description
The Eaton Tripp Lite SMX1200XLHG is a medical-grade, line-interactive tower UPS designed to deliver reliable, isolated power protection in patient-care and clinical environments. With a 1kVA / 750W capacity, this UPS provides dependable battery backup, full electrical isolation, and continuous surge protection for sensitive medical and diagnostic equipment.
Built with an internal isolation transformer and Faraday shield, the SMX1200XLHG reduces common-mode noise while maintaining low leakage current suitable for healthcare use. Line-interactive voltage regulation corrects brownouts and overvoltages without switching to battery, preserving runtime and extending battery life.

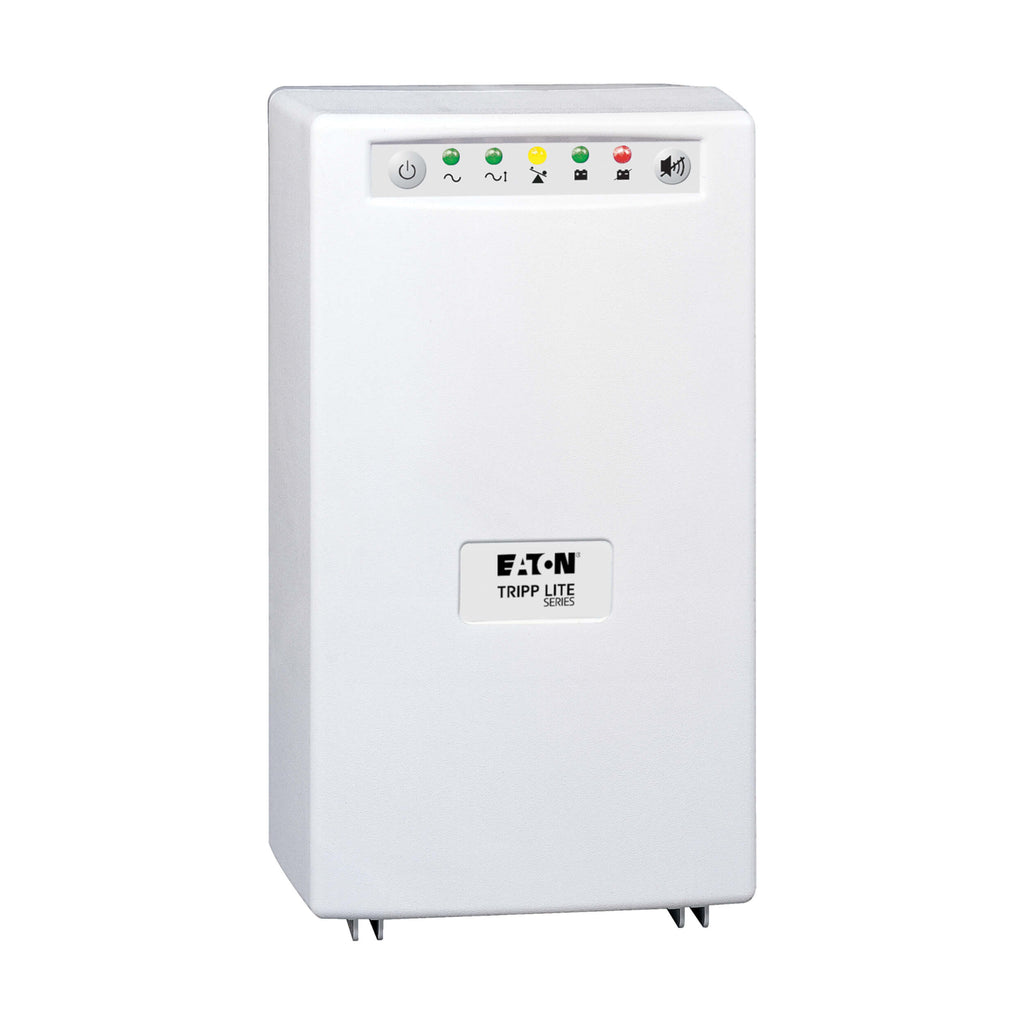

Six hospital-grade IEC C13 outlets provide both backup power and surge suppression, while quiet operation, alarm mute functionality, and diagnostic LEDs make it ideal for use around patients. Expandable runtime support allows connection to external battery packs for extended backup during longer outages, making this UPS a robust solution for hospitals, clinics, and medical labs.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite |
| Model | SMX1200XLHG |
| UPS Type | Line-Interactive, Medical-Grade |
| Capacity | 1kVA / 750W |
| Input Voltage | 230V AC |
| Output Voltage | 230V nominal |
| Frequency | 50 / 60 Hz (auto-select) |
| Voltage Regulation Range | 155V – 274V AC |

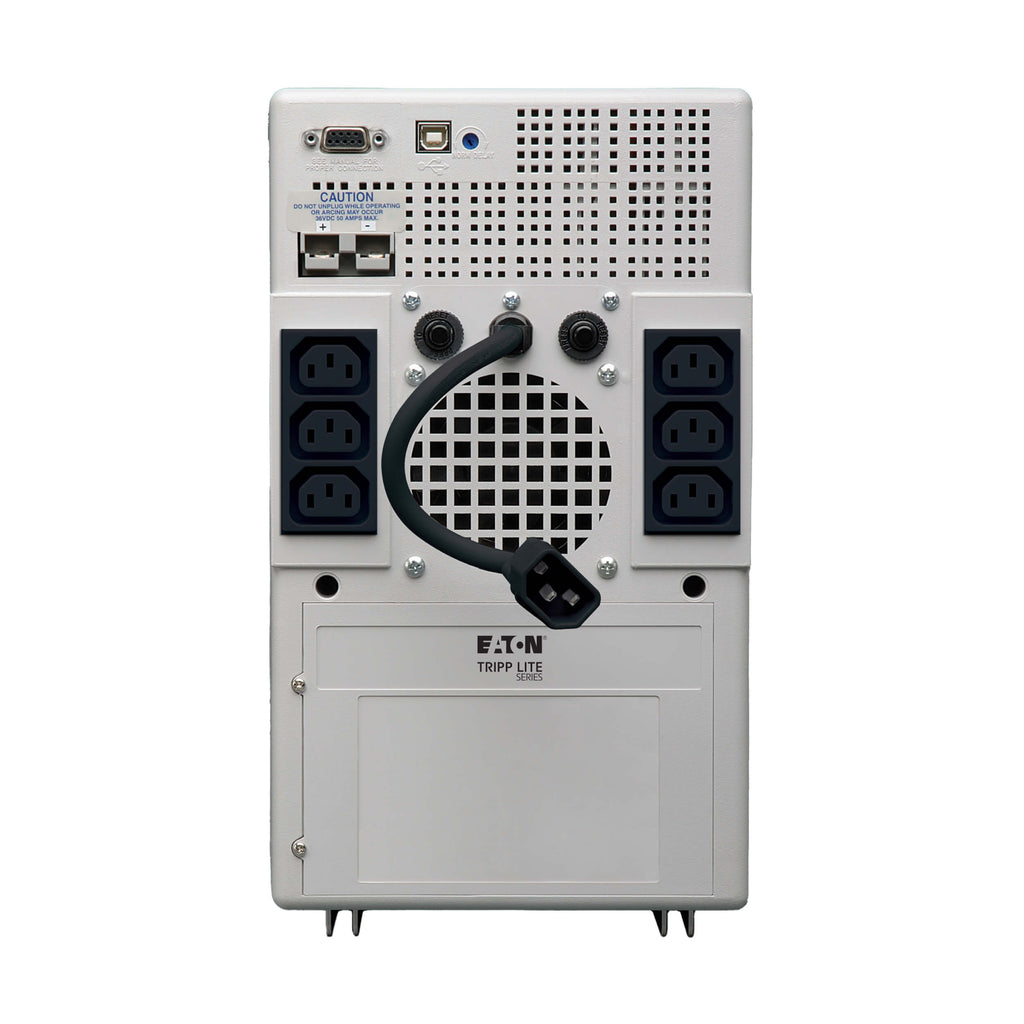

| Output Receptacles | 6 × IEC C13 (hospital-grade) |
| Input Connection | IEC C14 hospital-grade plug |
| Isolation | Built-in isolation transformer with Faraday shield |
| Leakage Current | Less than 100 microamps |
| Surge Protection | 340 joules |
| Runtime (Half Load) | Up to 27.5 minutes |
| Runtime (Full Load) | Up to 11 minutes |
| Battery Type | Valve-Regulated Lead Acid (VRLA) |
| Expandable Runtime | Yes (external battery packs supported) |
| Transfer Time | 2–4 milliseconds |
| Communications | USB, DB9 Serial |
| Indicators | LED status indicators |
| Audible Alarm | Yes, with mute/quiet mode |
| Form Factor | Tower |
| Operating Environment | Medical / Patient-Care Areas |
| Compliance | UL 60601-1, CE, RoHS |
