Description

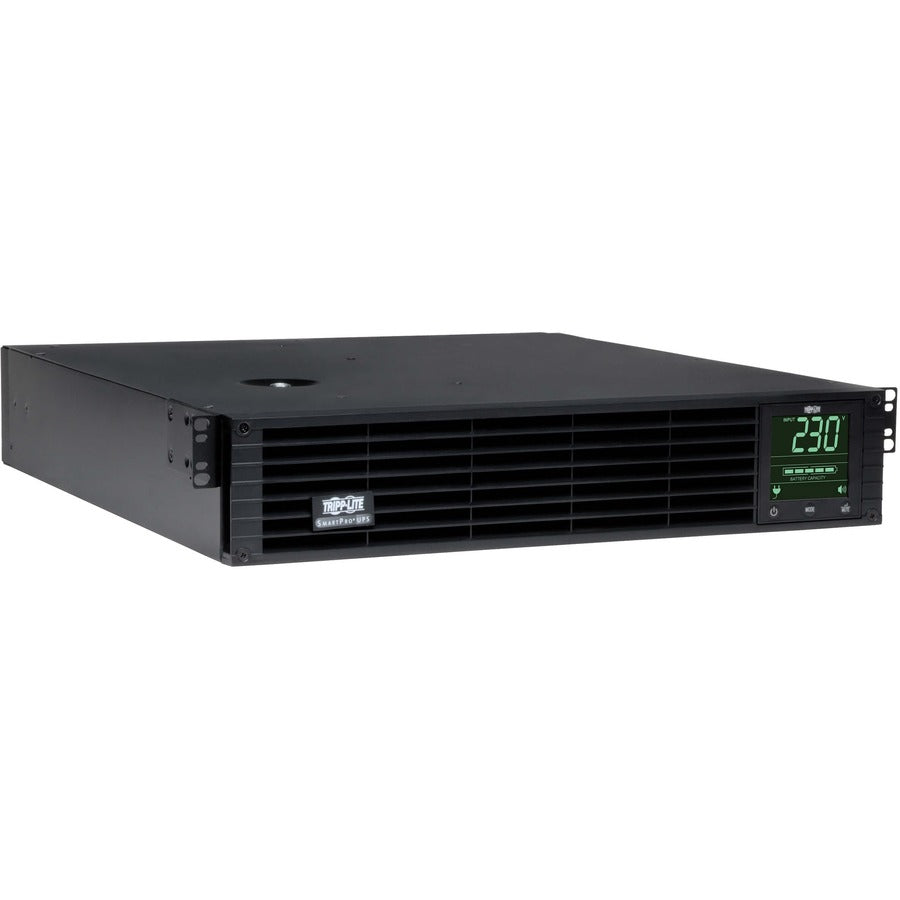

The Eaton Tripp Lite SmartPro SMX2200XLRT2U is a robust 230V 2.2kVA/1.92kW line-interactive sine wave UPS, ideal for protecting mission-critical servers, network hardware, and telecom systems. Housed in a 2U rack/tower convertible form factor, this UPS features advanced Automatic Voltage Regulation (AVR), hot-swappable batteries, two individually switchable load banks, and a rotatable LCD interface for real-time diagnostics and configuration.
With 98% efficiency in line power mode, extended runtime compatibility, and built-in USB/RS232 ports plus an optional network management card slot, it delivers versatile power protection. The SMX2200XLRT2U also includes a rackmount kit, cables, and supports optional battery packs for extended runtimes, making it a scalable and reliable choice for enterprise-grade backup.
| Specification | Details |
|---|---|
| Model Number | SMX2200XLRT2U |
| Type | Line-Interactive UPS |
| Form Factor | 2U Rackmount / Tower |
| Input Voltage | 230V (C20 inlet) |
| Input Frequency | 50/60 Hz (auto selection) |
| Input Current | 10.7A (max) |
| Output Capacity | 2200VA / 1920W (0.87 PF) |
| Output Voltage | 220V / 230V / 240V (Selectable) |

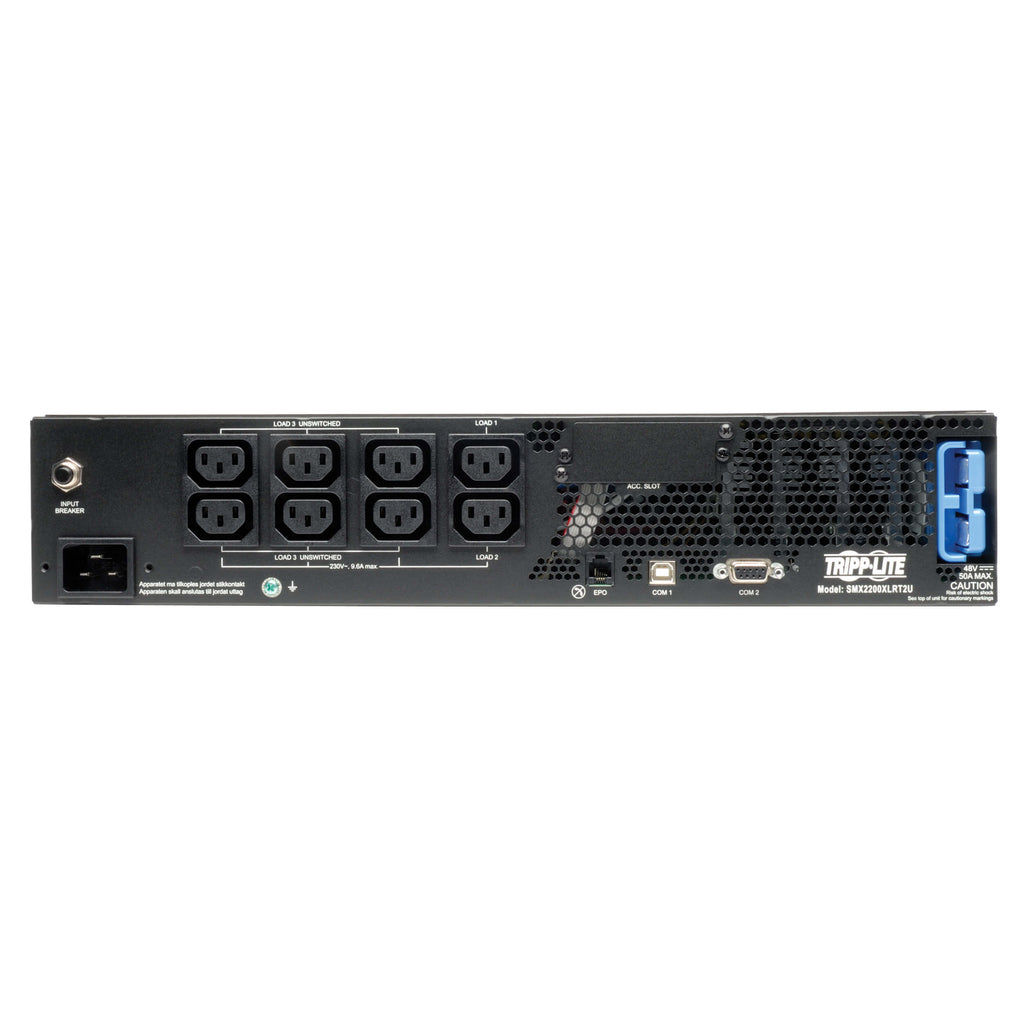

| Outlets | 8 × IEC C13 (2 switchable load banks) |
| AC Waveform | Sine Wave (AC & Battery Mode) |
| Voltage Regulation | Line Mode: -15% to +6%Battery Mode: ±5% |
| Surge Protection | 350 Joules, EMI/RFI suppression |
| Efficiency (Line Mode) | 98% |
| Runtime at Full Load | 5 minutes (1920W) |
| Runtime at Half Load | 11.9 minutes (960W) |
| Extended Battery Options | BP48V24-2U (limit 1), BP48V60RT3U, BP48V27-2US (no limit) |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| Battery Replacement | Hot-swappable, User-replaceable (RBC94-2U) |

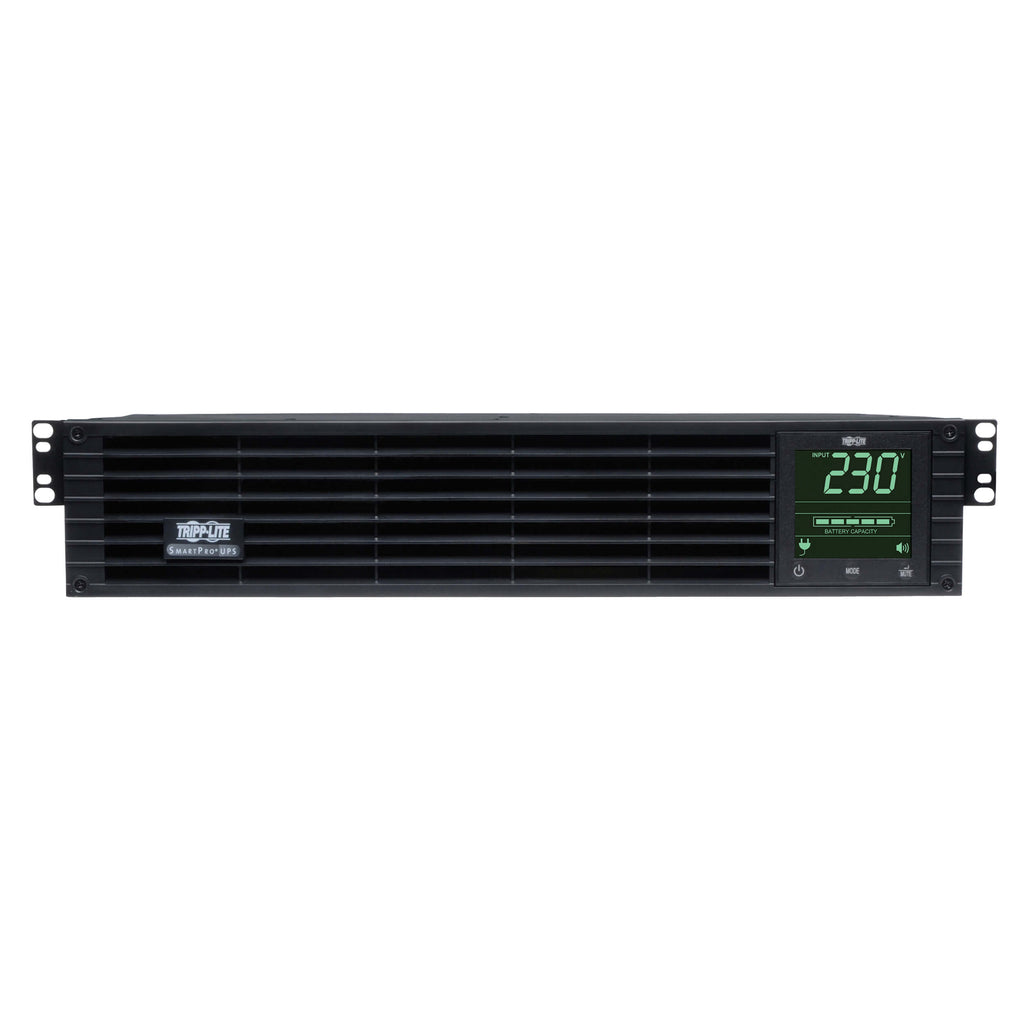

| Display | Rotatable LCD with operating data and config options |
| Interfaces | USB (HID), RS-232, EPO, Optional SNMP/Web Card Slot |
| Network Card Support | TLNETCARD, WEBCARDLX, RELAYIOCARD |
| Cold Start | Yes |

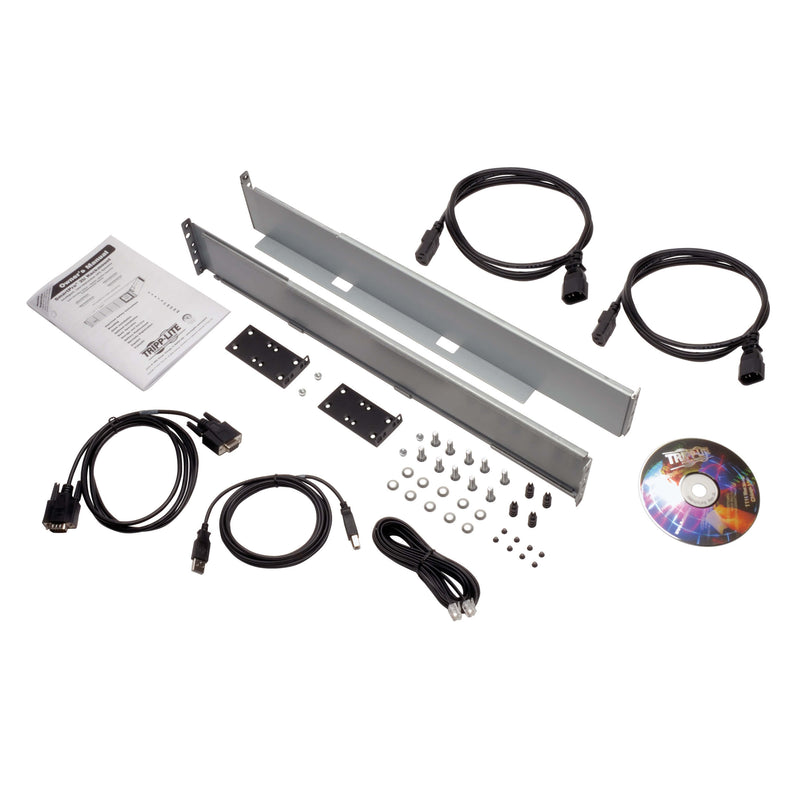

| Mounting Hardware Included | 4-Post Rackmount Kit |
| Optional Mounting | Tower (2-9USTAND), 2-Post (2POSTRMKITWM), Wall Mount |
| Dimensions (H × W × D) | 3.5 × 17.5 × 19.5 in (89 × 445 × 495 mm) |
| Weight | 68.75 lbs (31.18 kg) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 0–95% (non-condensing) |
| Certifications | RoHS, CE, GOST |
| Warranty | 2-Year Limited Warranty |
