Description

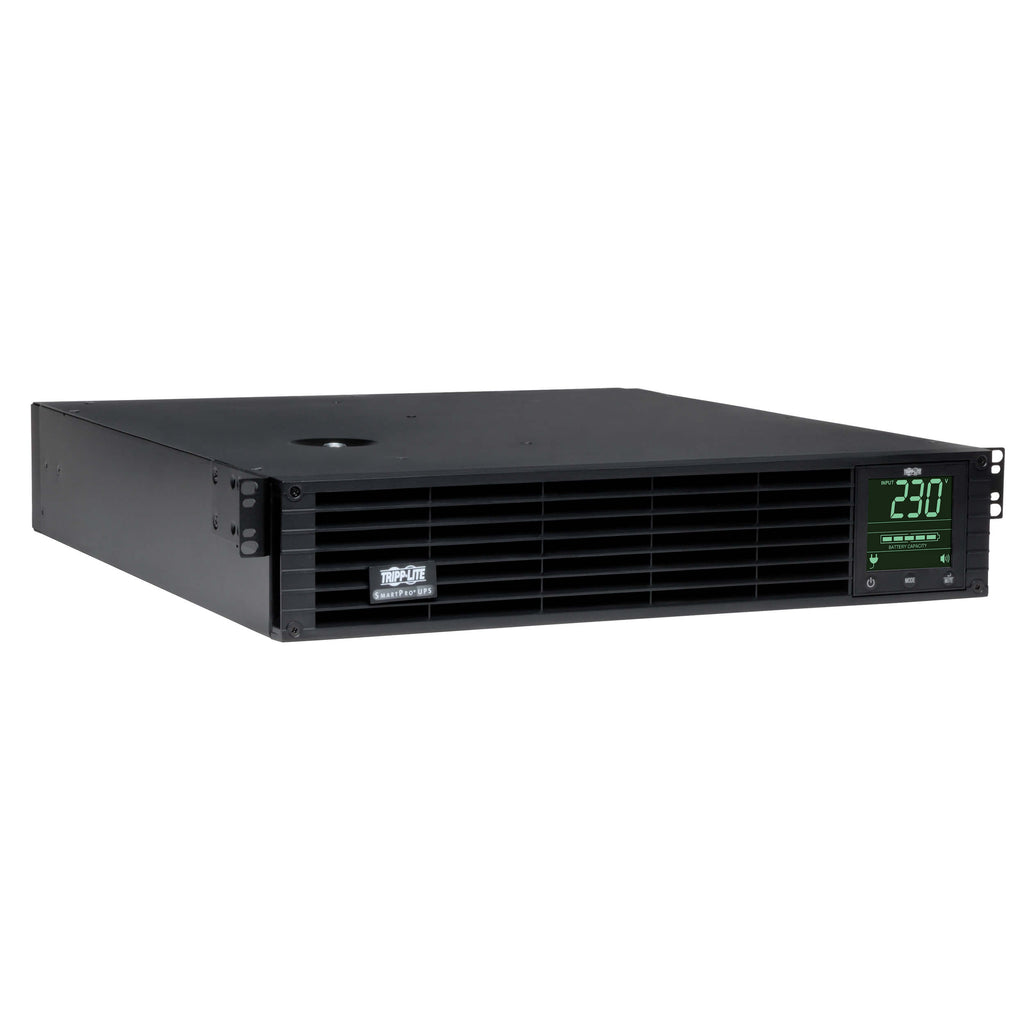

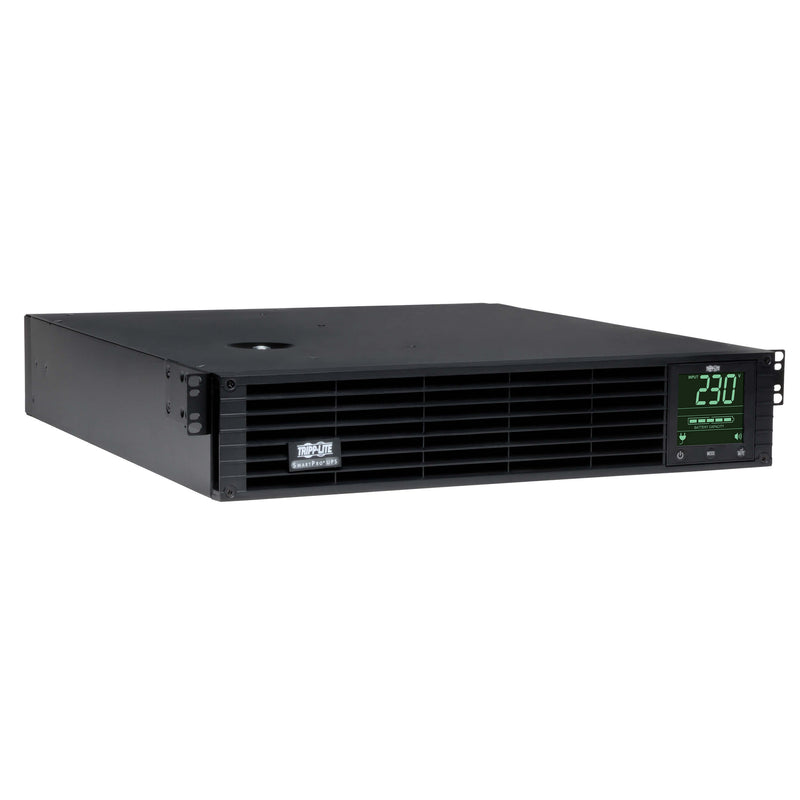

The Eaton SmartPro SMX2200XLRT2UN is a high-performance line-interactive UPS designed to protect mission-critical equipment such as small network servers, security systems, digital signage, and retail or hospitality IT setups. Delivering 2200VA/1920W of reliable battery backup power, it safeguards against blackouts, brownouts, surges, and line noise while ensuring continuous 230V nominal output.
Featuring Automatic Voltage Regulation (AVR), the UPS maintains optimal performance through voltage fluctuations without using battery power. The pre-installed WEBCARDLX network card enables 24/7 remote monitoring and control with advanced PowerAlert Device Manager (PADM20) software. Its easy-to-read LCD display, 8 IEC C13 outlets, and hot-swappable batteries ensure maximum uptime, flexibility, and ease of maintenance.
Ideal for rackmount or tower configurations, the SMX2200XLRT2UN also supports expandable runtime with compatible external battery packs (e.g., BP48V27-2US). Designed for efficiency with a 98% efficiency rating, this UPS minimizes energy costs while providing dependable, intelligent power management for professional environments.
| Category | Details |
|---|---|
| Brand | Eaton |
| Product Line | SmartPro Series |
| Model Number | SMX2200XLRT2UN |
| UPS Type | Line-Interactive |
| Form Factor | Rackmount / Tower (2U) |
| Capacity | 2200VA / 1920W |
| Power Factor | 0.9 |
| Nominal Output Voltage | 230V AC |
| Output Frequency | 50/60 Hz (auto select) |

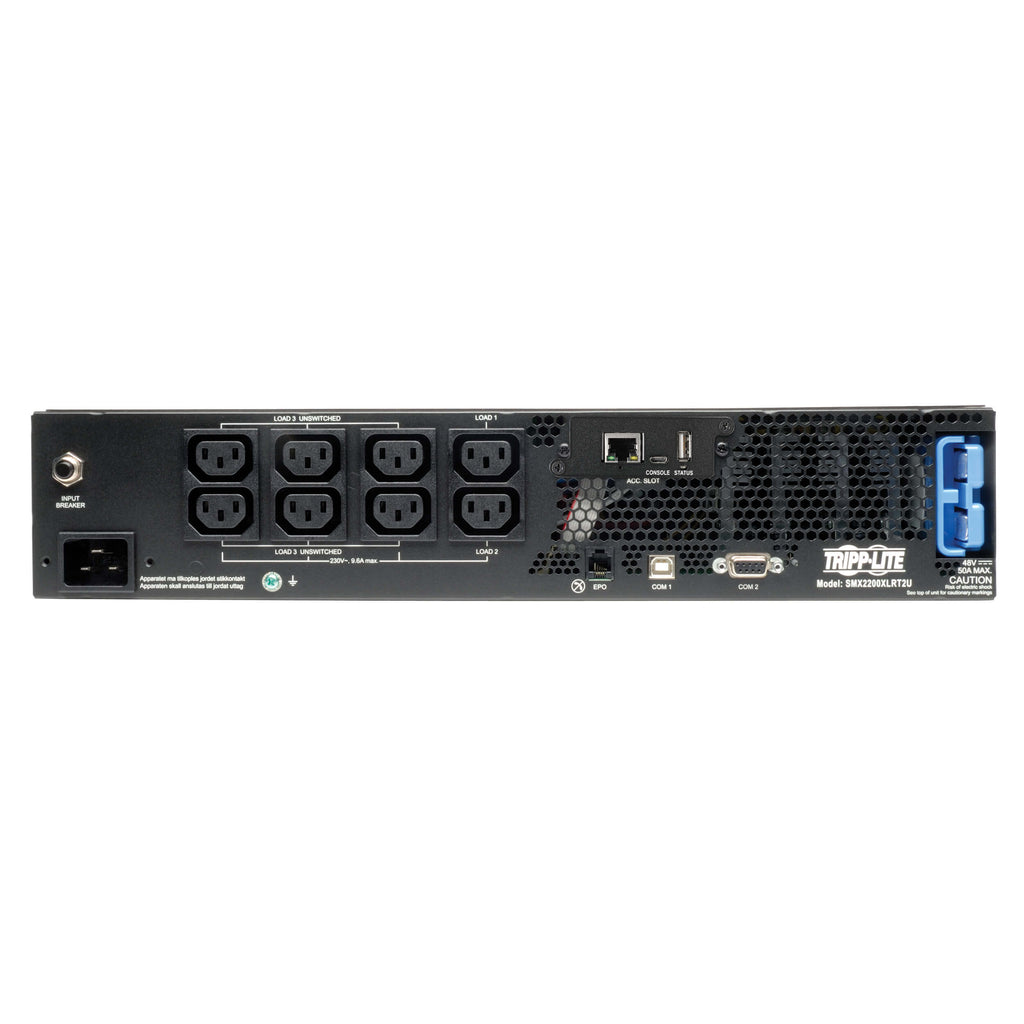

| Output Receptacles | 8 × IEC 60320 C13 (2 switchable load banks) |
| Output Waveform | Pure Sine Wave |
| Input Connection | IEC 60320 C20 inlet |
| Input Voltage Range | 158V – 278V AC (AVR range) |
| Voltage Regulation | ±5% (battery mode) |
| Battery Type | Valve-Regulated Lead Acid (VRLA), hot-swappable |
| Runtime (Half / Full Load) | 11.9 min @ 960W / 5 min @ 1920W |
| Recharge Time | <4.5 hours (10%–90%) |
| Expandable Runtime | Yes, with external battery packs (e.g., BP48V27-2US) |
| Network Management | Built-in WEBCARDLX (PADM20 firmware) |
| Communication Ports | USB, DB9, EPO, SNMP/Web |
| Surge Protection | 350 Joules |
| Efficiency | 98% (at full load) |

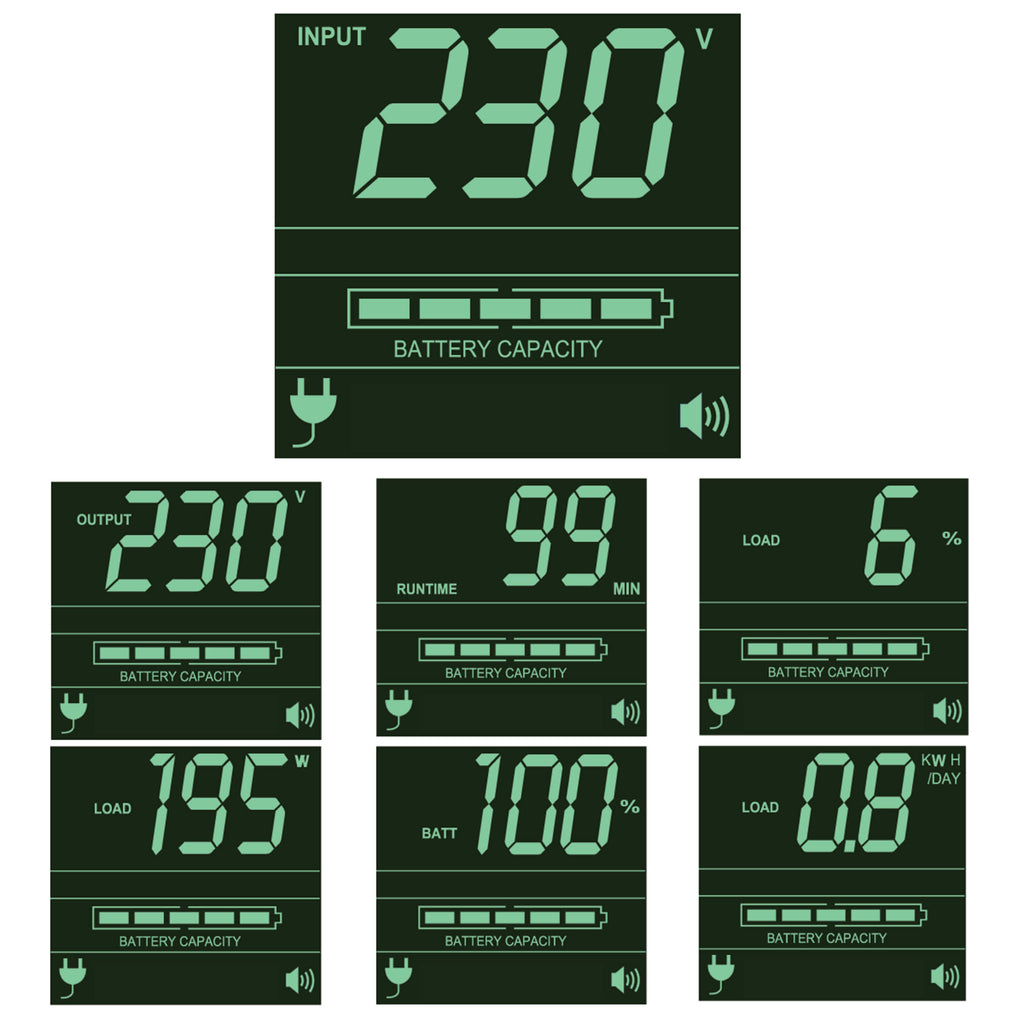

| LCD Display | Front-panel LCD for real-time status and configuration |
| Cooling | Fan-cooled |
| Rack Height | 2U |
| Dimensions (W × D × H) | 445 × 495 × 89 mm |
| Weight | 31.18 kg |
| Operating Temperature | 0°C – 40°C |
| Noise Level | 45 dBA max |
| Certifications | CE, RoHS, GOST |
| Warranty | 2-year limited warranty |
