Description
Protect your mission-critical IT infrastructure with the Eaton Tripp Lite SmartPro SMART3000RMXLN UPS. Delivering 3000VA / 3000W of reliable sine wave output power, this ENERGY STAR® 2.0 certified line-interactive UPS ensures uninterrupted performance for servers, VoIP systems, switches, and storage devices. With unity power factor support, 7 outlets (including L5-30R and 5-20R), and two load banks, it provides precise control over power distribution.
This 2U rack/tower convertible UPS includes a WEBCARDLXE network card for 24/7 remote monitoring, advanced automatic voltage regulation (AVR) to correct brownouts and surges, and a hot-swappable battery with optional extended runtime via external battery packs (BP72VRM2U).
Designed for versatility and manageability, the SMART3000RMXLN also offers USB, DB9, and dry contact ports, as well as an intuitive LCD interface for local monitoring.
| Specification | Details |
|---|---|
| Model | SMART3000RMXLN |
| Form Factor | 2U Rack/Tower Convertible |
| UPS Type | Line-Interactive Sine Wave |
| Input Voltage | 120V AC (80V–151V range, adjustable to 70–153V) |
| Input Plug Type | NEMA L5-30P, 10 ft (3.1 m) cord |
| Output Capacity | 3000VA / 3000W (Unity Power Factor) |
| Output Voltage | 100V / 110V / 120V / 125V |
| Outlets | (6) 5-20R, (1) L5-30R |
| Load Banks | (2) Individually Controllable (5-20R) |
| Output Waveform | Pure Sine Wave (AC & Battery Mode) |
| Runtime @ Full Load | 3 minutes (3000W) |
| Runtime @ Half Load | 9 minutes (1500W) |
| Expandable Runtime | Yes, supports up to 4 × BP72VRM2U |
| Battery Type | VRLA, Hot-swappable |
| Recharge Time | <5 hours (10–90%) |
| Voltage Regulation | AVR (81V–150V), Brownout/Surge Correction |
| Network Management | WEBCARDLXE Pre-installed, SNMP v1/v2c/v3 compatible |
| LCD Interface | 2-line LCD with 10 screens & LED indicators |

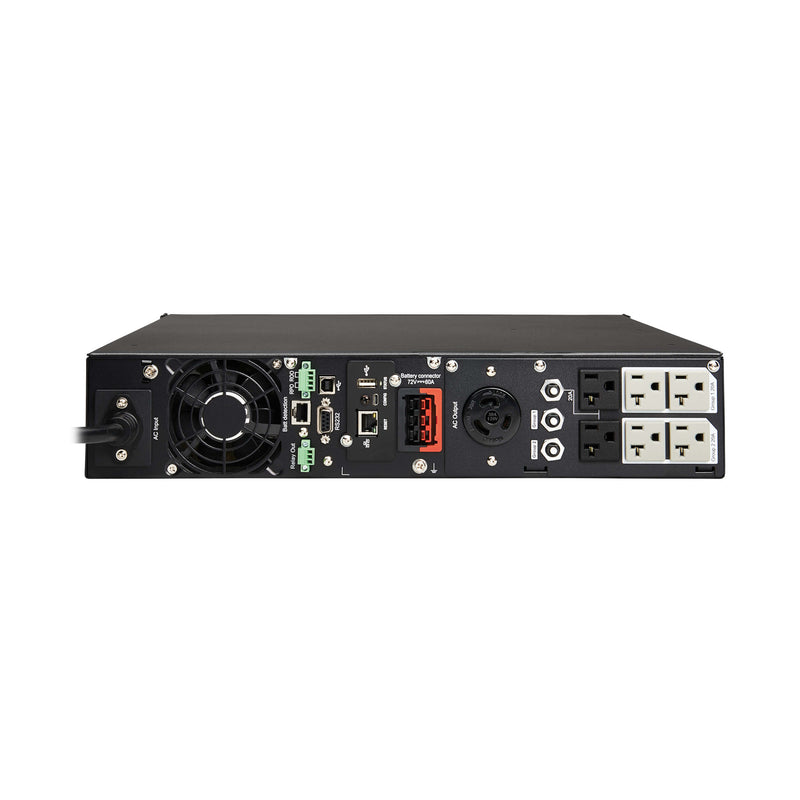

| Communication Ports | USB, DB9, Micro-USB, RJ45, Dry Contact, EPO/ROO |
| EMI/RFI Filtering | Yes |
| Surge Protection (Joules) | 380 |
| Efficiency | 96% (AC Mode) |
| Operating Temp | 0°C to 40°C (32°F to 104°F) |
| Dimensions (H × W × D) | 3.4 × 17.2 × 23.7 in (86 × 437 × 602 mm) |
| Weight | 87.7 lbs (39.8 kg) |
| Certifications | UL 1778, CSA, FCC Class A, RoHS |
| Warranty | 2 Years (3 Years with Registration) |
